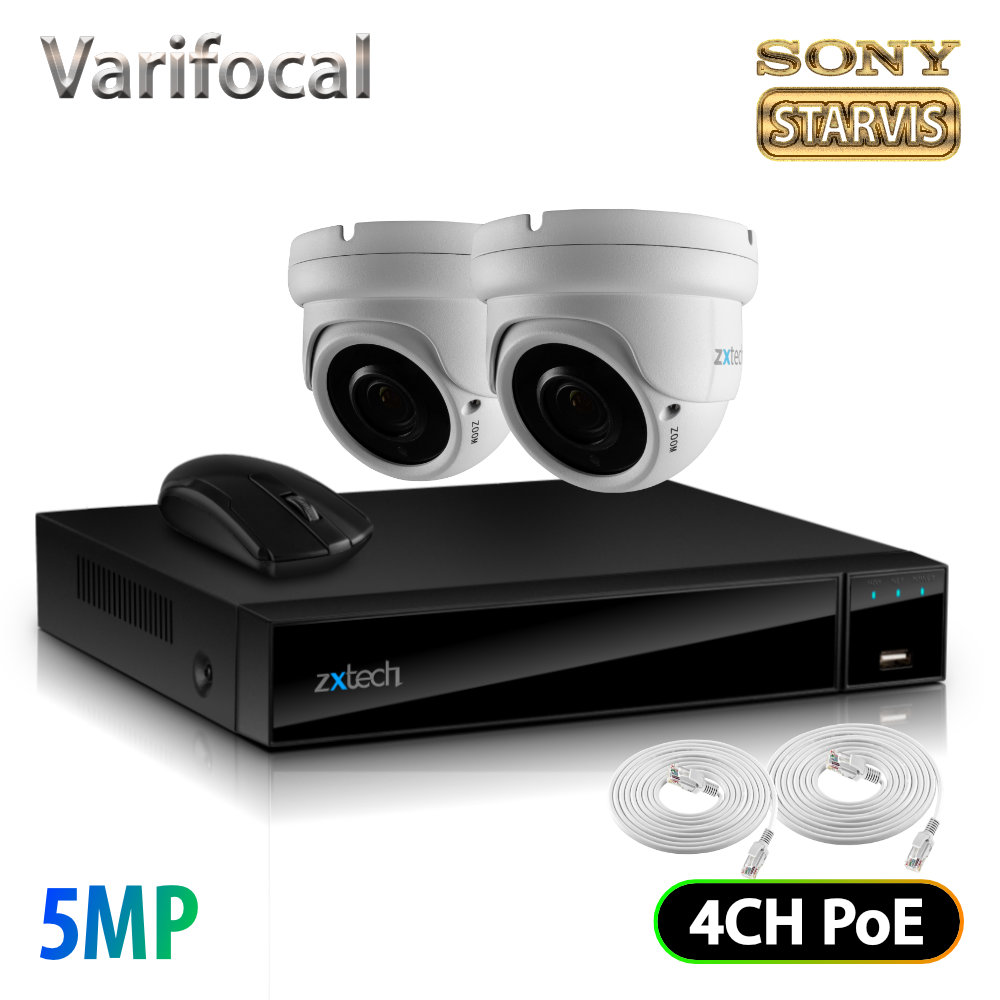

Zxtech 2 x 5MP Varifocal Audio Sony Chip PoE CCTV Camera System 4CH

£166.02
In stock
SKU
FP2A4X
Zxtech 2 x 5MP Varifocal Audio Sony Chip PoE CCTV Camera System 4CH comes with integrated Sony Starvis 5MP Chip. Internal PoE transmits data and power at the same time. This newly designed camera has a varifocal lens, giving you a narrow or wide-angle perfect for outdoor or indoor.

Product Overview

Zxtech 5MP PoE IP CCTV Kit is a new 5MP range. The system comes with CCTV NVR with built-in PoE ports switch. The interface is modern, elegant and easy for use. The camera included has a varifocal lens, audio connection and reset button. Integrated Sony Starvis Chip 5 Megapixel sensor provides crystal clear images and the Built-in IR LEDs provides long night vision. All cameras are IP66 rated making them completely waterproof. The camera is a universal one that can be used indoor or outdoor. Also, support remote viewing and mobile notification alert.

System Feature

  • Amazing 5 Megapixel resolution (2592*1944)
  • Sony Starvis Back-illuminated CMOS Sensor
  • Superb night vision with LED IR
  • PoE built-in connection
  • Audio connection and reset button
  • 2.8- 12 mm varifocal lens
  • H265+ compression
  • Remote access with free mobile app
  • Waterproof and vandal-proof for outdoor and indoor purpose
  • IR Cut, WDR, BLC, ROI, Defog
  • Motion detection and mobile notification alert

What's in the Box

  • 2 x Zxtech Atlas Varifocal White CCTV Camera
  • 1 x 4CH Onyx NVR
  • 1 x 10M cable, 1 x 20M cable and 1 x 2M Cable
  • Optional HDD and Monitor

System Feature

  • Amazing 5 Megapixel resolution (2592*1944)
  • Sony Starvis Back-illuminated CMOS Sensor
  • Superb night vision with LED IR
  • PoE built-in connection
  • Audio connection and reset button
  • 2.8- 12 mm varifocal lens
  • H265+ compression
  • Remote access with free mobile app
  • Waterproof and vandal-proof for outdoor and indoor purpose
  • IR Cut, WDR, BLC, ROI, Defog
  • Motion detection and mobile notification alert

Modern Elegant Design

Zxtech is involved in every part of the product development. From blueprint, 2D conception, 3D rendering and mould creation. We make sure our badge is printed on a product which we are proud to sell and proud to show our friend and family. We want our product not only be beautiful but also functional, flexible and future-proof

Do It Yourself. Easy setup and installation

Installation has never been so easy and will cost less money. You need to fit the camera on the wall and connect only one Ethernet cable to the back of the recorder. Save the labour work, learn something new and enjoy your 5MP CCTV Security system

Built-in PoE switch integrated into the recorder

This inbuilt PoE CCTV NVR has a modern, clean design and in the same time is powerful and reliable. New compact and elegant design, capable of extensive recording configuration such as motion detection, masking, scheduling, PTZ management, hard drive management, USB backup. Zxtech recorders has recorded many crucial pieces of evidence that helped many victims in the UK identifying the criminal

5 Megapixel. Beautiful design

5MP resolution is now landed on CCTV. Meet your minimum requirement with our new range, elegant design and long-lasting quality products. Zxtech creates this special 5MP edition kits, suitable for home or business. The recorder has power over Ethernet built-in switch and makes it desirable for many people

Compact. Long Lasting

Compact design with integrated PoE switch, saving time setting up your cameras because it just needs a single cable to connect. Both data and power travel through the Ethernet cable from your camera to your recorder. No extra power cable and power adaptor is needed. One camera, one cable

New era in CCTV. Purity and Power

5MP CCTV Camera System finally worth the investment. This system has better purity than 1080p or 700TVL cameras. The kit offers real 5MP IP quality because of the integrated 5MP Sony Starvis Chip inside

2.5x Sharper than 1080p Full HD

Zxtech knows that human face and license plate recognition requires high resolution and a very good angle to capture them. With our 5MP PoE IP CCTV Cameras your chance to get what you need is very big

Focal Length

Focal Length measured in millimetres gives you the field of view from narrow to wide-angle. This camera will let you adjust the focal length, angle of view and zoom in and out. Every fixed lens camera has a standard viewing angle. With this one, you can be more flexible. Our Zxtech 5MP PoE IP CCTV Camera can do a tremendously good job and we can assure you in that

SONY STARVIS Chipset

Equipped with Sony 5MP Sensor the camera produces more than 5 million pixels. Extreme performance and 5MP Super HD Quality

Extendable for Audio

Connecting an external microphone to the camera can allow audio recording. Supports audio so you can connect a microphone and record sound

Mobile Scan & Connect Instantly

By a simple step, you can watch footage on all smart devices you have got, such as iPhone, iPad, Android phones,  tablets, PC, laptops, computers. Want to remotely watch your system while you are away, Zxtech can do that. Simply download Bitvision mobile app on your smartphone,m scan the QR code from your recorder or camera and you will be connected. Everything you need in 3 easy steps

PoE IP CCTV System

Power over Ethernet a.k.a PoE. One cable is enough, transmit data and power over Ethernet cat5 cable. Hassle free and quick setup

Much less bandwidth, much higher performance

H.265+ High- Efficiency Video Coding. Lower the cost of hard drive storage and transmission

Motion Detection, Alerts, Schedule and Masking as standard

Utilise the extremely flexible scheduling preference. Tell the NVR what time of the day, or which day of the week to record, sleep, alert. No, unnecessary alerting during the time you are there, no unnecessary recording when you do not need it. Alternatively, you can just turn it on 24/7

Put a schedule on, leave space out

Blank out part of the scene that is not important to you. Get a mobile notification when it detects motion in your scene

Advanced Software

Viewing, Replay, Control, Alert and Intelligent Settings. Updated software for more convenience and easy to use

Multilingual firmware

Understanding different languages is very important, we Zxtech invested with a system that can do multilingual support with more than 20 different languages

Sony 5MP Sensor PoE Varifocal Optical Zoom Dome

Long range night vision with up to 100 feet IR. This camera has varifocal 2.8-12mm lens so you can capture both wide-angle or close-in views. The camera is super flexible. You can point to any direction when you fix it on the wall or ceiling, no matter vertically or horizontally. Enhance your camera with 180-degree flexibility of viewing angle. Several things influence choosing CCTV camera, including sensor chip, lens type, wide range dynamic, resolution, smart feature like motion detection or email alert. This camera has built-in Sony Starvis Sensor chip, with Varifocal 2.8-12mm lenses, support wide dynamic range and has 5MP high definition resolutions, support motion sensor and mobile push notification alert

Tech Specs

Zxtech Atlas Varifocal PoE IP Camera

  • Image Sensor: 1/2.8'' SONY Starvis Back-illuminated CMOS Sensor
  • Resolution: 5MP
  • Effective Pixels: 2616(H)*1964(V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
  • TV System: PAL/NTSC
  • Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec.; NTSC 1/25-1/10000Sec.
  • Minimum Illumination: 0.01Lux
  • S/N Ratio: >52dB

Lens & Night Vision

  • Scanning System: Progressive
  • Video Output: Network
  • Reset Button: Yes
  • Focus Length: 2.8-12mm
  • Focus Control: Manual
  • Lens Type: Manual
  • Pixels: 4M
  • Infrared LED: 14µ x 24pcs
  • Infrared Distance: 30m
  • IR Status: Auto Control
  • IR Power On: Auto Control

Network

  • Ethernet: RJ-45 (10/100Base-T)
  • Protocol: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
  • ONVIF: Support ONVIF 2.4
  • P2P: Yes, support QR Code
  • PoE: Yes, support IEEE 802.3af
  • Video Delay: 0.3S (Within the Lan)
  • Main Stream 1: 2592*1944@20fps; 2560*1440@20fps
  • Main Stream 2: 2560*1440@25fps
  • Main Stream 3: 1920*1080@30fps; 1280*720@30fps
  • Sub Stream 1: 720*480@15fps; 720*480@30fps
  • Tri stream: 352*288@15fps; 352*288@30fps
  • IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), MAC Safari (lower than version 12)
  • Smart Phone: iPhone, iPad, Android, Android Pad
  • Day/Night: Colour/ B&W (IR-CUT)

Image Config

  • Image Config: Saturation/Brightness/Contrast/Sharpness, Mirror, 3DNR, White Balance, FLK (Flicker Control), Video Tampering
  • Corridor Pattern: Support
  • Defog Mode: Support
  • ROI: Support
  • BLC: Support
  • WDR: DWDR: 50dB
  • Motion Detection: Support
  • Privacy Masking: 3 Rectangular Zone
  • Recording Mode: NVR/ NAS/ CMS/ Web

General

  • Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands
  • Audio: Support
  • Housing: IP66
  • Anti-cut Bracket: No
  • IR Cut Filter: Yes
  • Power Source: DC12V, 950mA
  • Dimension: 119 x 98(H) mm
  • Weight: 800g

Recorder Specs

System

  • Main Processor: ARM Cortex A7 Processor
  • Operating System: Embedded LINUX
  • Video Input: 9CH (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)
  • Video Output: 1 VGA, 1 HD
  • Audio Output: 1 Port 3.5mm(Linear)
  • Audio Compression standard: G711u, G711a, ADPCM_DVI4
  • Sensor Input: NO
  • Output: NO
  • Motion Detection: 9 Channel, MD Zones: 396 (22 x 18)
  • Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm output

Display

  • HD Output1: Resolution: 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • VGA Resolution:1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • Display Split: 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
  • Digital Zoom: YES
  • OSD Camera: Title, Time, Recording, Motion Detection
  • Video Compression: H265/H264/H265+/H264+
  • Resolution: 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1(720x576/720x480)
  • Record Rate PAL: 5MP@9x25fp, 4MP@9x25fp, 3MP@9x25fp, 1080P@9x25fp, 960P@9x25fp, 720P@9x25fp, D1@9x25fp NTSC: 5MP@9x30fp, 4MP@9x30fp, 3MP@9x30fp, 1080P@9x30fp, 960P@9x30fp, 720P@9x30fp, D1@9x30fp
  • Record Mode: Manual/Timer/Motion Detection

Playback & Backup

  • Local Sync Playback: 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
  • Decode Capability: 4CH 1080P@20fps
  • Remote Sync Playback: YES
  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
  • Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom

Network

  • Interface: 9 x RJ45 10M/100M Adaptive Ethernet Interface
  • Incoming Bandwidth: 60MB
  • POE: 4 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output more than 50W, Support Plug and Play
  • Interface Type: 1 SATA Interface
  • Capacity: Up to 8TB capacity
  • Dimension(WxDxH): 260x215x43(mm)
More Information
BrandZxtech
SKUFP2A4X
ConditionBrand New
CCTV Product TypeKit
Max Recorder Channel4 Channel
Power SourcePoE
HDD Slot1 SATA
Max HDD Capacity8TB
Night Vision30M
Recording Resolution5 Megapixel
System TypeIP
Cameras Included2
