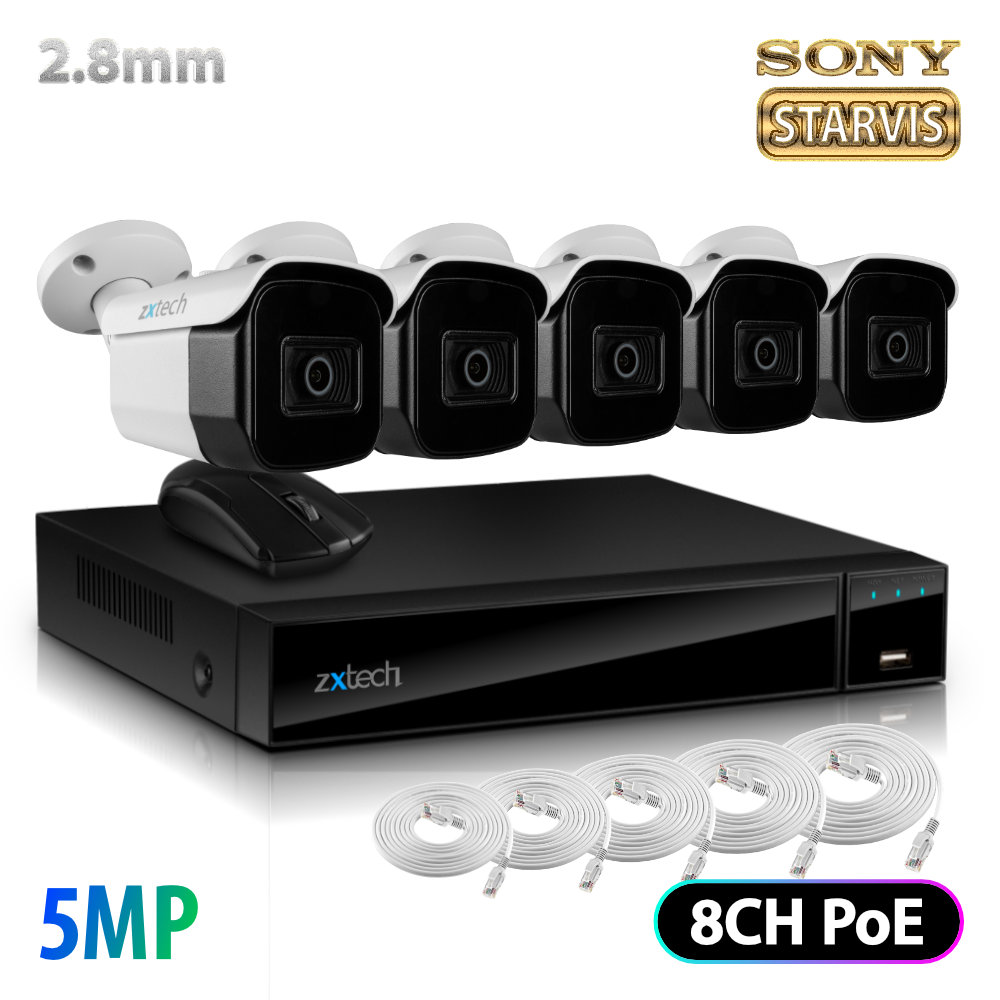

Zxtech 5 x 5MP Audio Wide Angle SD Card Slot Sony Chip Camera PoE Security Camera System 8CH

£319.22
In stock
SKU
FP5E8Y
Zxtech 5 x 5MP Audio Wide Angle SD Card Slot Sony Chip Camera PoE Security Camera System 8CH comes with BabyBullet compact camera with super wide-angle, audio extendable and support SD card Slot. It makes the system suitable for home or offices, restaurants, warehouses and public spaces.

Product Overview

We are proud to introduce new shape with completely improved 5MP Sony Chip our Zxtech BabyBullet IP PoE CCTV Camera. Coming with built-in PoE CCTV NVR saving you time and money. This kit is complete PoE system, single cable connection your camera and recorder. The NVR supports H.265+ and allows 4x higher resolution. The camera has a metal housing making it completely weatherproof. The system supports motion detection and mobile notification alerts. Connecting a separate microphone will enable audio recording.

System Feature

  • Amazing 5 Megapixel resolution (2592*1944)
  • Sony Starvis Back-illuminated CMOS Sensor
  • Superb night vision with LED IR
  • PoE built-in connection
  • Internal SD Card slot & Audio connection
  • 2.8 super wide angle lens
  • H265+ compression
  • Remote access with free mobile app
  • Waterproof and vandal-proof for outdoor and indoor purpose
  • IR Cut, WDR, BLC, ROI, Defog
  • Motion detection and mobile notification alert

What's in the Box

  • 5 x Zxtech BabyBullet CCTV Camera
  • 1 x 8CH Onyx NVR
  • 3 x 10M cable, 2 x 20M cable and 1 x 2M Cable
  • Optional HDD and Monitor

System Feature

  • Amazing 5 Megapixel resolution (2592*1944)
  • Sony Starvis Back-illuminated CMOS Sensor
  • Superb night vision with LED IR
  • PoE built-in connection
  • Internal SD Card slot & Audio connection
  • 2.8 super wide angle lens
  • H265+ compression
  • Remote access with free mobile app
  • Waterproof and vandal-proof for outdoor and indoor purpose
  • IR Cut, WDR, BLC, ROI, Defog
  • Motion detection and mobile notification alert

Modern Elegant Design

Zxtech is involved in every part of the product development. From blueprint, 2D conception, 3D rendering and mould creation. We make sure our badge is printed on a product which we are proud to sell and proud to show our friend and family. We want our product not only be beautiful but also functional, flexible and future-proof

Do It Yourself. Easy setup and installation

Installation has never been so easy and will cost less money. You need to fit the camera on the wall and connect only one Ethernet cable to the back of the recorder. Save the labour work, learn something new and enjoy your 5MP CCTV Security system

Built-in PoE switch integrated into the recorder

This inbuilt PoE CCTV NVR has a modern, clean design and in the same time is powerful and reliable. New compact and elegant design, capable of extensive recording configuration such as motion detection, masking, scheduling, PTZ management, hard drive management, USB backup. Zxtech recorders has recorded many crucial pieces of evidence that helped many victims in the UK identifying the criminal

5 Megapixel. Beautiful design

5MP resolution is now landed on CCTV. Meet your minimum requirement with our new range, elegant design and long-lasting quality products. Zxtech creates this special 5MP edition kits, suitable for home or business. The recorder has power over Ethernet built-in switch and makes it desirable for many people

Compact. Long Lasting

Compact design with integrated PoE switch, saving time setting up your cameras because it just needs a single cable to connect. Both data and power travel through the Ethernet cable from your camera to your recorder. No extra power cable and power adaptor is needed. One camera, one cable

New era in CCTV. Purity and Power

5MP CCTV Camera System finally worth the investment. This system has better purity than 1080p or 700TVL cameras. The kit offers real 5MP IP quality because of the integrated 5MP Sony Starvis Chip inside

2.5x Sharper than 1080p Full HD

Zxtech knows that human face and license plate recognition requires high resolution and a very good angle to capture them. With our 5MP PoE IP CCTV Cameras your chance to get what you need is very big

SONY STARVIS Chipset

Equipped with Sony 5MP Sensor the camera produces more than 5 million pixels. Extreme performance and 5MP Super HD Quality

SD Card Slot Embedded

You can enable in-camera recording to backup your footages.Using an SD card helps you backup the footage and keep them offline for even better security

Extendable for Audio

Connecting an external microphone to the camera can allow audio recording. Supports audio so you can connect a microphone and record sound

Mobile Scan & Connect Instantly

By a simple step, you can watch footage on all smart devices you have got, such as iPhone, iPad, Android phones,  tablets, PC, laptops, computers. Want to remotely watch your system while you are away, Zxtech can do that. Simply download Bitvision mobile app on your smartphone,m scan the QR code from your recorder or camera and you will be connected. Everything you need in 3 easy steps

PoE IP CCTV System

Power over Ethernet a.k.a PoE. One cable is enough, transmit data and power over Ethernet cat5 cable. Hassle free and quick setup

Much less bandwidth, much higher performance

H.265+ High- Efficiency Video Coding. Lower the cost of hard drive storage and transmission

Motion Detection, Alerts, Schedule and Masking as standard

Utilise the extremely flexible scheduling preference. Tell the NVR what time of the day, or which day of the week to record, sleep, alert. No, unnecessary alerting during the time you are there, no unnecessary recording when you do not need it. Alternatively, you can just turn it on 24/7

Put a schedule on, leave space out

Blank out part of the scene that is not important to you. Get a mobile notification when it detects motion in your scene

Advanced Software

Viewing, Replay, Control, Alert and Intelligent Settings. Updated software for more convenience and easy to use

Multilingual firmware

Understanding different languages is very important, we Zxtech invested with a system that can do multilingual support with more than 20 different languages

PoE Sony 5MP Image Sensor

The camera comes with built-in LED light bulbs that enhances its night vision up to 25 metres. Gives you IR vision during complete darkness. The camera supports wide dynamic range and wide-angle 2.8mm lens. The integrated Sony Chip gives you quality assurance and boosted 5MP high definition resolution. Zxtech BabyBullet is suitable for indoor or outdoor space and it is ideal for home or business.

Tech Specs

Zxtech BabyBullet PoE IP Camera

  • Image Sensor: 1/2.8'' SONY Starvis Back-illuminated CMOS Sensor
  • Resolution: 5MP
  • Effective Pixels: 2616(H)*1964(V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
  • TV System: PAL/NTSC
  • Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec.; NTSC 1/25-1/10000Sec.
  • Minimum Illumination: 0.01Lux
  • S/N Ratio: >52dB

Lens & Night Vision

  • Scanning System: Progressive
  • Video Output: Network
  • Reset Button: Yes
  • Focus Length: Board Lens 2.8mm
  • Focus Control: Fixed
  • Lens Type: Fixed
  • Pixels: 4M
  • Infrared LED: 42µ x 2pcs
  • Infrared Distance: 25m
  • IR Status: Auto Control
  • IR Power On: Auto Control
  • Network

    • Ethernet: RJ-45 (10/100Base-T)
    • Protocol: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
    • ONVIF: Support ONVIF 2.4
    • P2P: Yes, support QR Code
    • PoE: Yes, support IEEE 802.3af
    • Video Delay: 0.3S (Within the Lan)
    • Main Stream 1: 2592*1944@20fps; 2560*1440@20fps
    • Main Stream 2: 2560*1440@25fps
    • Main Stream 3: 1920*1080@30fps; 1280*720@30fps
    • Sub Stream 1: 720*480@15fps; 720*480@30fps
    • Tri stream: 352*288@15fps; 352*288@30fps
    • IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), MAC Safari (lower than version 12)
    • Smart Phone: iPhone, iPad, Android, Android Pad
    • Day/Night: Colour/ B&W (IR-CUT)

    General

    • Image Config: Saturation/Brightness/Contrast/Sharpness, Mirror, 3DNR, White Balance, FLK (Flicker Control), Video Tampering
    • Corridor Pattern: Support
    • Defog Mode: Support
    • ROI: Support
    • BLC: Support
    • WDR: DWDR: 50dB
    • Motion Detection: Support
    • Privacy Masking: 3 Rectangular Zone
    • Recording Mode: NVR/ NAS/ CMS/ Web
    • Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands
    • Audio: Support
    • SD Card Slot: Support Max 128GB
    • Housing: IP66
    • Anti-cut Bracket: No
    • IR Cut Filter: Yes
    • Power Source: DC12V, 700mA
    • Dimension: 170(W) x 75(H) x 77(D) mm
    • Weight: 800g

    Recorder Specs

    System

    • Main Processor: ARM Cortex A7 Processor
    • Operating System: Embedded LINUX
    • Video Input: 9CH (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)
    • Video Output: 1 VGA, 1 HD
    • Audio Output: 1 Port RCA(Linear)
    • Audio Compression standard: G711u, G711a, ADPCM_DVI4
    • Sensor Input: NO
    • Output: NO
    • Motion Detection: 9 Channel, MD Zones: 396 (22x18)
    • Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

    Display

    • HD Output1: Resolution: 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    • VGA Resolution:1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    • Display Split: 9CHxD1/ 8CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP
    • Digital Zoom: YES
    • OSD Camera: Title, Time, Recording, Motion Detection
    • Video Compression: H265/H264/H265+/H264+
    • Resolution: 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)
    • Record Rate PAL: 5MP@9x25fp, 4MP@9x25fp, 3MP@9x25fp, 1080P@9x25fp, 960P@9x25fp, 720P@9x25fp, D1@9x25fp NTSC: 5MP@9x30fp, 4MP@9x30fp, 3MP@9x30fp, 1080P@9x30fp, 960P@9x30fpl, 720P@9x30fp, D1@9x30fp
    • Record Mode: Manual/ Timer/ Motion Detection

    Playback & Backup

    • Local Sync Playback: 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
    • Decode Capability: 4CH 1080P@20fps
    • Remote Sync Playback: YES
    • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
    • Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom

    Network

    • Interface: 9x RJ45 10M/100M Adaptive Ethernet Interface
    • Incoming Bandwidth: 60MB
    • POE: 8x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output more than 100W, Support Plug and Play
    • Interface Type: 1 SATA Interface
    • Capacity: Up to 8TB capacity
    • Dimension(WxDxH): 260x215x43(mm)
    More Information
    BrandZxtech
    SKUFP5E8Y
    ConditionBrand New
    CCTV Product TypeKit
    Max Recorder Channel8 Channel
    Power SourcePoE
    HDD Slot1 SATA
    Max HDD Capacity8TB
    Night Vision25M
    Recording Resolution5 Megapixel
    System TypeIP
    Cameras Included5
