Zxtech 5 x 5MP Compact Size Audio SD Card Slot Sony Chip PoE CCTV Kit Complete CCTV System

£297.01
In stock
SKU
FP5C8Y
Zxtech 5 x 5MP Compact Size Audio SD Card Slot Sony Chip PoE CCTV Kit Complete CCTV System comes with compact size indoor or outdoor, waterproof and vandal-proof CCTV camera. Ultra-sharp 5MP resolution and really affordable price.

Product Overview

New range 5MP Zxtech Megavalue CCTV Camera now with even more compact size and improved Sony Starvis chip. The camera is rated to IP66, which makes it suitable for indoor or outdoor. The camera has wide-angle lenses up to 106 degrees. The camera has a built-in PoE connection and can be connected directly to the NVR without separate power. Better resolution, clear image, less cabling and great flexibility. Perfect system for home or business. The camera also supports SD card slot helping to back up the footage if needed. Connecting a separate microphone you will be able to enable audio recordings. A free mobile app gives you an option for push images notification if motion is enabled.

System Feature

  • Amazing 5 Megapixel resolution (2592*1944)
  • Sony Starvis Back-illuminated CMOS Sensor
  • Superb night vision with LED IR
  • PoE built-in connection
  • Internal SD Card slot & Audio connection
  • 2.8 super wide angle lens
  • H265+ compression
  • Remote access with free mobile app
  • Waterproof and vandal-proof for outdoor and indoor purpose
  • IR Cut, WDR, BLC, ROI, Defog
  • Motion detection and mobile notification alert

What's in the Box

  • 5 x Zxtech Megavalue White CCTV Camera
  • 1 x 8CH Onyx NVR
  • 3 x 10M cable, 2 x 20M cable and 1 x 2M Cable
  • Optional HDD and Monitor

System Feature

  • Amazing 5 Megapixel resolution (2592*1944)
  • Sony Starvis Back-illuminated CMOS Sensor
  • Superb night vision with LED IR
  • PoE built-in connection
  • Internal SD Card slot & Audio connection
  • 2.8 super wide angle lens
  • H265+ compression
  • Remote access with free mobile app
  • Waterproof and vandal-proof for outdoor and indoor purpose
  • IR Cut, WDR, BLC, ROI, Defog
  • Motion detection and mobile notification alert

Modern Elegant Design

Zxtech is involved in every part of the product development. From blueprint, 2D conception, 3D rendering and mould creation. We make sure our badge is printed on a product which we are proud to sell and proud to show our friend and family. We want our product not only be beautiful but also functional, flexible and future-proof

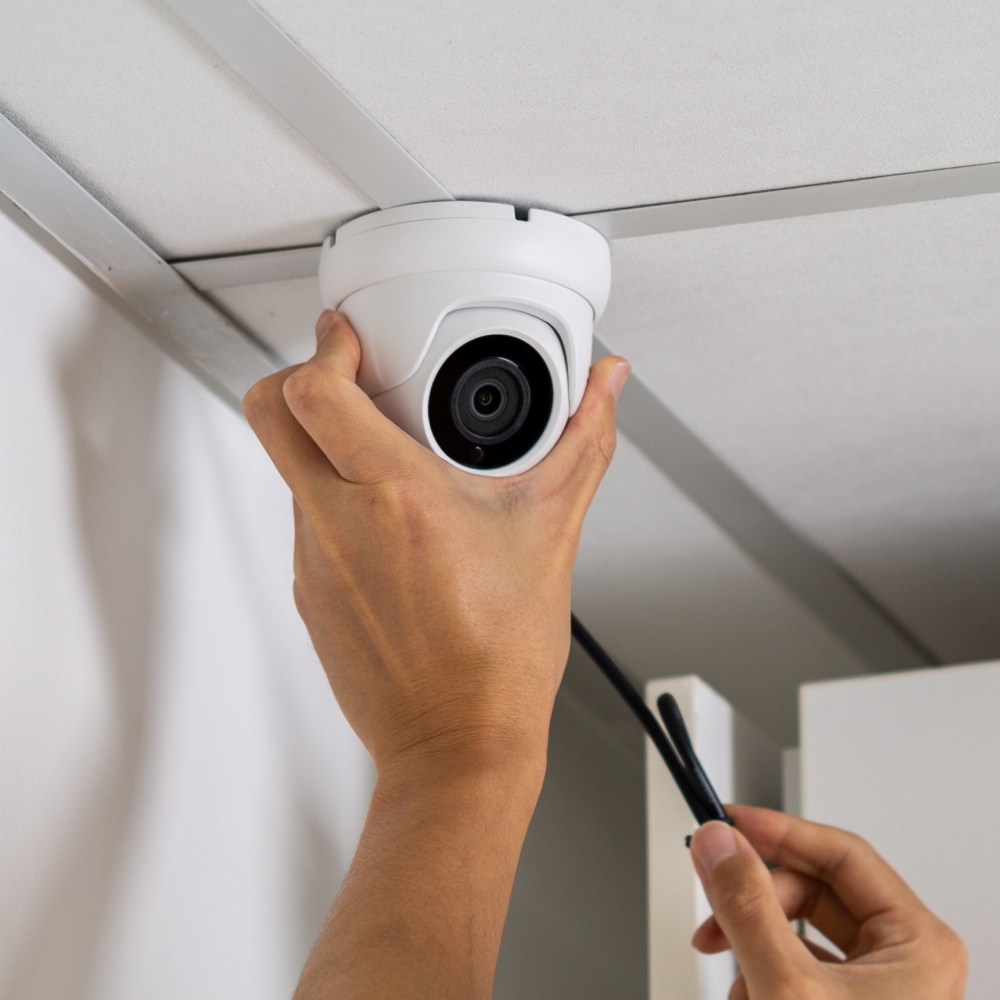

Do It Yourself. Easy setup and installation

Installation has never been so easy and will cost less money. You need to fit the camera on the wall and connect only one Ethernet cable to the back of the recorder. Save the labour work, learn something new and enjoy your 5MP CCTV Security system

Built-in PoE switch integrated into the recorder

This inbuilt PoE CCTV NVR has a modern, clean design and in the same time is powerful and reliable. New compact and elegant design, capable of extensive recording configuration such as motion detection, masking, scheduling, PTZ management, hard drive management, USB backup. Zxtech recorders has recorded many crucial pieces of evidence that helped many victims in the UK identifying the criminal

5 Megapixel. Beautiful design

5MP resolution is now landed on CCTV. Meet your minimum requirement with our new range, elegant design and long-lasting quality products. Zxtech creates this special 5MP edition kits, suitable for home or business. The recorder has power over Ethernet built-in switch and makes it desirable for many people

Compact. Long Lasting

Compact design with integrated PoE switch, saving time setting up your cameras because it just needs a single cable to connect. Both data and power travel through the Ethernet cable from your camera to your recorder. No extra power cable and power adaptor is needed. One camera, one cable

New era in CCTV. Purity and Power

5MP CCTV Camera System finally worth the investment. This system has better purity than 1080p or 700TVL cameras. The kit offers real 5MP IP quality because of the integrated 5MP Sony Starvis Chip inside

2.5x Sharper than 1080p Full HD

Zxtech knows that human face and license plate recognition requires high resolution and a very good angle to capture them. With our 5MP PoE IP CCTV Cameras your chance to get what you need is very big

SONY STARVIS Chipset

Equipped with Sony 5MP Sensor the camera produces more than 5 million pixels. Extreme performance and 5MP Super HD Quality

SD Card Slot Embedded

You can enable in-camera recording to backup your footages.Using an SD card helps you backup the footage and keep them offline for even better security

Extendable for Audio

Connecting an external microphone to the camera can allow audio recording. Supports audio so you can connect a microphone and record sound

Mobile Scan & Connect Instantly

By a simple step, you can watch footage on all smart devices you have got, such as iPhone, iPad, Android phones,  tablets, PC, laptops, computers. Want to remotely watch your system while you are away, Zxtech can do that. Simply download Bitvision mobile app on your smartphone,m scan the QR code from your recorder or camera and you will be connected. Everything you need in 3 easy steps

PoE IP CCTV System

Power over Ethernet a.k.a PoE. One cable is enough, transmit data and power over Ethernet cat5 cable. Hassle free and quick setup

Much less bandwidth, much higher performance

H.265+ High- Efficiency Video Coding. Lower the cost of hard drive storage and transmission

Motion Detection, Alerts, Schedule and Masking as standard

Utilise the extremely flexible scheduling preference. Tell the NVR what time of the day, or which day of the week to record, sleep, alert. No, unnecessary alerting during the time you are there, no unnecessary recording when you do not need it. Alternatively, you can just turn it on 24/7

Put a schedule on, leave space out

Blank out part of the scene that is not important to you. Get a mobile notification when it detects motion in your scene

Advanced Software

Viewing, Replay, Control, Alert and Intelligent Settings. Updated software for more convenience and easy to use

Multilingual firmware

Understanding different languages is very important, we Zxtech invested with a system that can do multilingual support with more than 20 different languages

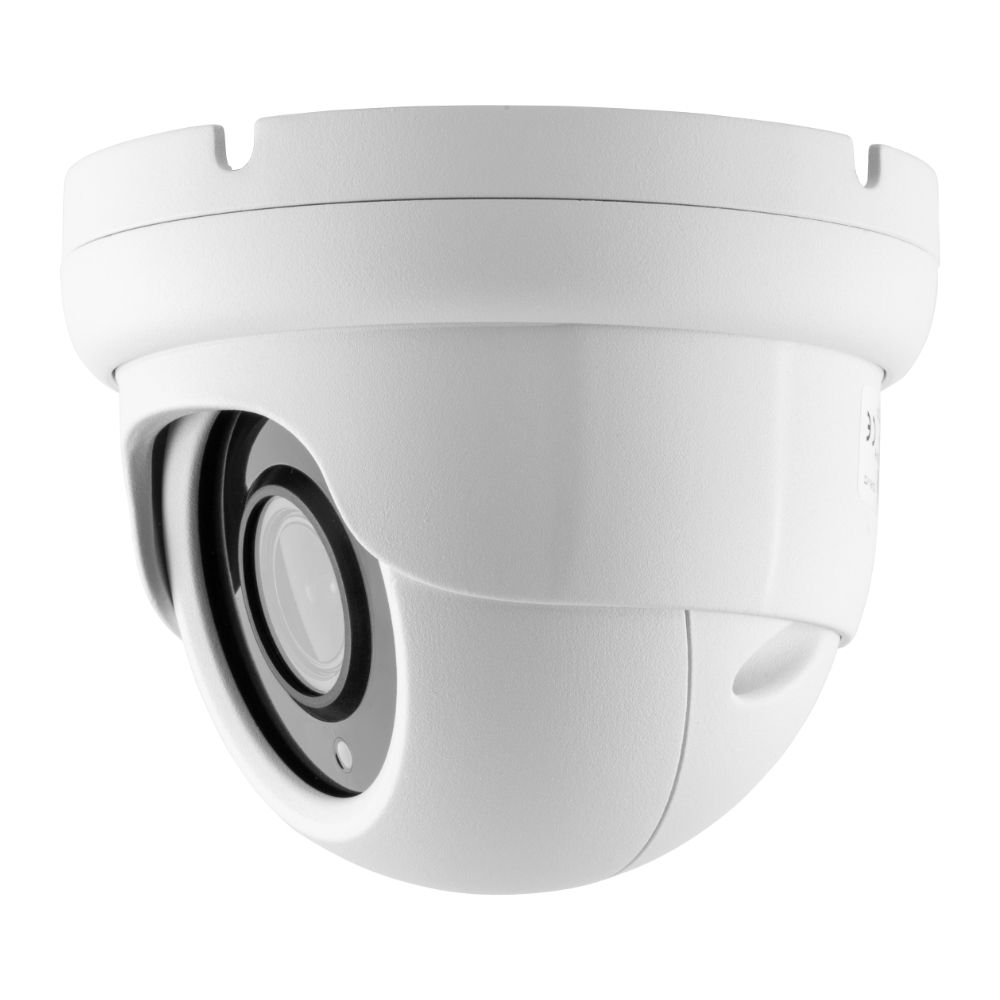

Sony 5MP Sensor PoE

Zxtech Megavalue camera has wide-angle lenses and ability to see 106 degree view. The camera comes with a classic shape, the eyeball design with metal casing gives you 180-degree flexibility.  Easy to use the smart CMS software will enable you to record on motion detection, adjust the sensitivity of motion detection and you can also schedule your camera to the only record on certain times of the day even with the motion detection on. The camera works with Bitvision mobile app which can give you an option to enable push images notification if motion is detected.

Tech Specs

Zxtech Megavalue PoE IP Camera

  • Image Sensor: 1/2.8'' SONY Starvis Back-illuminated CMOS Sensor
  • Resolution: 5MP
  • Effective Pixels: 2616(H)*1964(V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
  • TV System: PAL/NTSC
  • Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec.; NTSC 1/25-1/10000Sec.
  • Minimum Illumination: 0.01Lux
  • S/N Ratio: >52dB

Lens & Night Vision

  • Scanning System: Progressive
  • Video Output: Network
  • Reset Button: Yes
  • Focus Length: Board Lens 2.8mm
  • Focus Control: Fixed
  • Lens Type: Fixed
  • Pixels: 4M
  • Infrared LED: 14µ x 18pcs
  • Infrared Distance: 20m
  • IR Status: Auto Control
  • IR Power On: Auto Control

Network

  • Ethernet: RJ-45 (10/100Base-T)
  • Protocol: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
  • ONVIF: Support ONVIF 2.4
  • P2P: Yes, support QR Code
  • PoE: Yes, support IEEE 802.3af
  • Video Delay: 0.3S (Within the Lan)
  • Main Stream 1: 2592*1944@20fps; 2560*1440@20fps
  • Main Stream 2: 2560*1440@25fps
  • Main Stream 3: 1920*1080@30fps; 1280*720@30fps
  • Sub Stream 1: 720*480@15fps; 720*480@30fps
  • Tri stream: 352*288@15fps; 352*288@30fps
  • IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), MAC Safari (lower than version 12)
  • Smart Phone: iPhone, iPad, Android, Android Pad
  • Day/Night: Colour/ B&W (IR-CUT)

Streaming

  • Main Stream 1: 2592*1944@20fps; 2560*1440@20fps
  • Main Stream 2: 2560*1440@25fps
  • Main Stream 3: 1920*1080@30fps; 1280*720@30fps
  • Sub Stream 1: 720*480@15fps; 720*480@30fps
  • Tri stream: 352*288@15fps; 352*288@30fps
  • IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), MAC Safari (lower than version 12)
  • Smart Phone: iPhone, iPad, Android, Android Pad
  • Day/Night: Colour/ B&W (IR-CUT)

Image Config

  • Image Config: Saturation/Brightness/Contrast/Sharpness, Mirror, 3DNR, White Balance, FLK (Flicker Control), Video Tampering
  • Corridor Pattern: Support
  • Defog Mode: Support
  • ROI: Support
  • BLC: Support
  • WDR: DWDR: 50dB
  • Motion Detection: Support
  • Privacy Masking: 3 Rectangular Zone
  • Recording Mode: NVR/ NAS/ CMS/ Web

General

  • Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands
  • Audio: Support
  • SD Card Slot: Support Max 128GB
  • Housing: IP66
  • Anti-cut Bracket: No
  • IR Cut Filter: Yes
  • Power Source: DC12V, 750mA
  • Dimension: 93 x 74(H) mm
  • Weight: 400g

Recorder Specs

System

  • Main Processor: ARM Cortex A7 Processor
  • Operating System: Embedded LINUX
  • Video Input: 9CH (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)
  • Video Output: 1 VGA, 1 HD
  • Audio Output: 1 Port RCA(Linear)
  • Audio Compression standard: G711u, G711a, ADPCM_DVI4
  • Sensor Input: NO
  • Output: NO
  • Motion Detection: 9 Channel, MD Zones: 396 (22x18)
  • Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

  • HD Output1: Resolution: 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • VGA Resolution:1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • Display Split: 9CHxD1/ 8CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP
  • Digital Zoom: YES
  • OSD Camera: Title, Time, Recording, Motion Detection
  • Video Compression: H265/H264/H265+/H264+
  • Resolution: 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)
  • Record Rate PAL: 5MP@9x25fp, 4MP@9x25fp, 3MP@9x25fp, 1080P@9x25fp, 960P@9x25fp, 720P@9x25fp, D1@9x25fp NTSC: 5MP@9x30fp, 4MP@9x30fp, 3MP@9x30fp, 1080P@9x30fp, 960P@9x30fpl, 720P@9x30fp, D1@9x30fp
  • Record Mode: Manual/ Timer/ Motion Detection

Playback & Backup

  • Local Sync Playback: 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
  • Decode Capability: 4CH 1080P@20fps
  • Remote Sync Playback: YES
  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
  • Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom

Network

  • Interface: 9x RJ45 10M/100M Adaptive Ethernet Interface
  • Incoming Bandwidth: 60MB
  • POE: 8x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output more than 100W, Support Plug and Play
  • Interface Type: 1 SATA Interface
  • Capacity: Up to 8TB capacity
  • Dimension(WxDxH): 260x215x43(mm)
More Information
BrandZxtech
SKUFP5C8Y
ConditionBrand New
CCTV Product TypeKit
Max Recorder Channel8 Channel
Power SourcePoE
HDD Slot1 SATA
Max HDD Capacity8TB
Night Vision20M
Recording Resolution5 Megapixel
System TypeIP
Cameras Included5
