Zxtech 6x 5MP Waterproof Vandalproof Audio Wireless CCTV Camera Kit

In stock
Zxtech 6x 5MPWaterproof Vandalproof Audio Wireless CCTV Camera Kit comes with integrated 5MP Chip. This CCTV system includes mini bullet wireless CCTV cameras suitable for indoor or outdoor. This newly designed camera has a wide-angle lens perfectly fits for home or business.

Product Overview

Zxtech Wireless Wifi IP CCTV Kit is coming with 9 Channel Ultra Mini Compact NVR and beautifully designed cloud mini bullet wireless CCTV cameras. These cameras are suitable for indoor or outdoor. Every CCTV footage comes in 5MP resolution. Sony Low Illumination CMOS Sensor and external SD card slot for backups. Zxtech Cloud Mini comes with super wide-angle 2.8mm lenses. The system is wireless, which means no data cable needed, the cameras will operate only with power supply. Great night vision up to 100 feet. The system is ideal for a long garden, car parks, open fields or indoor.

What's in the Box

  • 6 x Zxtech 5MP CloudMini Wifi Wireless CCTV Camera
  • 1 x 9CH Ultra Mini Network Video Recorder
  • Optional HDD and Monitor

System Feature

  • Super High Definition 5 Megapixel resolution (2592*1944)
  • 9 Channel Network Video Recorder
  • 5MP Sensor
  • Superb 30 metres night vision with LED IR
  • External SD Card slot & Audio connection
  • 2.8 mm super wide-angle lens
  • H265+ compression
  • Remote access with free mobile app
  • Waterproof and vandal-proof for outdoor and indoor purpose
  • IR Cut, WDR, BLC, ROI, Defog
  • Motion detection and mobile notification alert

Modern Compact Design

Zxtech is involved in every part of the product development. From blueprint, 2D conception, 3D rendering and mould creation. We make sure our badge is printed on a product which we are proud to sell and proud to show our friend and family. We want our product not only be beautiful but also functional, flexible and future-proof

Do It Yourself. Easy setup and installation

Simply Power the cameras. Connect your wireless cameras to Wifi. Add the cameras to the CCTV NVR and enjoy your wireless CCTV system

9 Channel Wifi CCTV Network Video Recorder

Much better than the traditional systems. You have the choice to blank out part of the scene that is not important to you. Draw one or multiple squares in the setting, your recorder will ignore the motion in those areas and will not trigger the alert

Beautiful design

New generation wireless is now landed on CCTV. Meet your minimum requirement with our new range, compact design and long-lasting quality products. Zxtech creates this special edition kits, suitable for business or professionals. The recorder supports up to 9 IP CCTV cameras and makes it desirable for many people

Long Lasting

Compact next-generation design coming along with wireless CCTV cameras, saving cost using your cameras because it just needs a power supply running. The recorder supports up to 9 CCTV IP Cameras, which give you an option to extend your system in the future

New era in CCTV. Purity and Power

Wireless CCTV Camera System finally worth the investment. The kit offers real 5MP IP quality because of the integrated 5MP High-Performance Chip inside

2.5x Sharper than 2MP

Zxtech knows that human face and license plate recognition requires high resolution and a very good angle to capture them. With our 5MP Wireless WIFI IP CCTV Cameras your chance to get what you need is very big

High Performance Chipset

Equipped with 5MP Sensor the camera produces more than 5 million pixels. Extreme performance and 5MP Super HD Quality

SD Card Slot Embedded

You can enable in-camera recording to backup your footages.Using an SD card helps you backup the footage and keep them offline for even better security

Extendable for Audio

Connecting an external microphone to the camera can allow audio recording. Supports audio so you can connect a microphone and record sound

Mobile Scan & Connect Instantly

By a simple step, you can watch footage on all smart devices you have got, such as iPhone, iPad, Android phones, tablets, PC, laptops, computers. Want to remotely watch your system while you are away, Zxtech can do that. Simply download Bitvision mobile app on your smartphone, scan the QR code from your recorder or camera and you will be connected. Everything you need in 3 easy steps

Much less bandwidth, much higher performance

H.265+ High- Efficiency Video Coding. Lower the cost of hard drive storage and transmission

Motion Detection, Alerts, Schedule and Masking as standard

Utilise the extremely flexible scheduling preference. Tell the NVR what time of the day, or which day of the week to record, sleep, alert. No, unnecessary alerting during the time you are there, no unnecessary recording when you do not need it. Alternatively, you can just turn it on 24/7

Put a schedule on, leave space out

Blank out part of the scene that is not important to you. Get a mobile notification when it detects motion in your scene

Advanced Software

Viewing, Replay, Control, Alert and Intelligent Settings. Updated software for more convenience and easy to use

Multilingual firmware

Understanding different languages is very important, we Zxtech invested with a system that can do multilingual support with more than 20 different languages

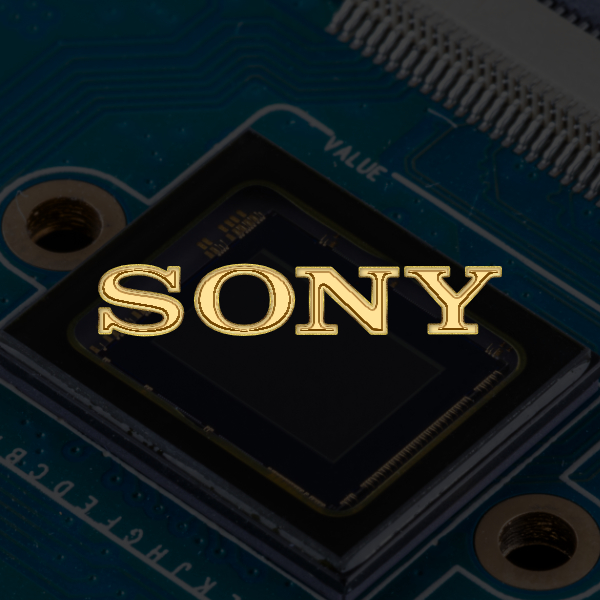

Sony Starvis Sensor Wifi Wide Angle

Long range night vision with up to 100 feet IR. This camera has a wide-angle 2.8 lens and it is super flexible. You can point to any direction when you fix it on the wall or ceiling, no matter vertically or horizontally. Enhance your camera with 180-degree flexibility of viewing angle. Several things influence choosing CCTV camera, including sensor chip, lens type, wide range dynamic, resolution, smart feature like motion detection or email alert. This camera has built-in Sony Starvis Sensor chip, supports wide dynamic range and has 5MP high definition resolution, motion sensor and mobile push notification alert

Tech Specs

Zxtech CloudMini Wifi Wireless IP Camera

  • Image Sensor: 1/2.5" High-resolution CMOS Sensor
  • Resolution: 5MP
  • Effective Pixels: 2608(H)*1952(V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
  • TV System: PAL/NTSC
  • Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
  • S/N Ratio: ≥52dB

Lens & Night Vision

  • Scanning System: Progressive
  • Video Output: Network
  • Focus Length: Board Lens 2.8mm/F2.0
  • Focus Control: Fixed
  • Lens Type: Fixed
  • Pixels: 5MP
  • Infrared LED: 42µx 2PCS
  • Infrared Distance: 30M
  • IR Status: Auto
  • IR Power On: Auto


  • Ethernet: RJ-45 (10/100Base-T)
  • ONVIF: Support ONVIF 2.4
  • P2P: YES, Support QR Code
  • Main Stream 1: 2592*1944@20fp 2560*1920@20fp; Main Stream 2: 2560*1440@30fp
  • Antena: 3dbi ; Wi-Fi: Wi-Fi(IEEE802.11b/g/n),2.4Ghz ; WIFI Range: No obstacles 300m Max.
  • Day/Night: Color/ B&W (IR-CUT )


  • Image Config: Saturation/Brightness/Contrast/Sharpness, Mirror, 3DNR, White Balance, FLK (Flicker Control)
  • Corridor Pattern: Support
  • Defog Mode: Support
  • ROI: /
  • BLC: Support
  • WDR: DWDR: 50dB
  • Motion Detection: Support
  • Privacy Masking: 3 Rectangular Zone
  • Recording Mode: NVR/ NAS/ CMS/ Web


  • Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands
  • Audio: Support
  • Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
  • Corridor Pattern, Defog Mode, BLC, WDR, Motion Detection: Support; Privacy  Masking 3 Rectangular Zone
  • SD Card Slot: support  256G Micro SD With External SD Card Slot
  • Housing: Metal, IP67
  • Anti-cut Bracket: Anti-Cut 3-Axis
  • Weight: 770g

Recorder Specs


  • Main Processor: ARM Cortex A7 Processor
  • Operating System: Embedded LINUX
  • Video Input: 9CH (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)
  • Video Output: 1 VGA, 1 HD
  • Audio Input:
  • Audio Output: 1 Port RCA(Linear)
  • Audio Compression Standard: G711u, G711a, G726
  • Sensor Input: No
  • Output: No
  • Motion Detection: 9 Channel, MD Zones: 396 (22 x18)
  • Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips


  • HD Output1: Resolution: Resolution: 1920 x1080/60Hz, 1280 x 1024/60Hz, 1280 x720/60Hz, 1024 x 768/60Hz
  • VGA Resolution: 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • Display Split: 9CH x D1/ 8CH x D1/ 4CH x D1/ 1CH x D1/ 1CH x 1080P/ 1CH x 3MP/ 1CH x 4MP/ 1CH x 5MP
  • Digital Zoom: YES
  • OSD Camera: Camera Title, Time, Recording, Motion Detection
  • Video Compression: H265/H264/H265+/H264+
  • Resolution: 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)
  • Record Rate PAL: 5MP@9x25fp,4MP@9x25fp, 3MP@9x25fp, 1080P@9x25fp, 960P@9x25fp,720P@9x25fp, D1@9x25fp NTSC: 5MP@9x30fp, 4MP@9x30fp, 3MP@9x30fp,1080P@9x30fp, 960P@9x30fp, 720P@9x30fp, D1@9x30fp
  • Record Mode: Manual/ Timer/ Motion Detection

Playback & Backup

  • Local Sync Playback: 1CH 5MP@30fp, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
  • Decode Capability: 4CH 1080P@20fps
  • Remote Sync Playback: YES
  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
  • Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom


  • Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
  • Incoming Bandwidth: 60MB
  • Onvif Version: Support ONVIF 2.4
  • Web Browser: IE-8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
  • CMS Software: Support Windows 7/ Windows 8/ Windows 10
  • Cloud Support (P2P): Yes
  • Smart Phone: iPhone, iPad, Android, Android Pad
  • Interface Type: 1 SATA Interface
  • Capacity: Up to 8TB capacity
  • USB Interface: 2 USB 2.0 Interfaces
  • Dimension(WxDxH): 219x217x40(mm)
More Information
ConditionBrand New
CCTV Product TypeKit
Max Recorder Channel9 Channel
Power SourceDC
Max HDD Size Per Slot8TB
Max HDD Capacity8TB
Night Vision30M
Recording Resolution5MP
System TypeIP, Wireless
Cameras Included6
Lens TypeFixed
Focus ControlFixed
Shape TypeBullet
Face RecognitionNo
