5MP IP CCTV System - 3 x Motorised Lens Sony Starvis PoE Cameras | FP3G4X

Zxtech SKU: FP3G4X

5MP IP CCTV System - 3 x Motorised Lens Sony Starvis PoE Cameras | FP3G4X

Zxtech SKU: FP3G4X
Storage
Regular price £263.68
/
Tax included. Shipping calculated at checkout.
Only 13 items in stock!
  • UK next business day delivery
  • 30 days hassle free returns
  • UK VAT invoices included
  • Secure payments
Zxtech Onyx 4 Channel PoE 4K 8MP Network Video Recorder CCTV NVR
Zxtech Onyx 4 Channel PoE 4K 8MP Network Video Recorder CCTV NVR
Zxtech Onyx 4 Channel PoE 4K 8MP Network Video Recorder CCTV NVR
Zxtech Onyx 4 Channel PoE 4K 8MP Network Video Recorder CCTV NVR
Zxtech Onyx 4 Channel PoE 4K 8MP Network Video Recorder CCTV NVR
Zxtech 5MP Varifocal PoE IP Security CCTV Camera
Zxtech Onyx 4 Channel PoE 4K 8MP Network Video Recorder CCTV NVR
Zxtech 5MP Varifocal PoE IP Security CCTV Camera
Zxtech 5MP Varifocal PoE IP Security CCTV Camera
Zxtech 5MP Varifocal PoE IP Security CCTV Camera
Zxtech 5MP Varifocal PoE IP Security CCTV Camera
Zxtech 5MP Varifocal PoE IP Security CCTV Camera
Zxtech 5MP Varifocal PoE IP Security CCTV Camera
Zxtech Onyx 4 Channel PoE 4K 8MP Network Video Recorder CCTV NVR
Zxtech Onyx 4 Channel PoE 4K 8MP Network Video Recorder CCTV NVR
Zxtech Onyx 4 Channel PoE 4K 8MP Network Video Recorder CCTV NVR
Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Product Overview

This camera kit includes Zxtech Atlas Motorized PoE IP CCTV Camera. This kit is everything you need- simply ad easy connection using only one Ethernet cable that transmits data and power at the same time. The camera can capture narrow or wide-angle just zoom in or zoom out and our Atlas motorized camera will refocus automatically. This kit is packed with benefits that make it cost-effective and desired for home or business. The camera support Sd card slot and audio, connection external microphone to it. Superb night vision and waterproof housing making it perfect for outdoor or indoor.

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

System Feature

  • Amazing 5 Megapixel resolution (2592*1944)
  • Sony Starvis Back-illuminated CMOS Sensor
  • Superb 30m night vision with LED IR
  • PoE built-in connection
  • Internal SD Card slot & External Audio connection
  • 2.7- 13.5 mm varifocal lens
  • H265+ compression
  • Remote access with free mobile app
  • Waterproof and vandal-proof for outdoor and indoor purpose
  • IR Cut, WDR, BLC, ROI, Defog
  • Motion detection and mobile notification alert
Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

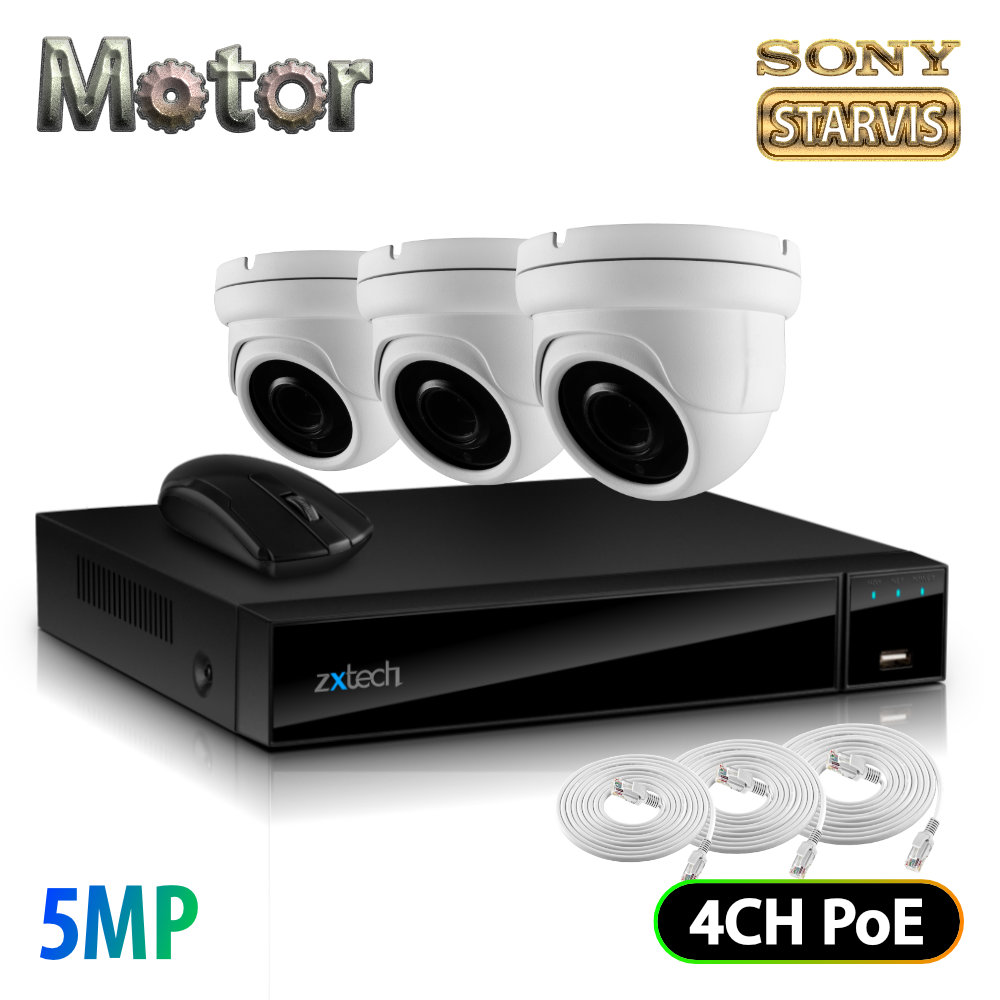

What's in the Box

  • 3 x Zxtech Atlas Pro CCTV Camera
  • 1 x 4CH Onyx NVR
  • 2 x 10M cable, 1 x 20M cable and 1 x 2M Cable
  • Optional HDD and Monitor
Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Waterproof metal casing suitable for outdoor

These cameras are built to withstand intense weather conditions. Rated to IP66 Atlas Pro cameras will be able to endure strong wind or heavy rain. These cameras have a heavy-duty shell, working perfect in rain or snow ensuring they will work inside and outside. Wise choice for any home or business. This camera is made of high quality material to withstand any weather.

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Modern Elegant Design

Zxtech is involved in every part of the product development. From blueprint, 2D conception, 3D rendering and mould creation. We make sure our badge is printed on a product which we are proud to sell and proud to show our friend and family. We want our product not only be beautiful but also functional, flexible and future-proof

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Do It Yourself. Easy setup and installation

Installation has never been so easy and will cost less money. You need to fit the camera on the wall and connect only one Ethernet cable to the back of the recorder. Save the labour work, learn something new and enjoy your 5MP CCTV Security system

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Built-in PoE switch integrated into the recorder

This inbuilt PoE CCTV NVR has a modern, clean design and in the same time is powerful and reliable. New compact and elegant design, capable of extensive recording configuration such as motion detection, masking, scheduling, PTZ management, hard drive management, USB backup. Zxtech recorders has recorded many crucial pieces of evidence that helped many victims in the UK identifying the criminal

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

5 Megapixel. Beautiful design

5MP resolution is now landed on CCTV. Meet your minimum requirement with our new range, elegant design and long-lasting quality products. Zxtech creates this special 5MP edition kits, suitable for home or business. The recorder has power over Ethernet built-in switch and makes it desirable for many people

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Compact. Long Lasting

Compact design with integrated PoE switch, saving time setting up your cameras because it just needs a single cable to connect. Both data and power travel through the Ethernet cable from your camera to your recorder. No extra power cable and power adaptor is needed. One camera, one cable

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

New era in CCTV. Purity and Power

5MP CCTV Camera System finally worth the investment. This system has better purity than 1080p or 700TVL cameras. The kit offers real 5MP IP quality because of the integrated 5MP Sony Starvis Chip inside

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

2.5x Sharper than 1080p Full HD

Zxtech knows that human face and license plate recognition requires high resolution and a very good angle to capture them. With our 5MP PoE IP CCTV Cameras your chance to get what you need is very big

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Motorized Zoom Auto Focus

Our specially design 2.7-13 mm Motorized zoom and autofocus PoE IP CCTV Camera. Optically zoom and auto refocus simply from your mobile application using your smartphone. Never been so easy, no more climbing up to adjust focus which looks so hard sometimes

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

SONY STARVIS Chipset

Equipped with Sony 5MP Sensor the camera produces more than 5 million pixels. Extreme performance and 5MP Super HD Quality

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Extendable for Audio

Connecting an external microphone to the camera can allow audio recording. Supports audio so you can connect a microphone and record sound

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Mobile Scan & Connect Instantly

By a simple step, you can watch footage on all smart devices you have got, such as iPhone, iPad, Android phones,  tablets, PC, laptops, computers. Want to remotely watch your system while you are away, Zxtech can do that. Simply download Bitvision mobile app on your smartphone,m scan the QR code from your recorder or camera and you will be connected. Everything you need in 3 easy steps

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

PoE IP CCTV System

Power over Ethernet a.k.a PoE. One cable is enough, transmit data and power over Ethernet cat5 cable. Hassle free and quick setup

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Much less bandwidth, much higher performance

H.265+ High- Efficiency Video Coding. Lower the cost of hard drive storage and transmission

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Motion Detection, Alerts, Schedule and Masking as standard

Utilise the extremely flexible scheduling preference. Tell the NVR what time of the day, or which day of the week to record, sleep, alert. No, unnecessary alerting during the time you are there, no unnecessary recording when you do not need it. Alternatively, you can just turn it on 24/7

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Put a schedule on, leave space out

Blank out part of the scene that is not important to you. Get a mobile notification when it detects motion in your scene

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Advanced Software

Viewing, Replay, Control, Alert and Intelligent Settings. Updated software for more convenience and easy to use

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Multilingual firmware

Understanding different languages is very important, we Zxtech invested with a system that can do multilingual support with more than 20 different languages

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Sony 5MP Sensor PoE

Long range night vision with up to 100 feet IR. This camera has motorized 2.7-13.5mm lens so you can capture both wide-angle or close-in views. The camera is super flexible simply zoom in or out and will automatically refocus. You can point to any direction when you fix it on the wall or ceiling, no matter vertically or horizontally. Enhance your camera with 180-degree flexibility of viewing angle. Several things influence choosing CCTV camera, including sensor chip, lens type, wide range dynamic, resolution, smart feature like motion detection or email alert. This camera has built-in Sony Sensor chip and has high definition 5MP resolutions, support motion sensor and mobile push images notification alert.

Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Tech Specs

Zxtech Atlas Pro Motorized PoE IP Camera

  • Image Sensor: 1/2.8'' SONY Starvis Back-illuminated CMOS Sensor
  • Resolution: 5MP
  • Effective Pixels: 2616(H)*1964(V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
  • TV System: PAL/NTSC
  • Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec.; NTSC 1/25-1/10000Sec.
  • Minimum Illumination: 0.01Lux
  • S/N Ratio: >52dB
Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

Lens & Night Vision

  • Scanning System: Progressive
  • Video Output: Network
  • Reset Button: Yes
  • Focus Length: 2.7-13.5mm
  • Focus Control: Auto
  • Lens Type: Auto
  • Pixels: 4M
  • Infrared LED: 14µ x 24pcs
  • Infrared Distance: 20m
  • IR Status: Auto Control
  • IR Power On: Auto Control
  • Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

    Network

    • Ethernet: RJ-45 (10/100Base-T)
    • Protocol: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
    • ONVIF: Support ONVIF 2.4
    • P2P: Yes, support QR Code
    • PoE: Yes, support IEEE 802.3af
    • Video Delay: 0.3S (Within the Lan)
    • Main Stream 1: 2592*1944@20fps; 2560*1440@20fps
    • Main Stream 2: 2560*1440@25fps
    • Main Stream 3: 1920*1080@30fps; 1280*720@30fps
    • Sub Stream 1: 720*480@15fps; 720*480@30fps
    • Tri stream: 352*288@15fps; 352*288@30fps
    • IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), MAC Safari (lower than version 12)
    • Smart Phone: iPhone, iPad, Android, Android Pad
    • Day/Night: Colour/ B&W (IR-CUT)
    Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

    General

    • Image Config: Saturation/Brightness/Contrast/Sharpness, Mirror, 3DNR, White Balance, FLK (Flicker Control), Video Tampering
    • Corridor Pattern: Support
    • Defog Mode: Support
    • ROI: Support
    • BLC: Support
    • WDR: DWDR: 50dB
    • Motion Detection: Support
    • Privacy Masking: 3 Rectangular Zone
    • Recording Mode: NVR/ NAS/ CMS/ Web
    • Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands
    • Audio: Support
    • Housing: IP66
    • Anti-cut Bracket: No
    • IR Cut Filter: Yes
    • Power Source: DC12V, 950mA
    • Dimension: 119(W) x 98(H) mm
    • Weight: 800g
    Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

    Recorder Specs

    System

    • Main Processor: ARM Cortex A7 Processor
    • Operating System: Embedded LINUX
    • Video Input: 9CH (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)
    • Video Output: 1 VGA, 1 HD
    • Audio Output: 1 Port 3.5mm(Linear)
    • Audio Compression standard: G711u, G711a, ADPCM_DVI4
    • Sensor Input: NO
    • Output: NO
    • Motion Detection: 9 Channel, MD Zones: 396 (22 x 18)
    • Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm output
    Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

    Display

    • HD Output1: Resolution: 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    • VGA Resolution:1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    • Display Split: 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
    • Digital Zoom: YES
    • OSD Camera: Title, Time, Recording, Motion Detection
    • Video Compression: H265/H264/H265+/H264+
    • Resolution: 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1(720x576/720x480)
    • Record Rate PAL: 5MP@9x25fp, 4MP@9x25fp, 3MP@9x25fp, 1080P@9x25fp, 960P@9x25fp, 720P@9x25fp, D1@9x25fp NTSC: 5MP@9x30fp, 4MP@9x30fp, 3MP@9x30fp, 1080P@9x30fp, 960P@9x30fp, 720P@9x30fp, D1@9x30fp
    • Record Mode: Manual/Timer/Motion Detection
    Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

    Playback & Backup

    • Local Sync Playback: 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
    • Decode Capability: 4CH 1080P@20fps
    • Remote Sync Playback: YES
    • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
    • Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom
    Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X

    Network

    • Interface: 9 x RJ45 10M/100M Adaptive Ethernet Interface
    • Incoming Bandwidth: 60MB
    • POE: 4 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output more than 50W, Support Plug and Play
    • Interface Type: 1 SATA Interface
    • Capacity: Up to 8TB capacity
    • Dimension(WxDxH): 260x215x43(mm)
    Zxtech 3x 5MP Motorized Lens Audio Sony Chip PoE Camera Kit 4CH NVR | FP3G4X
