Zxtech 16x Outdoor Dome Grey CCTV Camera Outdoor Night Vision 16 Channel DVR Kit

£426.53
In stock
SKU
AR16I16X
Zxtech 16x Outdoor Dome Grey CCTV Camera Outdoor Night Vision 16 Channel DVR Kit comes with a premium grey coating and solid metallic classic Dome shape. Easily twist the eyeball to point to anywhere even after the installation. The water-resistant camera can be installed outdoor or indoor. IR vision and High-Quality Sony Chipset capture great details even in the night. Realtime 25FPS video streaming provides flawless surveillance video footage. This great home security system utilises the smart scheduling preference. Email alerting during the time when motion enabled to for efficient use of HDD space.

Product Overview

Forget about old style CCTV, simple installation, cloud access (p2p) means you do not need of static IP address. Advanced technology, new firmware, elegant design. Little dome camera that can be mounted indoor or outdoor, record in HD 1080p then use your smartphone or tablet to playback or even simpler, connect HDMI or VGA cable to your TV at home and monitor 24/7 your CCTV footage. Remote access to your smart CCTV system using mobile application that can run in phone or pad, includes Android and iOS. The system allows you to connect up to 16 AHD analog security cameras. Support motion detection and remote access through your smartphone or tablet.

System Features

  • Compatible with Analog, AHD, TVI, IP CCTV Systems
  • Capable of 4K Recording for connected up to 22 IP Cameras in Network mode
  • Fully Equipped, cables included every expansion you ever need
  • Suitable for home or business set up in a few seconds, simply plug and play
  • Smart E-mail Alerts sent whenever there is activity in your house
  • Zxtech 16x Outdoor Dome Grey CCTV Camera Outdoor Night Vision 16 Channel DVR Kit

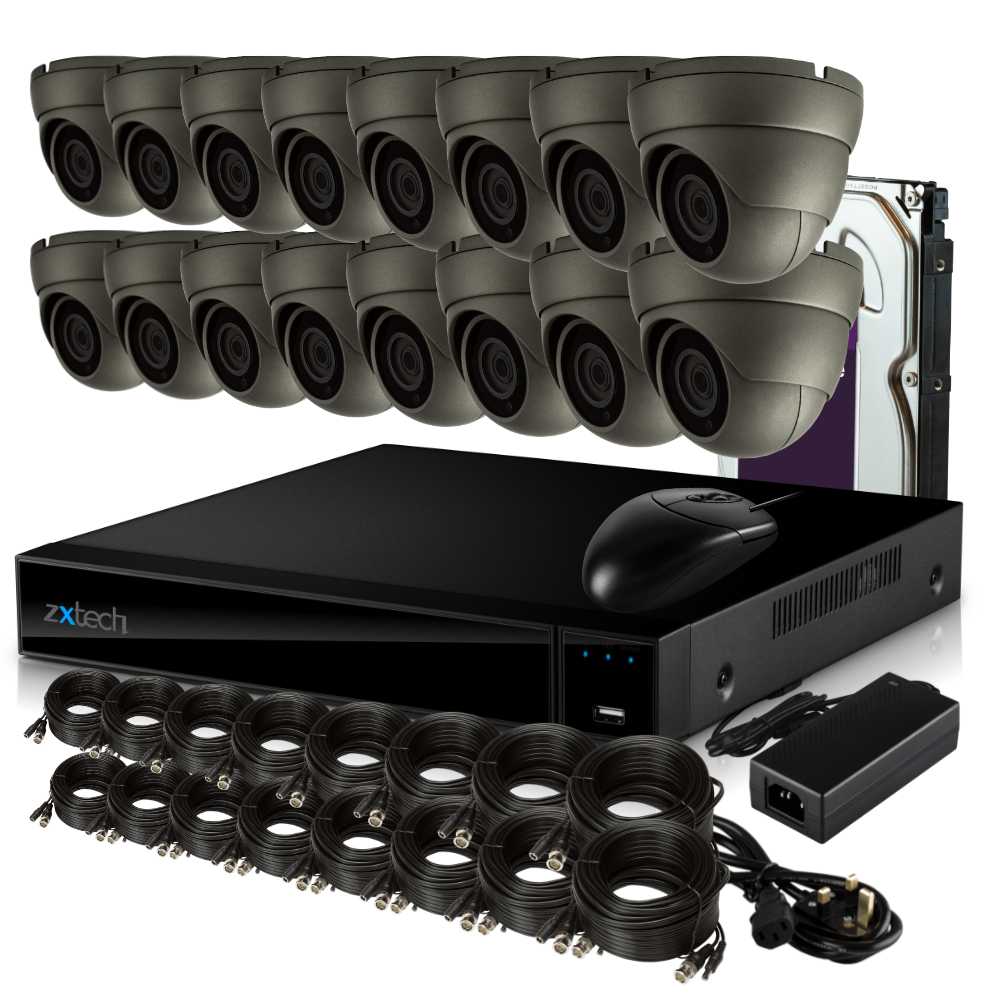

What's in the Box

  • 16 x Zxtech Halo CCTV Camera
  • 1 x 16CH Onyx XVR
  • power adaptors, power splitter
  • 8 x 10M cable, 8 x 20M cable
  • Optional HDD and Monitor

Zxtech 16x CCTV Camera Outdoor Night Vision 16 Channel DVR Kit

Outdoor Dome Grey

This camera is super flexible. You can point to any direction when you fix it on the wall or ceiling, vertically or horizontally. Enhance your camera with 180-degree flexibility.

Tech Specs

Halo AHD Camera Specs

  • Compatible with CVI, TVI, AHD by FusionConnect Tech
  • Record 1080p Footages with Real-time Playback
  • IP66 Waterproofing Housing against Tough Outdoor Weather
  • 20 Metres/66 Feet Night Vision See Clearly in the Night
  • 360° Flexible Angle Gives No Dead Corner
  • Also works with very old Analog Recorders
  • See Footage Sharper and Lighter with 3.6mm Fix Lens
  • Next Gen Zxtech a2.2 Chipset with Sony Processor
  • Vandal-proof with Solid Metallic Body

Recorder Specs

  • Main Processor: HI3531D
  • Operating System: Embedded LINUx
  • Input Analog: 16*(TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) Analog+Network: 14*Analog+2*network(Max 8MP), 12*Analog+4*network(Max 8MP), 10*Analog+6*network(Max 8MP), 8*Analog+8*network(Max 8MP), 6*Analog+10*network(Max 8MP), 4*Analog+12*network(Max 8MP), 2*Analog+14*network(Max 8MP) Network: 32*network(Max 8MP)(Total incoming bandwidth less than 200M)
  • Input: 16CH BNC
  • Signal Type: Analog/AHD/CVI/TVI/Network
  • Output: 1 HD, 1 VGA
  • Input: 2 Channel, RCA
  • Output: 1 Channel, RCA
  • VGA Resolution: 1920 x 1080P /60Hz, 1280 x 1024 /60Hz
  • HD Output Resolution: 3840x2160/30Hz, 1920 x 1080P /60Hz, 1280 x 1024 /60Hz

Alarm &PTZ

  • Motion Detection: 16 Channel(max 32 Channel in pure network mode)
  • Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
  • Email Alarm: Send Image to The Designated E-mail
  • Interface: RS485
  • Protocol: Pelco-D, Pelco-P
  • Baud Rate: 110 - 921600
  • Address: 0 - 255
  • Display Split: 36 Channel/25 Channel/16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
  • Privacy Masking: 3 Rectangular Zones (Each camera)
  • OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Resolution

  • Resolution: 5MP(2592x1944), 5MP_LITE(1296x1944), 4MP(2560x1440), 4MP_LITE(1280x1440), 3MP(2048x1536), 1080P(1920x1080), 720P(1280x720), 960H(P:960x576/N:960x480)
  • Record Rate: Analog: PAL:5MP(2592x1944 16*6fps), 5MP_LITE(1296x1944 16*10fps), 4MP(2560x1440 16*8fps), 4MP_LITE(1280x1440 16*15fps), 3MP(2048x1536 16*9fps), 1080P(1920x1080 16*15fps), 720P(1280x720 16*25fps), 960H(960x576 16*25fps) NTSC: 5MP(2592x1944 16*6fps),5MP_LITE(1296x1944 16*10fps), 4MP(2560x1440 16*8fps),4MP_LITE(1280x1440 16*15fps), 3MP(2048x1536 16*9fps), 1080P(1920x1080 16*15fps), 720P(1280x720 16*30fps), 960H(960x480 16*30fps) Pure IP(H.265): PAL:4k@22x25fps, 5MP@32x25fps, 4MP@32x25fps, 3MP@32x25fps, 1080P@32x25fps,960P@32x25fps, 720P@32x25fps, D1@32x25fps NTSC: 4k@22x30fps, 5MP@32x30fps, 4MP@32x30fps, 3MP@32x30fps, 1080P@32x30fps, 960P@32x30fps, 720P@32x30fps, D1@32x30fps
  • Record Mode: Manual, Timer, Motion Detection
  • Decode Capability: 4CH 5M@30fps
  • Sync Playback: Pure Analog: 16CH 5M@6fps, 16CH 5MP_LITE@10fps, 16CH 4M@7fps, 16CH 4MP_LITE@15fps, 16CH 3M@9fps, 16CH 1080p@15fps Mix Mode: 1CH 4K@30fps, 2CH 5M@30fps, 2CH 4M@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps Pure IPC: 2CH 4K@30fps, 4CH 5M@30fps, 4CH 4M@30fps, 5CH 3M@30fps, 9CH 1080P@30fps, 9CH 960P@30fps, 9CH 720P@30fps

General

  • Interface Type: 2 SATA Interface
  • Capacity: 2 SATA Hard Disk (2.5''/3.5'' SATA, Up to 16TB)
  • Dimension (WxDxH): 310*295*46(mm)
  • Weight: 3.5kg (Without HDD)
More Information
BrandZxtech
SKUAR16I16X
ConditionBrand New
CCTV Product TypeKit
Max Recorder Channel16 Channel
Power SourceDC
HDD Slot2 SATA
Max HDD Size Per Slot8TB
Max HDD Capacity16TB
Night Vision20M
Recording Resolution2.4MP 1080p
System TypeAHD
Cameras Included16
PTZNo
Face RecognitionNo
