Zxtech 1x Outdoor Mini Dome Discreet Indoor CCTV Camera Complete CCTV System Kit

£65.81
In stock
SKU
AR1T4Z
Zxtech 1x Outdoor Mini Dome Discreet Indoor CCTV Camera Complete CCTV System Kit comes with an extremely compacted camera. Egg sized camera gives a much less intriguing installation without any sacrifice of Full HD resolution and great night vision. The elegantly designed recorder comes with smart features such as motion detection, scheduled recording, smart alert. Backup recorded footage using the USB port.

Product Overview

This is a Zxtech CCTV System that includes mini dome AHD CCTV camera suitable for indoor or even outdoor, rated to IP66. You can see images sharper and lighter with a 74-degree angle of view and 3.6mm broad lens. The camera is ultra-compact and has embedded new generation Sony sensor. Installing and fitting is really simple, just twist the base and release the ring.  Seamless finish protects your camera from ever-changing British weather. The camera is super flexible when it comes to mounting it on the wall or ceiling.

System Features

  • Very compact size camera for less intrusive installation
  • Wide angle lens that can capture dramatically larger frames even in a small body
  • 1080p True HD resolution gives at least 5 times sharper and clearer image
  • 180-degree-flexibility
  • Metal casing and solid structure design protects from vandalism
  • Coloured image sensor for all recordings during the day in true colour
  • Zxtech 1x Outdoor Mini Dome Discreet Indoor CCTV Camera Complete CCTV System Kit

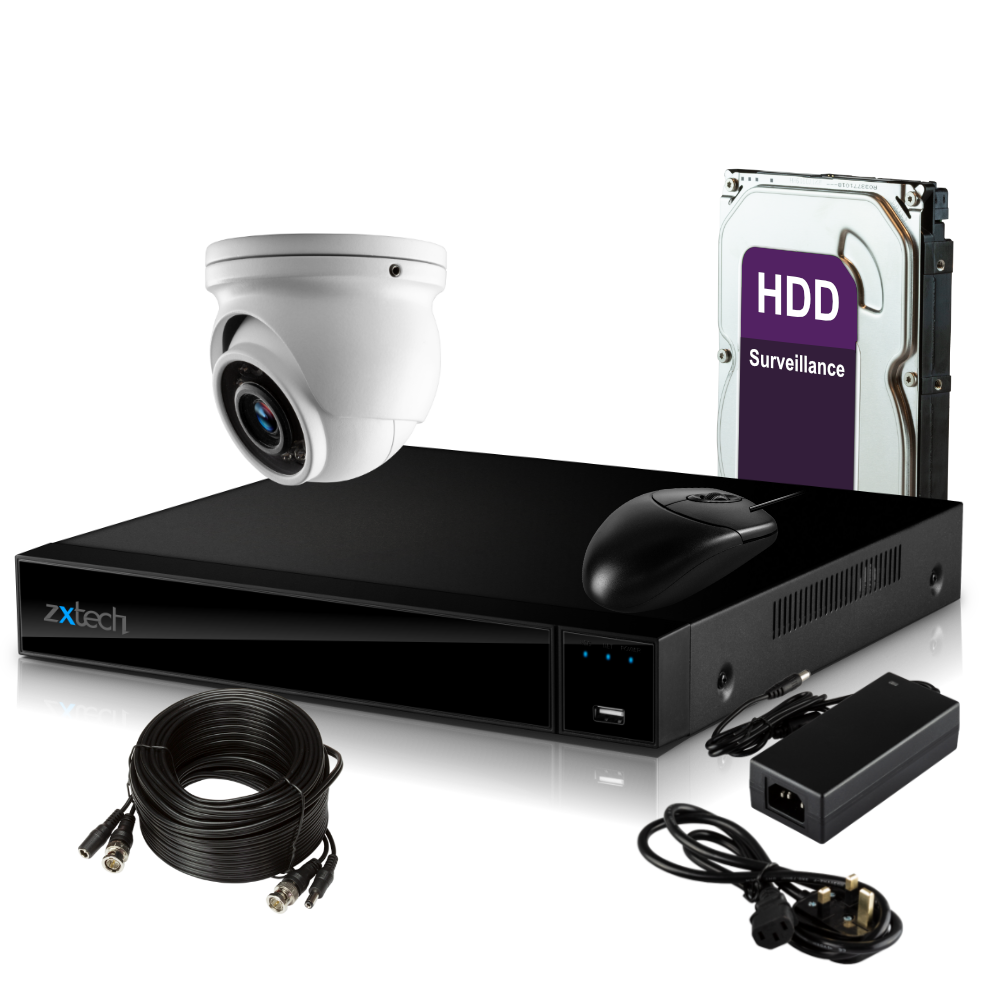

What's in the Box

  • 1 x Zxtech BabyDome CCTV Camera
  • 1 x 4CH Onyx XVR
  • power adaptors, power splitter
  • 1 x 10M cable
  • Optional HDD and Monitor

Zxtech 1x Discreet Indoor CCTV Camera Complete CCTV System Kit

Indoor/Outdoor Mini Dome

Super Compact AHD Analogue TVI CVI CVBS Camera. Record Full HD with 1080P. IP66 Waterproof Housing suitable for Indoor or Outdoor Condition

Tech Specs

BabyDome AHD Camera Specs

  • Compatible with CVI, TVI, AHD by FusionConnect Tech
  • Record Full HD Footages with 1080p Resolution and Real-time Playback
  • IP66 Waterproofing Housing against Tough Outdoor Weather
  • Night Vision See Clearly in the Night
  • 360° Flexible Angle Gives No Dead Corner
  • Even Works with Very Old Analog Recorders
  • See Footage Sharper and Lighter with 3.6mm Fix Lens
  • Next Gen Zxtech a2.3 Chipset with Sony Processor
  • Ultra-Compact Vandal-proof with Solid Metallic Body

Recorder Specs

  • Main Processor: HI3520DV200
  • Operating System: Embedded LINUX

Video

  • Input Analog: 4*1080P
  • Analog+Network: 2*Analog(1080P)+4*network Network: 9*1080P/960P/720P(Total incoming bandwidth less than 46M)
  • Input: 4CH BNC
  • Signal Type: Analog/AHD/CVI/TVI 2.0/Network
  • Output: 1HD,1 VGA

Audio

  • Input: 4 Channel, RCA
  • Two-way Audio: NO
  • Output: 1 Channel, RCA

Alarm

  • Sensor Input: No
  • Output: No
  • Motion Detection: 4 Channel(max 9 Channel in pure network mode)
  • Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
  • Email Alarm: Send Image to The Designated E-mail

PTZ

  • Interface: RS485
  • Protocol: Pelco-D, Pelco-P
  • Baud Rate: 110 - 921600
  • Address: 0 - 255

Display

  • VGA Resolution: 1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,1024 x 768/60Hz
  • HD Output: Resolution:1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,1024 x 768/60Hz
  • Display Split: 9 Channel/4 Channel / 1Channel
  • Privacy Masking: 3 Rectangular Zones (Each camera)
  • OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

  • Video Compression: H.264
  • Audio Compression: G.711u
  • Resolution: Half 1080P(960x1080); 720P(1280x720); 960H(P:960x576/N:960x480)
  • Video Quality: worst/worse/ordinary/well/best
  • Record Rate Analog: Half 1080P(960x1080 4*25fps), 720P(1280x720 4*25fps), 960H(P:960x576 4*25fps/N:960x480 4*30fps) Pure IP: PAL :1080P@9x25fps, 960P@9x25fps, 720P@9x25fps, D1@9x25fps NTSC:1080P@9x30fps, 960P@9x30fps, 720P@9x30fps, D1@9x30fps
  • Record Mode: Manual, Timer, Motion Detection

Playback & Backup

  • Decode Capability: 2CH 1080P@30fps
  • Sync Playback: Pure Analog: 4CH 1080N@25fps
  • Mixture mode: 1CH 1080P@30fps+1CH 1080N@25fps
  • Pure Network: 2CH 1080P@30fps, 3CH 960P@30fps, 4CH 720P@30fps
  • Remote Playback: 1Channel
  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
  • Playback Functions: Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen
  • Smart Phone Playback: 4 Channel
  • Backup Mode: USB Device(with fomat FAT 32 )/Network/FTP

Network

  • Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
  • Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
  • Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
  • CMS Software: Support Windows 7/ Windows 8/Windows 10
  • Extra Stream: CIF(1 - 25fps)
  • Smart Phone: iPhone, ipad, Android ,Android pad

Hard Disk Driver

  • Interface Type: 1 SATA Interface
  • Capacity: 1 SATA Hard Disk (2.5''/3.5'' SATA, Up to 6TB)

General

  • Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
  • UTC Control: YES
  • USB Interface: 2 USB 2.0 Interfaces
  • Power consumption: DC 12V less than 6W (Without Hard Disk)
  • Working Environment: -10-55/10-90%
  • Dimension (WxDxH): 260*215*43(mm)
  • Weight: 2kg (Without HDD)
More Information
BrandZxtech
SKUAR1T4Z
ConditionBrand New
CCTV Product TypeKit
Max Recorder Channel4 Channel
Power SourceDC
HDD Slot1 SATA
Max HDD Size Per Slot6TB
Max HDD Capacity6TB
Night Vision10M
Recording Resolution2.4MP 1080p
System TypeAHD
Cameras Included1
PTZNo
