Zxtech 3 x 60M IR Varifocal Outdoor Bullet AHD Security Camera System For Home

£153.71
In stock
SKU
AR3F4Z
Zxtech 3 x 60M IR Varifocal Outdoor Bullet AHD Security Camera System For Home has dark-fighting 60 Metre night vision and solid metallic anti-vandal build. 2.8-12mm optical zoom ensures crispy clear video close up or further away. All-in-one compatibility that works with AHD, TVI, CVBS, CVI and IP Cameras. Easily access using the mobile app. Never miss a piece of evidence with the live video streams if anyone near the camera. Connect optional microphones to record audio. Secure, advanced and reliable software with 4CH concurrent replay. Turn on schedule for timely recording and motion alert, turn off scheduling for 24/7 non-stop recording.

Product Overview

This outdoor High Definition CCTV System perfect fit for your long garden or open space. The camera's night vision can reach up to 200 feet (60 meters), during the day records what it sees. Setting up motion detection recording you can save a lot of storage on your pre-installed hard drive. Using varifocal cameras you can adjust the best image size, even if one area is further away. Store images in full HD quality well-known format as .avi, otherwise there may be problems if images need be used by the police save up to 6TB data.

System Features

  • Strong and solid build. Weatherproof design for outdoor use
  • Watch your property in High Definition Video on your Phone or Tablet
  • Works with IP CCTV Cameras
  • Easy Setup in seconds, Plug and Play
  • Night vision up to 200 feet (60 meters) and advanced motion filtering
  • Zxtech 3 x 60M IR Varifocal Outdoor Bullet AHD Security Camera System For Home

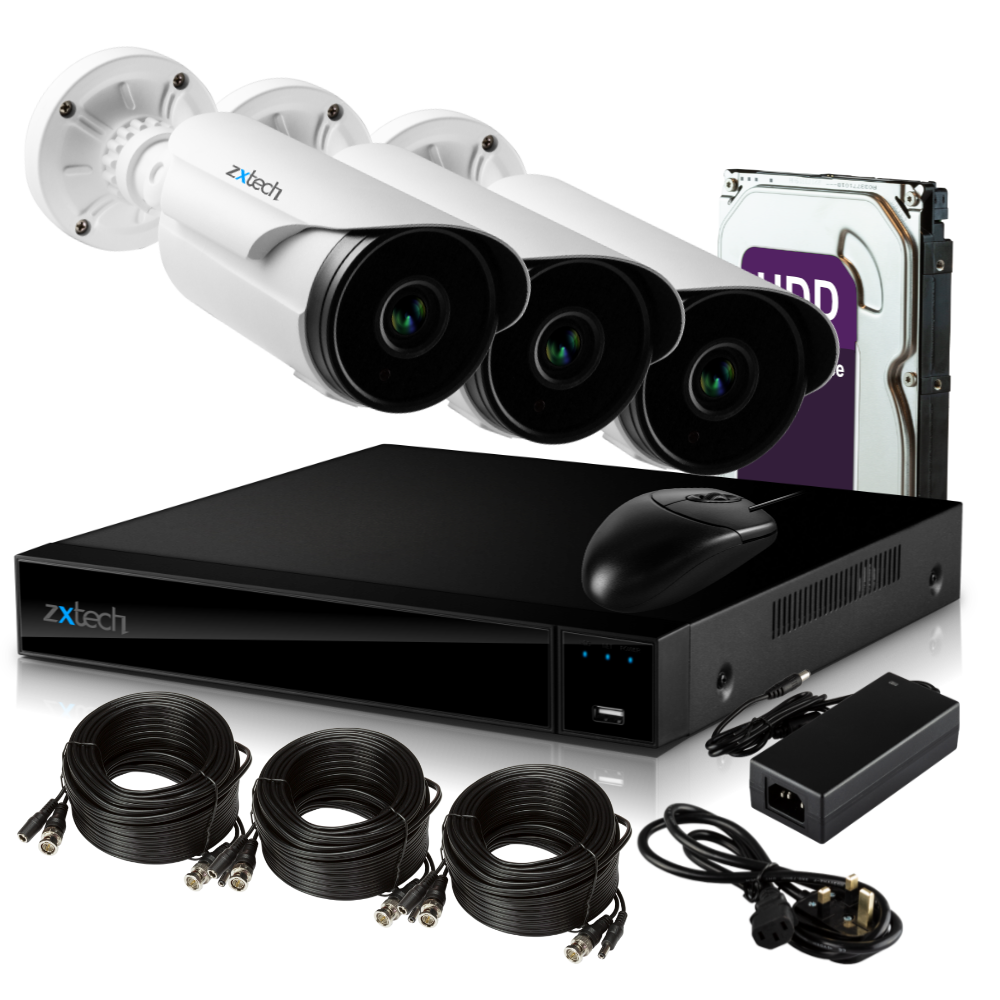

What's in the Box

  • 3 x Zxtech EagleVision CCTV Camera
  • 1 x 4CH Onyx XVR
  • power adaptors, power splitter
  • 2 x 10M cable, 1 x 20M cable
  • Optional HDD and Monitor

Zxtech 3 x AHD Security Camera System For Home

60M IR Varifocal Outdoor Bullet

The camera has varifocal lenses- optically zoom out to see everything in a car park, or optically zoom in to see details on a car reg. The camera has built-in LED light bulbs that enhance its night vision up to 200 feet.

Tech Specs

EagleVision AHD Camera Specs

  • Compatible with CVI, TVI, AHD by FusionConnect Tech
  • Record Full HD Footages with 1080p Resolution and Real-time
  • IP66 Waterproofing Housing against Tough Outdoor Weather
  • 60 Metres/200 Feet Night Vision See Clearly in the Night
  • 360° Flexible Angle Gives No Dead Corner
  • Also Works with Very Old Analog Recorders
  • See Footage Sharper and Lighter with Special 2.8-12mm Varifocal Lens
  • Next Gen Zxtech a2.2 Chipset with Sony Processor
  • Vandal-proof with Solid Metallic Body

Recorder Specs

  • Main Processor: HI3520DV200
  • Operating System: Embedded LINUX

Video

  • Input Analog: 4*1080P
  • Analog+Network: 2*Analog(1080P)+4*network Network: 9*1080P/960P/720P(Total incoming bandwidth less than 46M)
  • Input: 4CH BNC
  • Signal Type: Analog/AHD/CVI/TVI 2.0/Network
  • Output: 1HD,1 VGA

Audio

  • Input: 4 Channel, RCA
  • Two-way Audio: NO
  • Output: 1 Channel, RCA

Alarm

  • Sensor Input: NO
  • Output: NO
  • Motion Detection: 4 Channel(max 9 Channel in pure network mode)
  • Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
  • Email Alarm: Send Image to The Designated E-mail

PTZ

  • Interface: RS485
  • Protocol: Pelco-D, Pelco-P
  • Baud Rate: 110 - 921600
  • Address: 0 - 255

Display

  • VGA Resolution: 1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,1024 x 768/60Hz
  • HD Output: Resolution:1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,1024 x 768/60Hz
  • Display Split: 9 Channel/4 Channel / 1Channel
  • Privacy Masking: 3 Rectangular Zones (Each camera)
  • OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

  • Video Compression: H.264
  • Audio Compression: G.711u
  • Resolution: Half 1080P(960x1080); 720P(1280x720); 960H(P:960x576/N:960x480)
  • Video Quality: worst/worse/ordinary/well/best
  • Record Rate Analog: Half 1080P(960x1080 4*25fps), 720P(1280x720 4*25fps), 960H(P:960x576 4*25fps/N:960x480 4*30fps) Pure IP: PAL :1080P@9x25fps, 960P@9x25fps, 720P@9x25fps, D1@9x25fps NTSC:1080P@9x30fps, 960P@9x30fps, 720P@9x30fps, D1@9x30fps
  • Record Mode: Manual, Timer, Motion Detection

Playback & Backup

  • Decode Capability: 2CH 1080P@30fps
  • Sync Playback: Pure Analog: 4CH 1080N@25fps
  • Mixture mode: 1CH 1080P@30fps+1CH 1080N@25fps
  • Pure Network: 2CH 1080P@30fps, 3CH 960P@30fps, 4CH 720P@30fps
  • Remote Playback: 1Channel
  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
  • Playback Functions: Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen
  • Smart Phone Playback: 4 Channel
  • Backup Mode: USB Device(with fomat FAT 32 )/Network/FTP

Network

  • Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
  • Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
  • Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
  • CMS Software: Support Windows 7/ Windows 8/Windows 10
  • Extra Stream: CIF(1 - 25fps)
  • Smart Phone: iPhone, ipad, Android ,Android pad

Hard Disk Driver

  • Interface Type: 1 SATA Interface
  • Capacity: 1 SATA Hard Disk (2.5''/3.5'' SATA, Up to 6TB)

General

  • Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
  • UTC Control: YES
  • USB Interface: 2 USB 2.0 Interfaces
  • Power consumption: DC 12V less than 6W (Without Hard Disk)
  • Working Environment: -10-55/10-90%
  • Dimension (WxDxH): 260*215*43(mm)
  • Weight: 2kg (Without HDD)
More Information
BrandZxtech
SKUAR3F4Z
ConditionBrand New
CCTV Product TypeKit
Max Recorder Channel4 Channel
Power SourceDC
HDD Slot1 SATA
Max HDD Size Per Slot6TB
Max HDD Capacity6TB
Night Vision60M
Recording Resolution2.4MP 1080p
System TypeAHD
Cameras Included3
PTZNo
Face RecognitionNo
