Zxtech Ultra Mini 5MP 9 CH CCTV NVR


What's in the box
- 1x CCTV NVR
- QSG, Screws
- Power Supply
- USB mouse

Features
- 5 Megapixel recording resolution (2592*1944) for up to 9 IP Cameras
- 25 frames per second real-time recording and playback
- H.265+ / H.265/ H.264 compression type
- Motion Detection, motion alert sent on your smartphone, remote access with free mobile app
- Capacity up to 8TB SATA Hard Drive
- 2x USB 2.0, HDMI, VGA, Network Port
- 1x Audio Out Port to connect external speaker and play sound
- Onvif 2.4 Compatibility
- Flexible Schedule and Masking Configuration

5 Megapixel High definition recording and playback is now landed on CCTV
Record 5MP simultaneously on 9 IP channels at 25fps. Playback 5MP on 1 Channel. 2MP simultaneously on 4 channels at 30fps.

High Definition with Realtime Recording
The picture you can get has more details and sharpness providing 2592x1944 pixels

H.265+ High-Efficiency Video Coding
Lower the cost of hard drive storage and transmission

Motion Detection, Alerts, Schedule and Masking as standard
Utilise the extremely flexible scheduling preference. Tell the NVR what time of the day, or which day of the week to record, sleep, alert. No, unnecessary alerting during the time you are there, no unnecessary recording when you do not need it. Alternatively, you can just turn it on 24/7

1x SATA Hard Drives up to 8TB
The recorder can take up to 1 SATA HDD and helps solve crimes. Zxtech recorders have recorded many crucial pieces of evidence that helped many victims in the UK identifying the criminal

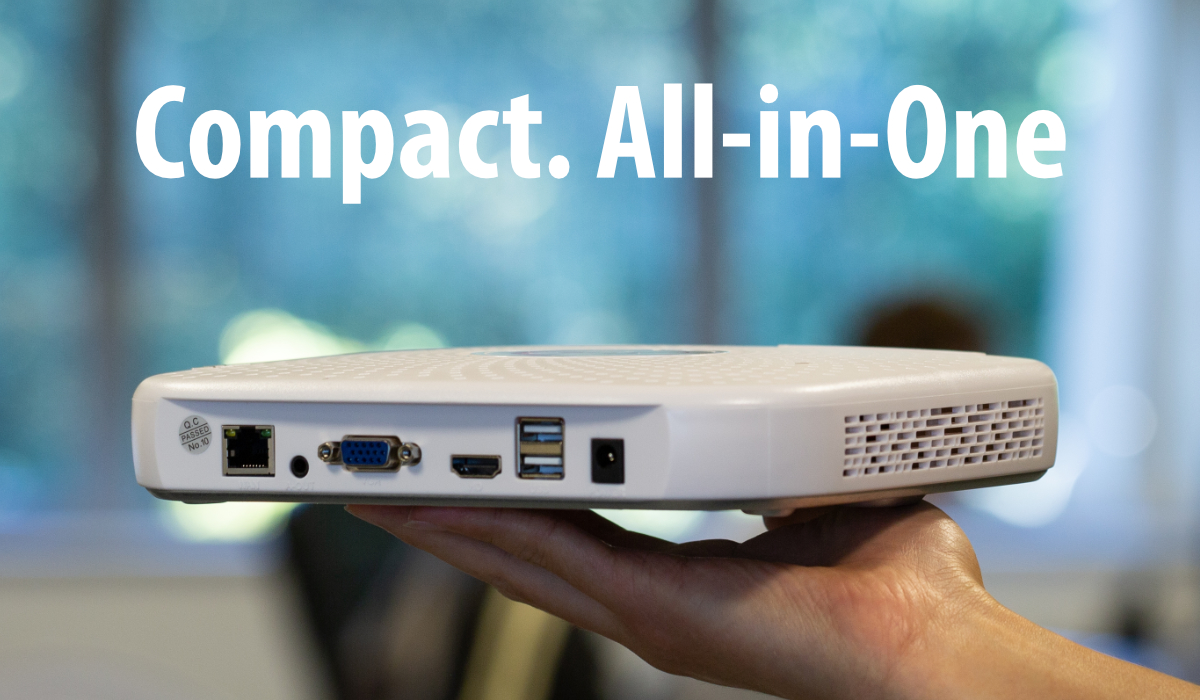

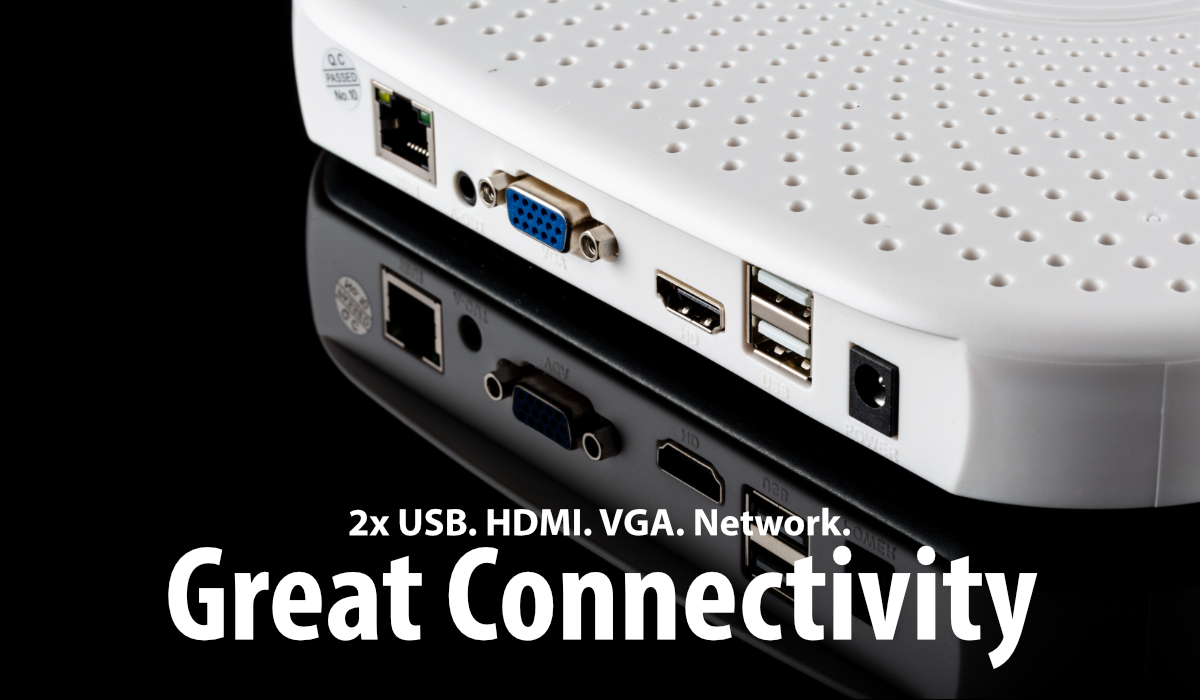

USB, VGA, HDMI Ports
You can simultaneously connect your recorder to 2 monitors. One monitor connects with VGA cable, another one connects with HDMI cable. One monitor may be in your bedroom, another one may be in your living room.

Connectivity as well as Compatibility
Audio Output to connect a speaker externally.

Onvif 2.4 Compatibility
The recorder is compatible with ONVIF 2.4 CCTV cameras. That will ensure every part of your security system works all together

Secure, Reliable, Advanced Software. The viewing, Replay, Control, Alert and Intelligent Settings
You have the choice to blank out part of the scene that is not important to you. Draw one or multiple squares in the setting, your recorder will ignore the motion in those areas and will not trigger the alert

System |
|
---|---|
Main Processor | ARM Cortex A7 Processor |
Operating System | Embedded Linux |

Video |
||
---|---|---|
Input | 9CH (2592*1944, 2048*1536, 1920*1080, 1280*960, 1280*720, etc.) | |
Output | 1 VGA, 1 HD |

Audio |
||
---|---|---|
Input | / | |
Output | 1 Port RCA (Linear, 1 kꭥ) | |
Audio Bit Rate | 64 Kbps | |
Audio Compression Standard | G711u, G711a, G726 |

Alarm |
||
---|---|---|
Input | No | |
Output | No | |
Motion Detection | 9 Channel, MD Zones: 396 (22x18) | |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips |

Display |
||
---|---|---|
HD Output1 | 1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
HD Output2 | / | |
VGA | 1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
Display Split | 9CHxD1/ 8CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP | |
Digital Zoom | Yes | |
OSD | Camera Title, Time, Recording, Motion Detection |

Recording |
||
---|---|---|
Video Compression | H265/H264/H265+/H264+ | |
Resolution | 5MP (2592*1944), 4MP (2688*1520/2560*1440), 3MP (2048*1536), 1080p (1920*1080), 960p (1280*960), 720p (1280*720), D1 (720*576/720*480) | |
Record Rate | PAL: 5MP@9*25fps, 4MP@9x25fps, 3MP@9x25fps, 1080p@9x25fps, 960p@9*25fps, 720@9x25fps, D1@9x25fps NTSC: 5MP@9*30fps, 4MP@9x30fps, 3MP@9x30fps, 1080p@9x30fps, 960p@9*30fps, 720@9x30fps, D1@9x30fps | |
Record Mode | Manual/ Timer/ Motion Detection/ Smart Alarm |

Playback & Backup |
||
---|---|---|
Local Sync Playback | 1CH 5MP@30fps, 1CH 4MP@ 30fps, 2CH 3MP@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps | |
Decode Capability | 4CH 1080p@30fps | |
Remote Sync Playback | Yes | |
Search Mode | All, Channel, Manual, Time, Date, Motion Detection | |
Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Full Screen, Frame Play, Frame Rewind, Digital Zoom | |
Backup Mode | USB Device/Network |

Network |
||
---|---|---|
Interface | 1 RJ45 10M/100/1000M Adaptive Ethernet Interface | |
Incoming Bandwidth | 60MB | |
Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p | |
Onvif Version | Support Onvif 2.4 | |
Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) | |
CMS Software | Support Windows 7/Windows 8/ Windows 10/MAC OS | |
Cloud Support (P2P) | Yes | |
Smart Phone | iPhone, iPad, Android, Android Pad | |
PoE | / | |
Wifi | / |

Storage |
||
---|---|---|
Interface Type | 1 SATA Interface | |
Capacity | Up to 8TB Capacity | |
eSATA | / |

General |
||
---|---|---|
Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkish, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek | |
USB Interface | 2 USB 2.0 Interfaces | |
RS485 | / | |
Power Supply | DC12V/2A | |
Dimension (WxDxH) | 219x217x40 (mm) | |
Weight | 2.0 kg (without HDD) |
Brand | Zxtech |
---|---|
SKU | MN920WN |
CCTV Product Type | Recorder |
Condition | Brand New |
System Type | IP |
Recording Resolution | 5MP |
Max Recorder Channel | 9 Channel |
Video Output | HDMI, VGA |
Audio Input | 1 x Audio Input Port |
Motion Detection | Motion Enabled |
Email Alert | Email Alert Enabled |
Video Compression | H.265+ |
Remote Playback | Yes |
Audio Output | Yes |
Backup Mode | USB, Network |
Cloud Support (P2P) | Yes |
PoE | No |
WiFi | No |
HDD Slot | 1 SATA |
Max HDD Size Per Slot | 8TB |
Max HDD Capacity | 8TB |
RS485 | No |
Recorder Bandwidth | 60MB |
Power Source | DC 12V |
