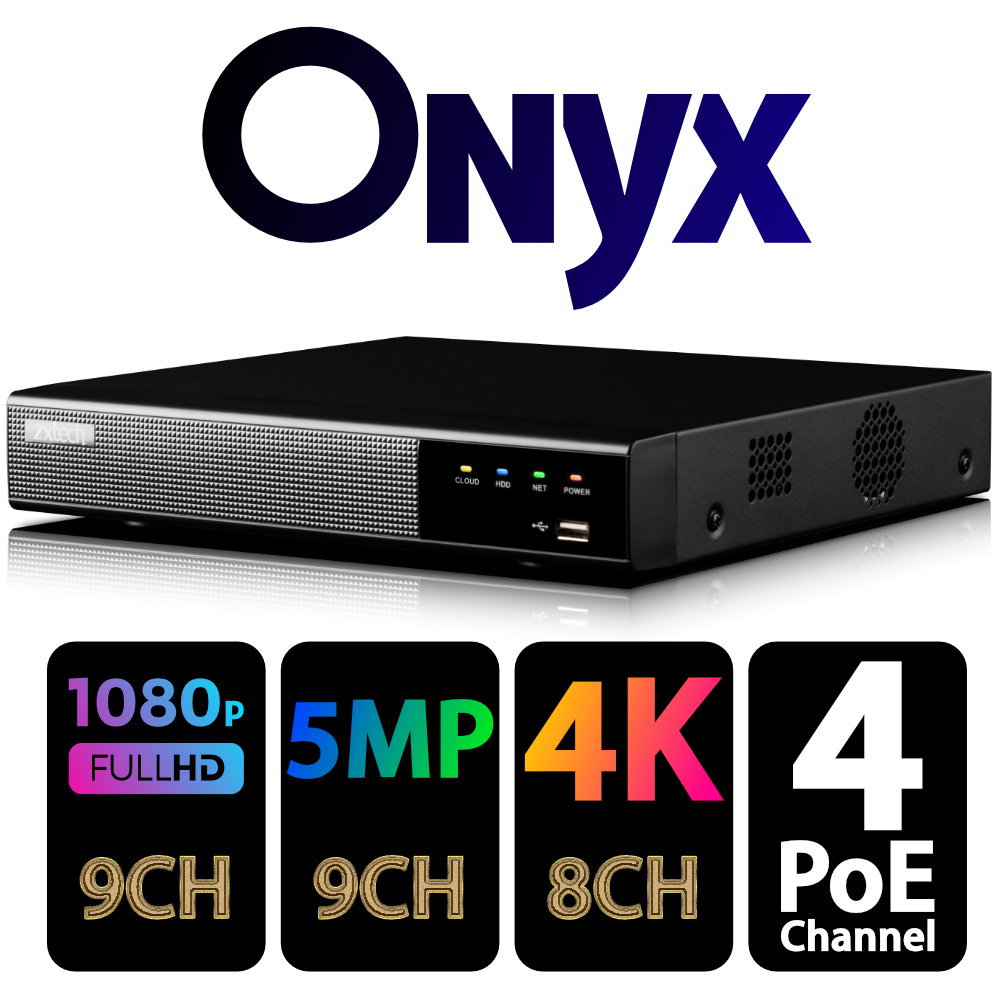

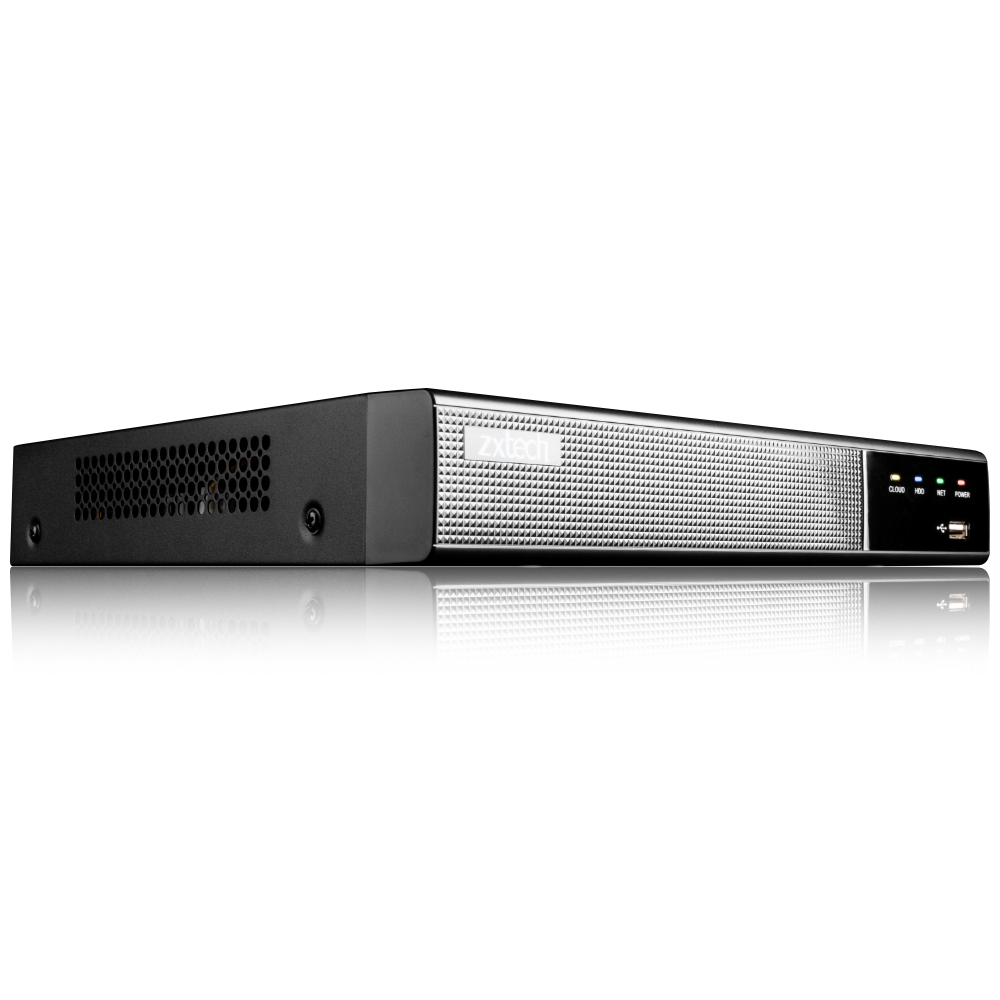

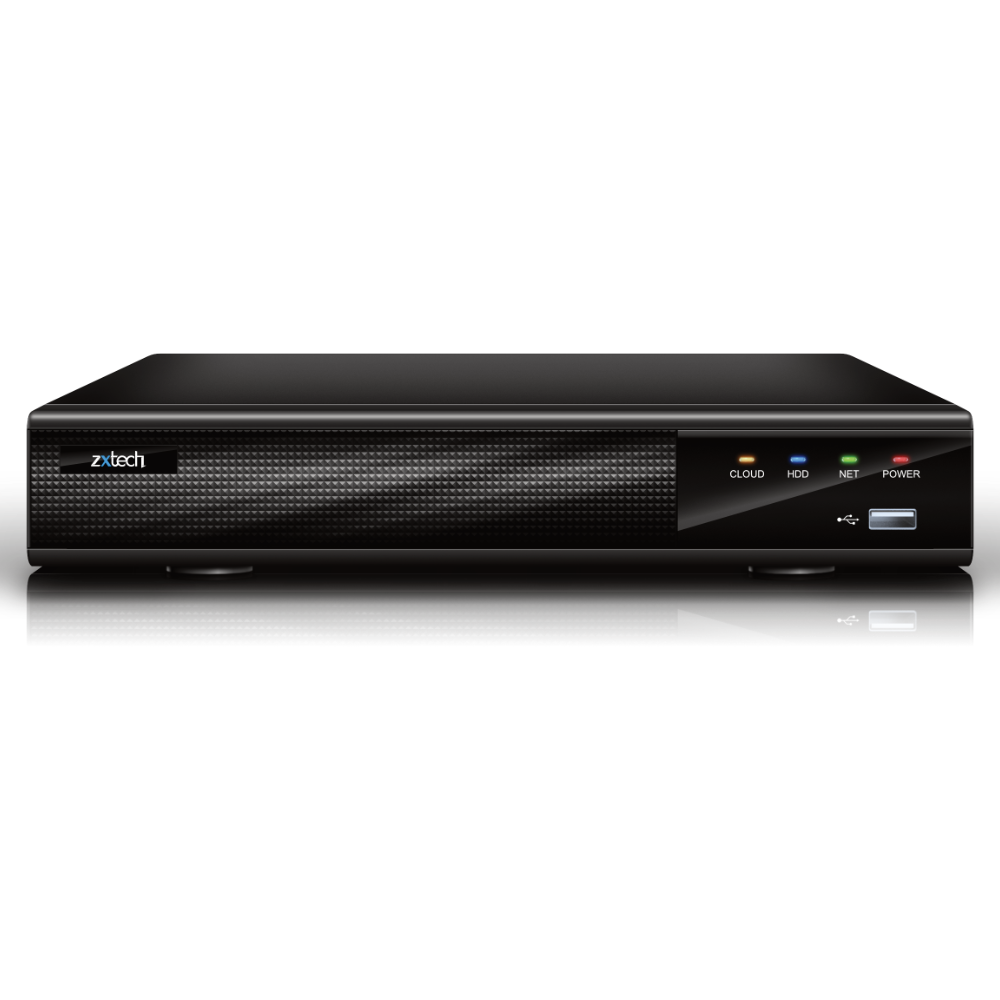

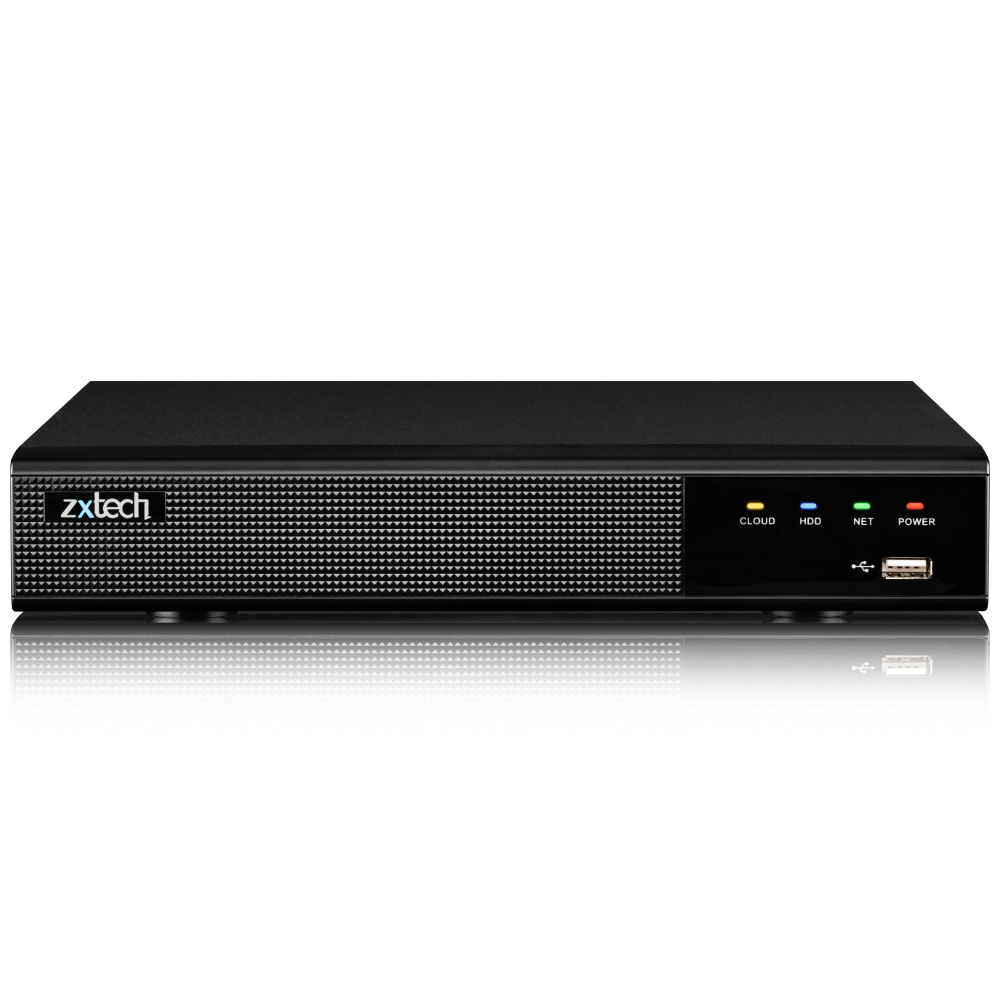

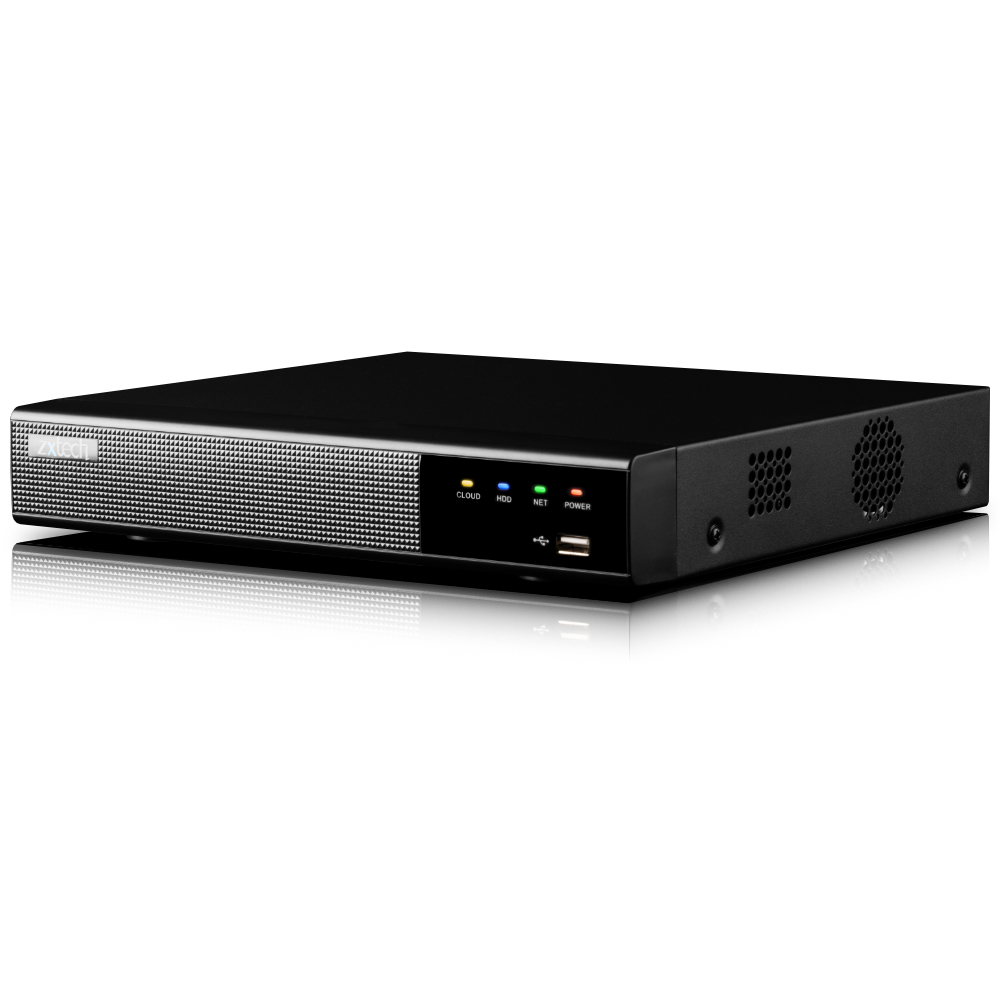

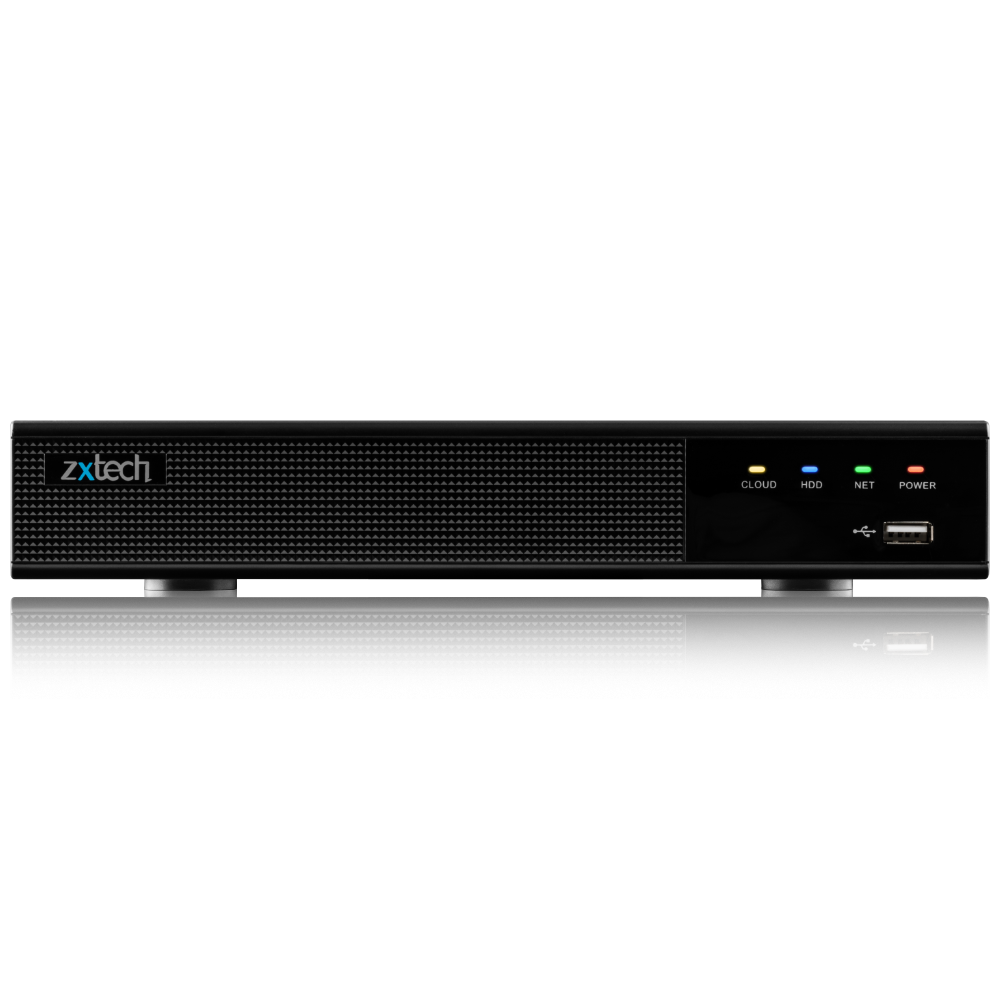

Zxtech Onyx 9 Channel 8 PoE 8MP 5MP 1-SATA Network Video Recorder

In stock
Zxtech 16 Channel 4MP or 10 Channel 4K - 8 ports built-in PoE 8MP Network Video Recorder. With Built-in switch, you can connect 8x PoE IP Cameras. Using a device powered by Android or iOS, the option is there to monitor a live feed or playback footage from this NVR.

Product Overview

  • IP Camera Input: 16 Channel- 8 port Built in PoE Switch
  • Recording Resolution: 8M/5M/4M/3M/1080P/960P/720p etc All Real Time
  • Compression Method: H.265+/H.265/H.264+/H.264
  • Cloud Access from your iPhone, iPad, Android, PC, Browsers
  • One Hard Drive, Maximum 8TB.
  • Flexible Schedule and Masking Configuration
  • USB Backup with Flexible and Selective Time and Period
  • Supports Trigger Events: Recording, Email, FTP, Snapshot, Buzzer
  • Audio Out, Alarm USB, Network Ports.
  • Onvif Version: Support Onvif 2.4.
  • Enjoy Peace of Mind 1 Year Warranty

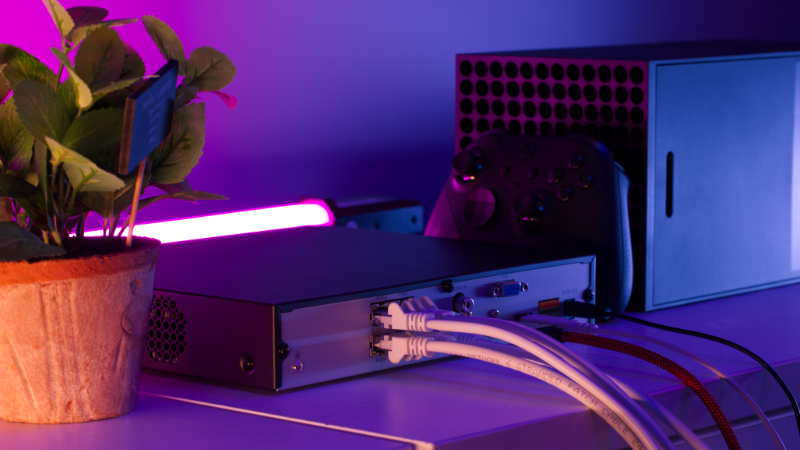

8 Ports PoE Built-in

With built-in PoE switch Port, you can connect up to 8 of your PoE IP Camera straight into this Network Video Recorder. No need for extra cable and switch box. This Zxtech Recorder is the security technician’s and installers’ best friend. It includes a host of features that make them easy to service, saving you both time and money.

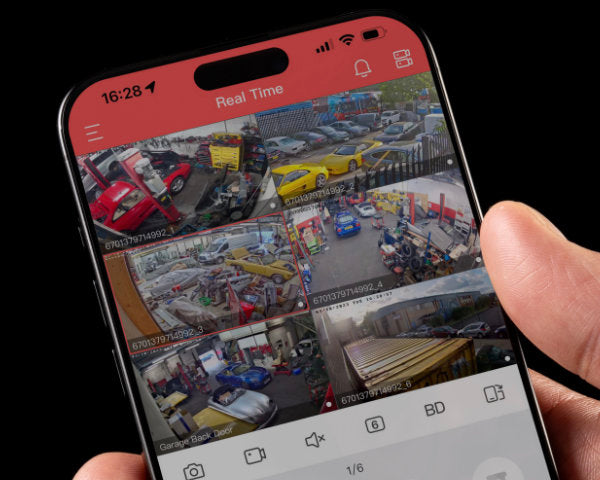

Remote Viewing

If you are using a device powered by Android or a device running Apple’s iOS, the option is there to monitor remotely a live feed from this NVR. You can even monitor directly from IP.

8MP 25fps Recording Resolution

With this network recorder you will be able to connect up to 8MP network video cameras and Real Time Record on All Channels. Human face and license plate recognition requires extremely high resolution and a good angle to catch them. And 8MP security equipment provides you the best possibility to get what you need.

Zxtech Onyx 16 Channel 8 PoE 1-SATA Network Video Recorder


  • IP Camera Input: 16CH
  • Compression Method: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 8M/5M/4M/3M/1080P/960P/720p etc (All Real Time)

What's in the box

  • 8 PoE Built in Network Video Recorder
  • Quick Start Guide
  • USB Mouse
  • Power Adaptor
  • 1 Year Warranty

Tech Specs

  • Main Processor: ARM Cortex A7 Processor
  • Operating System: Embedded LINUX
  • Video Input: 16CH (4096x2160, 2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)
  • Video Output: 1 VGA, 1 HD
  • Audio Output: 1 Port RCA(Linear, 1kΩ)
  • Audio Compression standard: G711u, G711a, ADPCM_DVI4
  • Sensor Input: 4
  • Output: 1
  • Motion Detection: 16 Channel, MD Zones: 396 (22 x 18)
  • Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm output
  • HD Output1: Resolution: 4K (3840x2160)/30Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • VGA Resolution:1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • Display Split: 16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4K
  • Digital Zoom: YES
  • OSD Camera: Title, Time, Recording, Motion Detection
  • Video Compression: H265/H264/H265+/H264+
  • Resolution: 4K(4096x2160), 5MP(2592x1944),4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)
  • Record Rate PAL: 4K@10x25fps, 5MP@14x25fp, 4MP@16x25fp, 3MP@16x25fp, 1080P@16x25fp, 960P@16x25fp, 720P@16x25fp, D1@16x25fp NTSC: 4k@10x30fps, 5MP@14x30fp, 4MP@16x30fp, 3MP@16x30fp, 1080P@16x30fp, 960P@16x30fp, 720P@16x30fp, D1@16x30fp
  • Record Mode: Manual\Timer\Motion Detection
  • Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
  • Decode Capability: 1CH 4K (3840 x 2160)@30fps
  • Remote Sync Playback: YES
  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
  • Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom

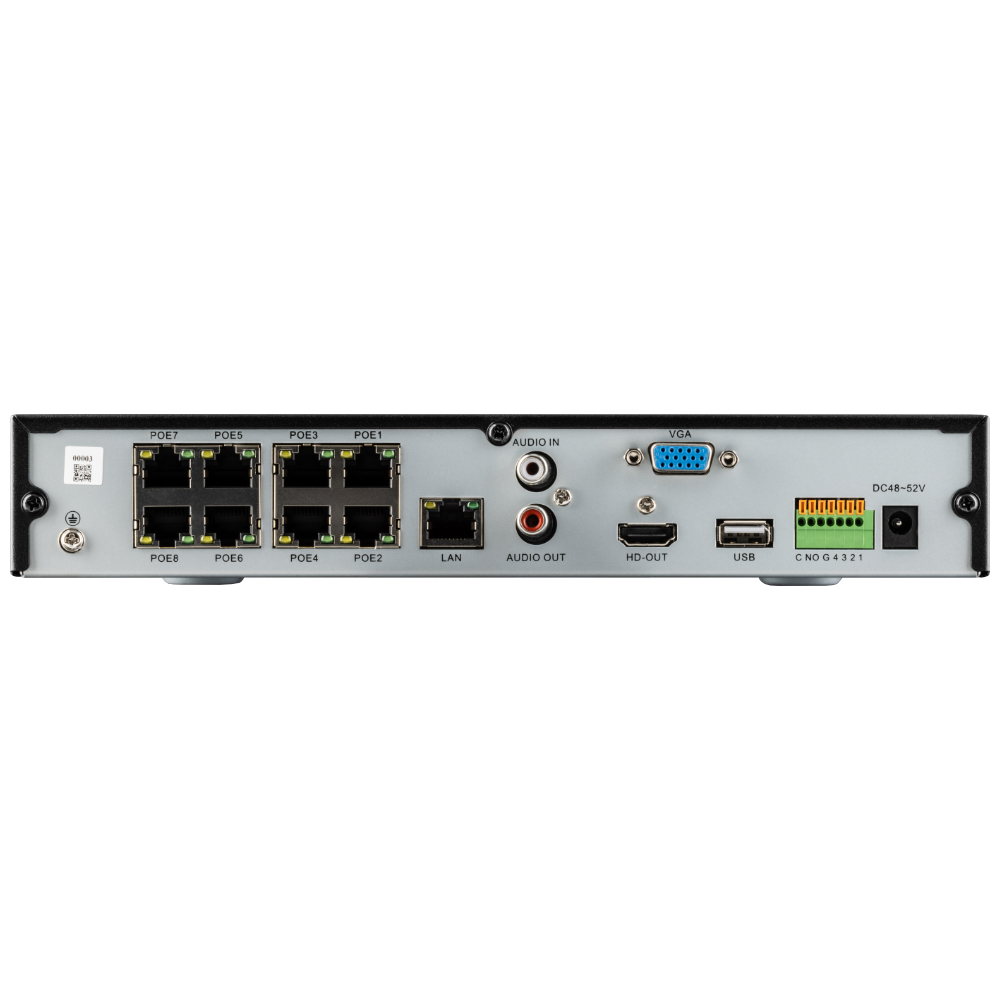

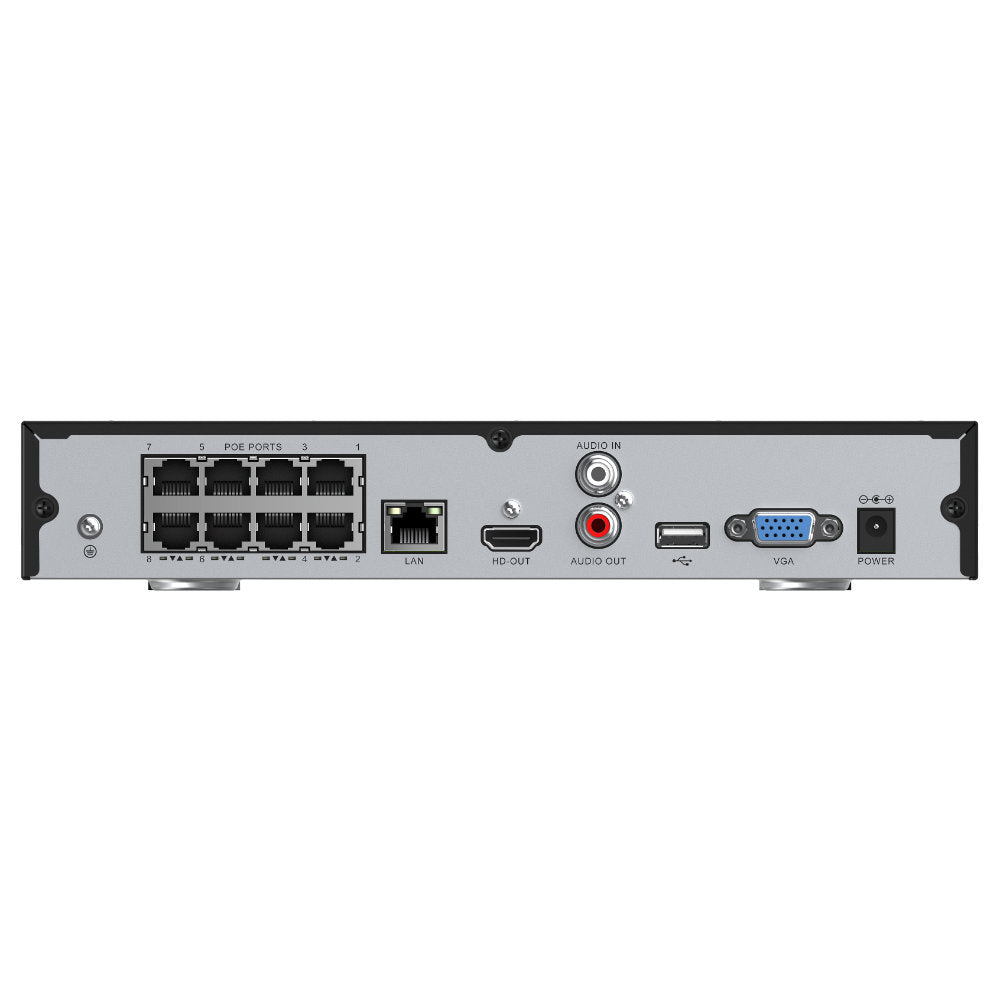

  • Interface: 8 x RJ45 (10M/100M Adaptive Ethernet Interface)+ 1 x RJ45 10M/100M/1000M Adaptive Ethernet Interface
  • Incoming Bandwidth: 100MB
  • POE: 8 x Independent 100Mbps POE Network Interfaces (Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output>100W, Support Plug and Play
  • Interface Type: 1 SATA Interface
  • Capacity: Up to 8TB capacity
  • Dimension(WxDxH): 260*215*43(mm)
More Information
CCTV Product TypeRecorder
ConditionBrand New
System TypeIP
Recording Resolution5 Megapixel, 8 Megapixel
Max Recorder Channel9 Channel
Video OutputHDMI, VGA
Motion DetectionMotion Enabled
Email AlertEmail Alert Enabled
Video CompressionH.265+
Remote PlaybackYes
Audio OutputNo
Backup ModeUSB, Network
Cloud Support (P2P)Yes
Max HDD Size Per Slot8TB
Max HDD Capacity8TB
Power SourceDC 48V
