Zxtech 4K CCTV System - 10 x IP PoE Cameras Motorised Lens Face Detection Outdoor Sony Starvis Enhanced Night Vision | RX10D16X
Complete Smart System comes with Zxtech Premio Motorized Bullet 8MP 4K (optional 5MP & Optional Intense LED Colour Night Vision) CCTV camera that goes up to 60-meter Night Vision. IR-LED for visibility in any light conditions and See clearly at night. Buying the optimal Intense LED option enables an amazing true full colour night vision. Wide 2.7-13.5mm Motorized Lens for automatic optical zoom. Ultra HD resolution is 'a must' these days. Motorised outdoor UHD security camera and built-in PoE CCTV NVR allows easy installation. Face Detection works along with Intruder, Loiter, Line Crossing Smart Alert. Smart AI technology for maximum peace of mind. Cameras can be installed with 360-degree adjustable angle around your home or business, and observe them with your smartphone remotely.

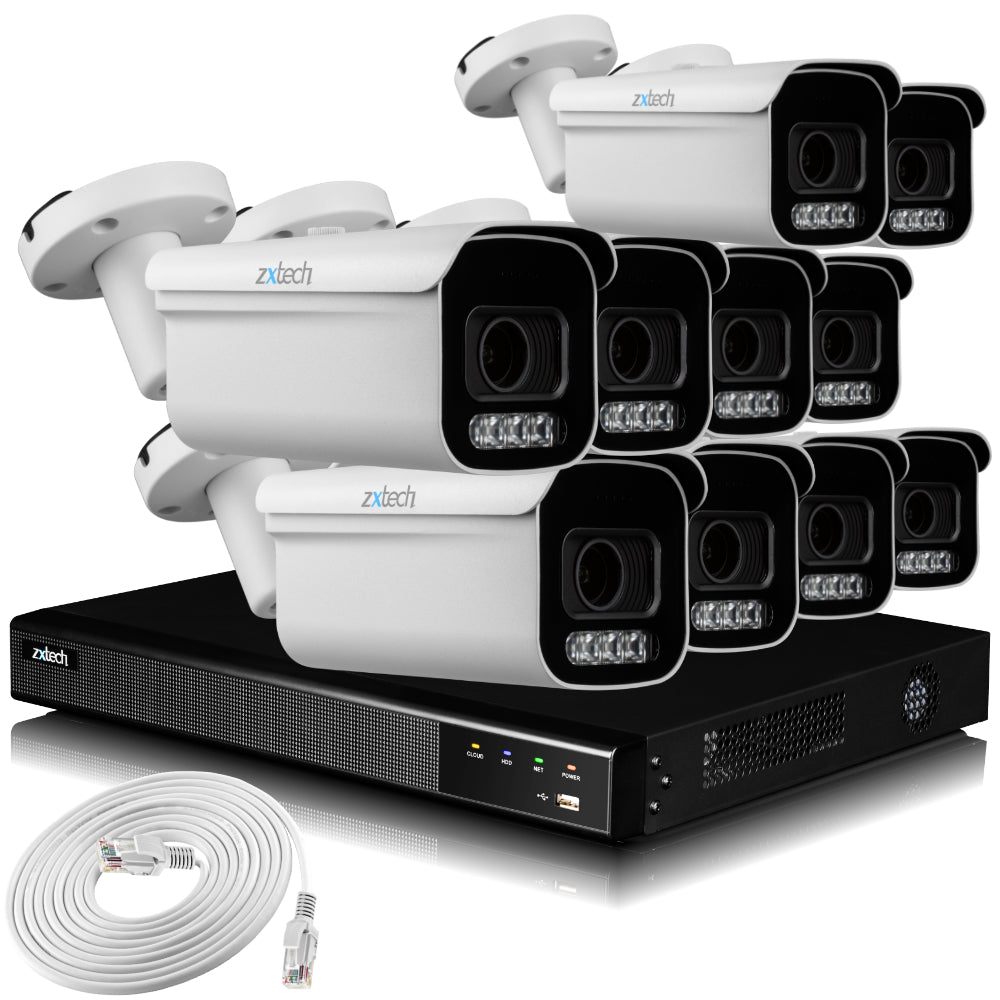

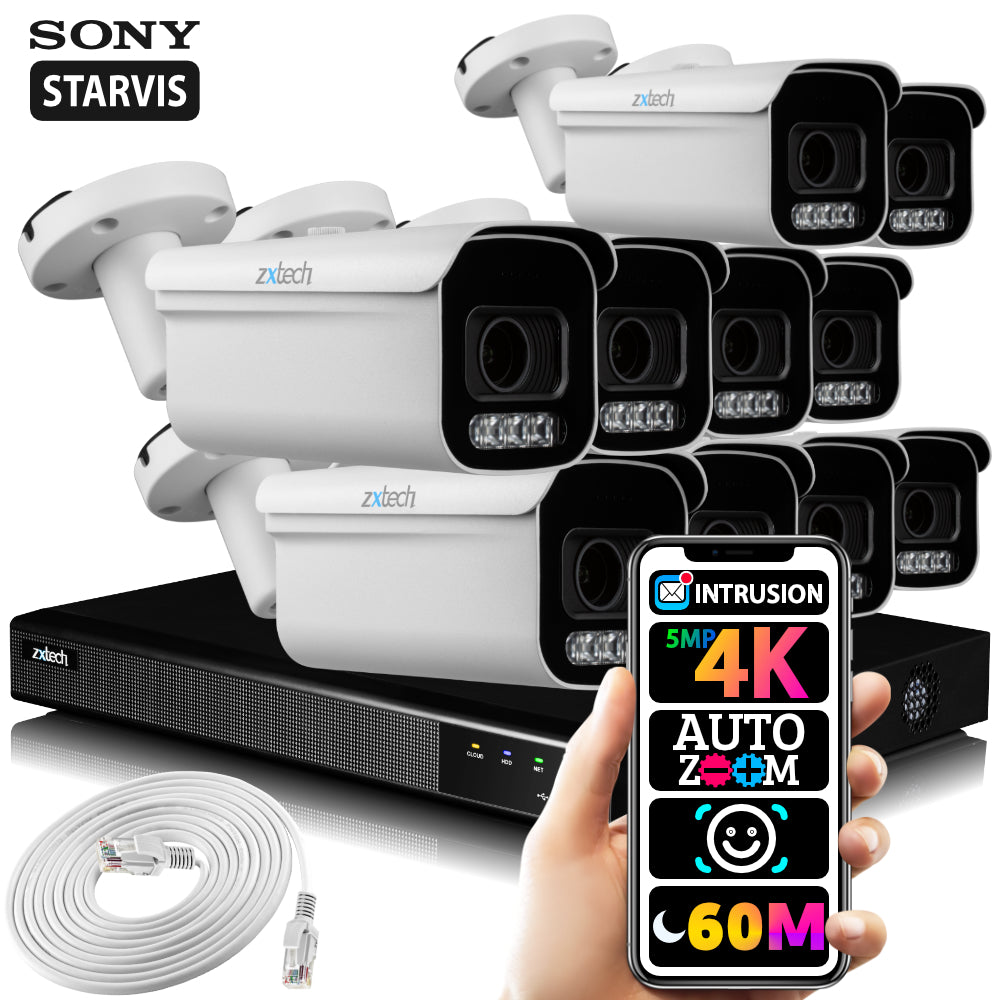

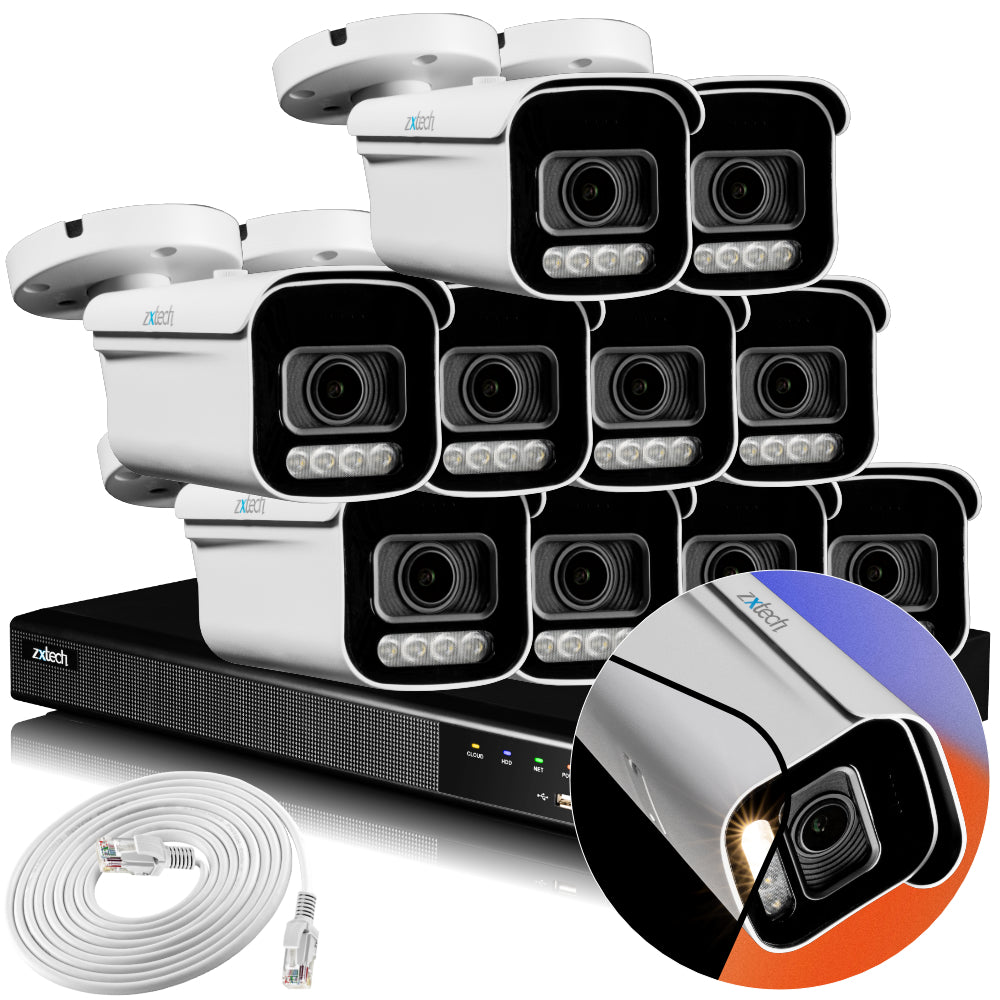

What's in the Box
- 10 x Zxtech Premio 4K AI CCTV Camera (Optional Intense LED Colour Night Vision Feature)

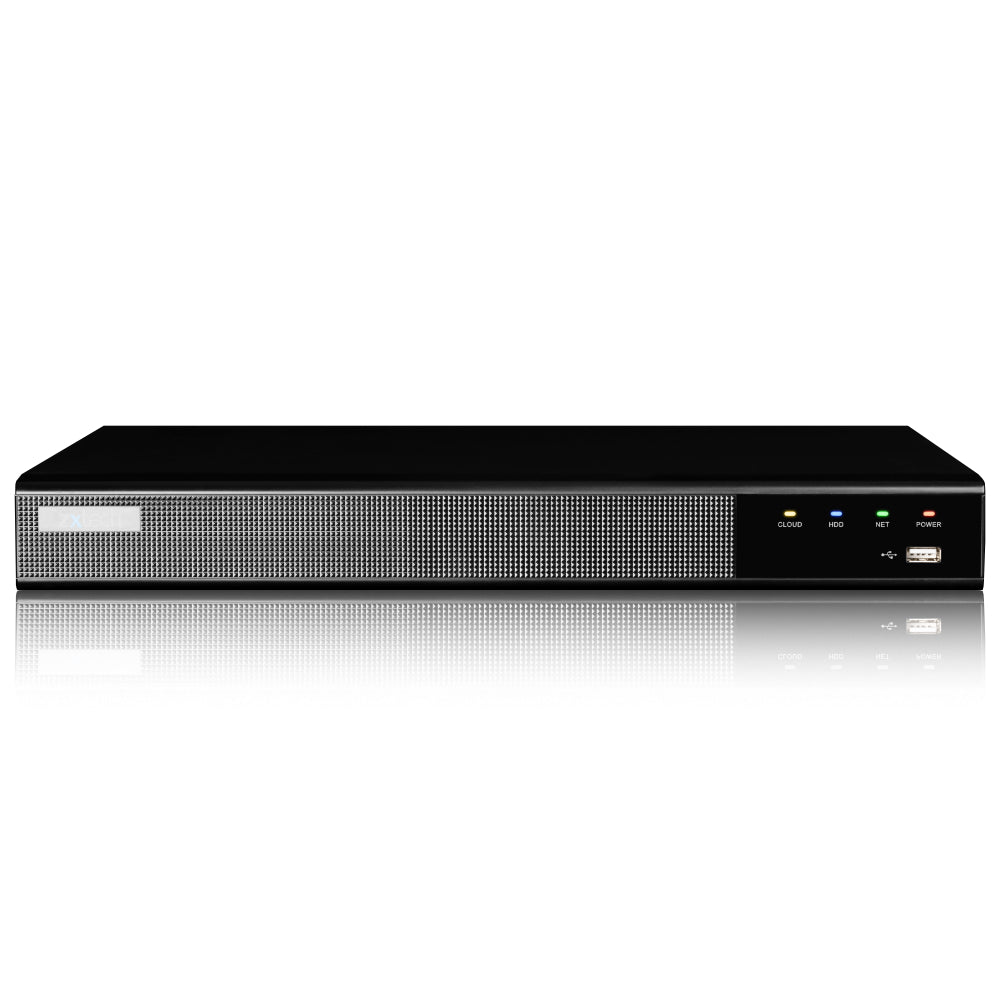

- 1 x 16CH Onyx 4K PoE Network Video Recorder
- 5 x 10M cable, 5 x 20M cable and 1 x 2M Cable
- Optional HDD & Optional Deep Base
- 【4K/UHD/8MP/5MP/4MP】New model cameras with amazing 8 Megapixel resolution (3840*2160) (optional 5 Megapixel) for razor-sharp image and brilliant colour
- 【60M Night Vision】Another level of visualization with superb night vision up to 60M. If you have some extra lighting, you will be able to achieve colour night vision. Alternatively, buy the "Intense LED" option for the built-in 4 x ultra bright light supplements for full colour CCTV footage 24/7.
- 【Face and Body Detection】Ultra Smart AI Face Detection enables Intrusion, Line Crossing, Loiter and People Gather Detection
- 【Sony Chip】Sony Starvis Back-illuminated CMOS sensor giving you best experience for true 4K (optional 5MP)
- 【PoE】Complete PoE system, built-in PoE switch CCTV NVR and PoE CCTV Camera make installation easier then ever
- 【Built-in Memory and Extendable Audio】Premio CCTV Camera with built-in 4GB Storage with 512GB Extendable SD Card Slot for footage backup preventing losing the images, this camera has a separate lead so you will be able to connect a microphone in case you want to record sound

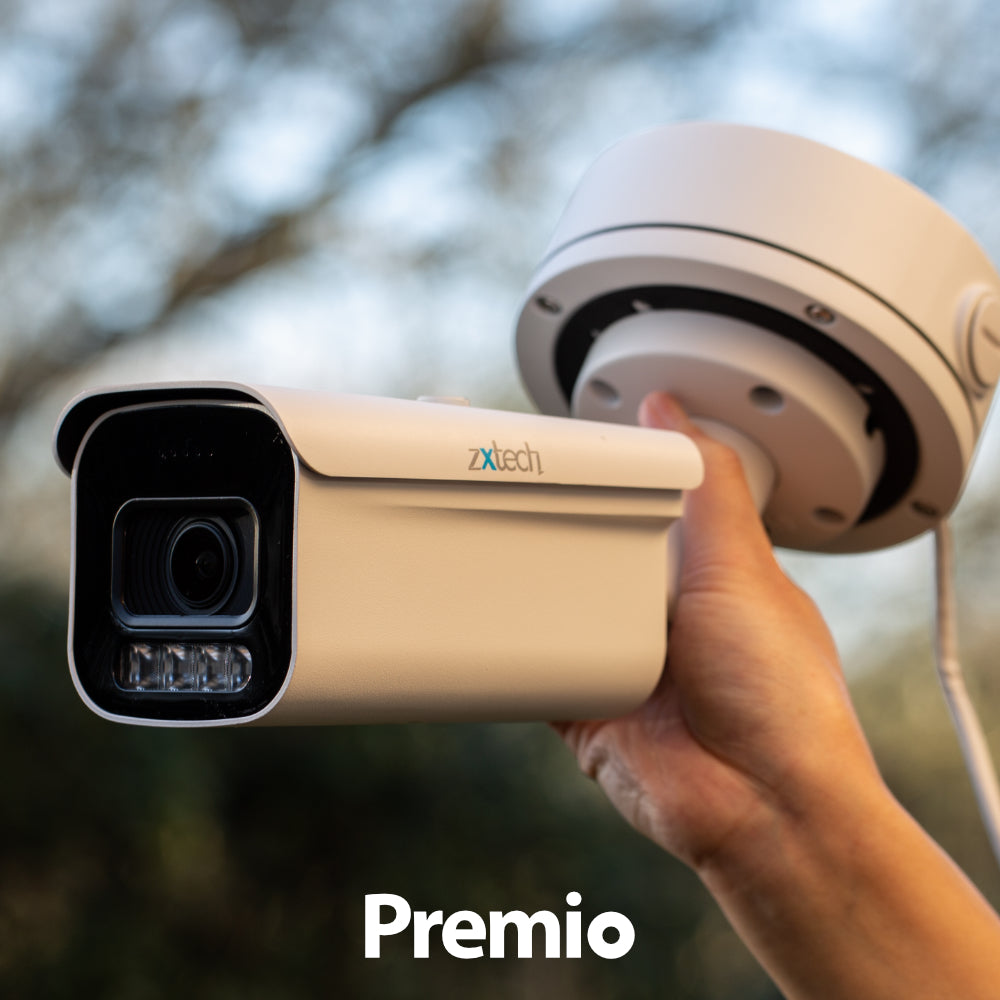

- 【2.7-13.5 mm Auto Zoom & Focus】The camera has an inbuilt motorized 2.7-13.5 mm lens, specially designed for bullet cameras allowing you from narrow to extra wide-angle, optically zoom in or out using your mobile phone or PC, then the motor automatically will refocus without climbing up a ladder
- 【H265+】Featuring H265+ video compression the kit will save you up to 50% hard disk storage
- 【Smart Phone Remote Access】Ability to remote access with free mobile app from anywhere in the world, all with just click of a button to ensure a comprehensive viewing that covers all your needs

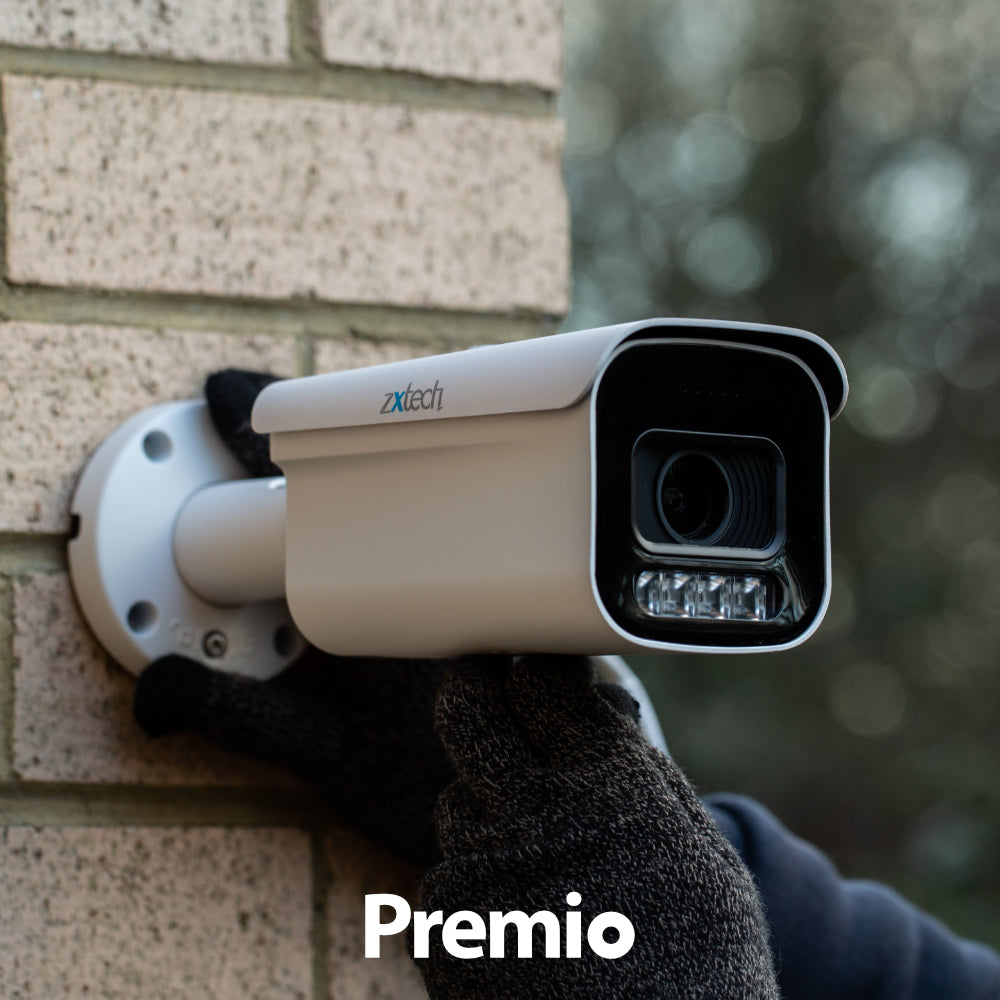

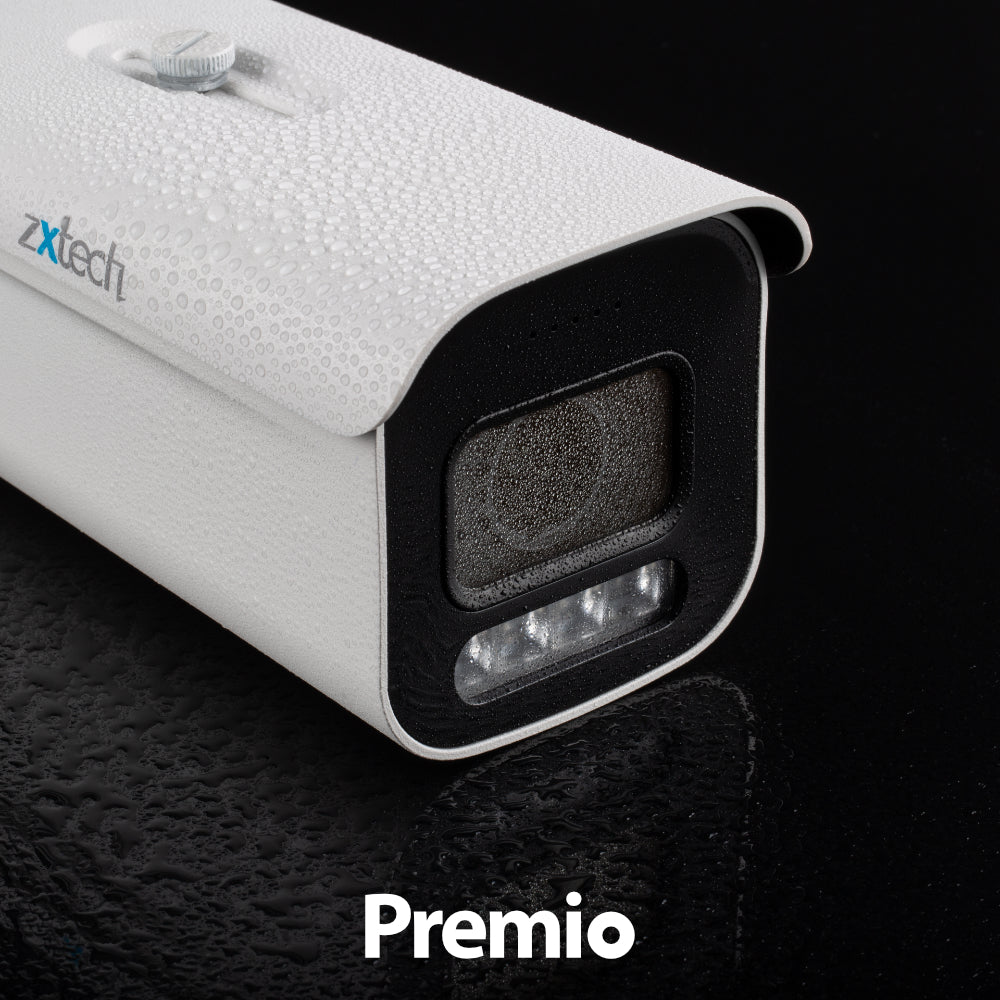

- 【Waterproof & Vandal Proof】The camera has a sturdy construction built for the outdoor or indoors rated to IP67 with a strong anti-vandal body case
- 【HDR & Image Enhancement】Featuring IR Cut, WDR, BLC, ROI, Defog making the system perfect for day and night. HDR Sensor Enables Dynamic Range over Mind-blowing 120 dB
- 【Smart Motion Alert】The system supports motion detection and mobile notification alert, activated push images once the motion is triggered
- 【Quick Mobile Setup】P2P QR Scan for anyway, anytime Remote CCTV Access
- 【Built-in 4CH PoE Switch】CCTV NVR with 4CH built-in PoE switch included

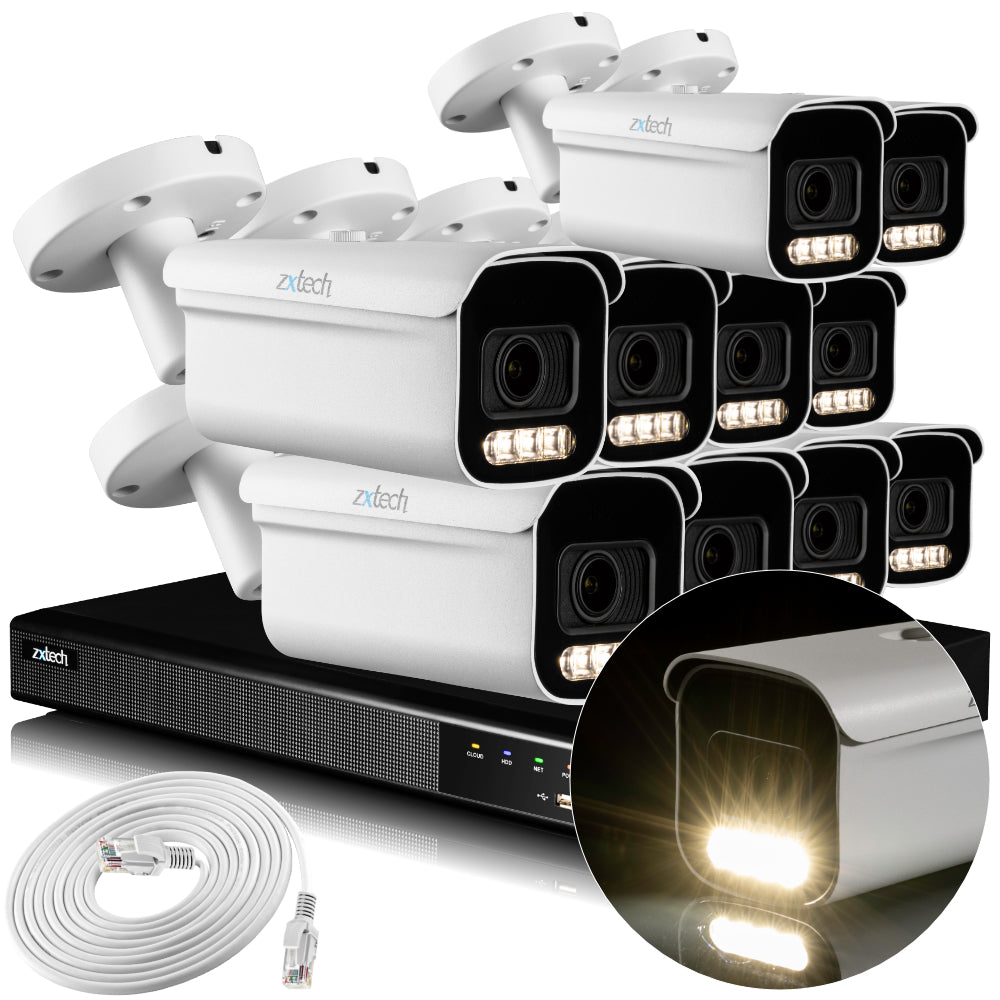

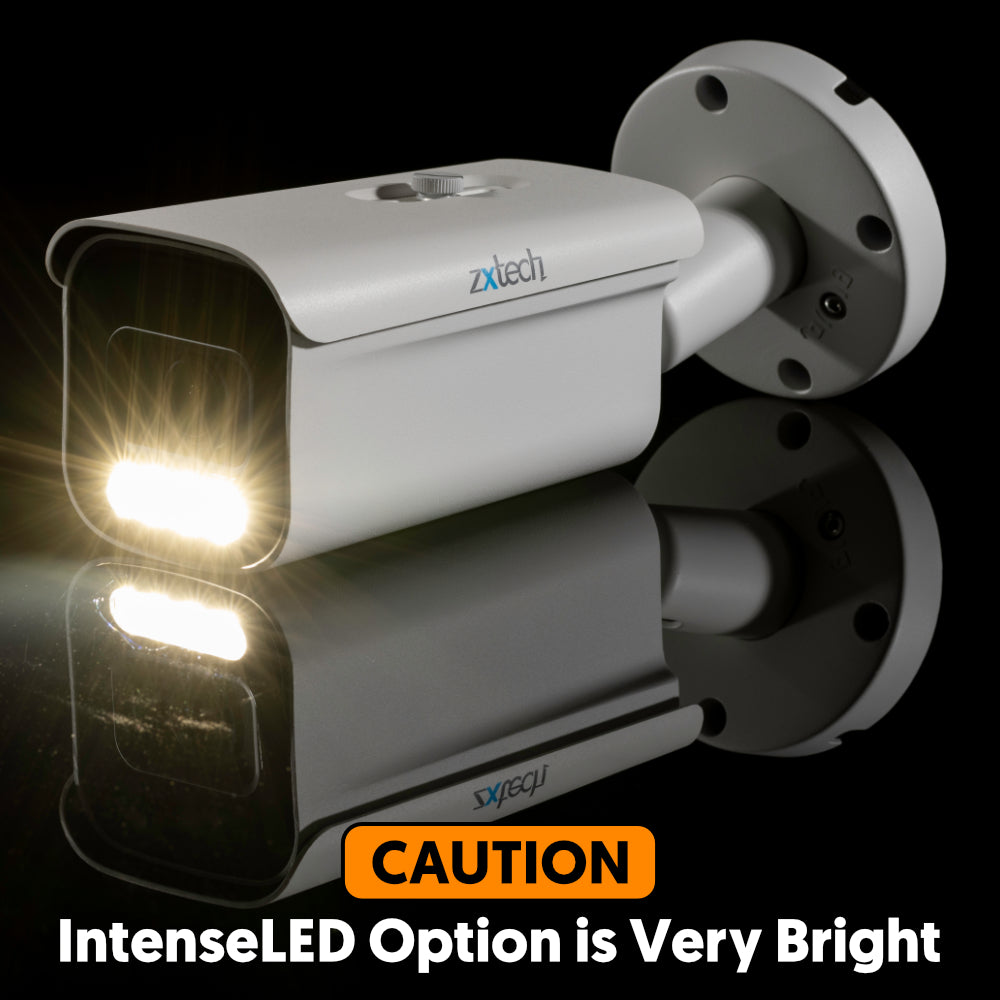

Optional Intense LED Colour Night Vision Technology
The New Zxtech Colour4K technology provides full-colour CCTV footage throughout day and night in stunning 4K Ultra HD resolution. The new range is able to achieve this with a larger aperture, intense bright white enhancement LED lighting and top of the range Sony Starvis Sensor. This camera range features Built-in 4000K daylight colour LED bulbs. This intense LED lights up your property just like a floodlight. The Zxtech AI Colour Night Vision camera no longer requires infrared to capture footage during the night. With a larger iris. The video recording now provides excellent colour footage 24/7, a vast improvement on traditional black and white footage. If the incident happens during the night, the colour night vision footage is instrumental to aid police investigation, while black and white night vision footages are not as effective when presented in court. Already a deterrent in its presents, those built-in LEDs are very bright and stay on during the night. So can be unsuitable for indoor and residential areas where the intense LED can be intrusive to surrounding premises within close proximities.

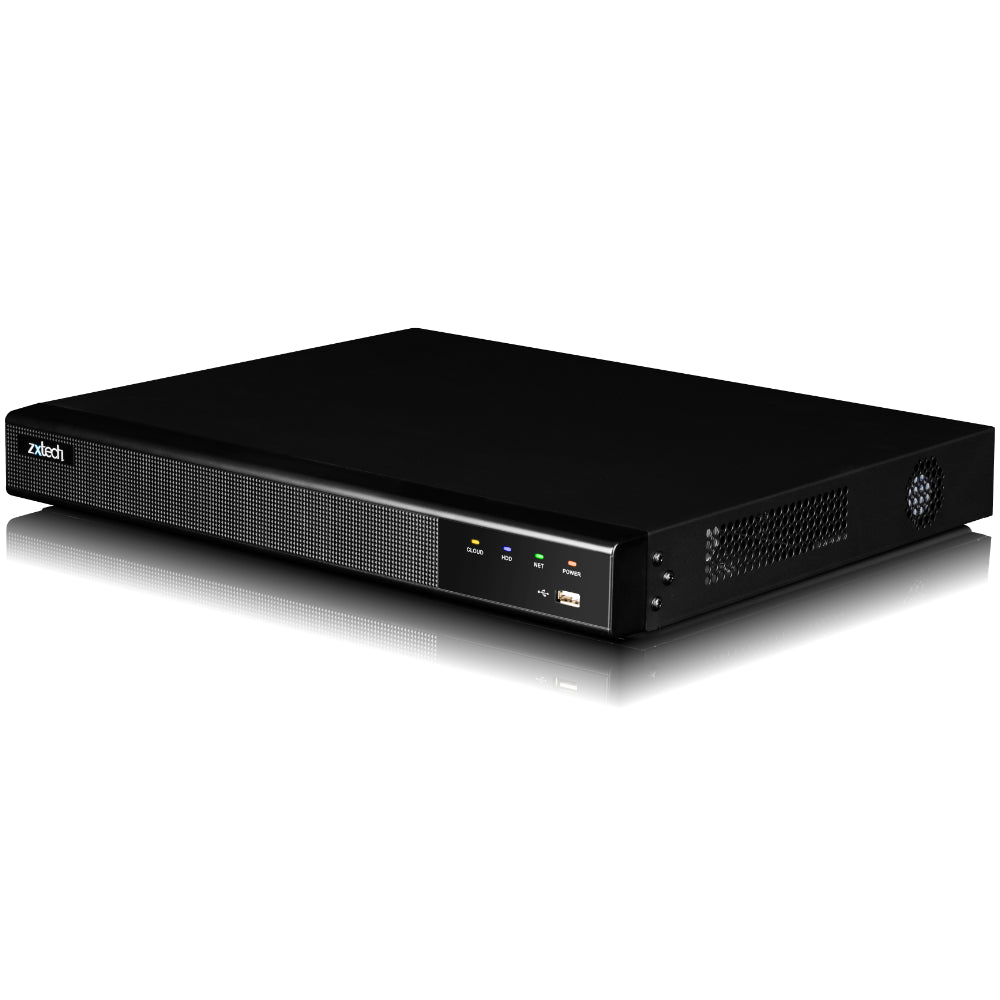

Modern Compact Design
Experience cutting edge 4K Ultra HD resolution with innovative UHD system. Highest level of design available on the market. A modern and compact unit that allows live view and recording. The recorder supports up to 16 CCTV IP Cameras, which gives you an option to extend your system in the future. PoE CCTV Camera System that worths the investment. The kit offers real 4K IP quality because of the integrated 8MP Sony Starvis Chip inside.
4K 8MP UHD (optional 5MP) Sony Sensor Motor Zoom Auto Focus
The camera features autofocus, along with viewing angle varying from 20 to 93 degrees. You can optically zoom in and see in more details of far-away objects without getting closer, simply use your smartphone. Never compromise in quality and resolution. This camera has optical zoom 2.4-13.5 mm lenses and it is super flexible.
Mind Blowing Clarity
If you looking for the latest this may be perfect choice. Upgrading to 4K offers noticeable results in image quality. Home security kit which is begging to move away from traditional 1080p Full HD and rolling out ultra-crisp, ultra-clear and sharp quality image with 4K resolution. This sensor comes with exceptional sensitivity and low-light performance enhanced by built-in 4000K White LED. Equipped with Sony Starvis 8MP Sensor the camera produces more than 8 million pixels. Achieving even higher performance with lower power consumption.
PoE IP CCTV System, get an All-in-One Security Camera Kit

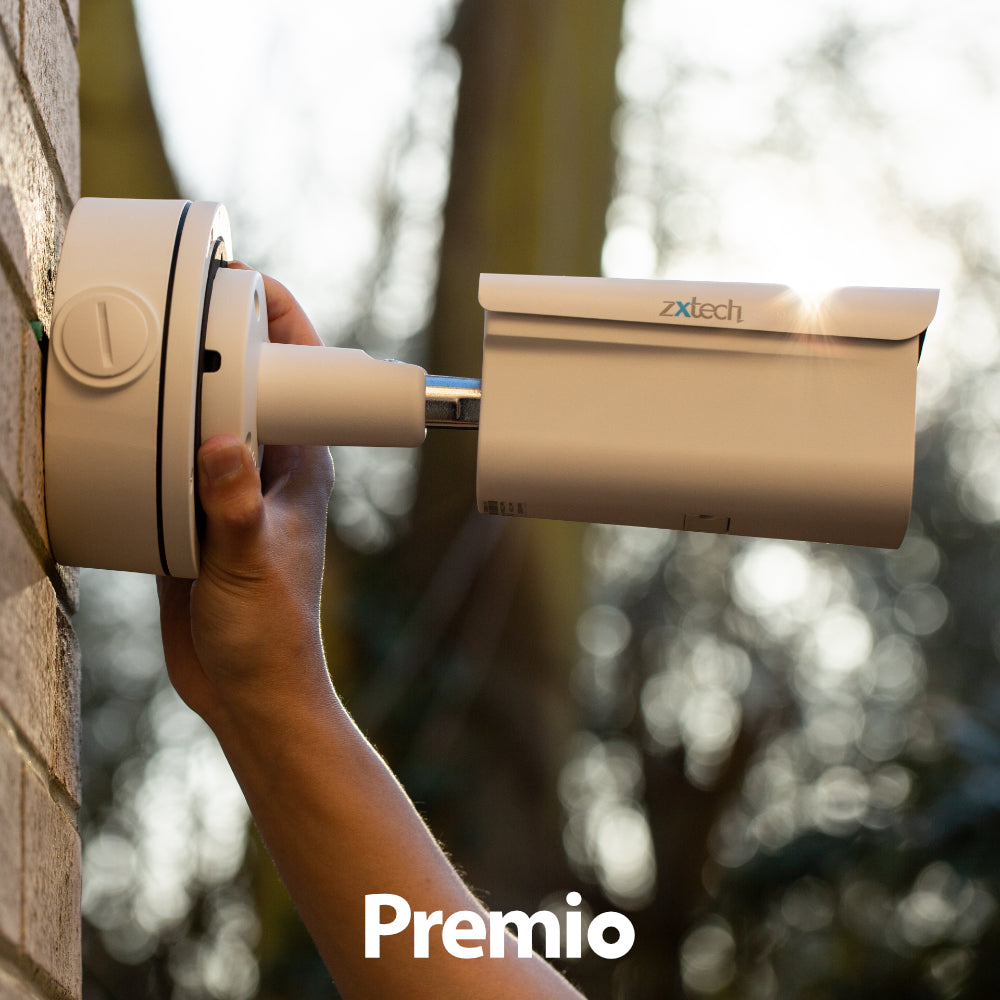

This feature has greatly simplified the installation, reduced cost and decreased the risk of electric leakage. having power available on the network means that the installation and distribution of network connections are simple and effective. Zxtech always invests in cost-efficiency. Installation is quick and easy only a single cable required for each camera. Power over Ethernet (PoE) ports are built right into the NVR, which connect to the included in the package Ethernet cables.
Much less bandwidth, much higher performance
The kit will allow you longer recording time whether you record the videos to an SD card or NVR, which will save you the additional cost to store data. And yet our H.265 cameras are suitable for a wide range of application- indoor or outdoor, for home or business, for front door or driveway, for long garden or garage, for shop or schools, hospitals or pubs. Our Zxtech H.265 cameras are ideal for delivering Ultra HD videos and image with high-efficiency. These cameras are in high demand in high resolution and 4K devices. Zxtech achieves higher resolution with lower bandwidth.
Up to 4x Sharper than 1080p
The beautiful colour at the day and great vision at night. This system offers the highest level of details and clarity. Up to 4 times sharper than 1080p Full HD camera. Coming along with the super-wide angle of viewing. This kit ensures you that you never going to miss any important event that happened at your home or business premises. Everything you need for setup is included, installing CCTV has never been easier, no need for extra power for the cameras, no need for power splitters. With this kit, you will experience the next generation of high definition video recording. The included recorder supports recording up to 8 Megapixel Ultra HD ensures a high level of details in your recording. Advanced H.265 compression technologies maximize recording efficiency, helping you to get the most from your available hard drive space.
If you are looking for cameras already one step further than manual varifocal lens one this is a great choice. This camera will suit any security surveillance installation. Focal Length measured in millimetres gives you the field of view from narrow to wide-angle. This camera will let you adjust the focal length, angle of view and zoom in and out. You definitely will reduce installation time and labour.
Loop Recording on pre-installed SD Micro SD Card with up to 512GB storage and 4GB Built-in Memory
The camera in the kit has a built-in SD card slot and can record up to 512GB storage two times bigger storage than a standard CCTV camera. If you like to keep footages as a backup then this camera will be perfect for your needs. The camera support loop recording means it will overwrite. Primarily designed to store motion-activated videos.
SONY Starvis Chipset
Equipped with Sony Starvis 8MP (optional 5MP) Sensor the camera produces more than 8 million pixels. Extreme performance and 8MP Ultra HD Quality. You can enable in-camera recording to backup your footages using up to 128GB memory card. Using an SD card helps you backup the footage and keep them offline for even better security. Modern IP security cameras have a memory card slot that helps increasing storage and give you cost efficiency.
Mobile Access with push image notification
Zxtech invested in 4K Security, completely PoE (Power over Ethernet) supporting mobile push notification. The system can be accessed using a mobile app named Bitvision and it can run on a phone or pad, includes Android and IOS. Supporting many languages such as English, Italian, French, Portuguese, German, Polish, etc.

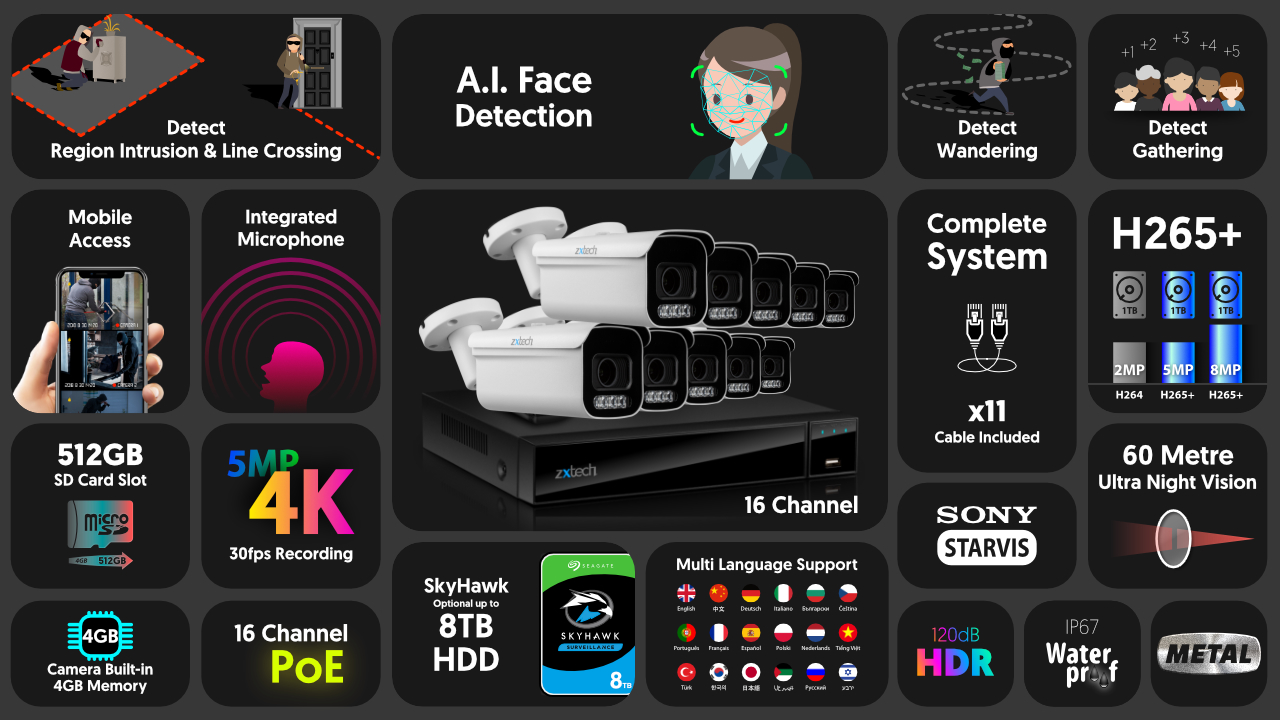

AI Face Recognition, Line Crossing, People Gather Detection, Loiter Detection, Intrusion Detection, Motion Detection, Schedule, Masking
As usual, Zxtech is proof of efficient Surveillance solution. The kit allows the detection of groups of people as well as any general crowd movement. Apart from all the system can detect people, vehicle or other objects which cross the virtual line. Intrusion detection can detect people, vehicle or any other object which enter the predefined virtual region. Often when using a CCTV surveillance system, there are certain areas that need to be either concealed or areas that must prevent motion detection from going off. Masking will avoid triggering an alarm when a fox pass by or a non-significant event occurs.
Zxtech your best UK supplier has launched a new generation of firmware for CCTV NVR. The new firmware brings a user-friendly interface, full of new features. Based on great user experience and enhanced intelligent functions the next-gen interface will allow customers to do a lot more. This firmware is a massive improvement with new features such as Face Recognition, Intrusion Detection, Line Crossing, Loiter Detection and People Gather Detection etc. Smart AI system with real-time monitoring on HDD, providing you safety and reliability. Zxtech launch new firmware, new software recorders, a real joy to use.
|Image Sensor||1/2.8"" SONY Starvis Back-illuminated CMOS sensor|
|Resolution||5MP (optional 8MP)|
|Effective Pixels||2616 (H) x 1964 (V) (optional 3864(H)*2192(V))|
|Electronic Shutter Time||Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec|
|Pixels||8MP (optional 5MP)|
|Infrared LED||42µ x 4PCS|
|Optiional Intense LED||3015U × 4 Warm light LED up to 60M|
|IR Status||Auto Control|
|IR Power On||Auto Control|
|ONVIF||Support ONVIF 2.4(Profile S/T)|
|P2P||YES, Support QR Code|
|PoE||Internal, Support IEEE 802.3af|
|Video Delay||0.3S (Within the Lan)|
|Main Stream 1||2592*1944@30fp (optional 2048*1536@30fps)
|Intelligent Analysis||Intrusion Detetion, Line Cross Detetion, Loiter Detetion, People Gather Detecion|
|Recognition||Face Detection and Recognition
Number of faces per frame: 32
Capture rate: >99.5%
Repeat capture rate: <15%
False capture rate: <0.5%
Number of supported faces: 30,000
Minimum detection of face pixels: 25*25
Maximum detection of face pixels: 300*300
|Day/Night||Color/ B&W (Select Intense LED for 24/7 Colour)|
|Image Config||Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,
FLK(Flicker Control), Video Tampering
|Defog Mode, ROI, BLC||Support|
|Privacy Masking||3 Rectangular Zone|
|Alarm||1 Channel Input/Output|
|SD Card Slot||External, Support Max 512GB,With 4G Storage|
|Audio||Extendable Audio Input/Output|
|Dimension||93(W) x 91(H) x 263(D)mm|
|Main Processor:||ARM Cortex A7 Processor|
|Operating System:||Embedded LINUX|
|Video Input:||16CH (4096x2160, 2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)|
|Video Output:||1 VGA, 1 HD|
|Audio Output:||1 Port RCA(Linear)|
|Audio Compression standard:||G711u, G711a, ADPCM_DVI4|
|Alarm Sensor Input:||4|
|Motion Detection:||25 Channel, MD Zones: 396 (22 x 18)|
|Trigger Events:||Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm output|
|HD Output1:||Resolution: 4K (3840 x 2160)/30Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz|
|VGA Resolution:||1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz|
|Display Split:||25CHxD1/ 16CHxD1/ 9CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP/ 1CHx4k/ 1CHx12MP|
|OSD Camera:||Title, Time, Recording, Motion Detection|
|Resolution:||4K(4096x2160), 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)|
|Record Rate PAL:||PAL: 4k@12x25fp, 5MP@20x25fp, 4MP@25x25fp, 3MP@25x25fp, 1080P@25x25fp, 960P@25x25fp, 720P@25x25fp, D1@25x25fp NTSC: 4k@12x30fp, 5MP@20x30fp, 4MP@25x30fp, 3MP@25x30fp, 1080P@25x30fp, 960P@25x30fp, 720P@25x30fp, D1@25x30fp|
|Record Mode:||Manual/Timer/Motion Detection|
|Local Sync Playback:||1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps|
|Decode Capability:||1CH 4K(3840x2160)@30fps|
|Remote Sync Playback:||Yes|
|Search Mode:||ALL, Channel, Manual, Time, Date, Motion Detection|
|Playback Functions:||Play, Pause, Stop, Fast Play, Digital Zoom|

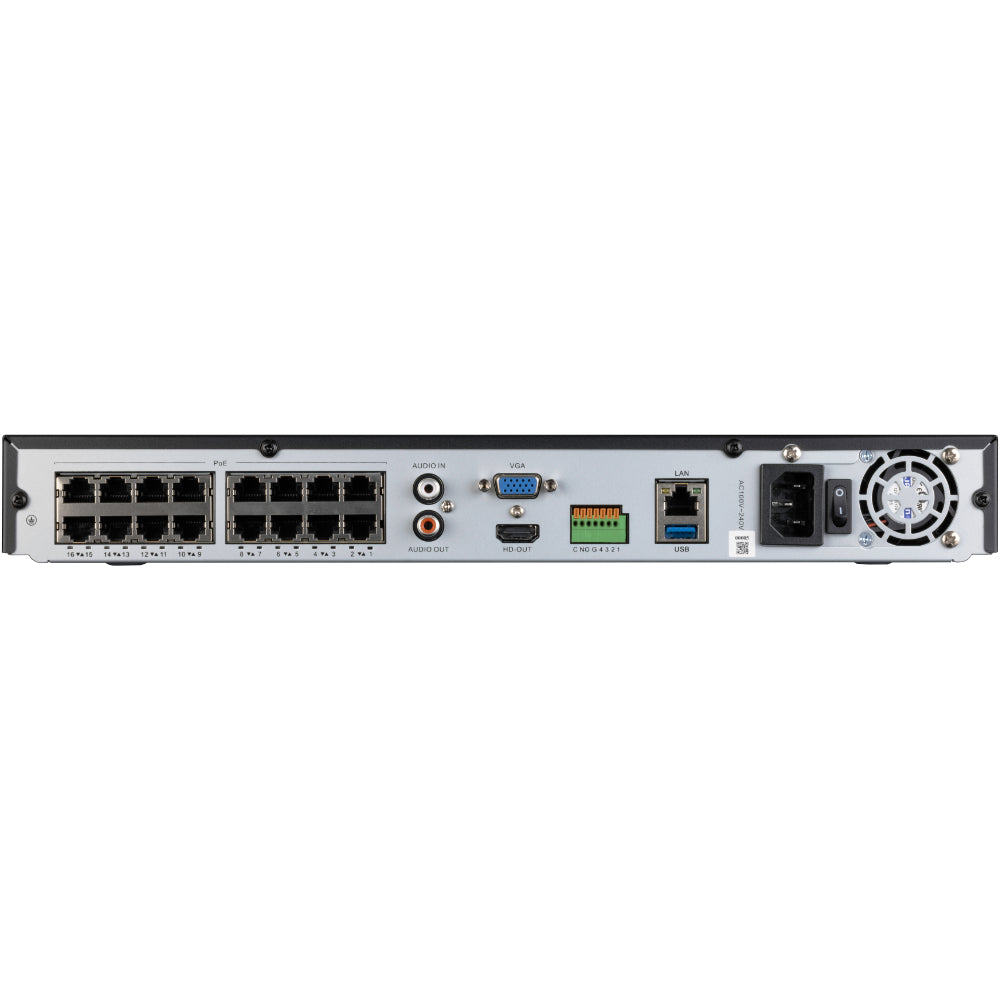

|Interface:||16 x RJ45 (10M/100M Adaptive Ethernet Interface) + 1 x RJ45 10M/100M/1000M Adaptive Ethernet Interface|
|POE:||16 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output>200W,|
|Interface Type:||1 SATA Interface|
|Capacity:||Up to 8TB capacity|
