Smart Security CCTV System comes with Atlas Motorized 8MP 4K (optional 5MP & Optional Intense LED Colour Night Vision) CCTV camera. Optical zoom from narrow to the wide-angle picture remotely with a mobile device. 8MP 4K (optional 5MP & Optional Intense LED Colour Night Vision) CCTV camera/s come with great Night Vision and HDR True Colour Recording. PoE Camera allows convenient installation with a single cable. Built-in and extendable memory allow in-camera recording. Face Detection works along with Intruder, Loiter, Line Crossing Alert. Advanced technology for maximum peace of mind. Zxtech motorised camera is suitable for bigger space such as a driveway, long garden or warehouse. Buying the optimal Intense LED option enables an amazing true full colour night vision.

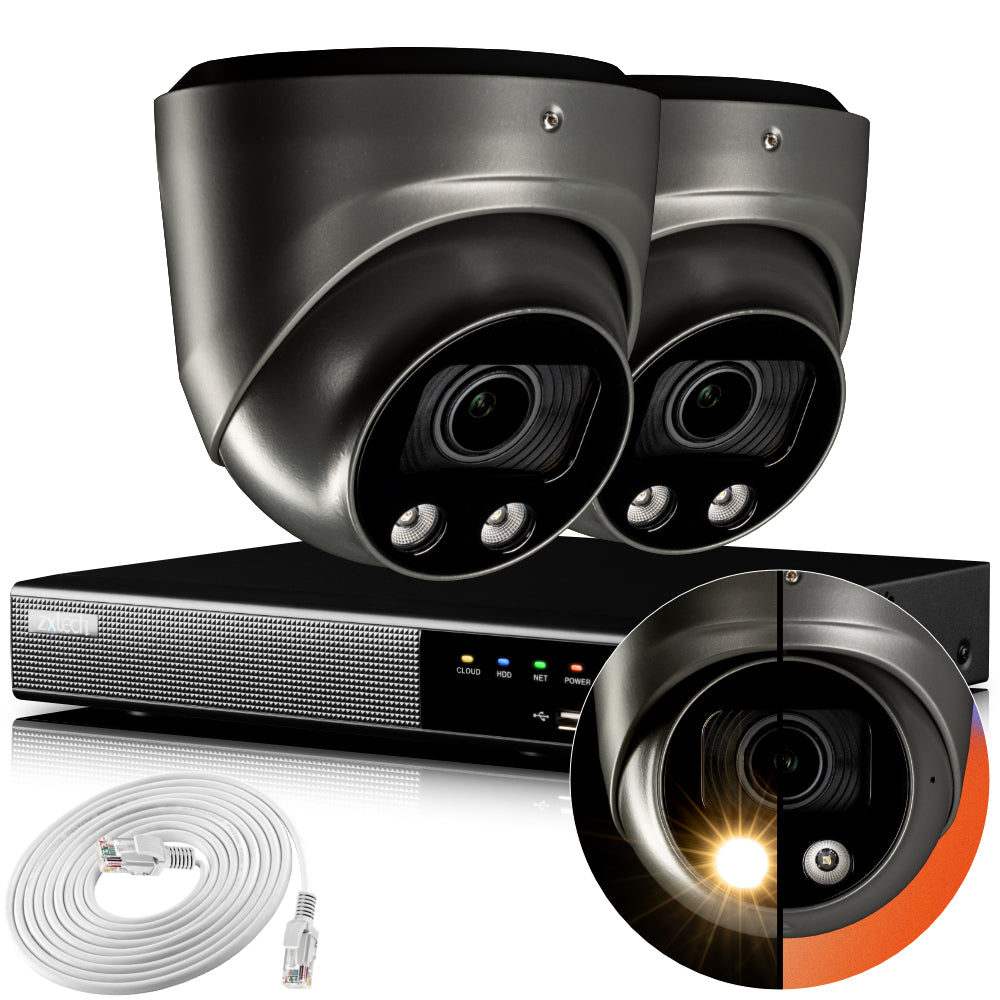

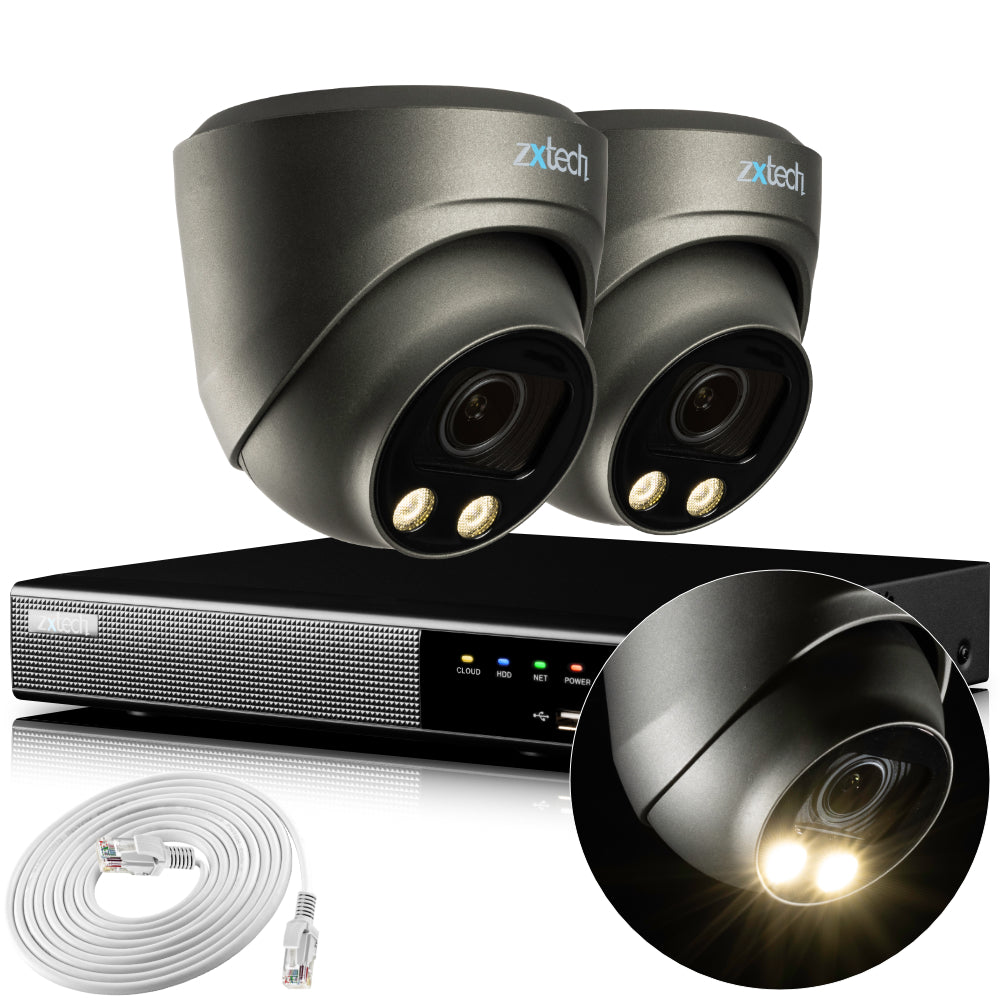

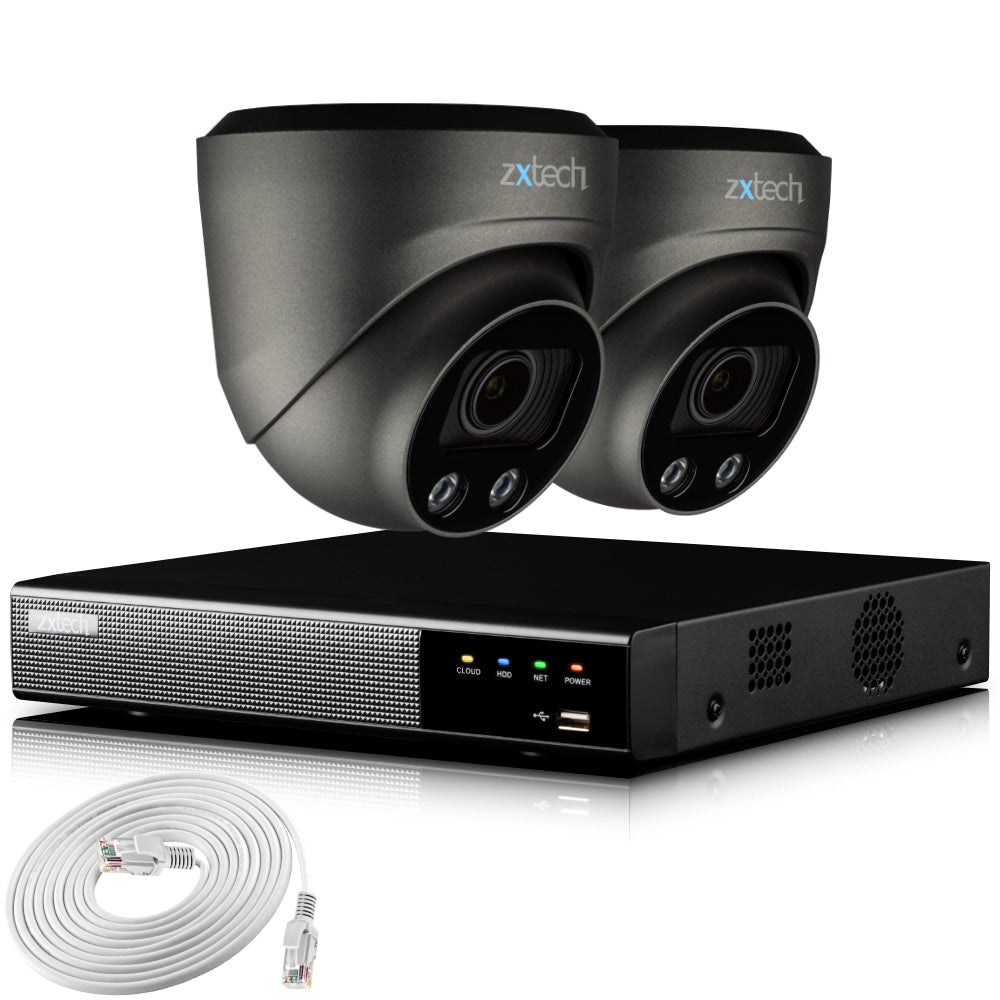

What's in the Box

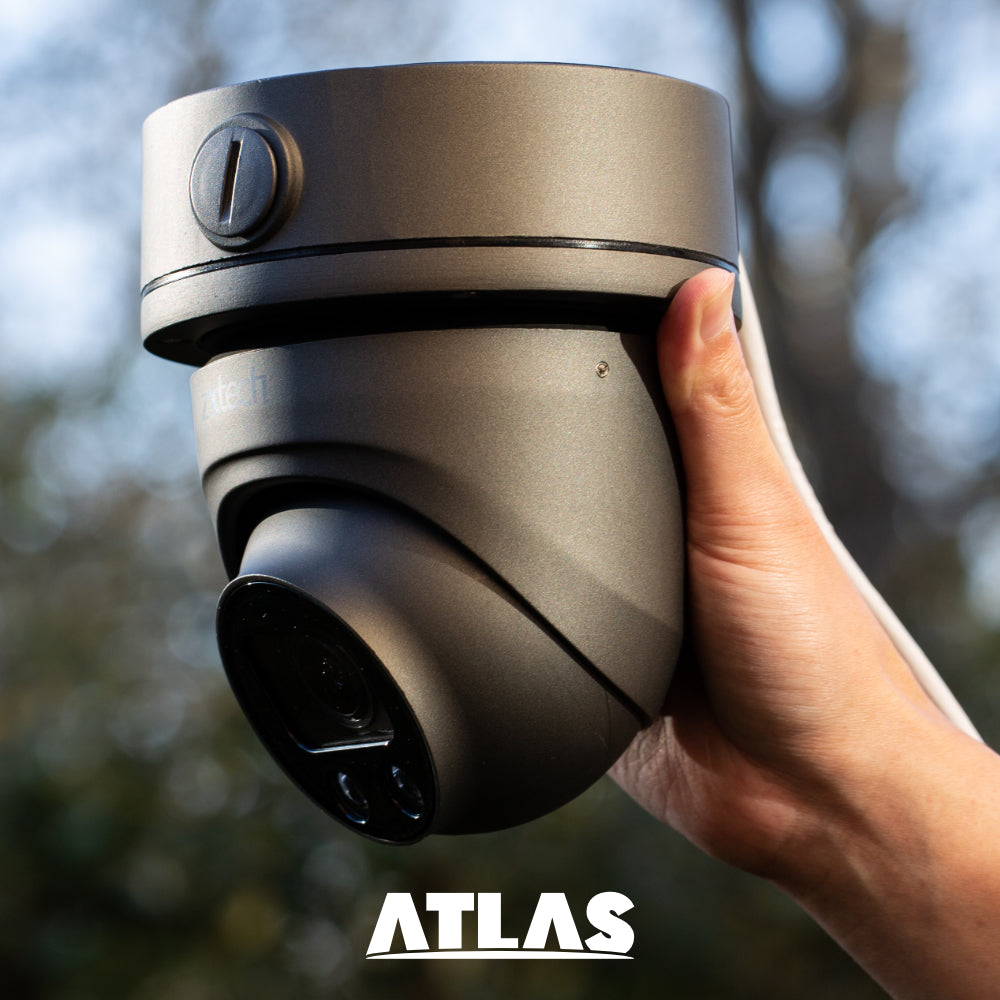

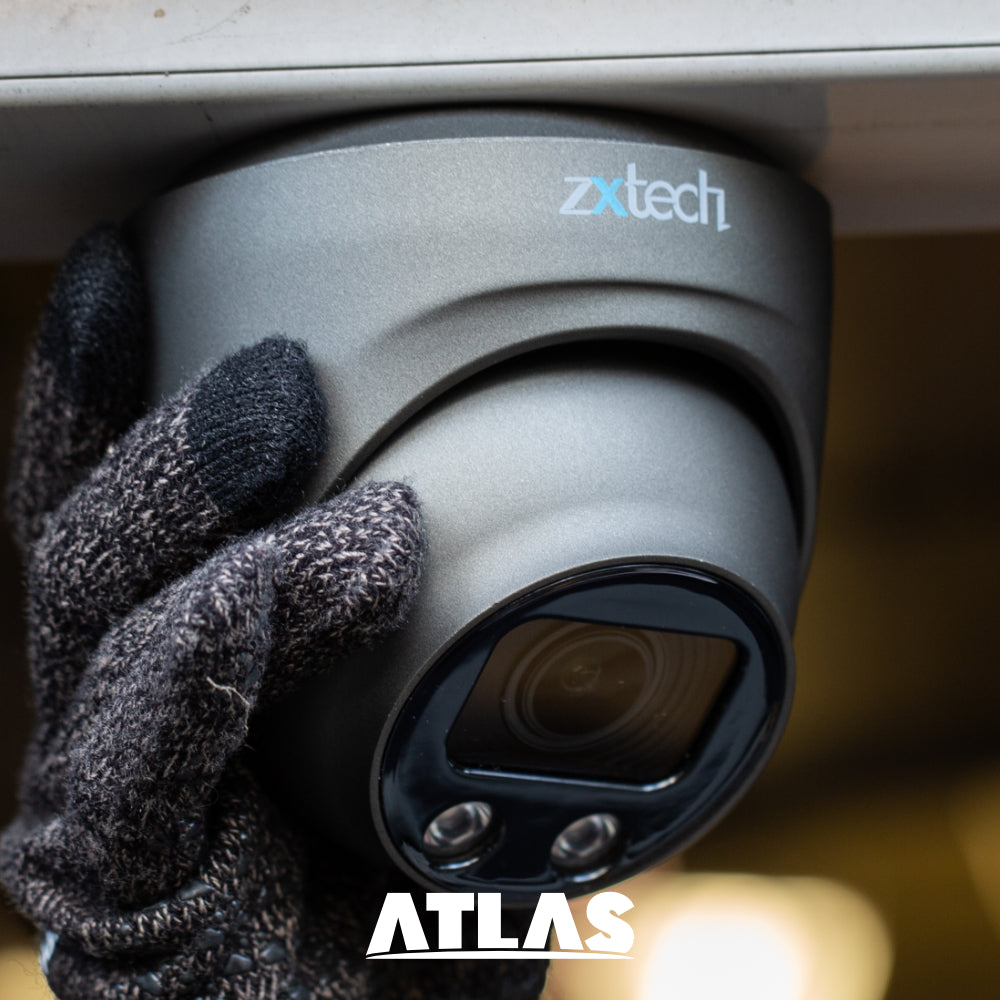

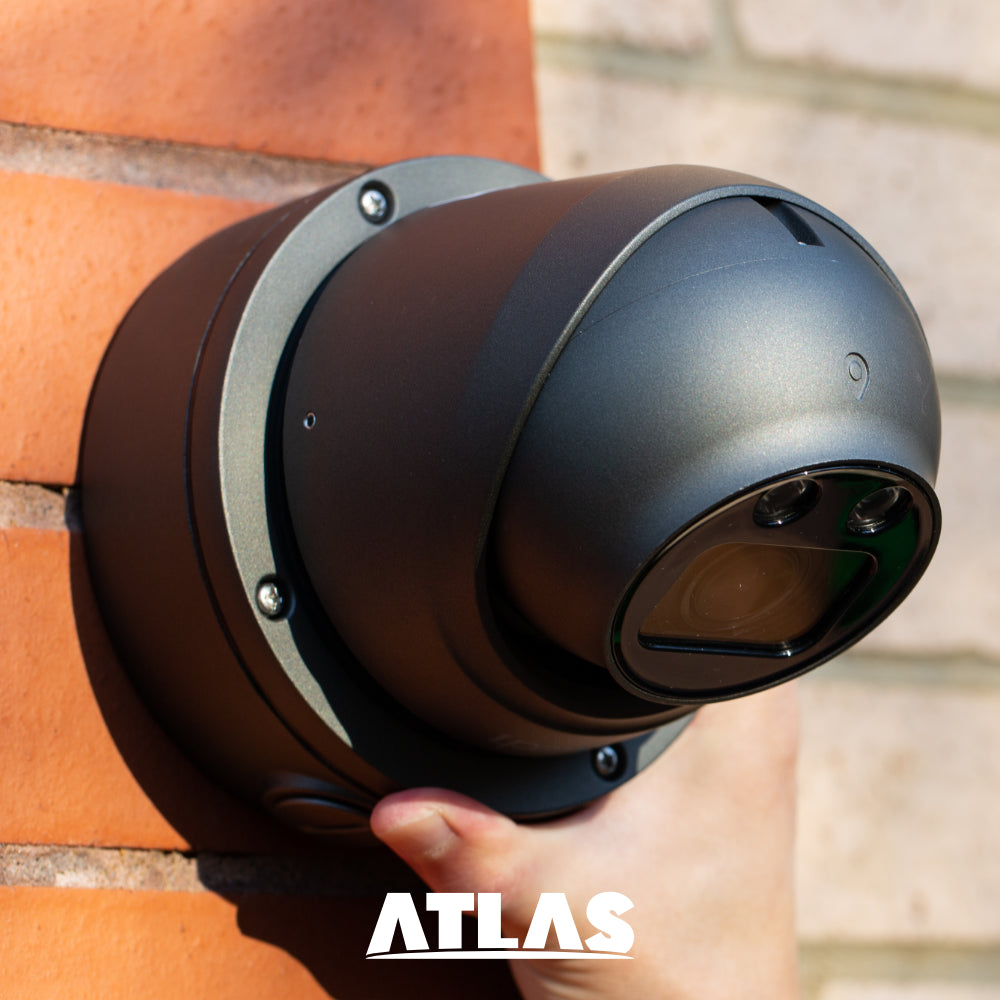

- 2 x Zxtech Atlas 4K AI CCTV Camera (Optional Intense LED Colour Night Vision Feature)

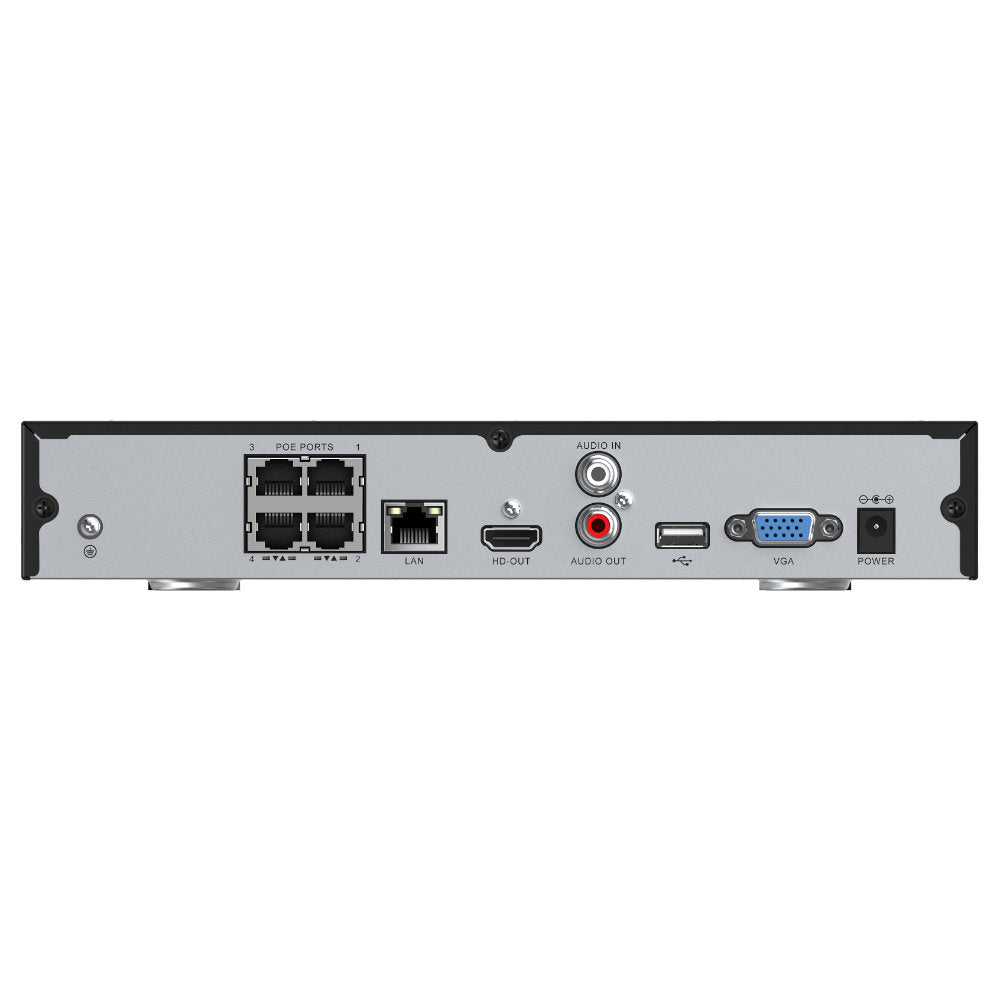

- 1 x 4CH Onyx 4K PoE Network Video Recorder
- 1 x 10M cable, 1 x 20M cable and 1 x 2M Cable
- Optional HDD & Optional Deep Base
- 【4K/UHD/8MP/5MP/4MP】The system includes a camera and CCTV NVR with amazing 8 Megapixel (3840*2160) (optional 5 Megapixel) resolution for crisp and clear images
- 【30M Night Vision】Another level of visualization with superb night vision up to 30M. If you have some extra lighting, you will be able to achieve colour night vision. Alternatively, buy the "Intense LED" option for the built-in 2 x ultra large and ultra bright light supplements for full colour CCTV footage 24/7.
- 【Face and Body Detection】Ultra Smart AI Face Detection enables Intrusion, Line Crossing, Loiter and People Gather Detection
- 【Sony Chip】Embedded Sony Starvis Back-illuminated CMOS sensor is the major factor for clear and sharp videos
- 【PoE】CCTV NVR with built-in PoE network switch eliminates the need for a separate network device for less cabling and cost efficiency
- 【Built-in Memory and Extendable Audio】These dome cameras have built-in 4GB Storage with 512GB Extendable SD Card Slot providing the opportunity to back up your data in case you lose the footage saved on the HDD, the camera has an external Audio cable providing you with an opportunity to attach an external microphone and record sound
- 【2.7-13.5 mm Auto Zoom & Focus】2.7-13.5 mm motorized lens, specially designed for dome cameras, customers can control zoom remotely from the app or PC, the camera will refocus automatically without need climbing up a ladder
- 【H265+】H265+ video compression is a cost-efficient saving up to 50% storage space
- 【Smart Phone Remote Access】Featuring remote access with a free mobile app this kit allows you to watch your premises all the time
- 【Waterproof & Vandal Proof】Cameras are waterproof for outdoor and indoor purpose coming along with strong case
- 【HDR & Image Enhancement】IR Cut, WDR, BLC, ROI, Defog cameras will detect and create an image as would be seen with human eyes, unlike your eyes camera sensor can detect light outside the range of the human eye. HDR Sensor Enables Dynamic Range over Mind-blowing 120 dB
- 【Smart Motion Alert】Motion detection and mobile notification alert this kit will detect any activity and never leaves you in the dark
- 【Quick Mobile Setup】P2P QR Scan for anyway, anytime Remote CCTV Access
- 【Built-in 4CH PoE Switch】CCTV NVR with 4CH built-in PoE switch included

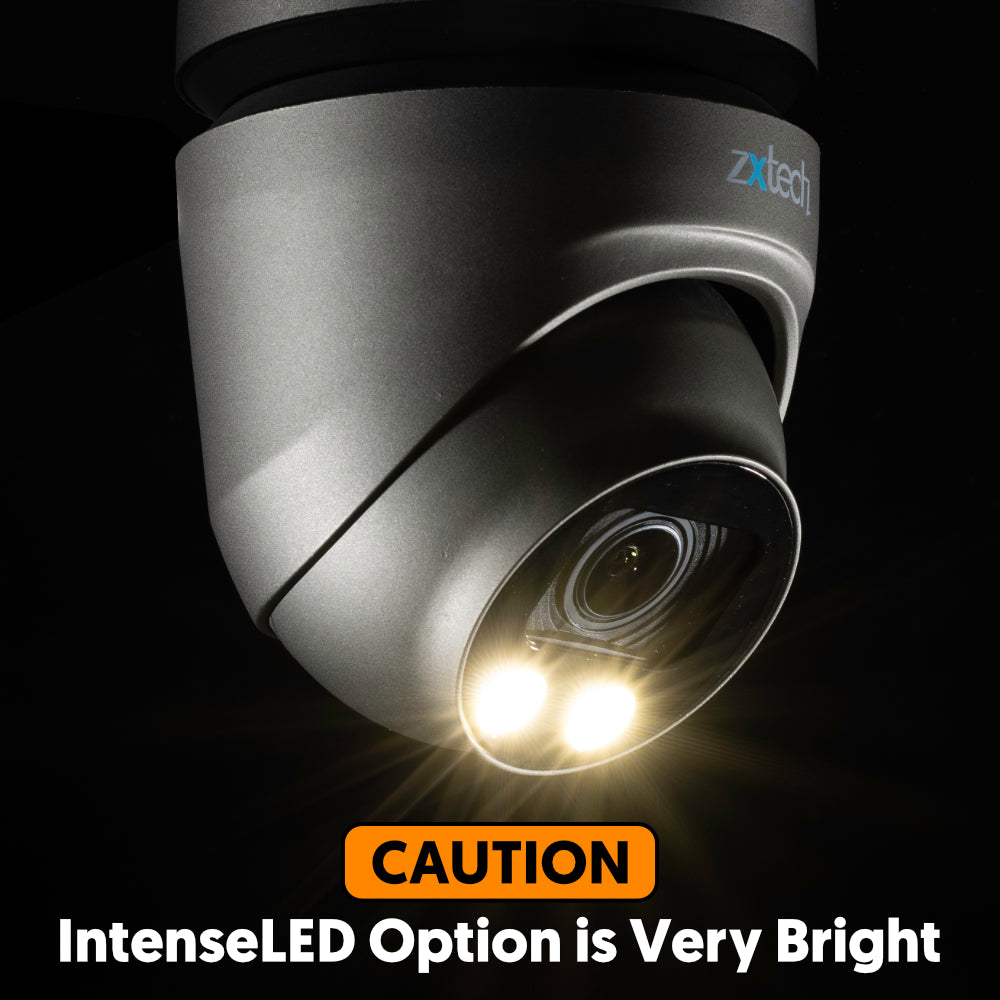

Optional Intense LED Colour Night Vision Technology
The New Zxtech Colour4K technology provides full-colour CCTV footage throughout day and night in stunning 4K Ultra HD resolution. The new range is able to achieve this with a larger aperture, intense bright white enhancement LED lighting and top of the range Sony Starvis Sensor. This camera range features Built-in 4000K daylight colour LED bulbs. This intense LED lights up your property just like a floodlight. The Zxtech AI Colour Night Vision camera no longer requires infrared to capture footage during the night. With a larger iris. The video recording now provides excellent colour footage 24/7, a vast improvement on traditional black and white footage. If the incident happens during the night, the colour night vision footage is instrumental to aid police investigation, while black and white night vision footages are not as effective when presented in court. Already a deterrent in its presents, those built-in LEDs are very bright and stay on during the night. So can be unsuitable for indoor and residential areas where the intense LED can be intrusive to surrounding premises within close proximities.
Modern Compact Design
Experience cutting edge 4K Ultra HD resolution with innovative UHD system. Highest level of design available on the market. A modern and compact unit that allows live view and recording. The recorder supports up to 16 CCTV IP Cameras, which gives you an option to extend your system in the future. PoE CCTV Camera System that worths the investment. The kit offers real 4K IP quality because of the integrated 8MP Sony Starvis Chip inside.

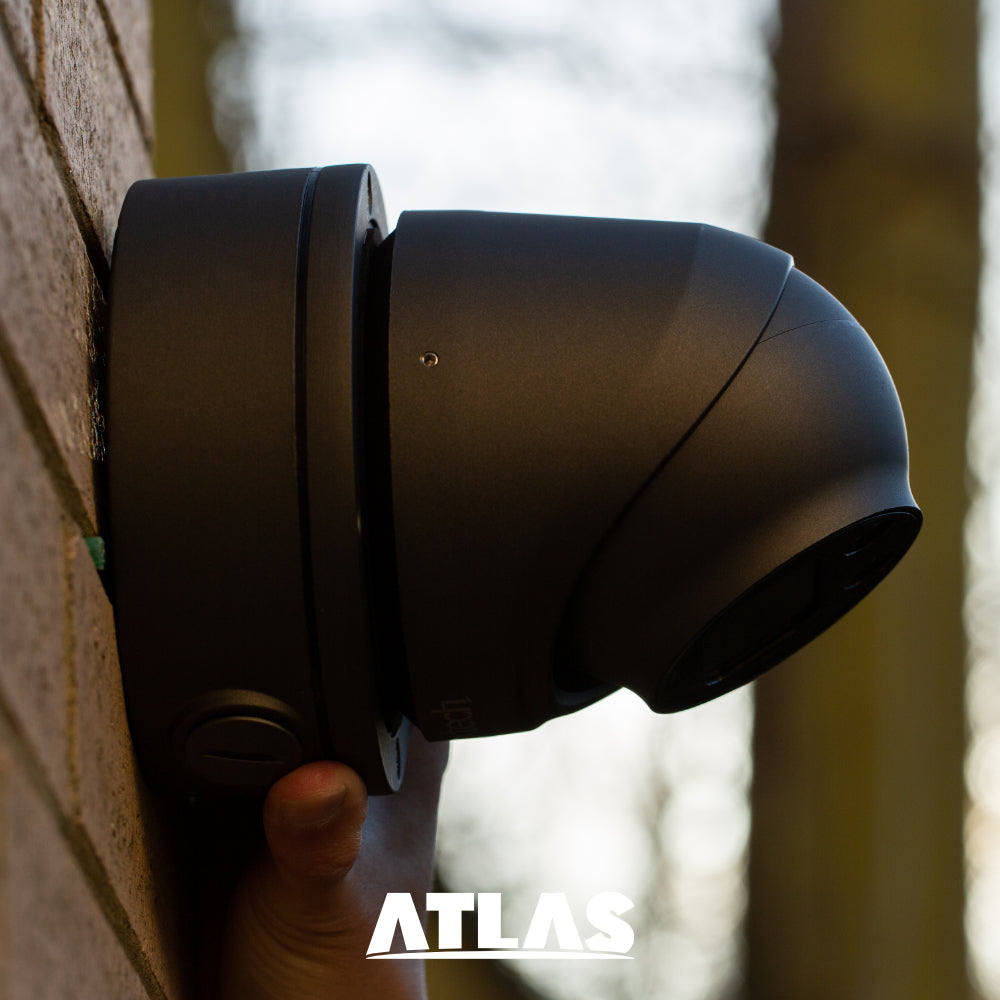

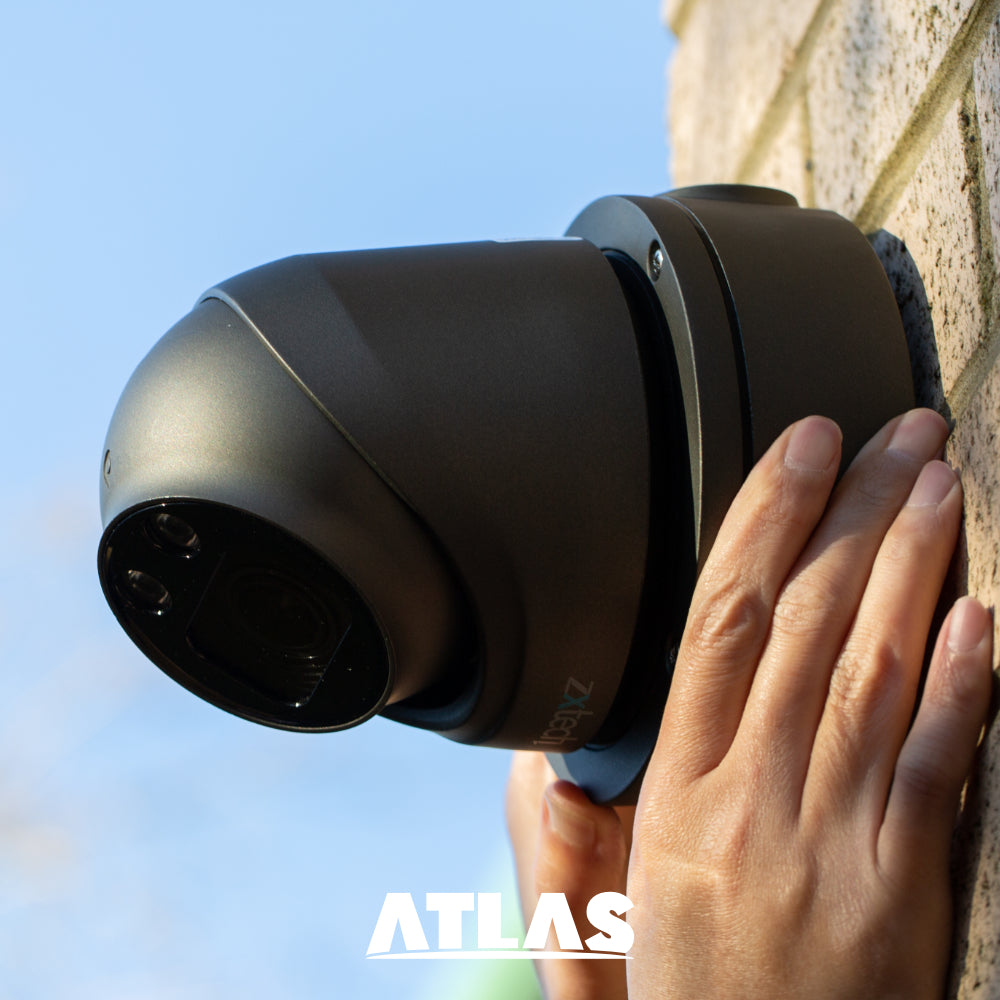

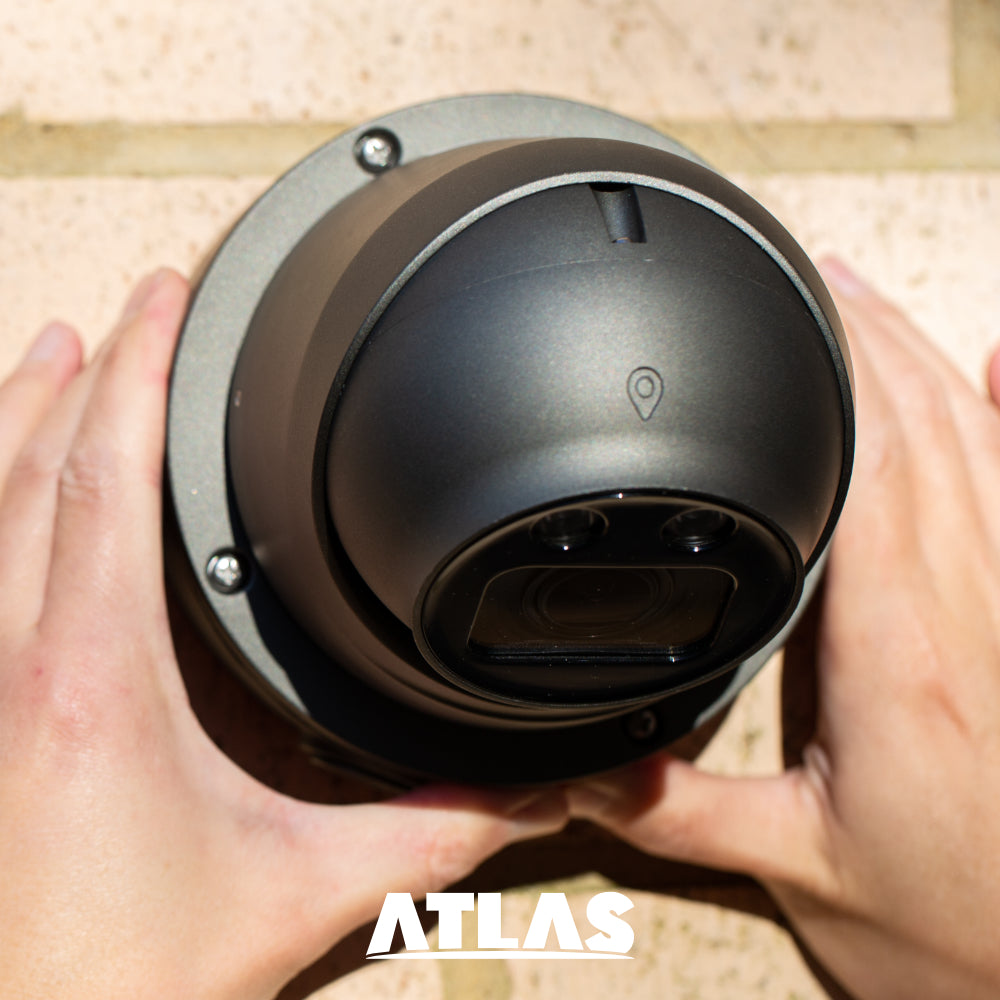

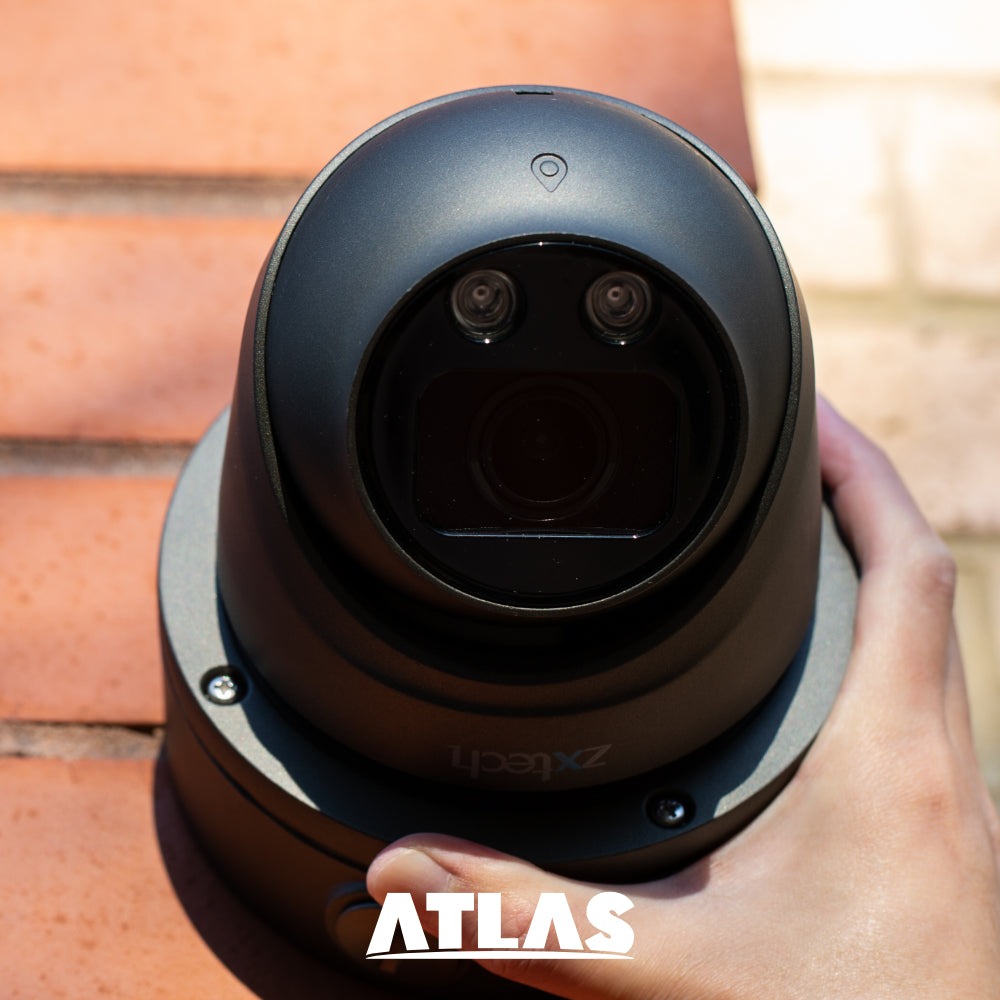

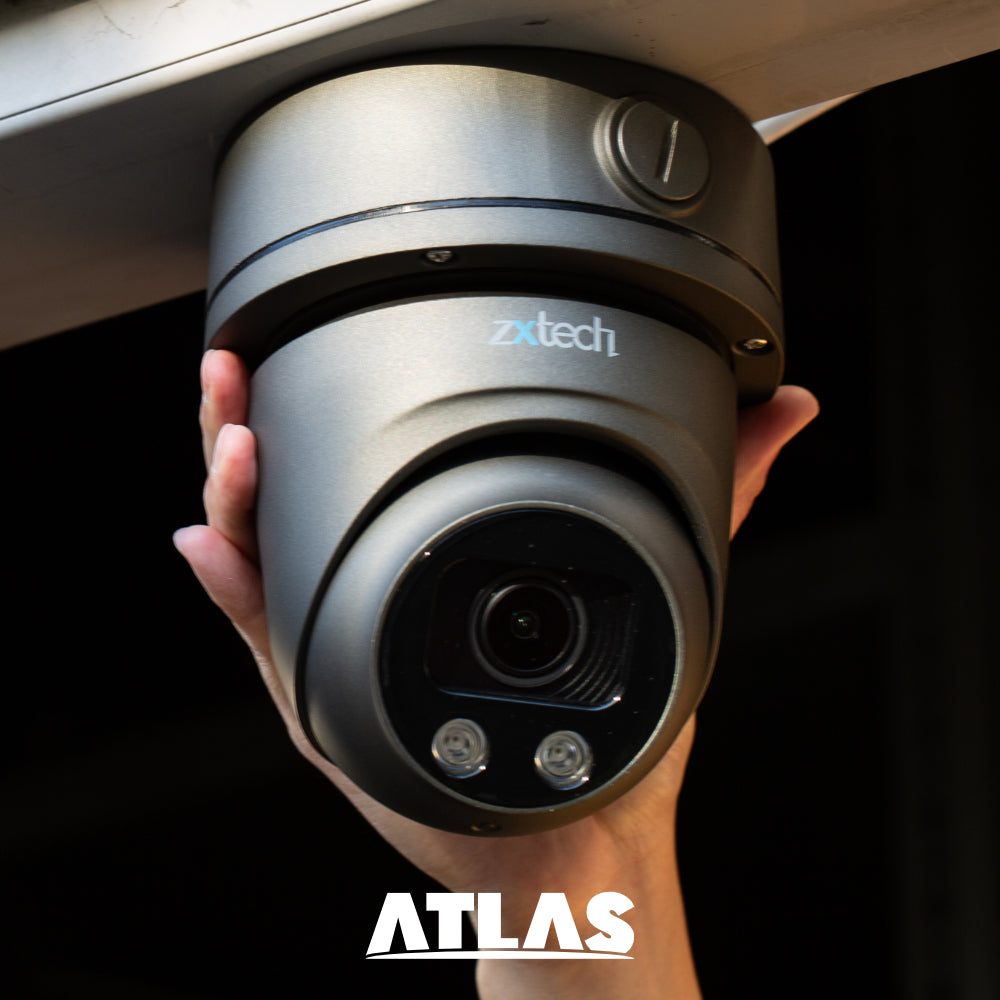

4K 8MP UHD (optional 5MP) Sony Sensor Motor Zoom Auto Focus
With this camera you can be protected at all times. Replace your outdated security cameras with new, modern, motorized, autofocus cameras. Get clearer images and monitor a wider area. This camera will please everyone. A Security CCTV system with ultra-high-definition recording. Having a reliable camera is an easy way to protect your home. Now you can even record in 4K packed with top specs. This camera has optical zoom 2.7-13.5 mm lenses and it is super flexible. You can point to any direction when you fix it on the wall or ceiling, no matter vertically or horizontally. No need to climb to adjust the angle.
Mind Blowing Clarity
If you looking for the latest this may be perfect choice. Upgrading to 4K offers noticeable results in image quality. Home security kit which is begging to move away from traditional 1080p Full HD and rolling out ultra-crisp, ultra-clear and sharp quality image with 4K resolution. This sensor comes with exceptional sensitivity and low-light performance enhanced by built-in 4000K White LED. Equipped with Sony Starvis 8MP Sensor the camera produces more than 8 million pixels. Achieving even higher performance with lower power consumption.
PoE IP CCTV System, get an All-in-One Security Camera Kit
The recorder has an internal network so the cameras can be simply added to NVR without using separate software or changing IP address. If you need to monitor your network recorder through a smartphone then simply connect the Ethernet cable from it to your router and make the recorder online.
Much less bandwidth, much higher performance
Thanks to H.265+ video compression this system will reduce storage consumption by about 50%. H.265 video compression is generally used with almost every Zxtech product. Reducing the bandwidth and storage consumption is a priority in every 4K 8MP UHD system. Improve live footage and remotely viewing quality, obtaining a smooth video without delay.
Up to 4x Sharper than 1080p
The cameras are suitable to monitor your entire front porch or driveway. You have the advantage to collect proper evidence, minimizing the need for additional cameras. Zxtech knows that human face and license plate recognition requires high resolution and a very good angle to capture them. With our 8MP Ultra HD PoE IP CCTV Cameras your chance to get what you need is very big.
Autofocus directly from your mobile app. Eliminates the need of testing monitor. No need to stay in the rain for manually zoom and focus. Our Zxtech 8MP 4K UHD PoE IP CCTV Camera can do a tremendously good job and we can assure you of that. It also adds an increased ability to zoom in on distant objects without reducing image quality. 2.7-13.5mm optical zoom, motor lens, autofocus.
Loop Recording on pre-installed SD Micro SD Card with up to 512GB storage and 4GB Built-in Memory
The camera in the kit has a built-in SD card slot and can record up to 512GB storage two times bigger storage than a standard CCTV camera. If you like to keep footages as a backup then this camera will be perfect for your needs. The camera support loop recording means it will overwrite. Primarily designed to store motion-activated videos.
SONY Starvis Chipset
This camera is equipped with a low-power sensor that brings 8 Megapixel resolution to a surveillance systems. Advanced chip with improves low-light sensitivity to deliver high- resolution images and capture ultra-high-resolution 4K (optional super HD 5MP), even in high-contrast conditions. The camera will capture smooth video, enabling detailed wide-area coverage. Includes embedded stabilization function to prevent image blur.
Increase your Access Capabilities using smartphone access
Connecting an external microphone to the camera can allow audio recording. Sometimes is important to have a surveillance system installed to ensure that the cameras and audio output is working correctly. This is vital if you need to put together evidence regarding a crime. CCTV may be is nothing new, but this kit will prove to you that it is worth every penny coming along with truly 4K UHD resolutions for live images or recordings and now enjoying your new surveillance equipment on your iPhone or Android device.
AI Face Recognition, Line Crossing, People Gather Detection, Loiter Detection, Intrusion Detection, Motion Detection, Schedule, Masking
The system is a real blessing, pure and simple to use. High-tech equipment that will give you full confidence. AI Face Recognition became more accurate so that is why Zxtech introduces to the market a completely new range of cameras. With these features, you can identify an unknown person. This powerful function helps to accelerate response by quicker identifying people of interest. In a time of uncertainty, people gather detection is definitely a benefit for everyone.
Zxtech your best UK supplier has launched a new generation of firmware for CCTV NVR. The new firmware brings a user-friendly interface, full of new features. Based on great user experience and enhanced intelligent functions the next-gen interface will allow customers to do a lot more. This firmware is a massive improvement with new features such as Face Recognition, Intrusion Detection, Line Crossing, Loiter Detection and People Gather Detection etc. Smart AI system with real-time monitoring on HDD, providing you safety and reliability. Zxtech launch new firmware, new software recorders, a real joy to use.
|Image Sensor||1/2.8"" SONY Starvis Back-illuminated CMOS sensor|
|Resolution||5MP (optional 8MP)|
|Effective Pixels||2616 (H) x 1964 (V) (optional 3864(H)*2192(V))|
|Electronic Shutter Time||Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec|
|Pixels||8MP (optional 5MP)|
|Infrared LED||42µ x 2PCS|
|Intense LED option||4545U × 2 Warm light LED up to 60M|
|IR Status||Auto Control|
|IR Power On||Auto Control|
|ONVIF||Support ONVIF 2.4(Profile S/T)|
|P2P||YES, Support QR Code|
|PoE||Internal, Support IEEE 802.3af|
|Video Delay||0.3S (Within the Lan)|
|Main Stream 1||2592*1944@30fp (optional 2048*1536@30fps)
|Intelligent Analysis||Intrusion Detetion, Line Cross Detetion, Loiter Detetion, People Gather Detecion|
|Recognition||Face Detection and Recognition
Number of faces per frame: 32
Capture rate: >99.5%
Repeat capture rate: <15%
False capture rate: <0.5%
Number of supported faces: 30,000
Minimum detection of face pixels: 25*25
Maximum detection of face pixels: 300*300
|Day/Night||Color/ B&W (Select Intense LED for 24/7 Colour)|
|Image Config||Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,
FLK(Flicker Control), Video Tampering
|Defog Mode, ROI, BLC||Support|
|Privacy Masking||3 Rectangular Zone|
|Alarm||1 Channel Input/Output|
|SD Card Slot||External, Support Max 512GB,With 4G Storage|
|Audio||Extendable Audio Input/Output|
|Dimension||115 x 113(H) mm|
|Main Processor:||ARM Cortex A7 Processor|
|Operating System:||Embedded LINUX|
|Video Input:||16CH (4096x2160, 2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)|
|Video Output:||1 VGA, 1 HD|
|Audio Output:||1 Port RCA(Linear)|
|Audio Compression standard:||G711u, G711a, ADPCM_DVI4|
|Alarm Sensor Input:||4|
|Motion Detection:||16 Channel, MD Zones: 396 (22 x 18)|
|Trigger Events:||Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm output|
|HD Output1:||Resolution: 4K (3840 x 2160)/30Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz|
|VGA Resolution:||1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz|
|Display Split:||16CHxD1/ 9CHxD1/ 8CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP/ 1CHx4k|
|OSD Camera:||Title, Time, Recording, Motion Detection|
|Resolution:||4K(4096x2160), 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)|
|Record Rate PAL:||PAL:4k@10x25fp, 5MP@14x25fp, 4MP@16x25fp, 3MP@16x25fp, 1080P@16x25fp, 960P@16x25fp, 720P@16x25fp, D1@16x25fp
NTSC: 4k@10x30fp, 5MP@14x30fp, 4MP@16x30fp, 3MP@16x30fp, 1080P@16x30fp, 960P@16x30fp, 720P@16x30fp, D1@16x30fp
|Record Mode:||Manual/Timer/Motion Detection|
|Local Sync Playback:||1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps|
|Decode Capability:||1CH 4K(3840x2160)@30fps|
|Remote Sync Playback:||Yes|
|Search Mode:||ALL, Channel, Manual, Time, Date, Motion Detection|
|Playback Functions:||Play, Pause, Stop, Fast Play, Digital Zoom|
|Interface:||4 x RJ45 (10M/100M Adaptive Ethernet Interface) + 1 x RJ45 10M/100M/1000M Adaptive Ethernet Interface|
|POE:||4 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output more than 50W, Support Plug and Play, Support network cable extended mode up to 250M|
|Interface Type:||1 SATA Interface|
|Capacity:||Up to 8TB capacity|
