Zxtech 4K CCTV System - 6 x IP PoE Cameras Audio Recording Face Detection Outdoor Sony Starvis | RX6B9Y
New Generation cost-effective 8MP 4K (optional 5MP & Optional Intense LED Colour Night Vision) CCTV System comes with Zxtech BabyBullet Smart AI IP PoE Security Cameras. Integrated Microphone optionally records Audio. Latest HDR 120dB High Dynamic Range tech creates True Colour 8 Megapixel 4K (optional 5MP) CCTV recordings on the Modern, Compact & Powerful NVR, 4x sharper than Full HD. 2.8mm improved Wide-Angle Night Vision Camera/s with optional Intense LED Colour Night Vision option are suitable for home & business. Face Detection enhances Smart Alert with Intruder, Loiter and Line Crossing detection to prevent breaks-in or other criminal activity. Complete PoE to run both video and power from the NVR to the cameras.

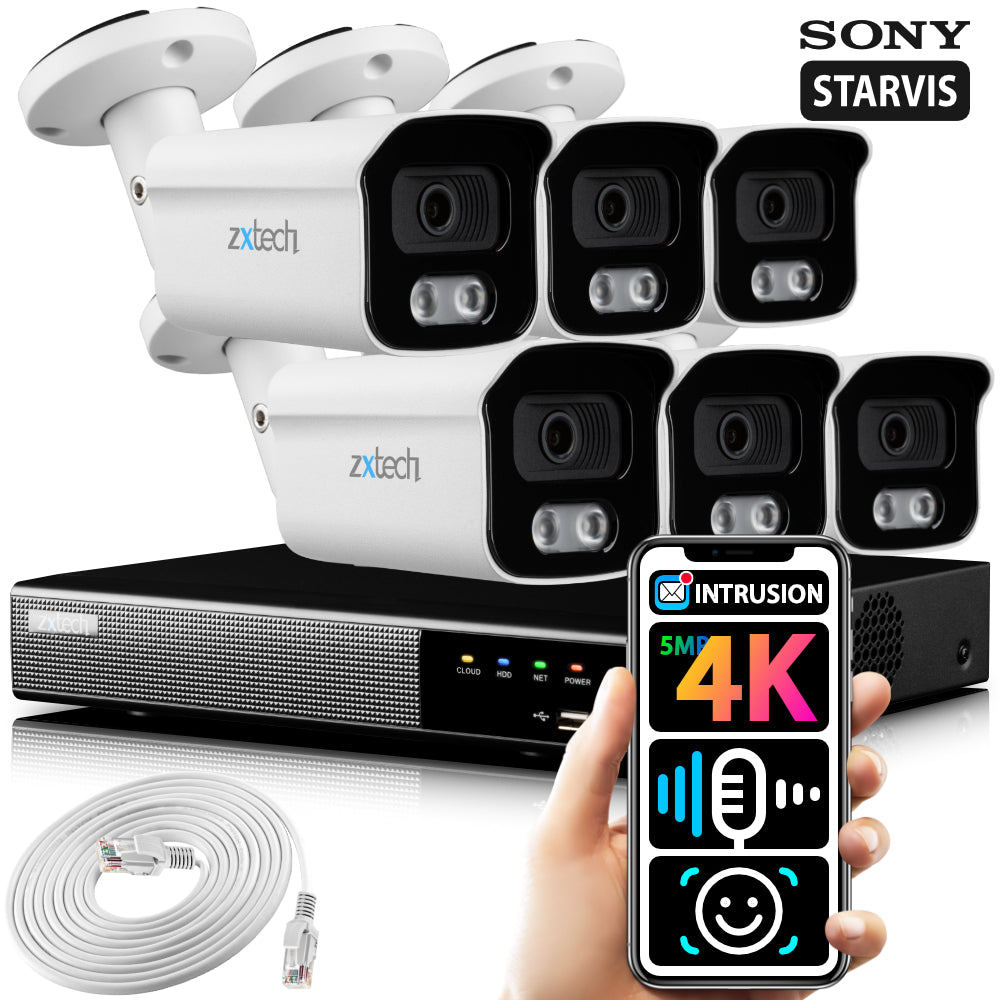

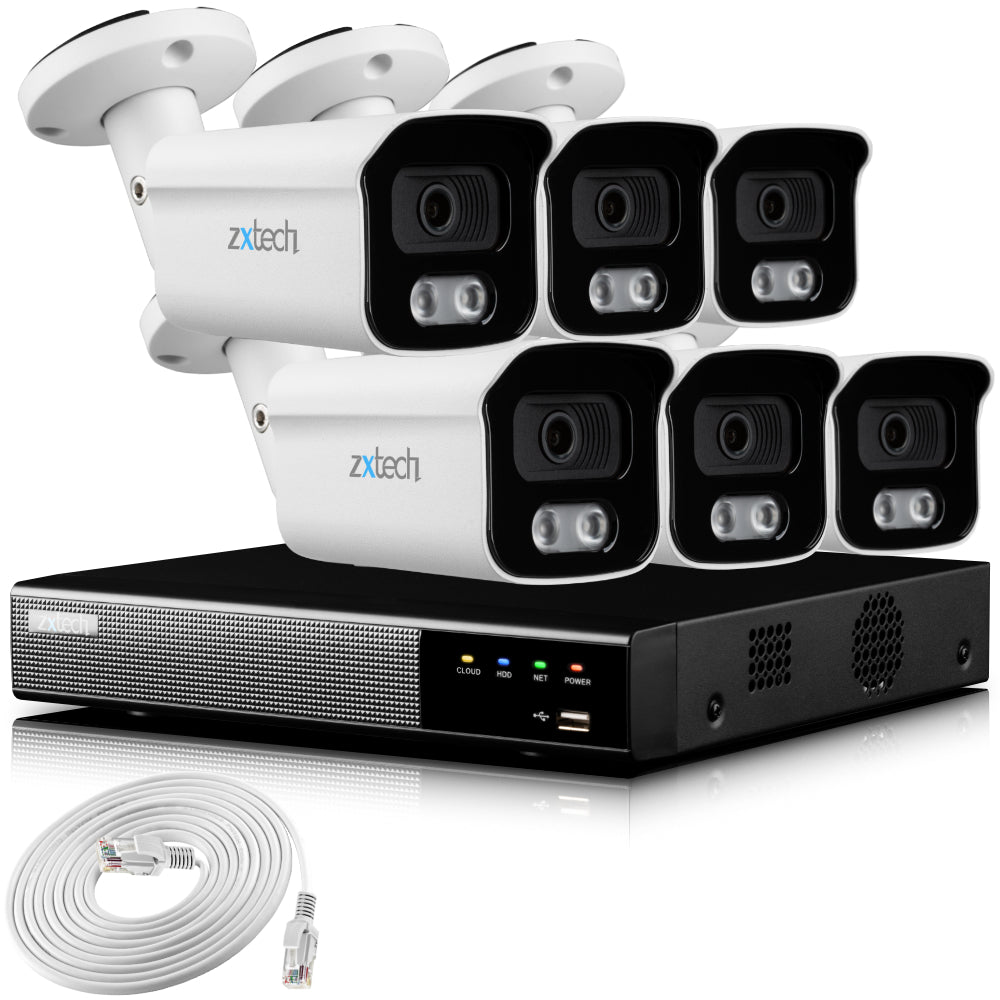

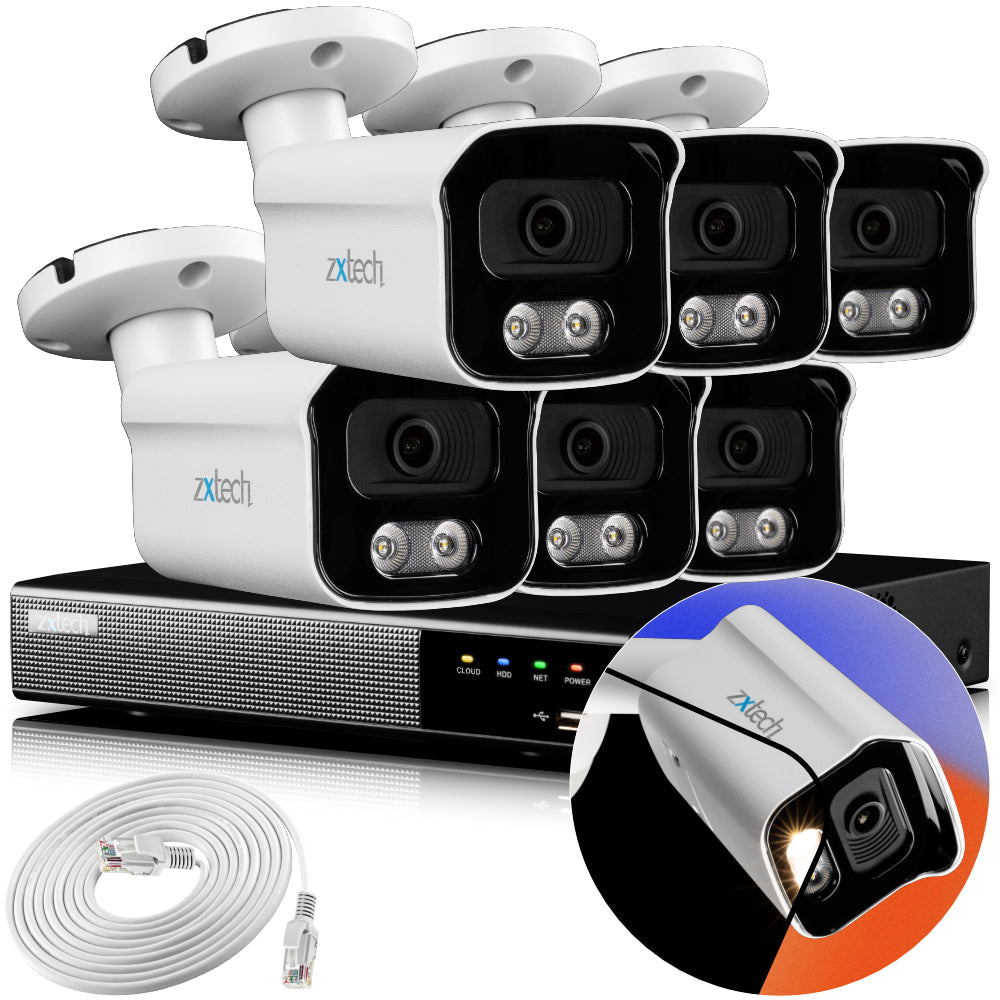

What's in the Box
- 6 x Zxtech BabyBullet 4K AI CCTV Camera (Optional Intense LED Colour Night Vision Feature)

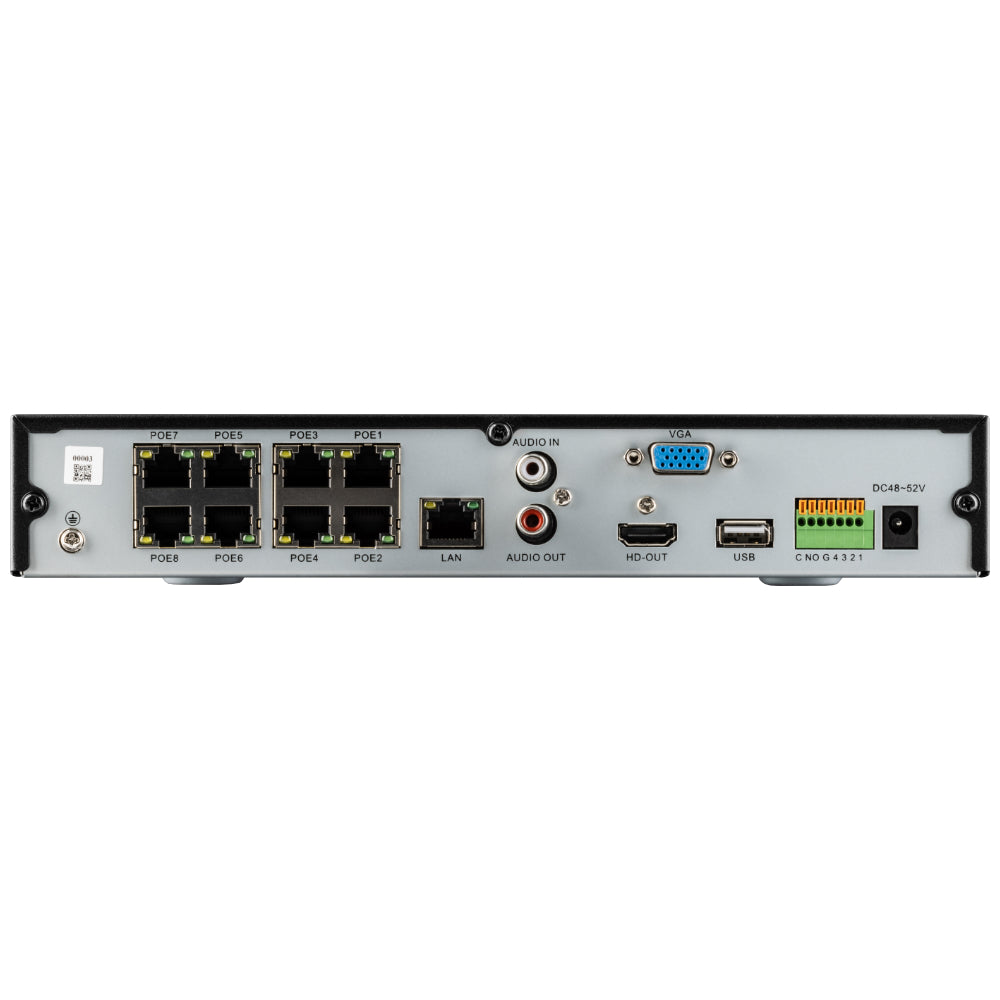

- 1 x 8CH Onyx 4K PoE Network Video Recorder
- 3 x 10M cable, 3 x 20M cable and 1 x 2M Cable
- Optional HDD & Optional Deep Base
- 【4K/UHD/8MP/5MP/4MP】4 time sharper images than 1080p resolution, this system supports amazing 8 Megapixel (3840*2160) (optional 5 Megapixel) and footage are incredibly crisp and sharp
- 【30M Night Vision】Another level of visualization with superb night vision up to 30M. If you have some extra lighting, you will be able to achieve colour night vision. Alternatively, buy the "Intense LED" option for the built-in 2 x ultra bright light supplements and larger iris for full colour CCTV footage 24/7.
- 【Face and Body Detection】Ultra Smart AI Face Detection enables Intrusion, Line Crossing, Loiter and People Gather Detection
- 【Sony Chip】High resolution image Sony Starvis Back-illuminated CMOS sensor, classified by the number of megapixels (up to 8 million pixels, optional 5 million)
- 【PoE】Easy PoE installation, the recorder coming along with built-in PoE connection
- 【Built-in Memory and Microphone】This cameras are equpped with built-in microphone, reset button and Built-in 4GB Storage with 512GB Extendable SD Card Slot
- 【2.8mm Wide Angle】2.8 mm fixed lens provides extensive coverage
- 【H265+】H265+ video compression reducing the HDD storage up to 50%
- 【Smart Phone Remote Access】Remote access with free mobile app allows you to monitor the premises anytime, anywhere

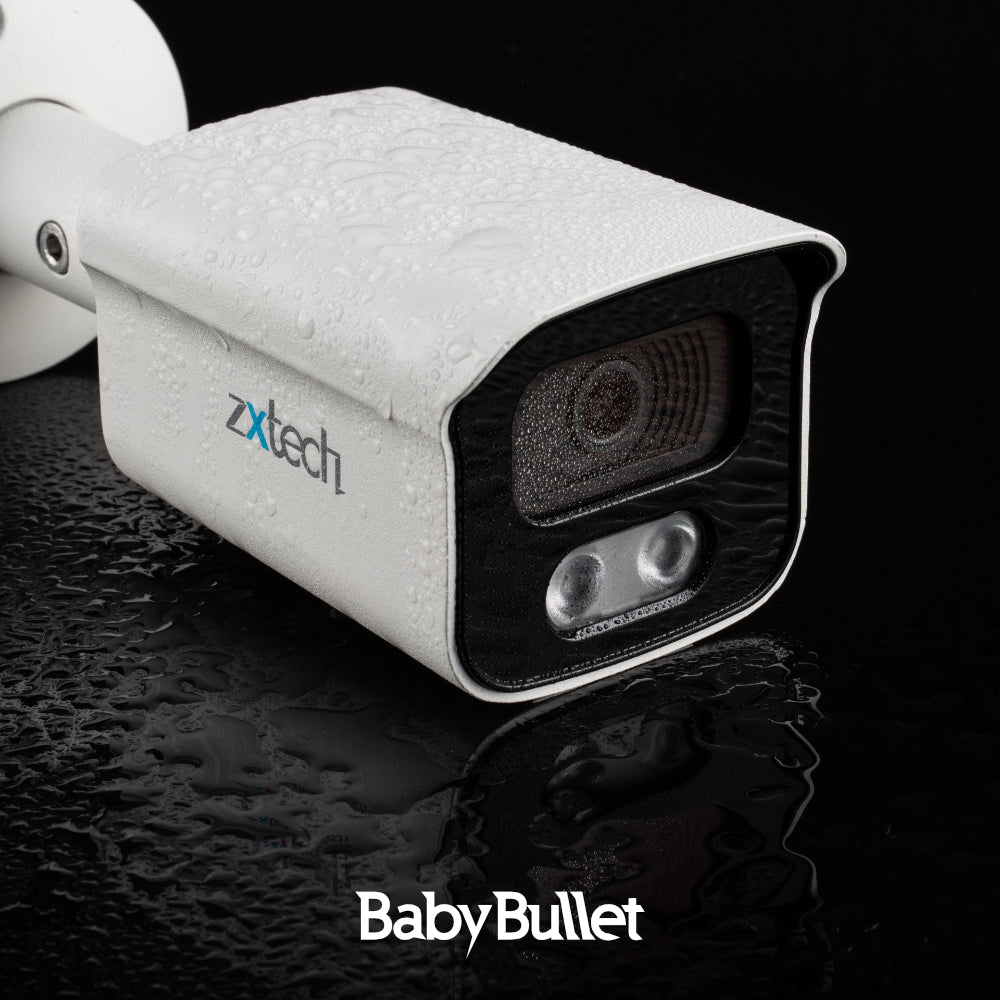

- 【Waterproof & Vandal Proof】With strong, metal case the cameras are waterproof and anti vandal and can be used for outdoor and indoor
- 【HDR & Image Enhancement】Day/Night cameras featuring IR Cut, WDR, BLC, ROI, Defog improving low-light visibility, HDR Sensor Enables Dynamic Range over Mind-blowing 120 dB
- 【Smart Motion Alert】Motion detection and mobile notification alert so you can capture any important event
- 【Quick Mobile Setup】P2P QR Scan for Anyway, Anytime Remote CCTV Access
- 【Built-in 4CH PoE Switch】CCTV NVR with 4CH built-in PoE switch included

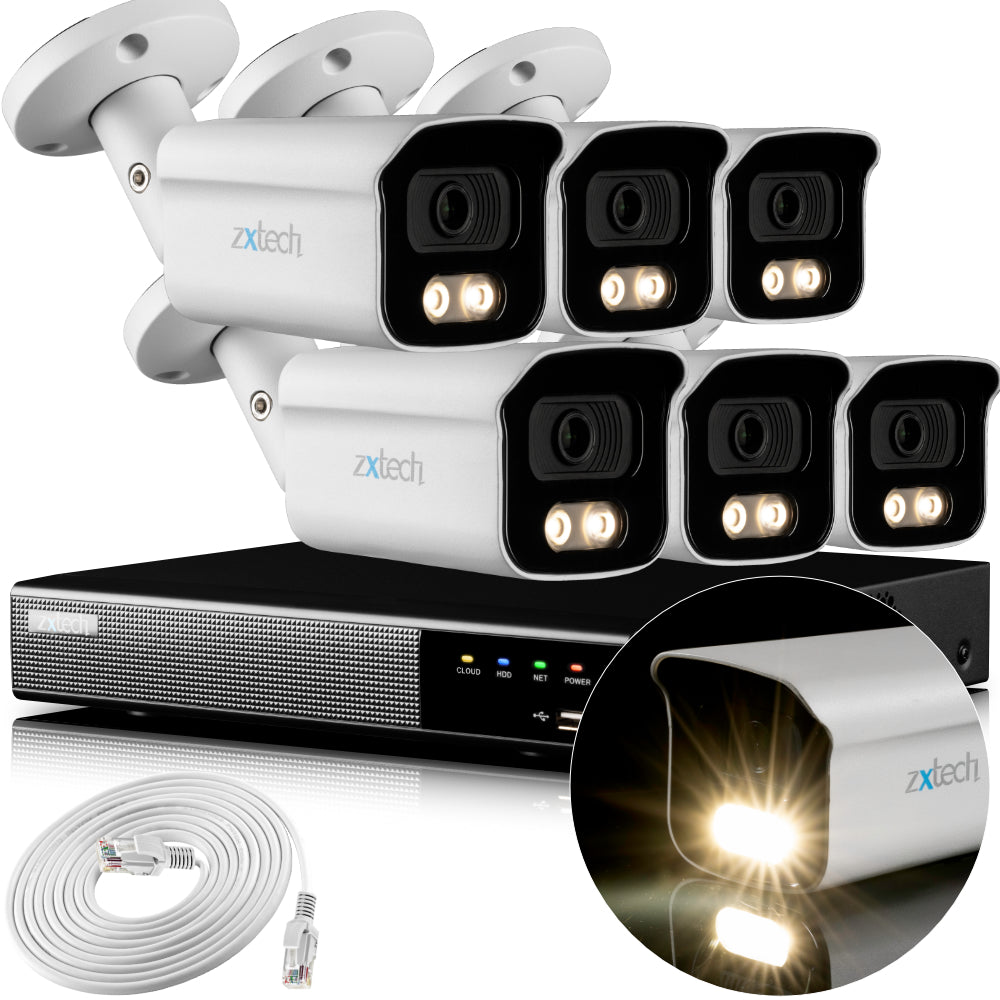

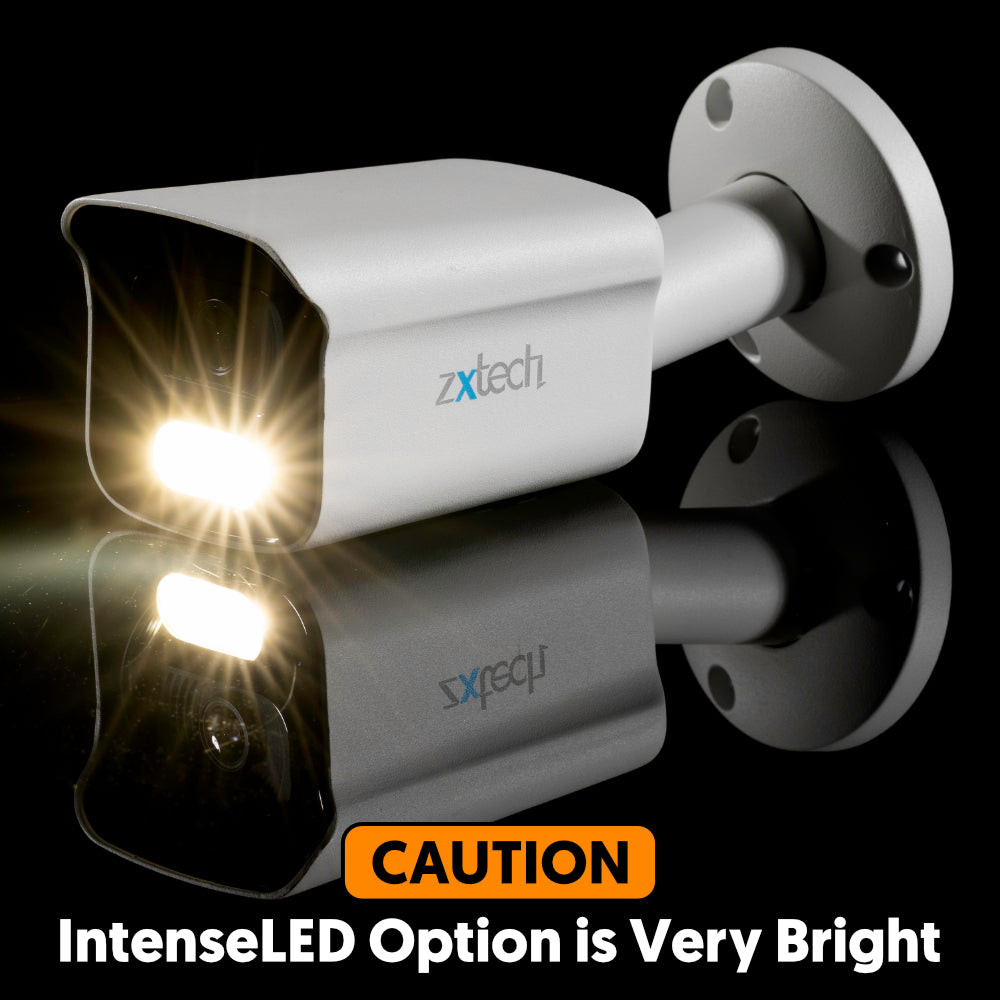

Optional Intense LED Colour Night Vision Technology
The New Zxtech Colour4K technology provides full-colour CCTV footage throughout day and night in stunning 4K Ultra HD resolution. The new range is able to achieve this with a larger aperture, intense bright white enhancement LED lighting and top of the range Sony Starvis Sensor. This camera range features Built-in 4000K daylight colour LED bulbs. This intense LED lights up your property just like a floodlight. The Zxtech AI Colour Night Vision camera no longer requires infrared to capture footage during the night. With a larger iris. The video recording now provides excellent colour footage 24/7, a vast improvement on traditional black and white footage. If the incident happens during the night, the colour night vision footage is instrumental to aid police investigation, while black and white night vision footages are not as effective when presented in court. Already a deterrent in its presents, those built-in LEDs are very bright and stay on during the night. So can be unsuitable for indoor and residential areas where the intense LED can be intrusive to surrounding premises within close proximities.
Modern Compact Design
Experience cutting edge 4K Ultra HD resolution with innovative UHD system. Highest level of design available on the market. A modern and compact unit that allows live view and recording. The recorder supports up to 16 CCTV IP Cameras, which gives you an option to extend your system in the future. PoE CCTV Camera System that worths the investment. The kit offers real 4K IP quality because of the integrated 8MP Sony Starvis Chip inside.

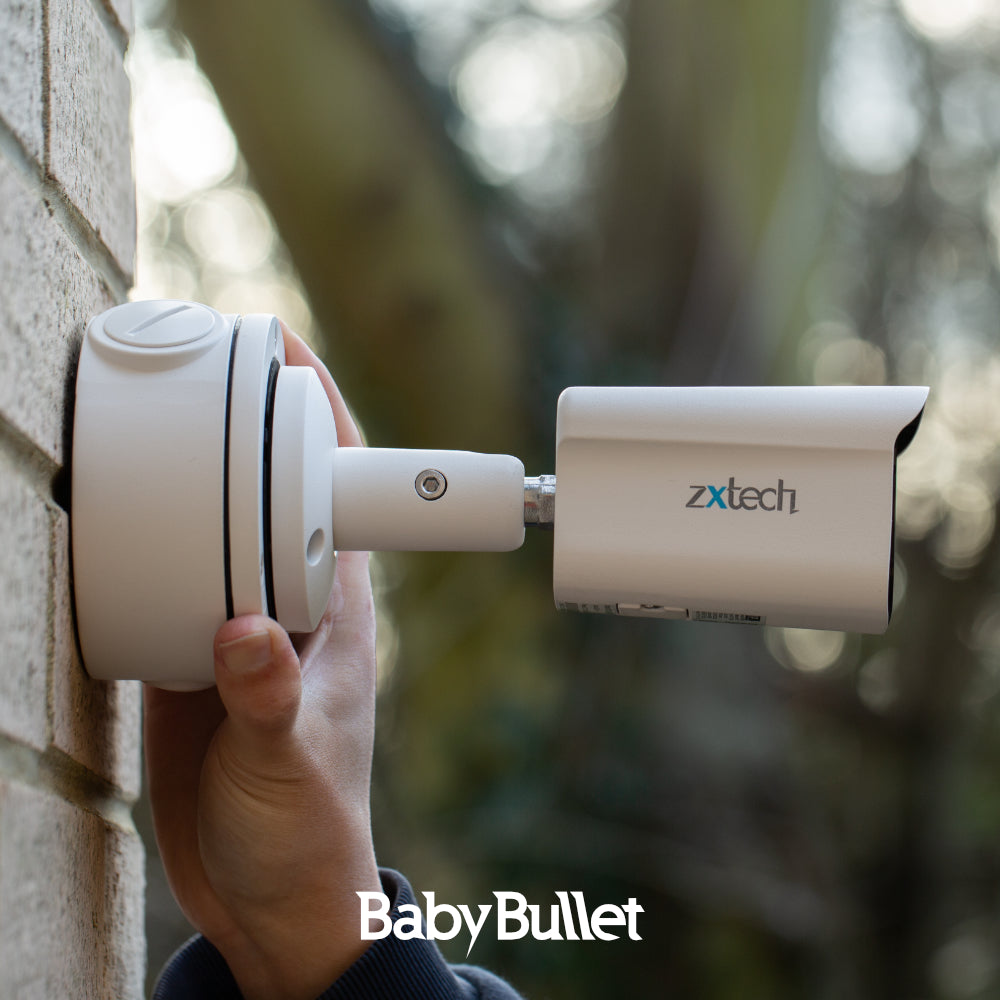

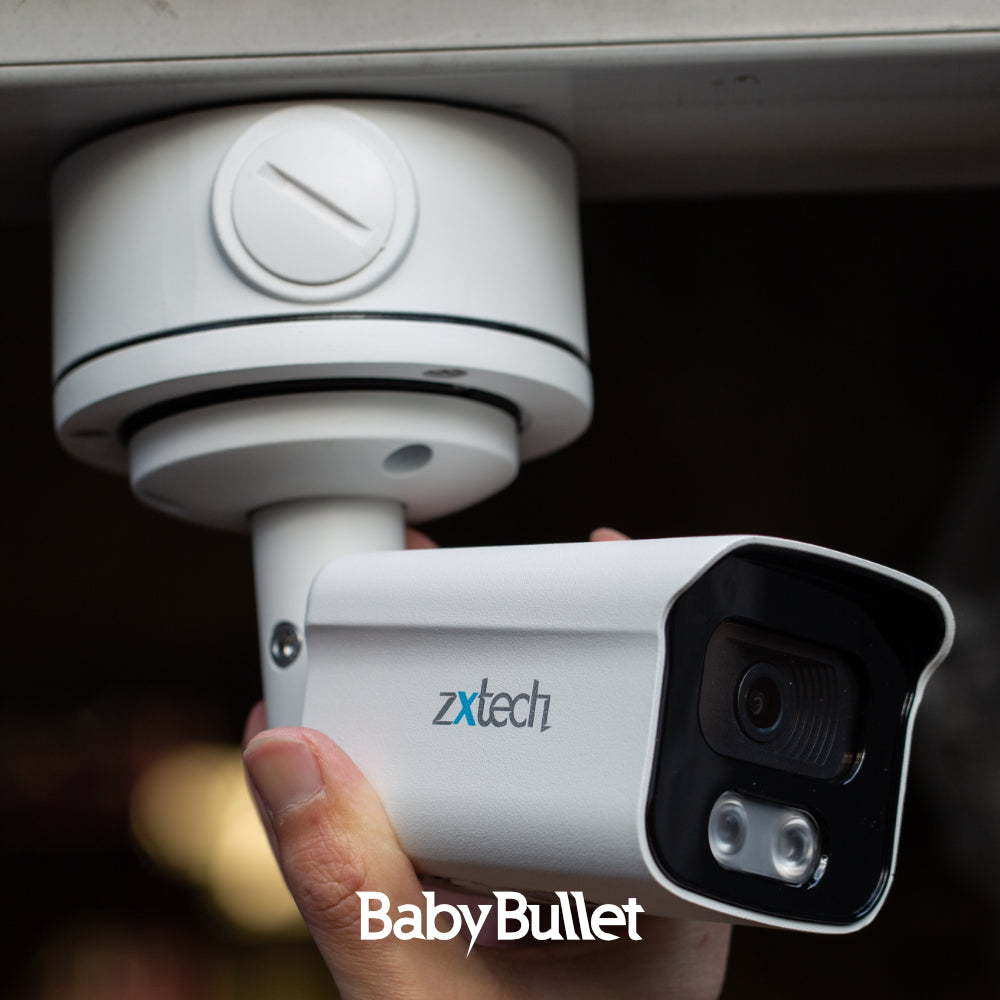

4K 8MP UHD (optional 5MP) Sony Sensor Wide Angle

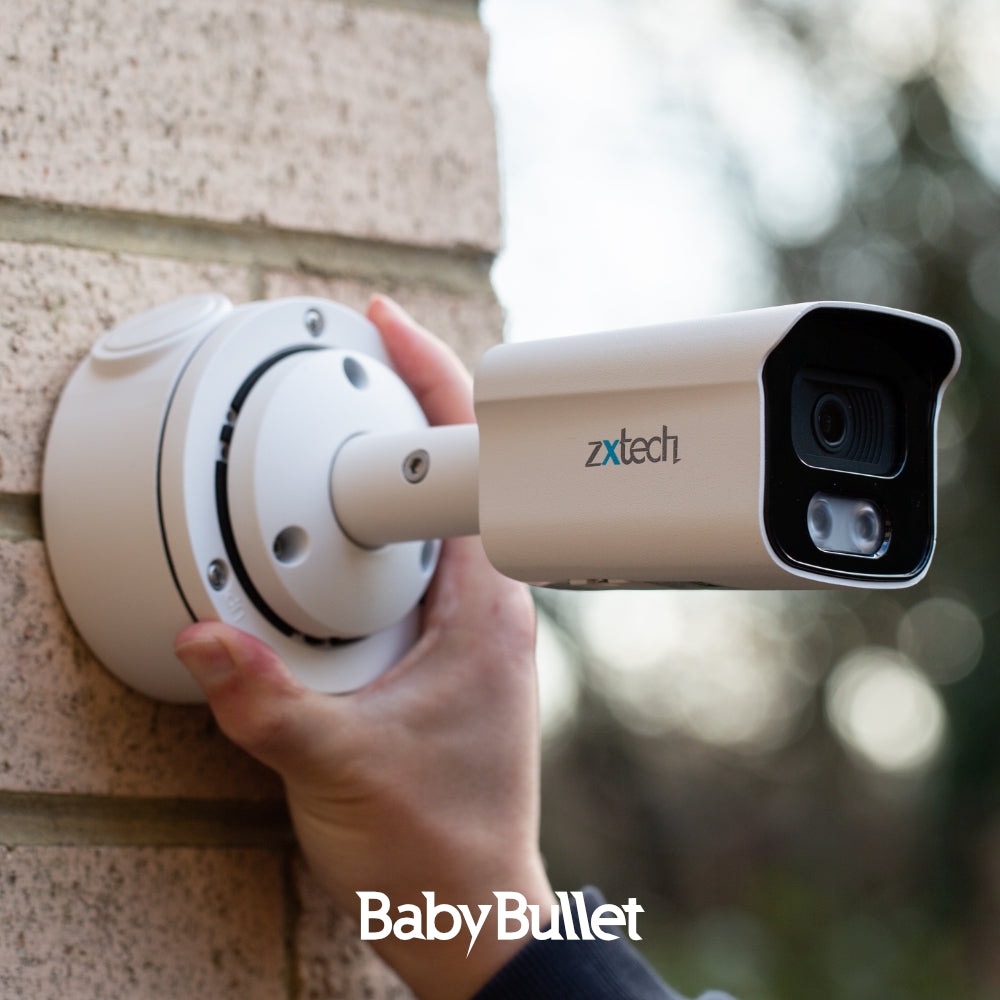

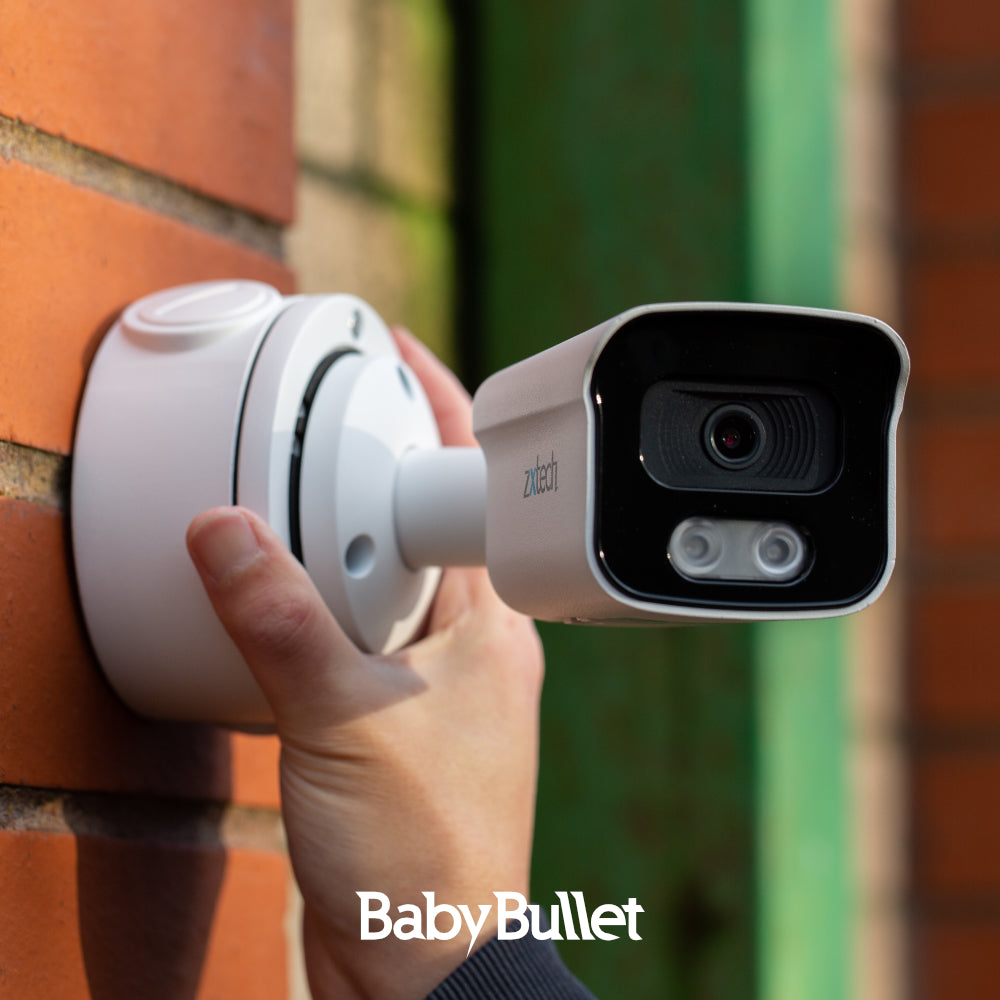

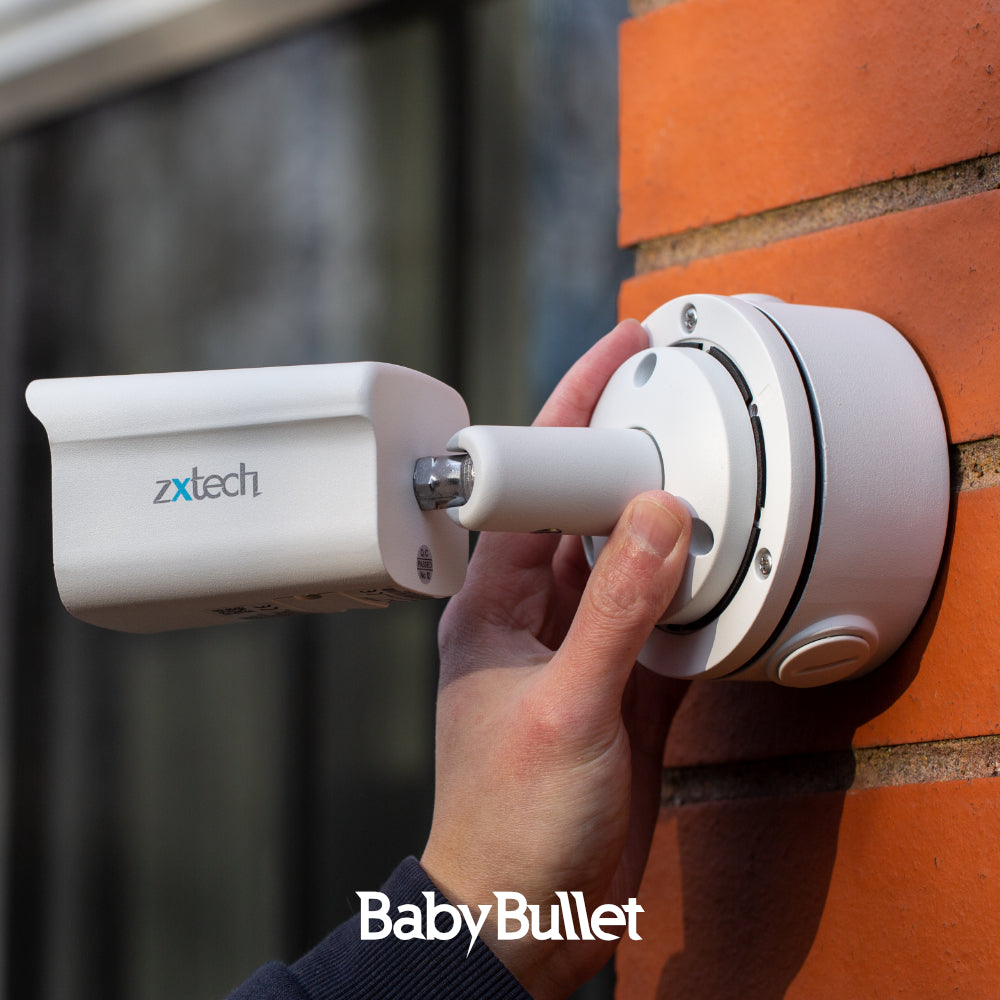

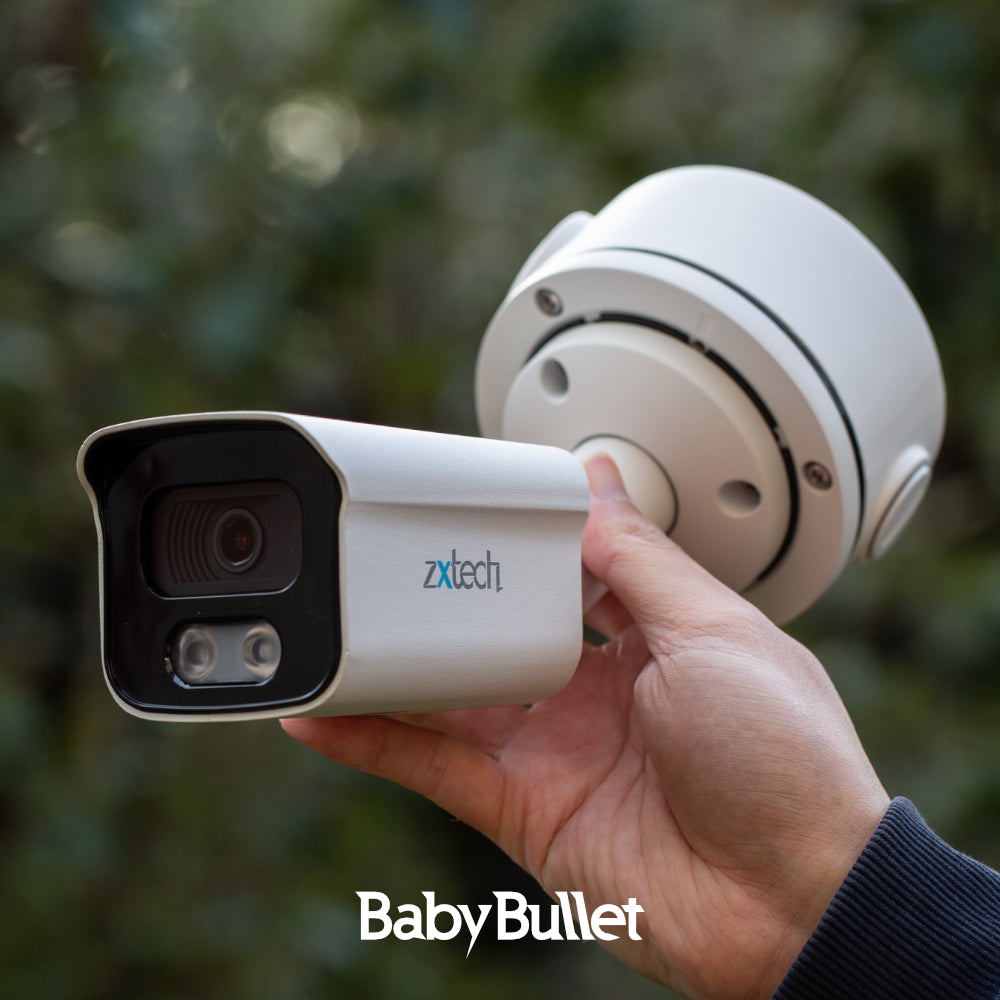

Revolutionary 4K UHD camera on the market, one of the best selling products now in 4K quality. Bullet-shaped sees and protects your home or business. Built-in high-quality lens and cutting-edge processing technology. Finally, you can collect the finest detail for the evidence you need. This sturdy camera is built tough for the outdoor or indoor with an IP67 waterproof rating. Long-range night vision with up to 98 feet IR night vision. This camera has wide-angle 2.8 mm lenses and it is super flexible. You can point to any direction when you fix it on the wall or ceiling, no matter vertically or horizontally.
Mind Blowing Clarity
If you looking for the latest this may be perfect choice. Upgrading to 4K offers noticeable results in image quality. Home security kit which is begging to move away from traditional 1080p Full HD and rolling out ultra-crisp, ultra-clear and sharp quality image with 4K resolution. This sensor comes with exceptional sensitivity and low-light performance enhanced by built-in 4000K White LED. Equipped with Sony Starvis 8MP Sensor the camera produces more than 8 million pixels. Achieving even higher performance with lower power consumption.
PoE IP CCTV System, get an All-in-One Security Camera Kit
Many homes now are covered with network cables all over the place so you really simply can use them to power your 4K security system. One cable is enough to transmit data and power over the Ethernet cat5/cat6/cat7 cable. Hassle-free and quick setup. We made this system as easier as possible for any home or business. A new era in CCTV 4K Plug and Play UHD PoE IP CCTV.
Much less bandwidth, much higher performance
At the same bandwidth, it's not only transmitting clearer and smoother video, but also saves more disk storage space, and saves a large amount of money for you. Zxtech H.265 camera system is a kind of surveillance cameras that adopt High-Efficiency Video Coding. This is an advanced technology that can encode video files twice as efficiently as its predecessor, known as H.264. H.265 can double the data compression ratio without reducing the image quality.
Up to 4x Sharper than 1080p
The system will deliver an ultra HD resolution for live view or recording. Really powerful night vision. The cameras are weather-resistant case so easily can be used indoor or outdoor. One of the most robust kits we have. The cameras offer a detailed image and wide-angle to cover a larger area. You do not have to deal with pixelated image anymore.

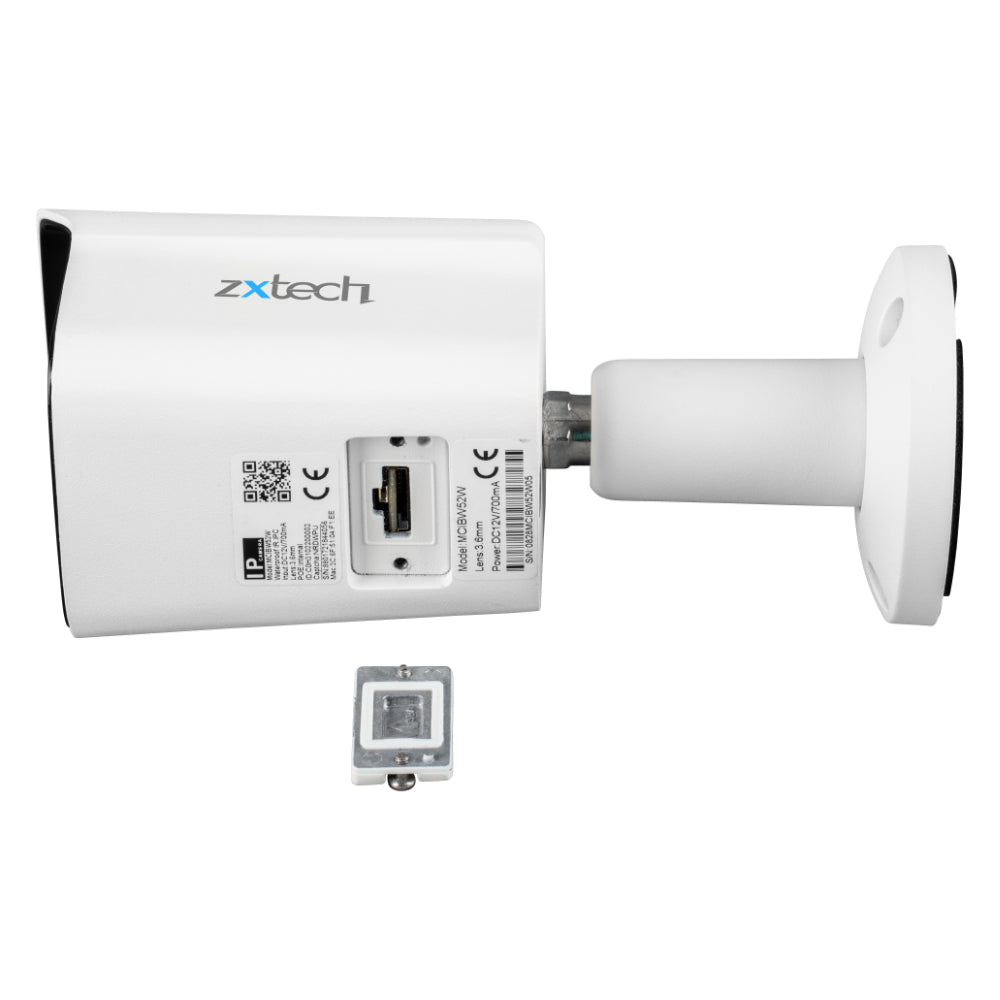

Wide Angle Viewing and SD Card Slot Embedded
No need for a varifocal camera to see the whole image this Zxtech camera will allow you to see super wide-angle with no hassle. Zxtech camera is using a dedicated lens for a super-wide angle of viewing. You can enable in-camera recording to backup your footages. Using an SD card helps you backup the footage and keep them offline for even better security.
Loop Recording on pre-installed SD Micro SD Card with up to 512GB storage and 4GB Built-in Memory
The camera in the kit has a built-in SD card slot and can record up to 512GB storage two times bigger storage than a standard CCTV camera. If you like to keep footages as a backup then this camera will be perfect for your needs. The camera support loop recording means it will overwrite. Primarily designed to store motion-activated videos.
SONY Starvis Chipset
With 4K UHD you can realize high quality in the visible-light and near-infrared light regions. Achieve higher resolution due to the larger pixel size improved low light performance as more light is picked up. Extreme performance and 8MP Ultra HD Quality. You can enable in-camera recording to backup your footages using up to 128GB memory card. Using an SD card helps you backup the footage and keep them offline for even better security. Modern IP security cameras have a memory card slot that helps increasing storage and give you cost efficiency.
Increase your Access Capabilities using smartphone access
This will give you peace of mind so the intruders will really think twice before entering. The big advantage is that the system can be viewed from afar. As long as the recorder is connected to the Internet. By a simple step, you can watch footage on all smart devices you have got, such as iPhone, iPad, Android phones, tablets, PC, laptops, computers, giving you the ability to monitor your CCTV whenever required. You definitely will track every move in your home.
AI Face Recognition, Line Crossing, People Gather Detection, Loiter Detection, Intrusion Detection, Motion Detection, Schedule, Masking
Zxtech is here to protect our homes and businesses. We offer a better way to track attendance. Zxtech develops Facial Recognition cameras to help not only homes but small and big companies to reduce any risk for you and your family and employees. During the pandemic, we saw increased usage of face detection solutions. Using privacy masking you can avoid false alarms. Many people set up the system on motion detection Zxtech security will make that easier than ever.
Zxtech your best UK supplier has launched a new generation of firmware for CCTV NVR. The new firmware brings a user-friendly interface, full of new features. Based on great user experience and enhanced intelligent functions the next-gen interface will allow customers to do a lot more. This firmware is a massive improvement with new features such as Face Recognition, Intrusion Detection, Line Crossing, Loiter Detection and People Gather Detection etc. Smart AI system with real-time monitoring on HDD, providing you safety and reliability. Zxtech launch new firmware, new software recorders, a real joy to use.
|Image Sensor||1/2.8"" SONY Starvis Back-illuminated CMOS sensor|
|Resolution||5MP (optional 8MP)|
|Effective Pixels||2616 (H) x 1964 (V) (optional 3864(H)*2192(V))|
|Electronic Shutter Time||Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec|
|Pixels||8MP (optional 5MP)|
|Infrared LED||42µ x 2PCS|
|Optiional Intense LED||3015U × 2 Warm light LED up to 30M|
|IR Status||Auto Control|
|IR Power On||Auto Control|
|ONVIF||Support ONVIF 2.4(Profile S/T)|
|P2P||YES, Support QR Code|
|PoE||Internal, Support IEEE 802.3af|
|Video Delay||0.3S (Within the Lan)|
|Main Stream 1||2592*1944@30fp (optional 2048*1536@30fps)
|Intelligent Analysis||Intrusion Detetion, Line Cross Detetion, Loiter Detetion, People Gather Detecion|
|Recognition||Face Detection and Recognition
Number of faces per frame: 32
Capture rate: >99.5%
Repeat capture rate: <15%
False capture rate: <0.5%
Number of supported faces: 30,000
Minimum detection of face pixels: 25*25
Maximum detection of face pixels: 300*300
|Day/Night||Color/ B&W (Select Intense LED for 24/7 Colour)|
|Image Config||Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,
FLK(Flicker Control), Video Tampering
|Defog Mode, ROI, BLC||Support|
|Privacy Masking||3 Rectangular Zone|
|Alarm||1 Channel Input/Output|
|SD Card Slot||External, Support Max 512GB,With 4G Storage|
|Audio||1 Built-in MIC|
|Main Processor:||ARM Cortex A7 Processor|
|Operating System:||Embedded LINUX|
|Video Input:||16CH (4096x2160, 2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)|
|Video Output:||1 VGA, 1 HD|
|Audio Output:||1 Port RCA(Linear)|
|Audio Compression standard:||G711u, G711a, ADPCM_DVI4|
|Alarm Sensor Input:||4|
|Motion Detection:||16 Channel, MD Zones: 396 (22 x 18)|
|Trigger Events:||Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm output|
|HD Output1:||Resolution: 4K (3840 x 2160)/30Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz|
|VGA Resolution:||1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz|
|Display Split:||16CHxD1/ 9CHxD1/ 8CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP/ 1CHx4k|
|OSD Camera:||Title, Time, Recording, Motion Detection|
|Resolution:||4K(4096x2160), 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)|
|Record Rate PAL:||PAL4k@10x25fp, 5MP@14x25fp, 4MP@16x25fp, 3MP@16x25fp, 1080P@16x25fp, 960P@16x25fp, 720P@16x25fp, D1@16x25fp
NTSC: 4k@10x30fp, 5MP@14x30fp, 4MP@16x30fp, 3MP@16x30fp, 1080P@16x30fp, 960P@16x30fp, 720P@16x30fp, D1@16x30fp
|Record Mode:||Manual/Timer/Motion Detection|
|Local Sync Playback:||1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps|
|Decode Capability:||1CH 4K(3840x2160)@30fps|
|Remote Sync Playback:||Yes|
|Search Mode:||ALL, Channel, Manual, Time, Date, Motion Detection|
|Playback Functions:||Play, Pause, Stop, Fast Play, Digital Zoom|
|Interface:||8 x RJ45 (10M/100M Adaptive Ethernet Interface) + 1 x RJ45 10M/100M/1000M Adaptive Ethernet Interface|
|POE:||8 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output more than 100W, Support Plug and Play, Support network cable extended mode up to 250M|
|Interface Type:||1 SATA Interface|
|Capacity:||Up to 8TB capacity|
