Zxtech 5MP Wireless CCTV System - 3x WiFi Security Cameras Outdoor 2-Way-Audio Night Vision 9CH Sony Starvis | WF3D9Y
- 【5MP Sony Starvis】5 Megapixel resolution (2560x1920) is 2X crispier than 1080p. With integrated Sony Starvis Chip, the wide-angle CCTV footage is noticeably better than other 5MP cameras.
- 【Wireless】With a built-in long-distance antenna on the camera, Wifi signal strength is sufficient for most British houses. The camera is easy to set up without network video cables; the power supplies are provided.
- 【Waterproof & Vandal Proof】Designed for both indoor and outdoor. Solid waterproof casing is rated at IP67, and anti-vandal housing makes it solid even in harsh conditions.
- 【2-Way Audio】The camera provides a clear two-way audio communication experience with the built-in microphone and speaker. So keep in touch with the courier if you missed him. The mobile app is designed for iOS or Android.
- 【Great Night Vision】By using Sony Starvis Chipset, the night images are far better than other alternatives. The built-in LED enables long night vision distance up to 100 feet in complete darkness and low-light conditions where standard security cameras won't work.
- 【Humanoid Detection】Intelligent software enables the cameras to differentiate human shapes and other objects. Such capability reduces the number of false alerts.
- 【HDD & Onboard SD Card Slot】With up to 8TB HDD on the NVR and 128GB SD storage on each camera, your footage is safe. In addition, it will automatically overwrite when the storage is full, so you do not have to worry about manually deleting old footage.
- 【Remote access】Remotely access, playback and snapshot your camera or recorder footage through free mobile apps on iPhone and Android.

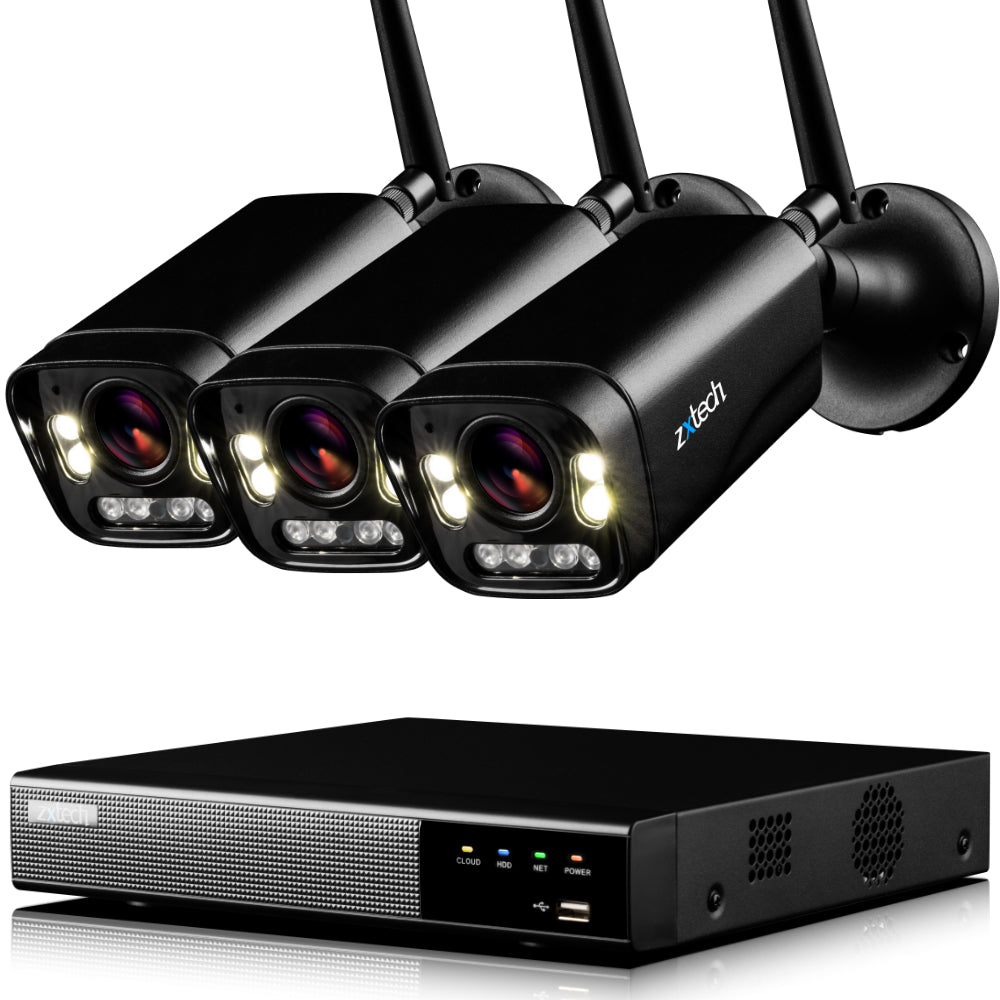

What's in the Box
- 3 x Zxtech Tropox 5MP CCTV Cameras
- 1 x 9CH 5MP Zxtech Home NVR
- Optional HDD

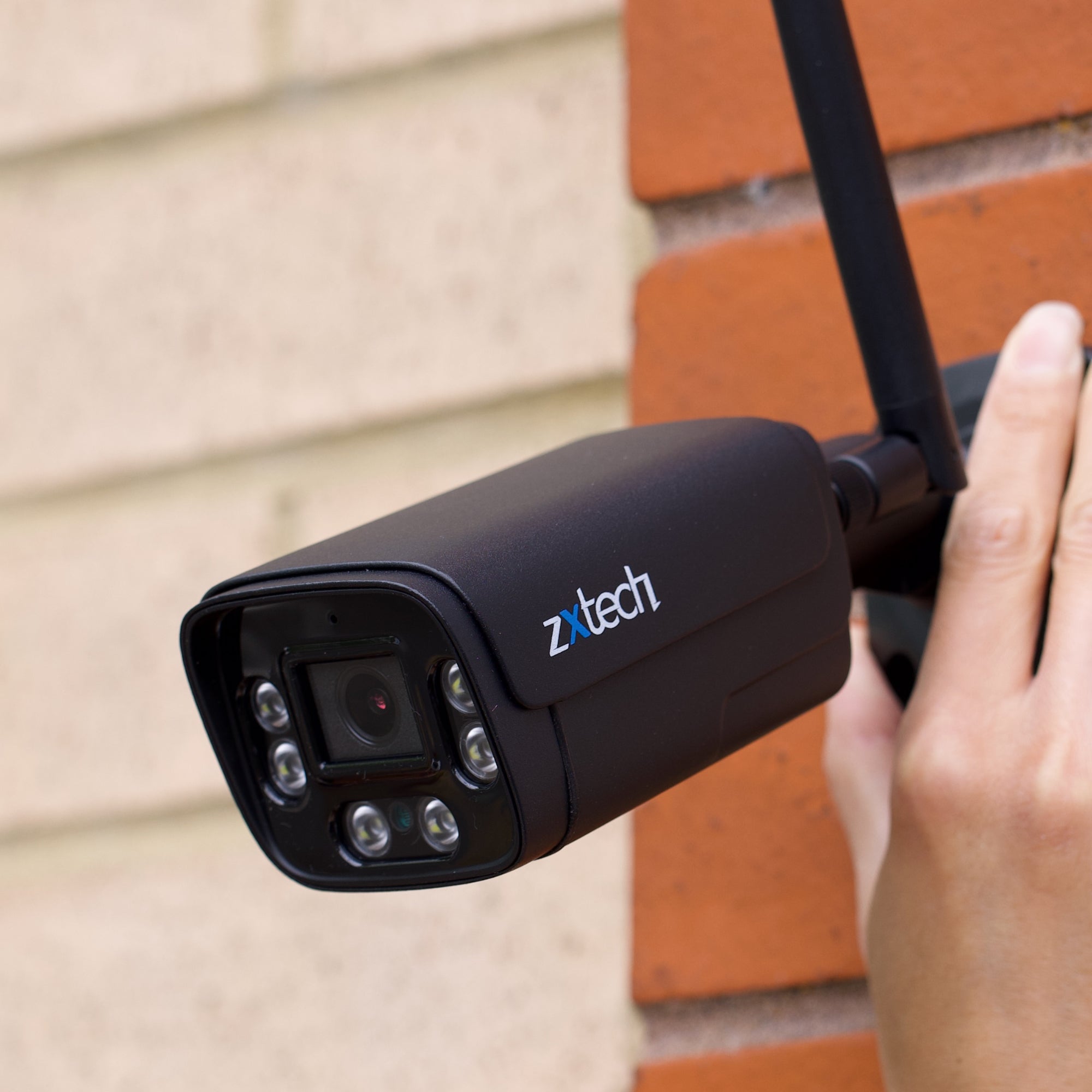

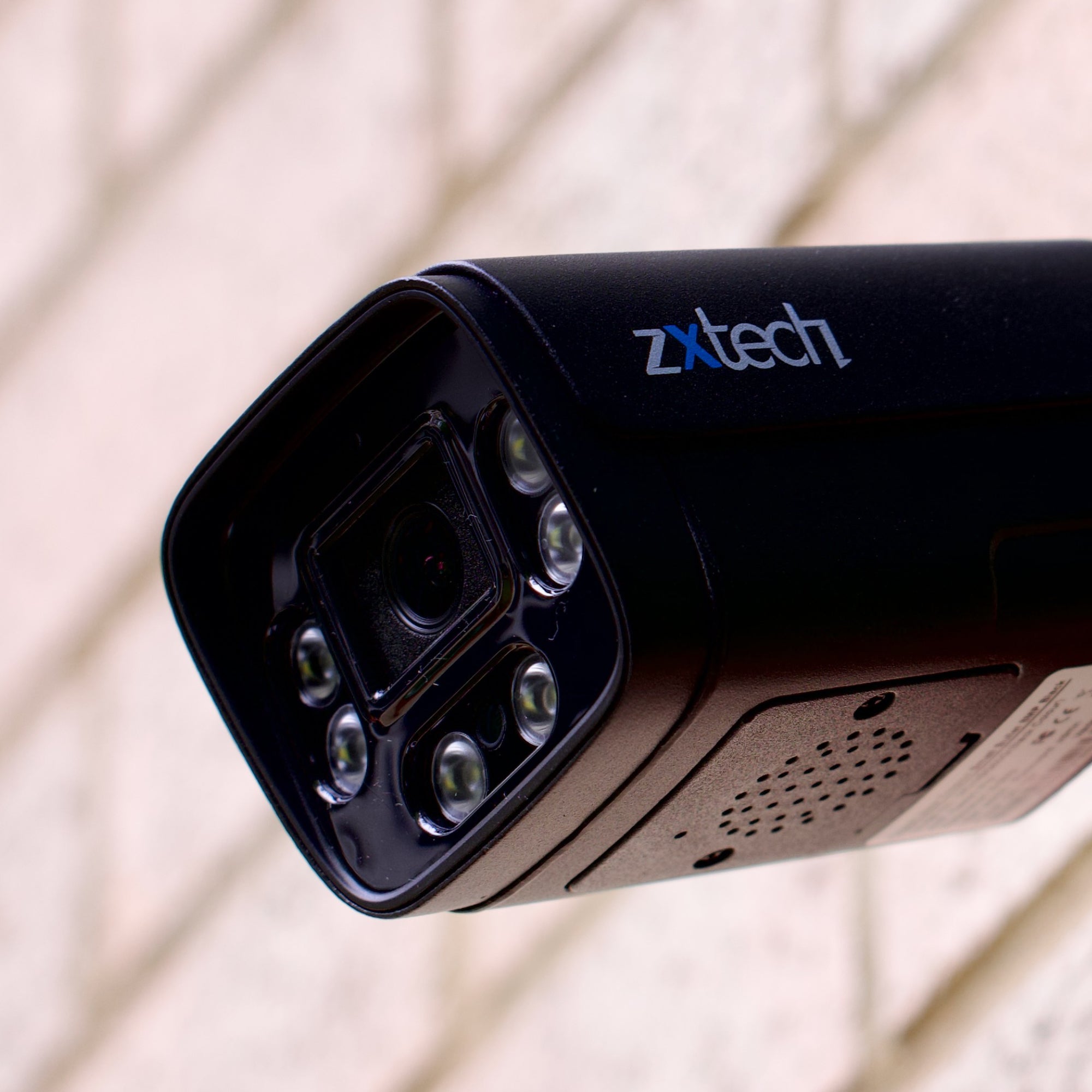

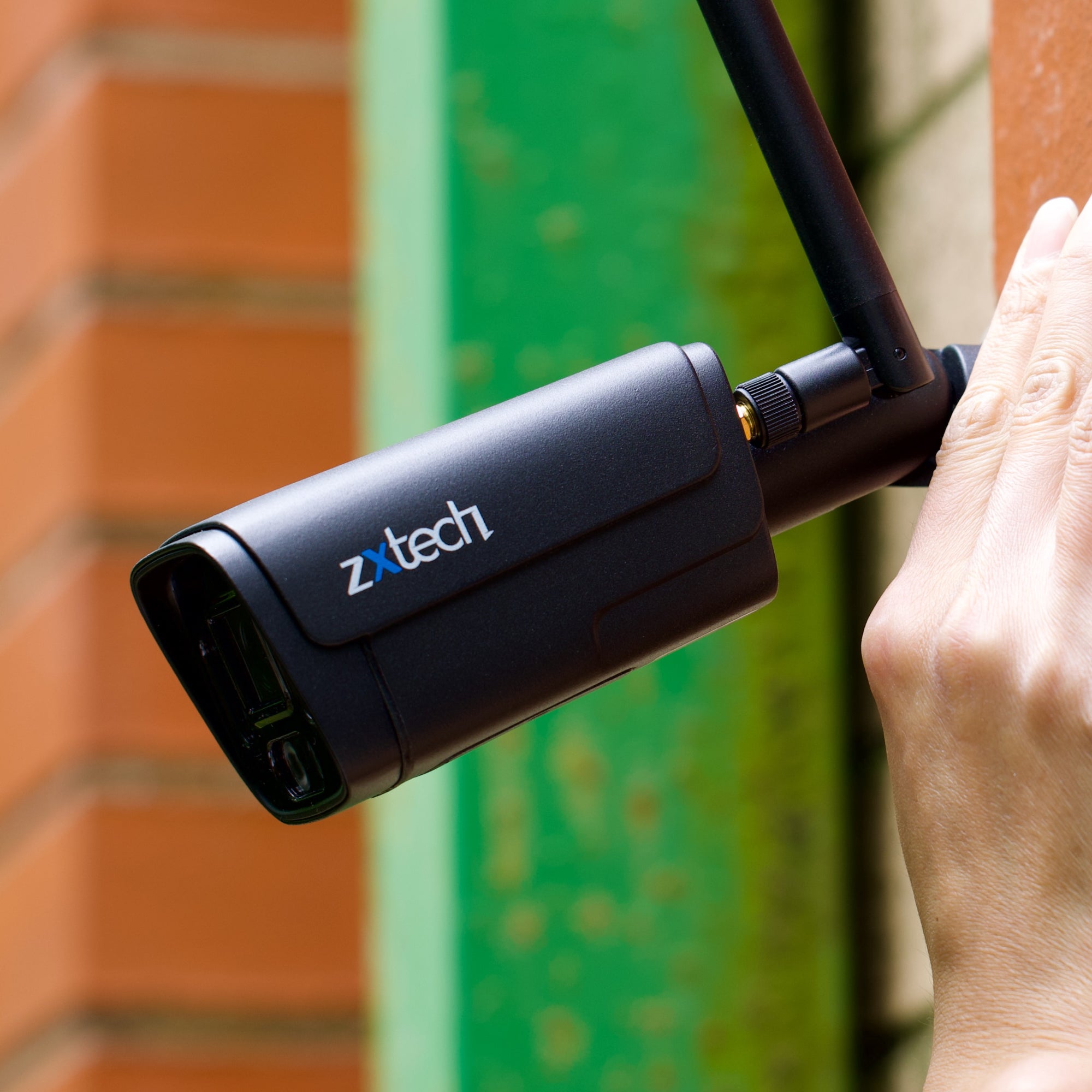

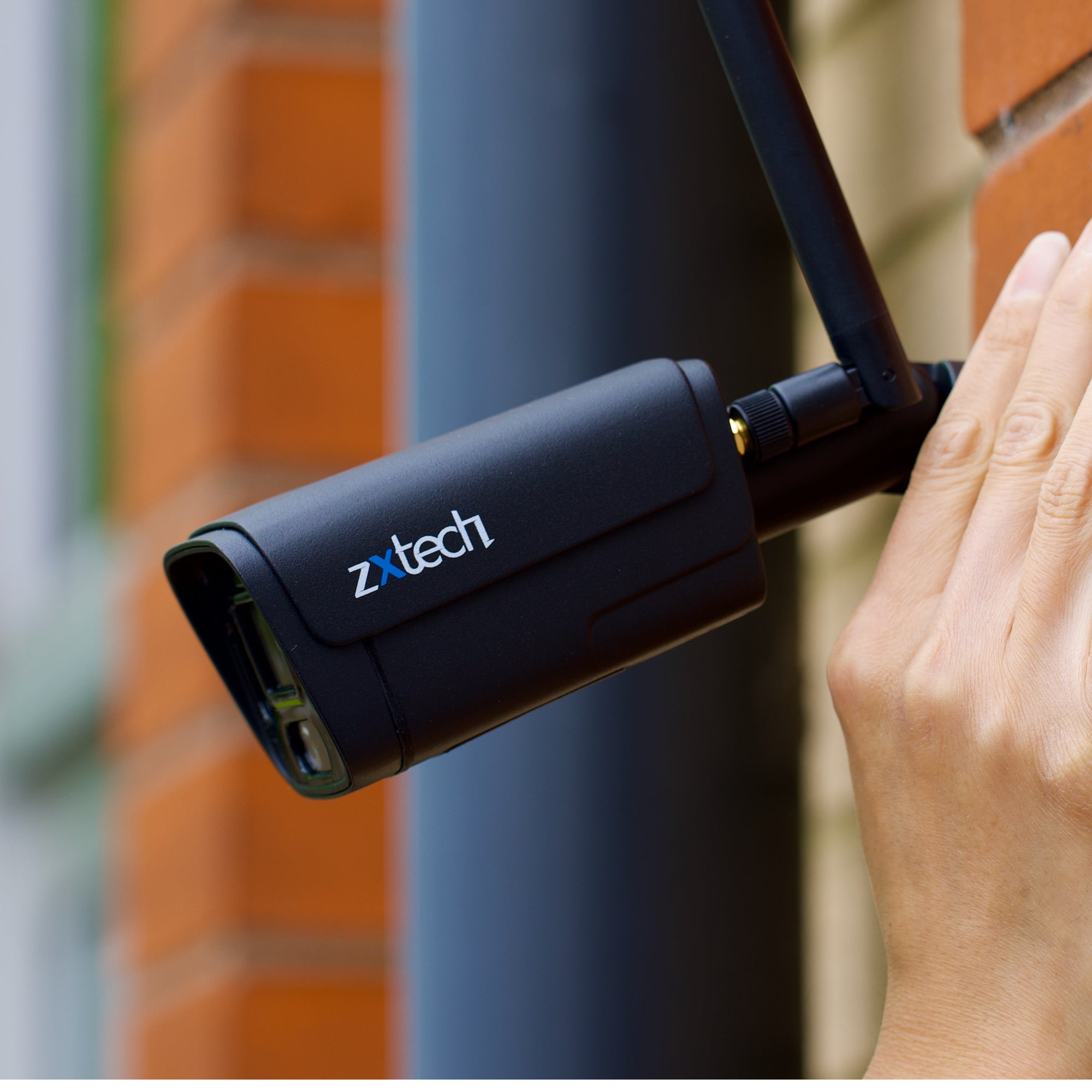

Zxtech Tropox Black is outdoor camera that uses 5 million SONY sensor, offering effective real 5 million pixels. 5MP Super HD and 100ft night vision cameras are included in this pre-made Wireless Kit, the power supply is already included so you can enjoy your WIFI CCTV System today. These little black cameras have a super wide-angle and 3.6mm lens, making them suitable for indoor or outdoor, thanks to the waterproof housing, rated to IP67. The system supports loop recording locally on SD card installed in the cameras or а hard drive installed into the recorder. The system supports multiple alerts: human detection, motion detection, push notification or email sent when motion is triggered.
5 Megapixel SONY Starvis Smart Solution
Wireless security system comes with 5-megapixel footage that is 2x sharper than 1920p. The waterproof case is ideal for indoor or outdoor use with an IP67 rating. Tropox records Super HD 5MP footage in wide angles to pick up even more details, while night vision lets the camera see up to 66 feet in complete darkness. SONY IMX335 chipset is an enhanced camera sensor that delivers real-time frame rates at 5MP Super HD resolution even in low-light conditions with an intensely deep colour. The camera gives you a superb image size while keeping the power consumption low. Better dynamic range improves the image quality and contrast behaviour, allowing more detailed images.

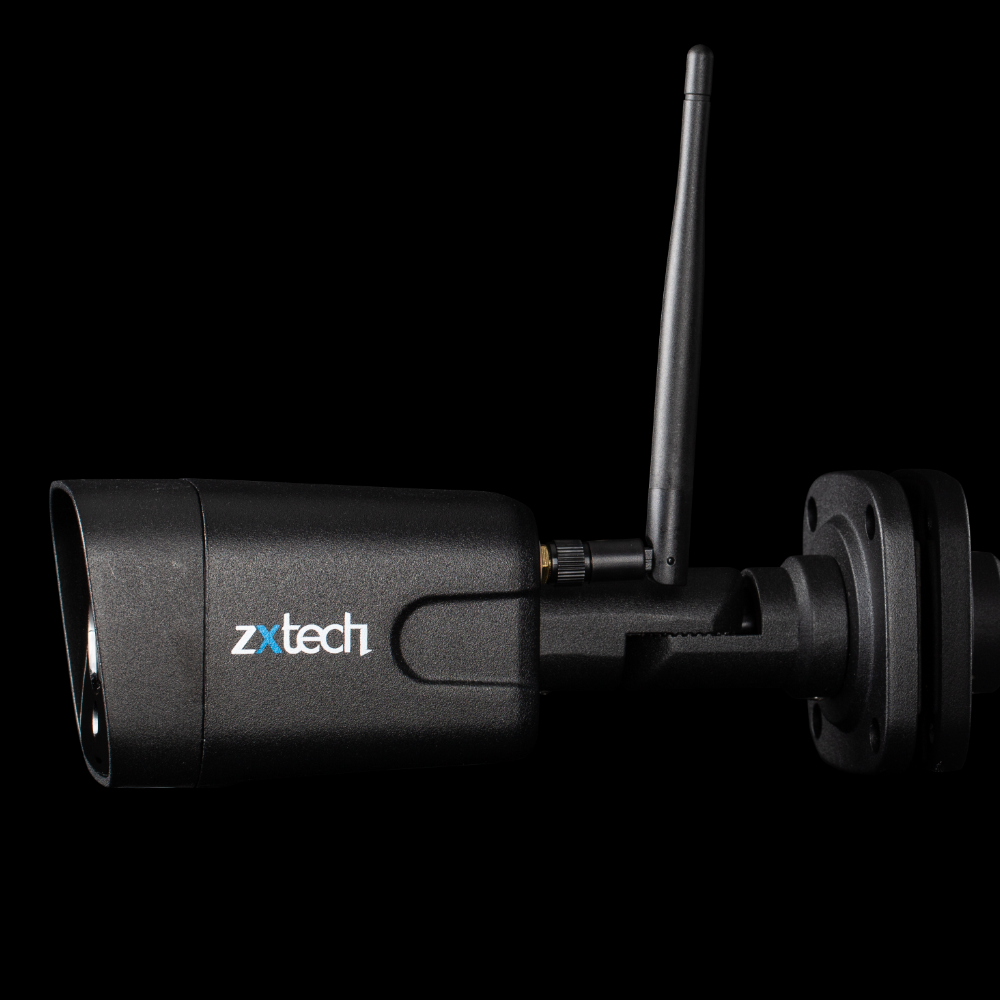

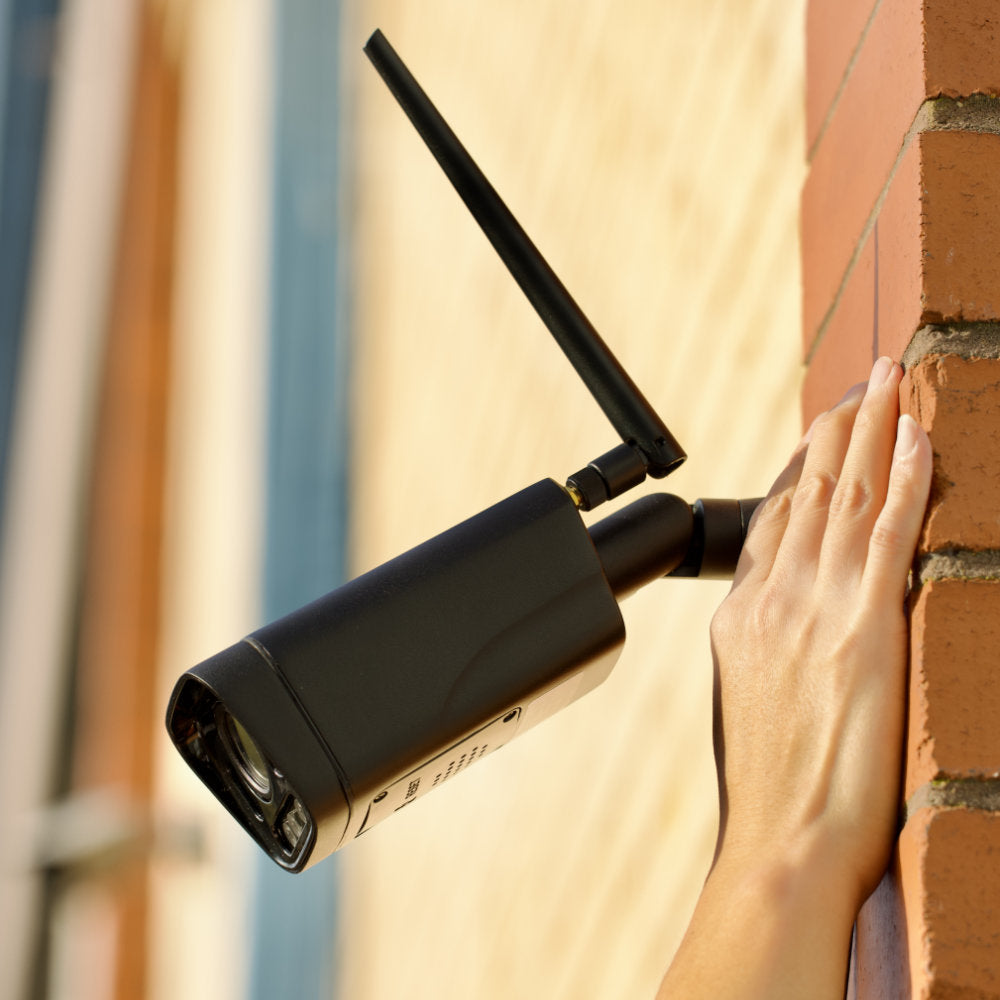

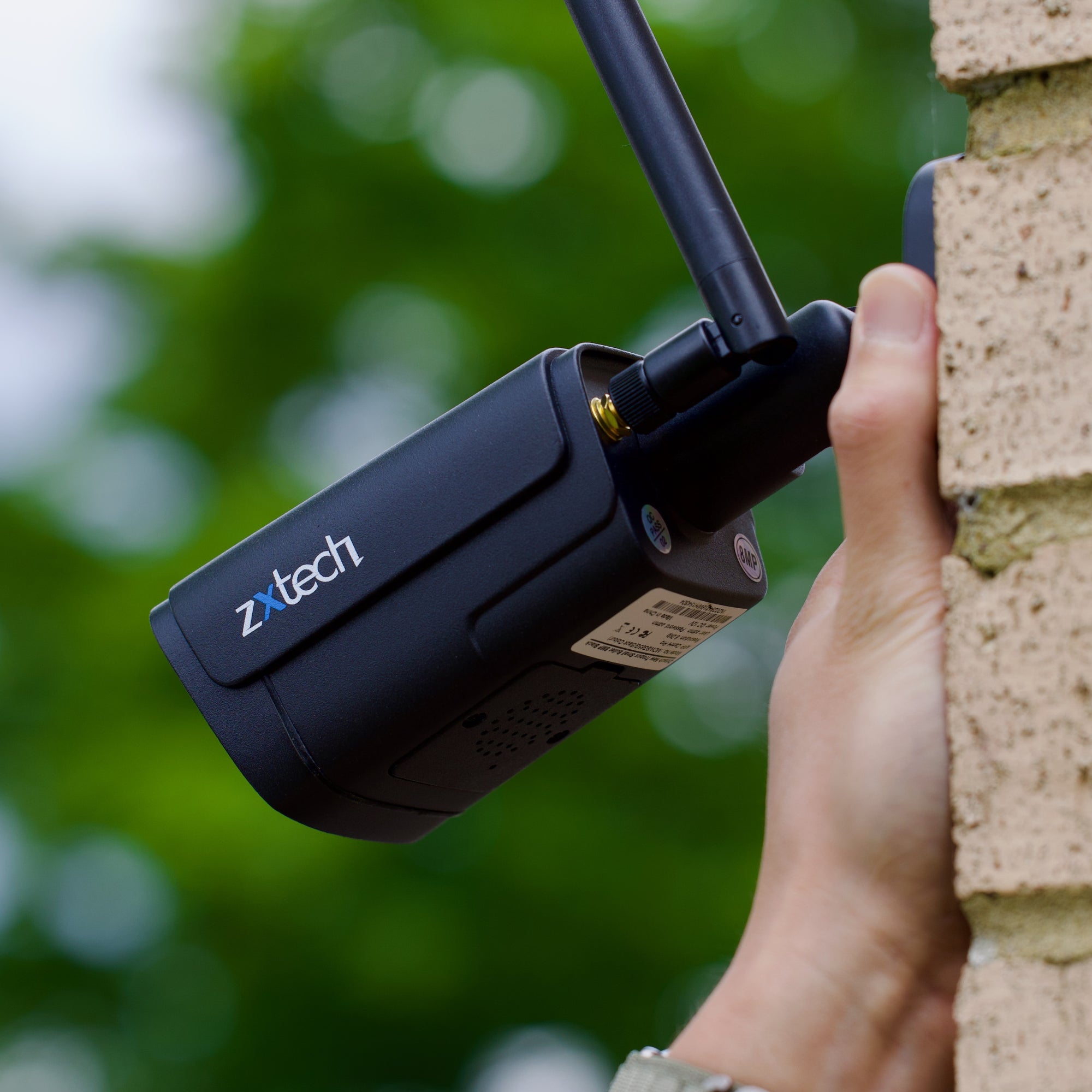

Wireless CCTV System
Zxtech wireless security cameras can be placed anywhere near a power outlet. The camera connects to your router through a Wifi signal and therefore does not need an additional ethernet cable. With a traditional system, the wires could restrict the possible places to mount the cameras. This wireless system is easily accessible, and it can be placed up to 20-meter away from the router. And you can access the system from anywhere via smartphone or PC. Going on holiday or business trips will be worry-free, as you can monitor your CCTV footage at home remotely.
YYou can choose to listen or speak on your free CamHiPro App. You can communicate with your family from any place and anytime. Built-in microphone and speaker, fluent sound allow you to comfort your loved one, and you can communicate with each other clearly whenever you want. Take your Wireless CCTV to the next level. Benefit from Built-in Mic and Speaker. Have a conversation with the person when they approach your camera. Convert your one-way video monitor system into a 2-way communication tool. Great for friends. Awesome for Postman. Speak, listen, record and playback with an inbuilt speaker and microphone.

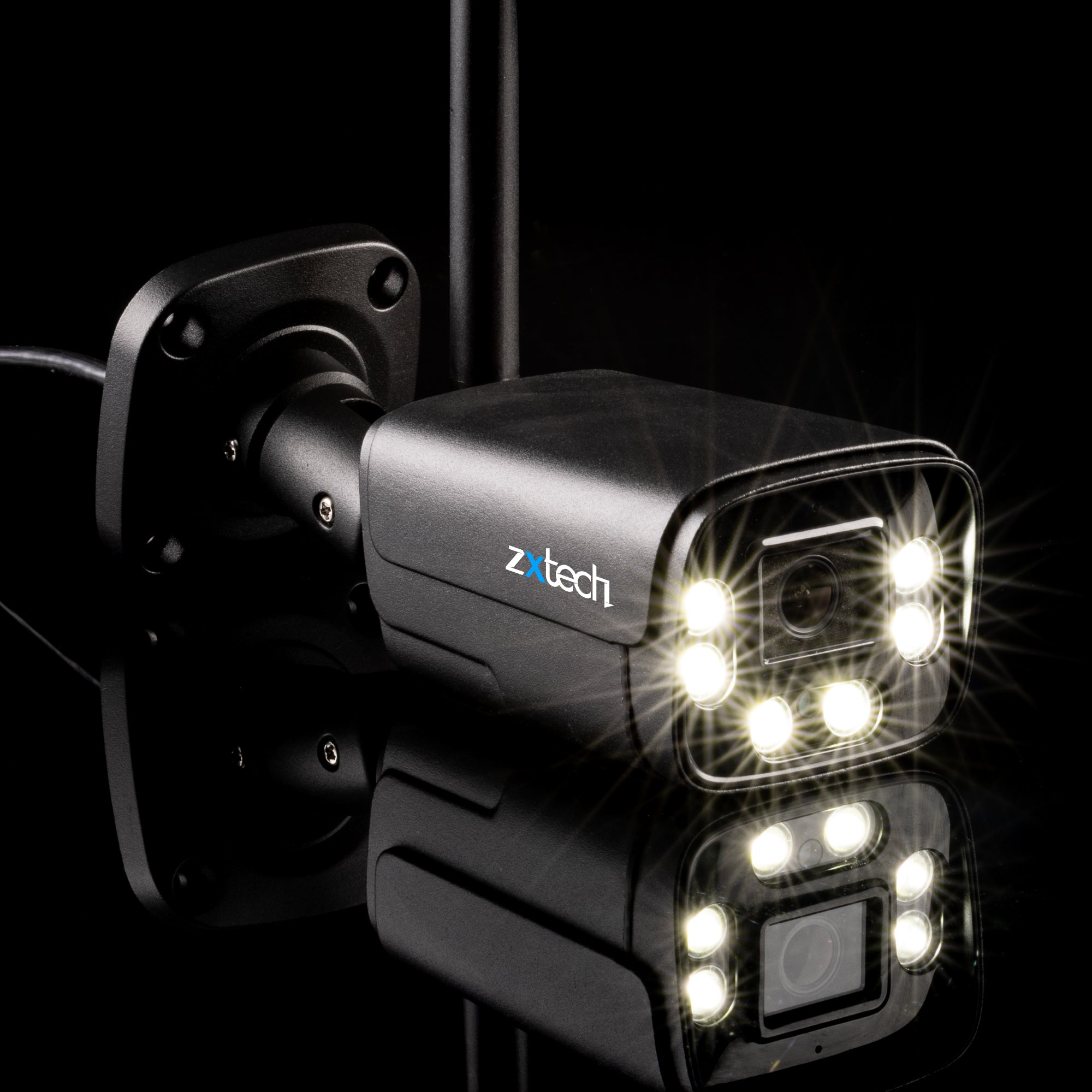

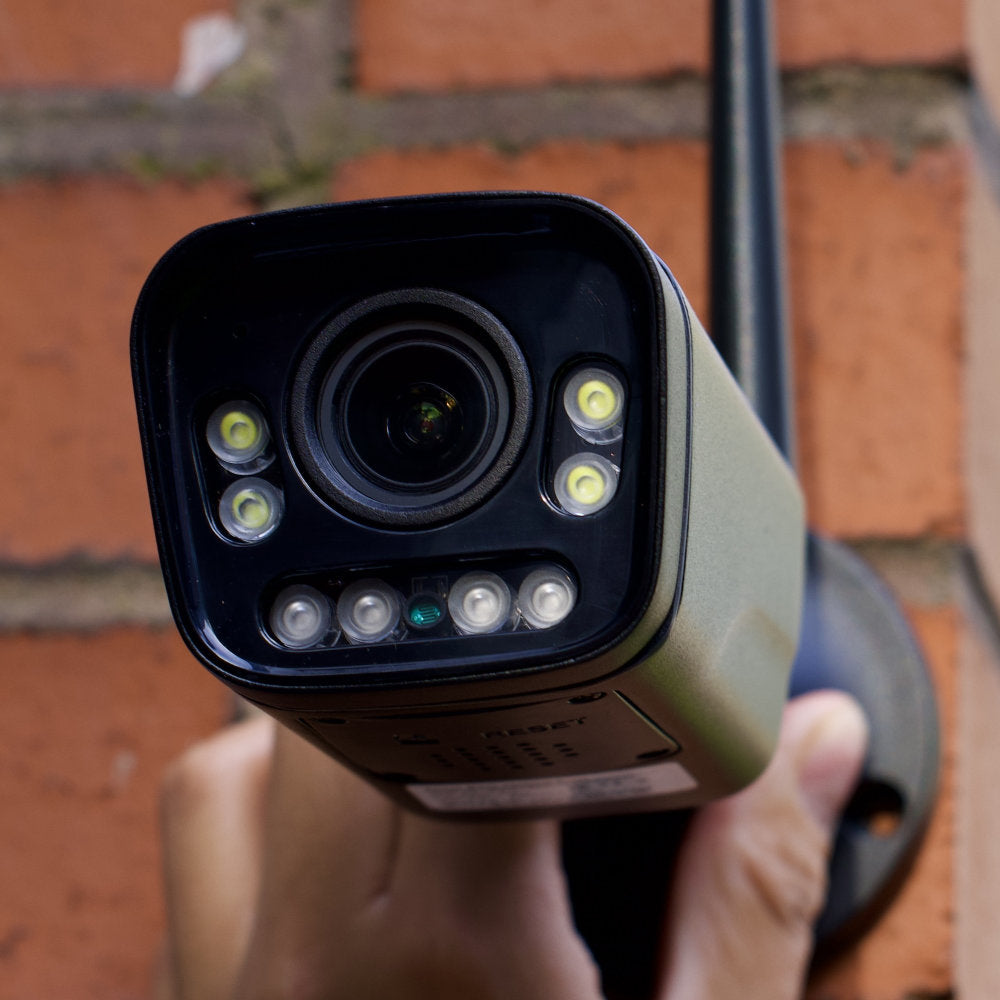

Great Night Vision
An excellent night vision camera is not just measured in the daytime. It must produce great CCTV footage over the night (or in the low light area). Built-in LEDs enabled a night vision distance up to 100ft. It can capture any evidence in super low-light conditions thanks to the embedded SONY Low illumination CMOS Sensor. Sony Starvis is the pioneer in CCTV image processor/sensor, giving you extreme performance and 5MP Super HD quality where standard security cameras won't do the job. The camera has improved night vision; it is also equipped with an IR-cut filter which ensures perfect night vision in complete darkness.

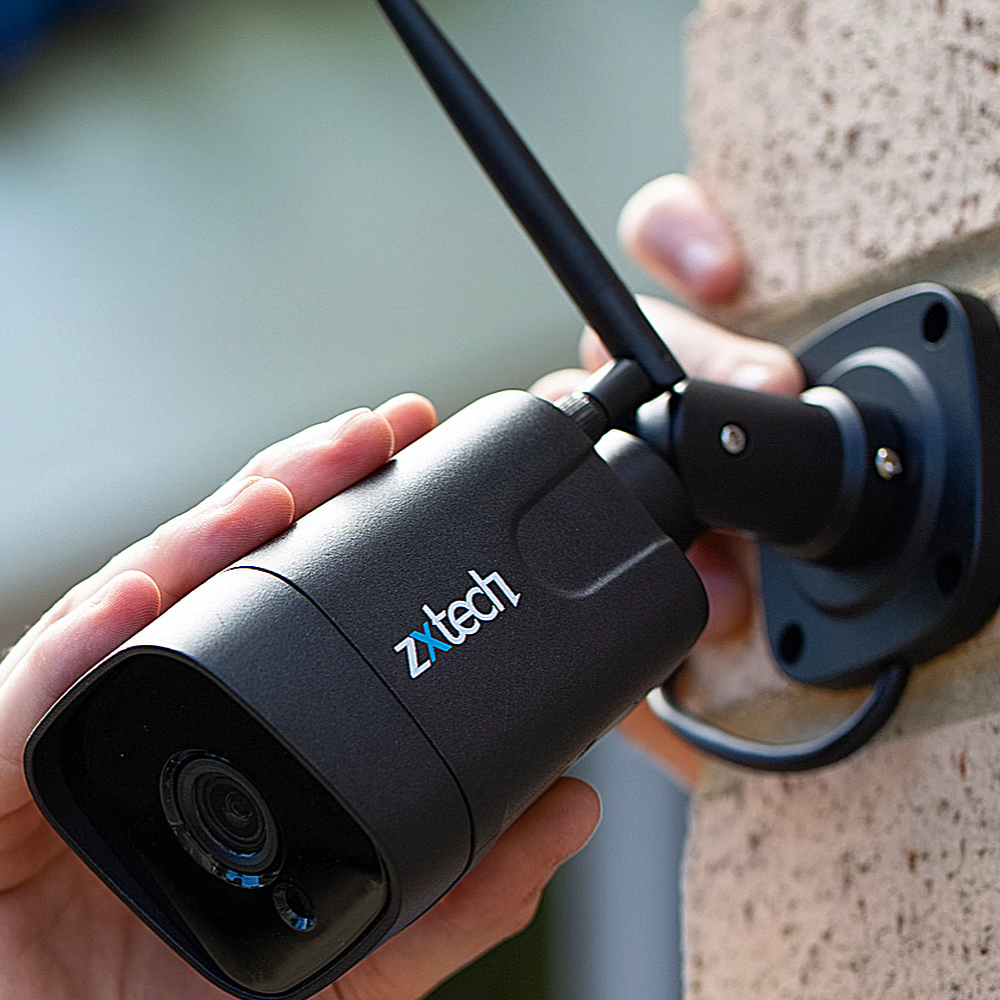

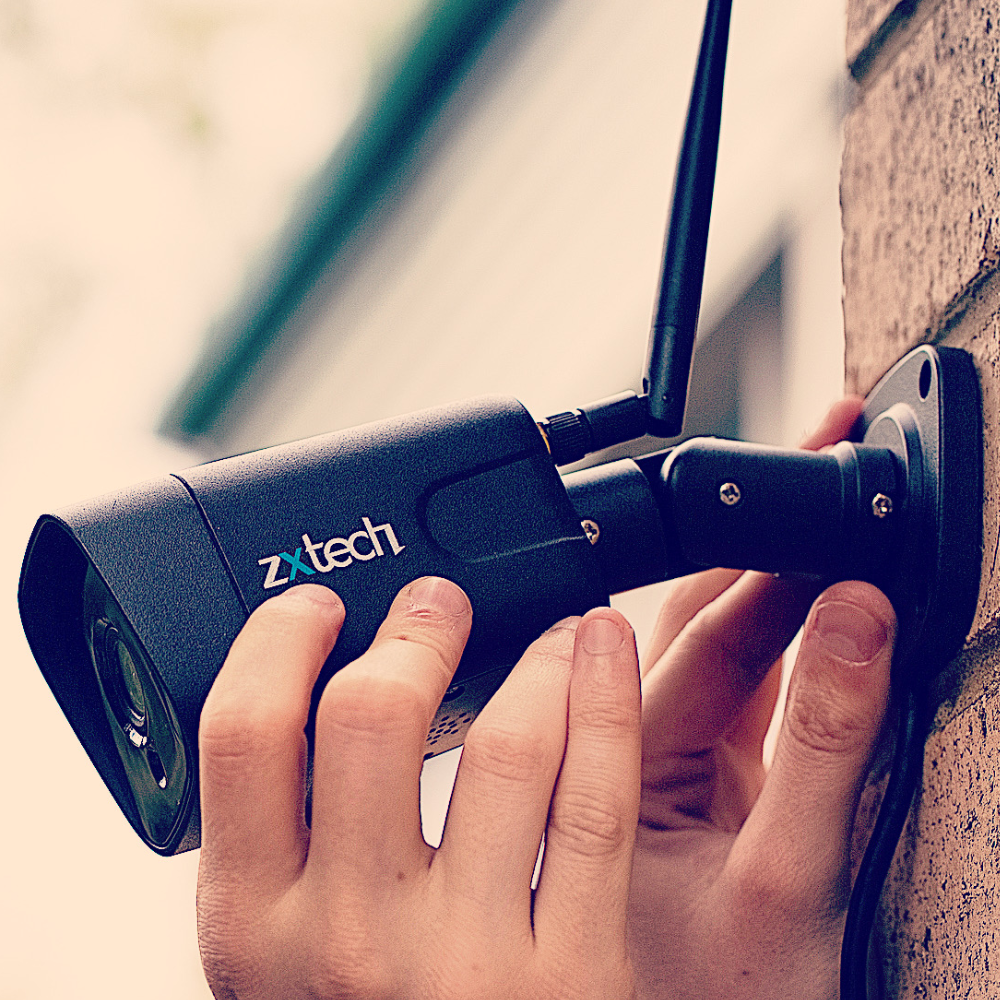

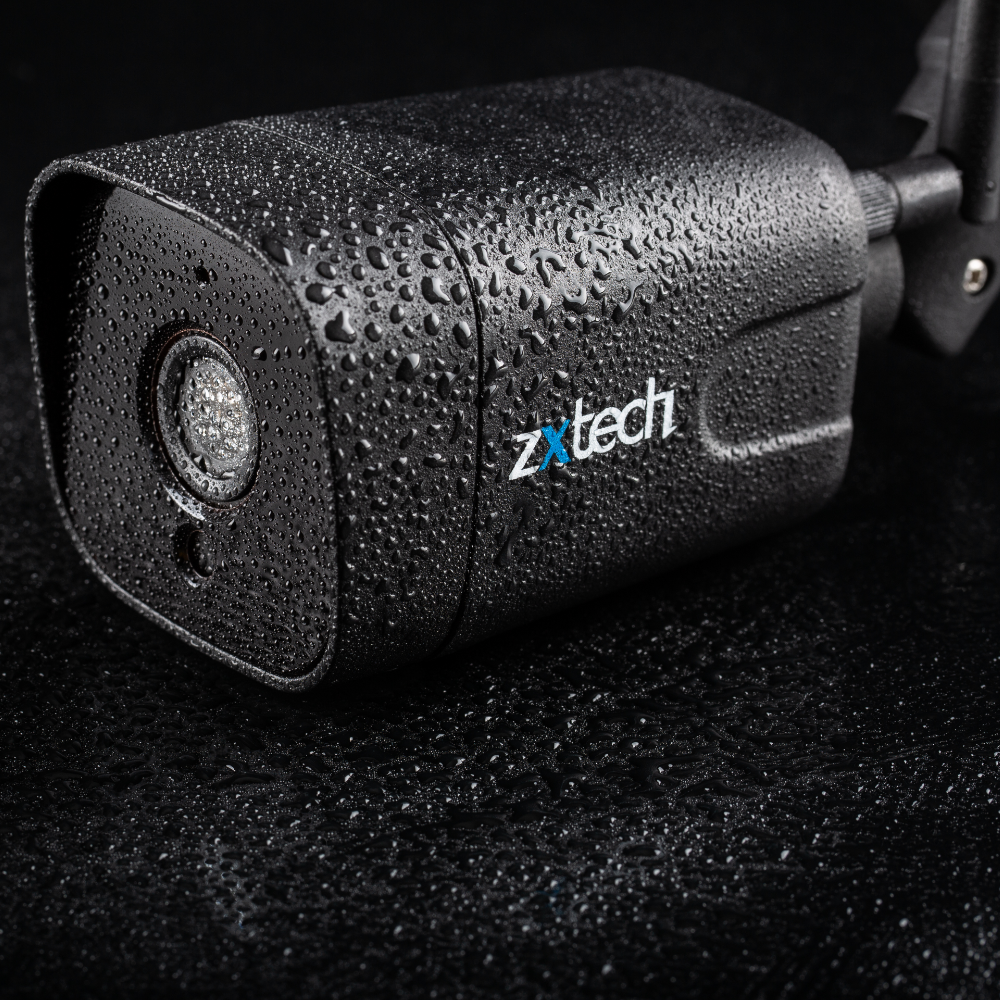

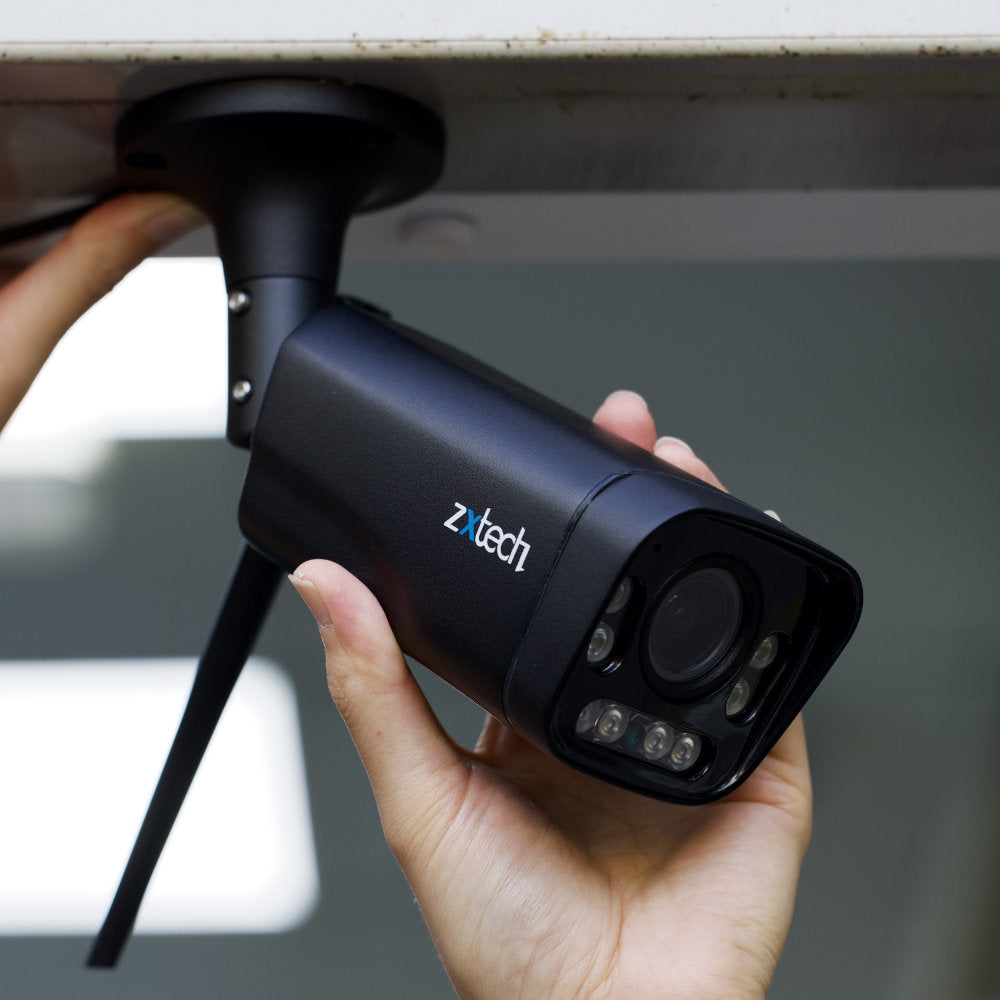

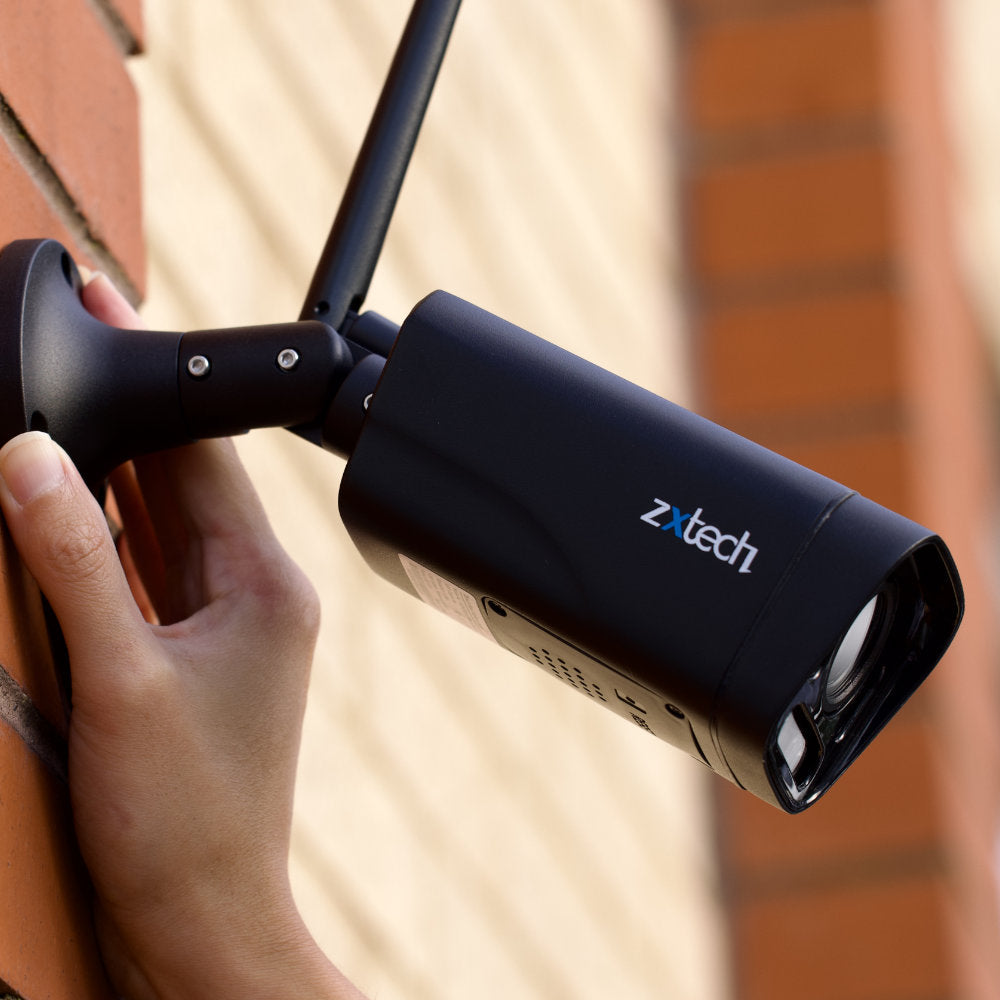

Waterproof & Anti-Vandal CCTV Camera
5MP Wireless Camera with tightly concealed metal housing can withstand the most challenging outdoor weather conditions. IP67 rating ensures protection against all types of bad weather, which means the cameras can be installed outdoor. Zxtech designed the camera durable against harsh British weather and protection against vandalism. The Weatherproof wireless camera can be mount on the wall or ceiling anywhere around the house. Metal cases are strong enough to resist most types of destruction. Yet the compact size also makes it useful for indoor or outdoor.
Up to 8TB HDD, Up to 128GB SD Card Slot
The recorder can take up to 8TB 3.5" hard drive to save your footage 24/7 or whenever the motion is detected. An SD Card Slot integrated into the wireless camera is primarily designed to store motion-activated recordings or short videos locally as a backup option. The camera can be used as a stand-alone unit or connected to the 9CH recorder that comes with the system. The camera supports up to 128GB of storage. And it is straightforward to set up and use. You can easily access and playback videos on the camera via CamhiPro App or PC. You can easily access and playback videos on the recorder via Bitvision App or PC.
Superb Operation System.
The GDPR is in effect so you can protect people's privacy when using CCTV equipment. With Zxtech, you can hide part of the picture and anonymizing or blanking out part of the scene that is not important to you quickly. Get a mobile notification when it detects motion in your location is straightforward. This system works with a compelling video management system with extensive functions. Connectivity and configuration are clear and user-friendly. You can view, replay, control, receive an alert through the latest software with ease. Zxtech invested in a system that can do multilingual support with more than 20 different languages
9CH Home Network Video Recorder
Zxtech 9 Channel 5 Megapixel CCTV recorder comes with high-definition real-time recording in extreme detail and sharpness. In addition, this CCTV NVR comes with secure, reliable, advanced software for local and remote viewing and management. The latest software allows you to connect most ONVIF 2.4+ IP CCTV cameras. Scheduling allows you to pre-configure a specific time gap for recording. Motion detection will enable you to record only when motion is detected so you can save hard drive storage without missing important events. Scan QR code on the NVR from the free Bitvision app to instantly access live footage and playbacks, as well as e-mail notification in real-time. Hard Drive can be pre-installed chosen from the options up to 8TB.
Remote Access on Your Phone
Increase your Access Capabilities using smartphone access. Features such as motion Detection, Alerts, Schedule and Masking comes as standard. In addition, you can watch footage on all smart devices you have got by a simple scan. Compatible devices including iPhone, iPad, Android phones, tablets, PC, laptops, computers.
|Image Sensor:||1/2.7 "Color CMOS sensor SONY Starvis IMX335+Huawei Hisilicon|
|Display resolution:||2560 * 1920 (5.0MP)|
|Lens:||f: 3.6mm, F:2.0|
|Input/output:||Two-way audio (built-in microphone and speaker)|
|Audio compression:||AAC(Advanced Audio Coding)|
|Lighting frequency:||50Hz, 60Hz|
|Image resolution:||Super HD 5.0MP(2560*1920)|
|Image adjustment:||Brightness, Contrast, Saturation, Sharpness|
|White balance, BLC:||Automatically|
|Night vision:||10pcs SMD array infrared LEDs, IR distance: 20 meters|
|Wireless networks:||WiFi(IEEE802.11b/g/n), External antenna|
|Ethernet:||10/100Mbps RJ-45 interface|
|Protocols:||TCP/IP, UDP/IP, HTTP, DHCP, RTSP, RTMP, MUTP|
|IP address:||Static IP address and dynamic IP address|
|Alarm Detection:||Motion detection Snapshot, audio/video record|
|Alarm linkage:||Support snapshot, audio / video|
|Alarm notification:||Real-time App push notifications|
|Power:||1DC 12V / 2.0 A, power consumption < 7W|
|Buttons||A reset button, a WPS (WiFi Protected Setup) button|
|Network interface||One 10/100 Mbps RJ-45 self-adaptive interface|
|LED instructions||Network signal/power/network function|
|Video storage||Micro TF card (max 128 GB) storage,|
|Work temperature||0° ~ 55°C (32°F ~ 131°F)|
|Main Processor||ARM Cortex A7 Processor|
|Operating System||Embedded Linux|
|Video Input||9CH (2592*1944, 2048*1536, 1920*1080, 1280*960, 1280*720, etc.)|
|Video Output||1 VGA, 1 HD|
|Audio Output||1 Port RCA (Linear, 1 kꭥ)|
|Audio Bit Rate||64 Kbps|
|Audio Compression Standard||G711u, G711a, G726|
|Motion Detection||9 Channel, MD Zones: 396 (22x18)|
|Trigger Events||Recording, Email, FTP, Snapshot, Buzzer and Screen Tips|
|HD Output1||1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz|
|VGA||1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz|
|Display Split||9CHxD1/ 8CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP|
|OSD||Camera Title, Time, Recording, Motion Detection|
|Resolution||5MP (2592*1944), 4MP (2688*1520/2560*1440), 3MP (2048*1536), 1080p (1920*1080), 960p (1280*960), 720p (1280*720), D1 (720*576/720*480)|
|Record Rate||PAL: 5MP@9*25fps, 4MP@9x25fps, 3MP@9x25fps, 1080p@9x25fps, 960p@9*25fps, 720@9x25fps, D1@9x25fps NTSC: 5MP@9*30fps, 4MP@9x30fps, 3MP@9x30fps, 1080p@9x30fps, 960p@9*30fps, 720@9x30fps, D1@9x30fps|
|Record Mode||Manual/ Timer/ Motion Detection/ Smart Alarm|
|Local Sync Playback||1CH 5MP@30fps, 1CH 4MP@ 30fps, 2CH 3MP@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps|
|Decode Capability||4CH 1080p@30fps|
|Remote Sync Playback||Yes|
|Search Mode||All, Channel, Manual, Time, Date, Motion Detection|
|Playback Functions||Play, Pause, Stop, Rewind, Fast Play, Slow Play, Full Screen, Frame Play, Frame Rewind, Digital Zoom|
|Backup Mode||USB Device/Network|
|Interface||1 RJ45 10M/100/1000M Adaptive Ethernet Interface|
|Network Functions||TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p|
|Onvif Version||Support Onvif 2.4|
|Web Browser||IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)|
|CMS Software||Support Windows 7/Windows 8/ Windows 10/MAC OS|
|Cloud Support (P2P)||Yes|
|Smart Phone||iPhone, iPad, Android, Android Pad|
|Interface Type||1 SATA Interface|
|Capacity||Up to 8TB Capacity|
|Language||Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkish, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek|
|USB Interface||2 USB 2.0 Interfaces|
|Dimension (WxDxH)||219x217x40 (mm)|
|Weight||2.0 kg (without HDD)|
Sony Starvis 5MP Colour Sensor and the 3.6mm lens brings you a super high-definition 5 Megapixels images experience all day long. The wireless camera included has built-in infrared LED lights and allows you to see everything even in the night. Micro SD card can be installed additionally and allow you to record locally. Human detection will automatically filter non-human shaped objects and improve the accuracy of the alarm.
