Zxtech 5MP//8MP/4K Wireless CCTV System - 4x WiFi Security Cameras Outdoor 2-Way-Audio Night Vision 9CH Sony Starvis | WF4D9Y
- UK next business day delivery
- UK VAT invoices included
- 30 days hassle free returns
- 12 month warranty
- In stock, ready to ship
System Features
This complete 4 camera* security kit offers the choice of 5MP resolution or stunning 4K WiFi cameras, equipped with infrared and Intense-LED auto-switch night vision for full-colour recording day and night. Featuring two-way audio for added convenience and powered by the cutting edge Sony Starvis sensor for exceptional night vision and durability, the system supports up to 8TB storage for extended recording. Its metallic, weatherproof design ensures reliability indoors and outdoors, while the free smartphone app provides easy, 24/7 remote access. Advanced features make this kit a seamless and powerful solution for your security needs.
This is not battery-powered camera.

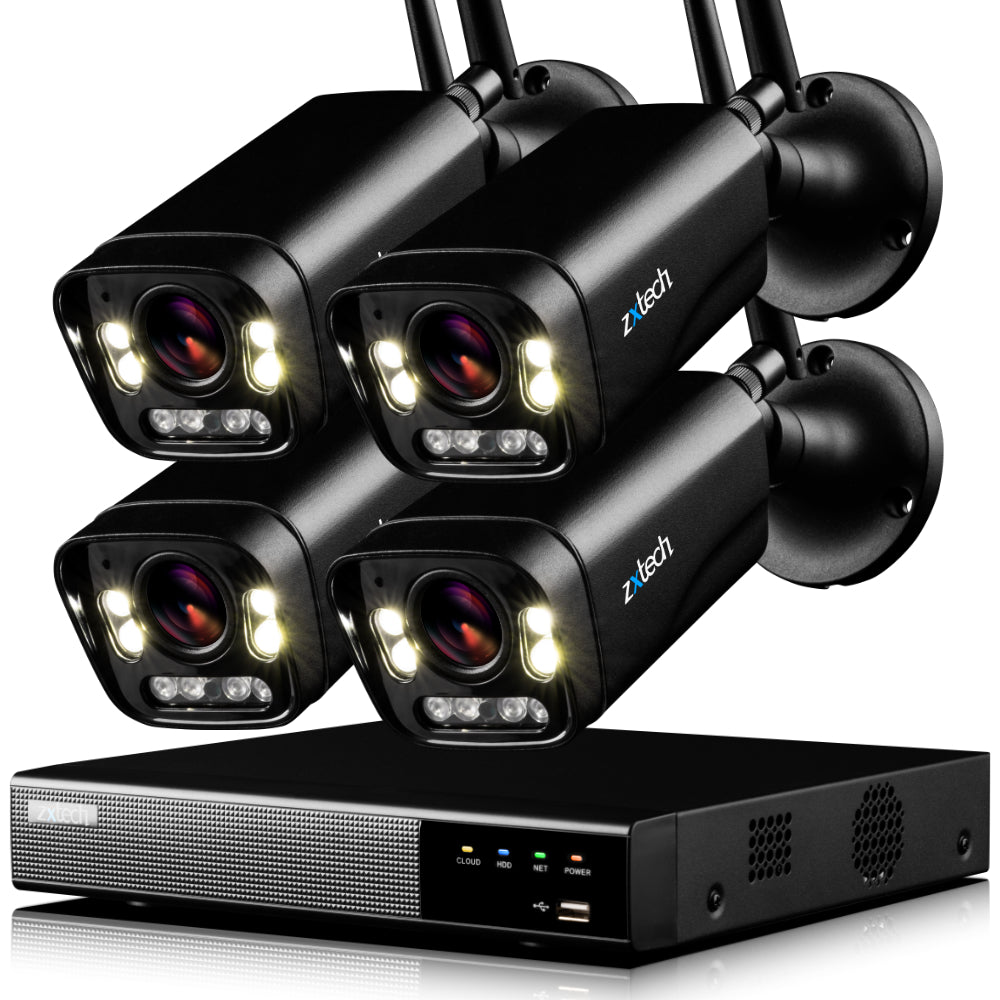

What’s in the Box
4 x Wifi Cameras*
1 x 9-Channel Zxtech 4K Home NVR
Optional HDD
Power Supply Unit
Each camera includes a 1-metre lead and must remain plugged into a wall socket, as this system is not battery-powered.
Stunning 4K/8MP UHD or 5MP resolution with advanced Zxtech sensors for crystal-clear visuals.
Built-in antenna ensures good WiFi connectivity for British homes. No video cables needed, but cameras must stay plugged into a power supply.
Durable IP67 waterproof and anti-vandal design for indoor and outdoor use.
Two-way audio with built-in mic and speaker for easy chats via iOS and Android apps.
Sony Starvis chipset delivers clear night vision; infrared ensures stealth, while motion-activated LEDs provide bright, full-colour footage for enhanced security.
Intelligent alerts trigger a loud alarm, deterring intruders effectively. Can be switched off.
AI-powered detection focuses on humans, minimizing false alerts from animals or objects.
Optional wide 2.8mm lens or 2.7–13.5mm auto-zoom for remote adjustments via the app.
Supports up to 8TB HDD with auto-overwrite for hassle-free recording.
Onboard SD slot supports up to 128GB per camera (SD card not included).
Free iOS/Android apps for live view, playback, and snapshots; quick access via P2P QR scan anywhere, anytime.
Free App
Stream Live, Receive Real-time Alerts, Snap & Share, and Playback Anytime, Any Where.
Using the free app, stream live in 4K, receive real-time alerts, snap, share, and playback from anywhere. Select channels and times for instant playback, and view multiple cameras simultaneously. For the best view, simply rotate your phone to widescreen.
Wireless CCTV Kits With Top Notch Imaging Hardware
Wireless System Vision Features
The Tropox camera stands out with its 4K 8MP or 5MP Sony Starvis Sensor, renowned for unmatched low-light sensitivity and Super HD clarity. Perfect for both home and professional security, this sensor delivers superior HDR, exceptional energy efficiency, and crystal-clear night vision. Zxtech IP Cameras exclusively feature Sony Starvis, the gold standard in the industry, guaranteeing unparalleled footage quality and long-lasting performance. While other brands remain vague about their sensors, Zxtech proudly partners with Sony to provide premium clarity and reliability you can trust.
Watch Actual Footage
2.5X
Shaper than 1080P
5 megapixel
105°
Wide Viewing Angle
Tropox Pro Option*
130 ft
Night Vision Range

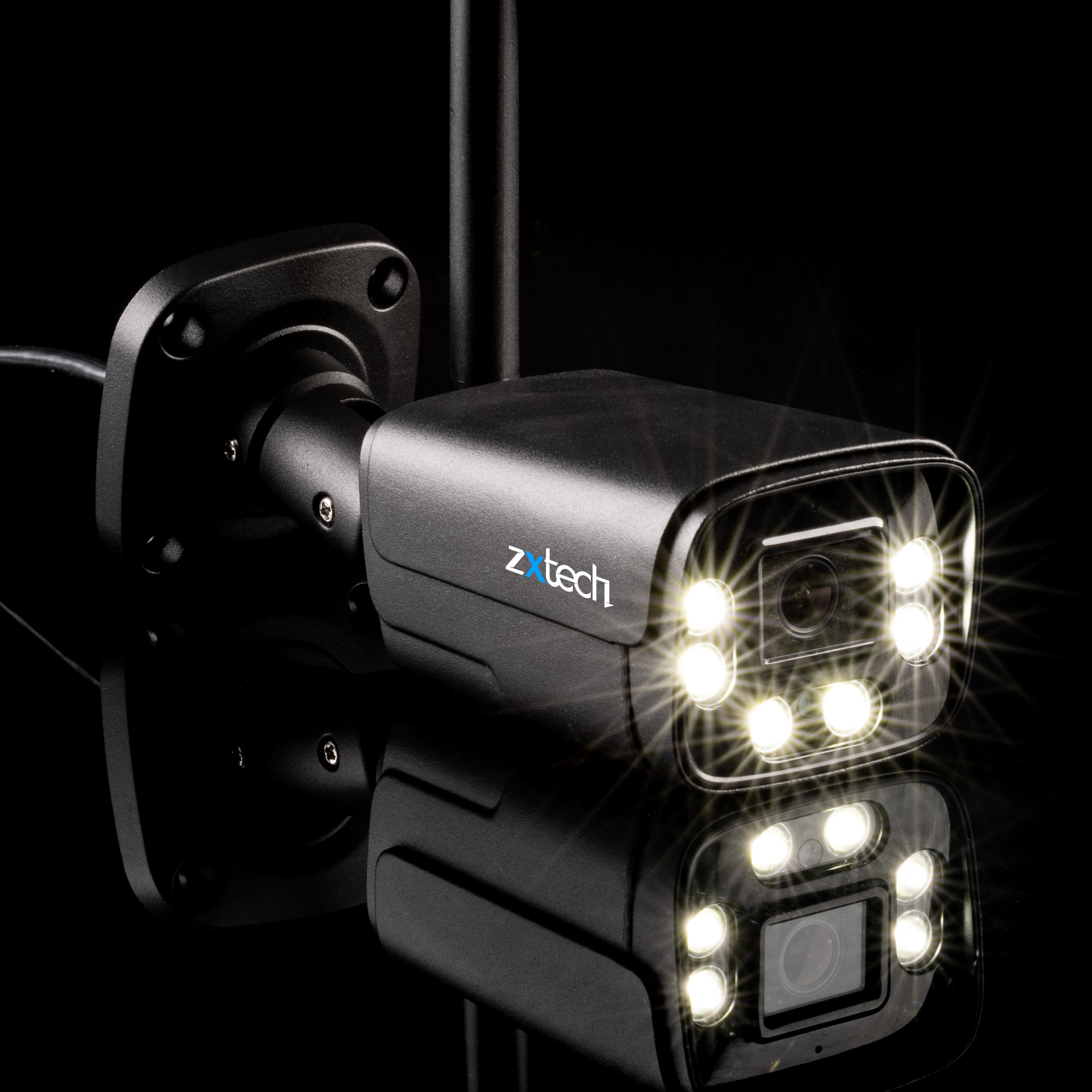

Infrared v.s. IntenseLED Colour Night Vision
Experience unmatched night vision with cameras built for darkness. Featuring Infrared LEDs and Ultra-bright Intense-LEDs, they automatically switch to full-colour lighting on motion detection. The Tropox model provides 100ft night vision, while the Tropox Pro reaches 130ft, powered by the advanced Sony Starvis CMOS Sensor for 4K/8MP or 5MP Super HD clarity, even in extreme low light. For convenience, the Intense-LED can be permanently turned off if it disturbs neighbours.
Infrared
Intense LED
Be Ready for the Future
2MP vs 5MP vs 4K/8MP
The 5MP Super HD camera delivers 2.5X sharper clarity than 2MP, ideal for tasks like reading car plates and modern surveillance needs. For unmatched detail, the 8MP 4K Ultra HD offers 4X the resolution of 1080p, perfect for professional-grade monitoring.
2 Megapixel
5 Megapixel
Sorcery of Modern CCTV Technology.
120dB HDR
Ensure no detail goes unnoticed with Zxtech’s advanced HDR video processing. By balancing overly bright and dark areas, HDR seamlessly merges images captured at different exposures, delivering perfectly contrasted footage with every essential detail highlighted for the best in security clarity.
No HDR
With HDR
CCTV Kits with the Best Wireless Cameras
Wireless Camera Features
Compare

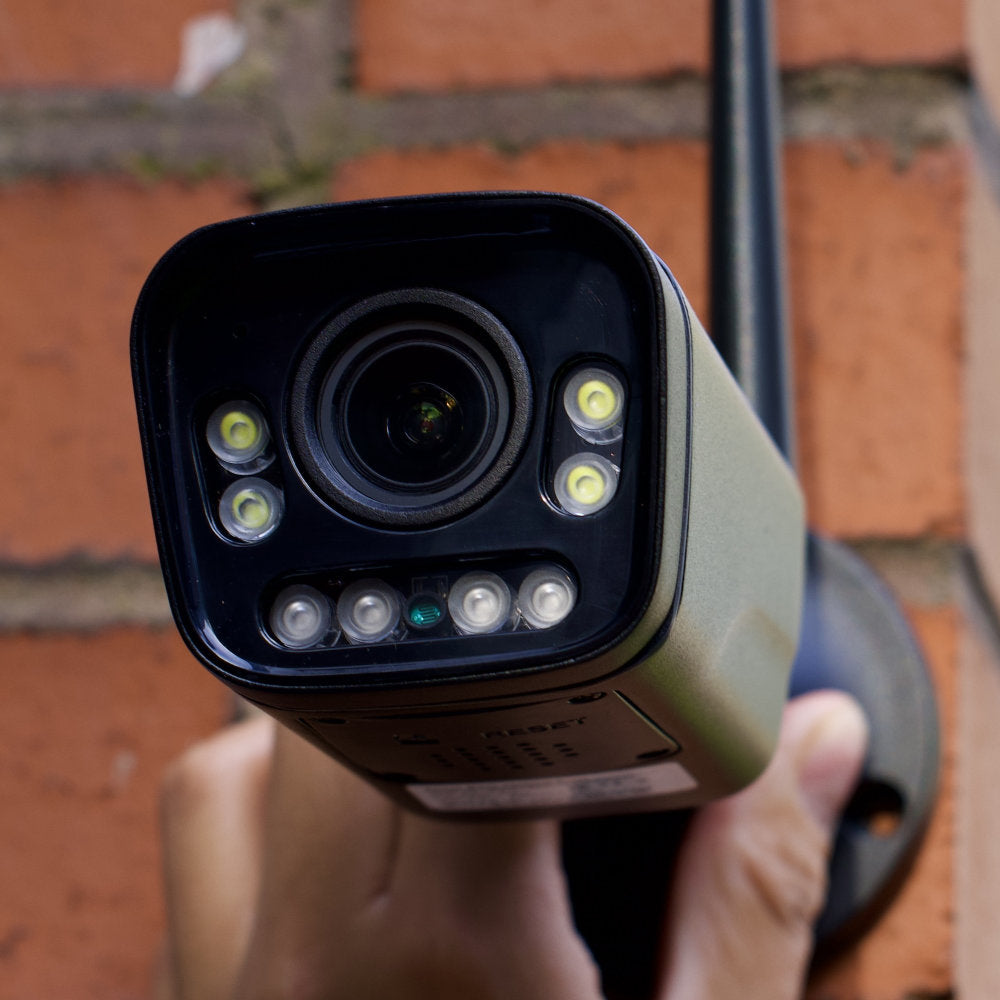

Tropox v.s. Tropox Pro
Tropox
Tropox Pro
2.8mm Fixed Lens
2.7-13.5mm Varifocal Lens
Infrared & Intense LED Auto Switch
Infrared & Intense LED Auto Switch
Black and White / Colour
Black and White / Colour
Digital Zoom
Optical 5X Motorised Zoom
3dB Wider Coverage
5dB Longer & Directional Coverage
Crafted for any situation and all weather, our wireless CCTV cameras are housed in robust metal casings to deter vandalism and ensure longevity. Designed specifically for the unpredictability of British weather, from Inverness to London, these cameras boast an IP67 rating, ensuring resilience against both rain and snow. Whether mounted on a wall or ceiling, indoors or out, Zxtech's compact yet durable design guarantees protection and versatility for any property.
Metal Casing
Every wireless camera in our range boasts a sturdy metal casing, meticulously crafted to enhance resistance against vandalism. This robust design not only ensures durability but also significantly extends the camera's lifespan. These cameras, with their compact size and strong metal casing, are adept at resisting most forms of destruction, making them suitable for both indoor and outdoor placements.
IP67
Designed with the unpredictability of British weather in mind, our cameras are equipped to handle everything from the rainy conditions in Inverness to snowy days in Swansea, thanks to their IP67 rating. Whether it's for an AirBNB, a car park, or a terraced house, Zxtech ensures outdoor protection against all weather extremities. Their weatherproof nature allows for versatile mounting options, be it on walls or ceilings.
Built-in Mic and Speaker
Two-way Audio
Upgrade your security with our wireless cameras featuring built-in microphones and speakers. Use the CamHiPro App, available on Apple and Google stores, for real-time two-way communication. Whether it's greeting a friend or instructing a postman, transform your CCTV into a 2-way communication tool. Speak, listen, record, and playback effortlessly, anytime, anywhere.
Note: Avoid Connecting to Mesh
Ultra Strong Wireless Signal
The wireless camera features an enhanced 3dB antenna on Tropox and 5dB antenna on Tropox Pro, allowing connectivity to your router for distances up to 300 metres in open spaces. It boasts one of the most robust signals in the CCTV market. However, the presence of walls or doors can significantly impact its range. It's important to note that connecting the cameras to a mesh router isn't recommended. The nature of mesh networks can result in frequent reconnections, jeopardizing the continuity of your footage
128GB SD Card Slot
Each wireless camera is equipped with a dedicated SD Card slot, allowing you to insert a memory card of up to 128GB. This serves as a backup to capture temporary footage should the recorder malfunction.
Tropox Pro Feature
5X Auto Zoom, with Extra Digital Zoom
The CCTV system is equipped with 5X auto zoom with a varifocal lens from 2.7mm to 13.5mm. The 5X optical zoom and extra digital zoom allows you to clearly see license plates up to 35 meters away.
CCTV Kits enhanced by AI Technology
Wireless System Motion Detection Features
Loaded with AI Features
Beyond the trusted motion detection, this wireless CCTV system offers highly accurate humanoid detection. With a quick setup using our free app, the camera identifies human shapes and records when they enter its frame. When a human figure appears in the video, it's highlighted in real-time with a rectangle, ensuring you're promptly alerted.
Wireless CCTV System backed by the Best Zxtech NVR
Wireless System NVR Features
The Zxtech 9 Channel 4K CCTV recorder delivers crisp, real-time Super HD recordings. Compatible with most ONVIF 2.4+ IP CCTV cameras, its advanced software ensures easy local and remote management. Schedule recordings or use motion detection to save storage while capturing key events. Simply scan the NVR's QR code with the free Bitvision app for instant live views, playback, and real-time mobile notifications. Choose a pre-installed hard drive option of up to 8TB.
Network Connection
Connect your home router or switch to get online.
HDMI + VGA
You can connect up to 2 displays or monitors at the same time.
2x USB
The NVR has a USB port on the front and another on the back, allowing for easy connection of a mouse or memory stick to seamless extract CCTV footage from the hard drive.
Audio Out & Audio In
Connect external speakers to playback sound if the camera supports audio recording. Also you can connect external microphone to the recorder.
With Loop Recording
Maximized HDD for "Marathon" Recording.
Our advanced wireless CCTV system boasts up to 8TB of hard drive storage, optimized with H265+ compression for space-saving efficiency — storing up to 4 times more footage than H264 formats. With automatic loop recording, you'll never miss vital moments. Additionally, our cameras feature an SD Card Slot for up to 128GB local backup and can be used standalone or with the included 9CH recorder. Easily access and playback videos through the CamhiPro or Bitvision Apps on mobile and PC.
Complete Wireless System Enhanced by the Latest Technology
Wireless System Features
Prioritize privacy with Zxtech's GDPR-compliant CCTV system. Easily anonymize unimportant scenes or sensitive areas in your footage. Receive prompt mobile notifications for detected motion. Benefit from an intuitive video management system offering seamless viewing, replay, and alert functions. With support for over 20 languages, Zxtech ensures user-friendly operation for global users.
Mac, PC, Smart Phone, TV
Access on Any Device, Any Time
Stay connected with the indispensable BitVision app, allowing you to monitor, view, and share CCTV footage on-the-go. Enhance your surveillance with features like motion detection, alerts, and scheduling. Simply scan to access footage on any smart device, including iPhones, Androids, and PCs. For deeper integration, download the iVMS software for your computer. The included NVR offers HDMI and VGA ports, supporting dual display setups for versatile viewing options.
PC, Mac
Download the latest version of the iVMS software for your PC or Mac. This allows you to remotely monitor and review footage from your CCTV system, ensuring you stay connected wherever you are, anytime you need.
2 Screen TV Setup
The NVR included with the system boasts both HDMI and VGA ports on the back, enabling simultaneous connection to two external monitors or TVs. For instance, with a sufficiently long cable, you can have one display in the kitchen and another in the living room.
Smart Phone
In today's world, smartphones are indispensable, and so should your CCTV system be. Download the latest BitVision app to monitor, view, playback, and share your CCTV footage anytime, anywhere.
Technical Specifications
Compare Models
Tropox Camera Spec
| Sensor | 1/2.7” Colour Sony IMX335 Sensor |
| Pixels | 5.0 MP or 8.0 MP Options |
| Video Compression | H.265 |
| Dual Stream | Support |
| Image Resolution | 5MP (2560x1920) or 4K (3840x2160) Options |
| Video Frame Rate | 20 fps |
| Video Code Rate | 32 Kbps ~ 6 Mbps |
| Light Control Mode | Full Colour/Smart/Infrared Night Vision |
| Number of Lights | 6 PCS IR LED + 46 PCS Lighting LED |
| Network Protocol | TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET, etc. |
| Motion Detection | Adjustable Sensitivity (0-100), Detects Up to 4 Areas |
| ONVIF | Supports ONVIF 2.4 |
| Wi-Fi | 802.11b/g/n 2.4 GHz Wi-Fi & 5 GHz Wi-Fi |
| IE | Embedded Web Server for Direct Browsing and Control via Browser |
| Mobile App | Supports iOS, Android |
| Dynamic DNS | Supports LAN and Internet |
| Pairing | QR Code Scanning, Network Cable Connection, AP Hotspot Addition |
| Coding Standard | G.711 |
| Mitou | Supported |
| Two-Way Speech | Supported |
| Video Storage | TF Card/Cloud |
| Storage | Supports TF Card (Max 128GB) or Cloud Storage |
| Other Functions | Supports Human, Vehicle, and Pet Recognition |
| User Management | Multi-User Hierarchical Rights Management for Simultaneous Access |
| Network Interface | 1 RJ45 Ethernet Interface, 10/100M Adaptive |
| Power | DC 12V |
| Working Temperature and Humidity | 0 ~ 55°C, 10 ~ 95% Humidity |
Tropox Pro Camera Spec
| Sensor | 1/2.8” IMX335 CMOS 3516EV300 |
| Frame Rate | Optional: 5MP, 2560×1920 @ 20fps or 8MP, 3840×2160 @ 20fps |
| Image Adjustment | Brightness, Contrast, Saturation, Sharpness |
| Video Format | H.265 Compression |
| White Balance, BLC | Automatic |
| Lens | 2.7–13.5mm |
| IR LED | 8 PCS White Colour LEDs + Infrared IR Lights |
| Motion Detection | AI Human Detection |
| Buttons | Reset Button, RJ45 Port, Power Supply Button |
| Network Interface | RJ45 Port |
| Wi-Fi | External Antenna |
| Night Vision | IR Range: 40–60M |
| Type | Two-Way Audio with Noise-Cancellation |
| Hardware | One Microphone and One Speaker |
| Alarm Detection | Human Detection Alarm, App Alarm Notification, Upload Pictures and Videos to FTP Server, Siren Alarm |
| TF Card Slot | Supports up to 128GB |
| Wi-Fi | 802.11b/g/n 2.4 GHz Wi-Fi & 5 GHz Wi-Fi |
| Ethernet | 10/100Mbps |
| Protocols | TCP/IP, UDP/IP, HTTP, DHCP, RTSP, RTMP, MUTP |
| ONVIF Protocol | Supports ONVIF 2.4 |
| Download | iOS in App Store, Android in Google Play |
| App Name | CamHiPro |
| CMS | HiP2P |
| Notification | Push Notification Within 1–2 Seconds |
| Power | 12V DC |
| Waterproof Rating | IP67 |
| Materials | Full Metal Housing |
| Temperature | 0–55°C |
| Humidity | 10–95% RH |
| Weight | 450g |
NVR Spec
|
Main Processor |
Dual Cortex A53 |
|
Operating System |
Embedded LINUX |
|
Video Input |
9CH (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF) |
|
Video Output |
1 HD, 1 VGA |
|
Audio Input |
1 Port RCA, supports 9CH IPC audio input |
|
Audio Output |
1 Port RCA (Linear, 1kΩ), HD output |
|
Audio Bit Rate |
64kbps |
|
Audio Compression |
G711U, G711A, AAC |
|
Intercom |
Two-way supported |
|
Sensor Input |
N/A |
|
Alarm Output |
N/A |
|
Motion Detection |
9 Channels, MD Zones: 396 (22 × 18) |
|
Trigger Events |
Recording, Email, FTP, Snapshot, Screen Tips |
|
HD Output 1 |
4K (3840×2160), 2K (2560×1440), 1920×1080, 1280×1024, 1280×720, 1024×768 |
|
HD Output 2 |
N/A |
|
VGA |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1CH, 2CH, 4CH, 6CH, 8CH, 9CH |
|
Digital Zoom |
Yes |
|
OSD |
Camera Title, Time, Recording, Motion Detection, Event Alarm |
|
Video Compression |
H265/H264/H265+/H264+ |
|
Resolution |
12MP (4000×3000), 8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP (2688×1520/2560×1440), 3MP (2048×1536), 1080P (1920×1080), 1280×1024, 960P (1280×960), 720P (1280×720), 960H (960×480), D1 (720×576/720×480) |
|
Record Rate |
PAL: 12MP@6CHx25fps, 4K@9CHx25fps, 5MP@9CHx25fps, 4MP@9CHx25fps, 3MP@9CHx25fps, 1080P@9CHx25fps, 960P@9CHx25fps, 720P@9CHx25fps, D1@9CHx25fps NTSC: 12MP@6CHx30fps, 4K@9CHx30fps, 5MP@9CHx30fps, 4MP@9CHx30fps, 3MP@9CHx30fps, 1080P@9CHx30fps, 960P@9CHx30fps, 720P@9CHx30fps, D1@9CHx30fps |
|
Record Mode |
Manual, Timer, Motion Detection, Smart Event |
|
Local Sync Playback |
1CH 12MP@30fps, 1CH 8MP@30fps, 2CH 5MP@30fps, 4CH 4MP@30fps, 7CH 1080P@30fps, 9CH 720P@30fps, 9CH D1@30fps |
|
Decode Capability |
1080P (1920×1080) @210fps |
|
Remote Sync Playback |
Yes |
|
Search Mode |
All, Timing Video, Motion Detection, Tag Search, Smart Event, Picture, Log |
|
Playback Functions |
Play, Pause, Fast Forward, Rewind, Previous Frame, Next Frame, Electronic Zoom, Clip, Audio |
|
Backup Mode |
USB Device, Network |
|
Network Interface |
1 x RJ45 (10M/100M Adaptive Ethernet Interface) |
|
Incoming Bandwidth |
80Mbps |
|
Outgoing Bandwidth |
80Mbps |
|
Network Functions |
IPv4/IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE |
|
Onvif |
Profile S, Profile T |
|
Web Browser |
Edge, IE8-11, Google Chrome, Firefox, Safari |
|
CMS Software |
Supports Windows 7/8/10/11 and MAC OS |
|
Cloud Support |
Yes |
|
Smartphone Support |
iPhone, Android |
|
POE |
N/A |
|
WiFi |
N/A |
|
Interface Type |
1 SATA Hard Disk Interface (3.5” SATA) |
|
Capacity |
Up to 10TB |
|
eSATA |
N/A |
|
Language UI |
Simplified Chinese, Traditional Chinese, English, Polski, Czech, Russian, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Japanese, Ukrainian, Kazakh |
|
USB Interface |
2 USB 2.0 Interfaces |
|
RS485 |
N/A |
|
Power Consumption |
DC12V/2A ≤ 10W (Without Hard Disk) |
|
Working Environment |
-10℃~50℃, 10%~90% (Humidity) |
|
Product Dimensions |
260×230×43 mm |
|
Net Weight |
0.85kg (without HDD) |
|
Gross Weight |
1.17kg (without HDD) |
| Sensor | 1/2.7” Colour Sony IMX335 Sensor |
| Pixels | 5.0 MP or 8.0 MP Options |
| Video Compression | H.265 |
| Dual Stream | Support |
| Image Resolution | 5MP (2560x1920) or 4K (3840x2160) Options |
| Video Frame Rate | 20 fps |
| Video Code Rate | 32 Kbps ~ 6 Mbps |
| Light Control Mode | Full Colour/Smart/Infrared Night Vision |
| Number of Lights | 6 PCS IR LED + 46 PCS Lighting LED |
| Network Protocol | TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET, etc. |
| Motion Detection | Adjustable Sensitivity (0-100), Detects Up to 4 Areas |
| ONVIF | Supports ONVIF 2.4 |
| Wi-Fi | 802.11b/g/n 2.4 GHz Wi-Fi & 5 GHz Wi-Fi |
| IE | Embedded Web Server for Direct Browsing and Control via Browser |
| Mobile App | Supports iOS, Android |
| Dynamic DNS | Supports LAN and Internet |
| Pairing | QR Code Scanning, Network Cable Connection, AP Hotspot Addition |
| Coding Standard | G.711 |
| Mitou | Supported |
| Two-Way Speech | Supported |
| Video Storage | TF Card/Cloud |
| Storage | Supports TF Card (Max 128GB) or Cloud Storage |
| Other Functions | Supports Human, Vehicle, and Pet Recognition |
| User Management | Multi-User Hierarchical Rights Management for Simultaneous Access |
| Network Interface | 1 RJ45 Ethernet Interface, 10/100M Adaptive |
| Power | DC 12V |
| Working Temperature and Humidity | 0 ~ 55°C, 10 ~ 95% Humidity |
| Sensor | 1/2.8” IMX335 CMOS 3516EV300 |
| Frame Rate | Optional: 5MP, 2560×1920 @ 20fps or 8MP, 3840×2160 @ 20fps |
| Image Adjustment | Brightness, Contrast, Saturation, Sharpness |
| Video Format | H.265 Compression |
| White Balance, BLC | Automatic |
| Lens | 2.7–13.5mm |

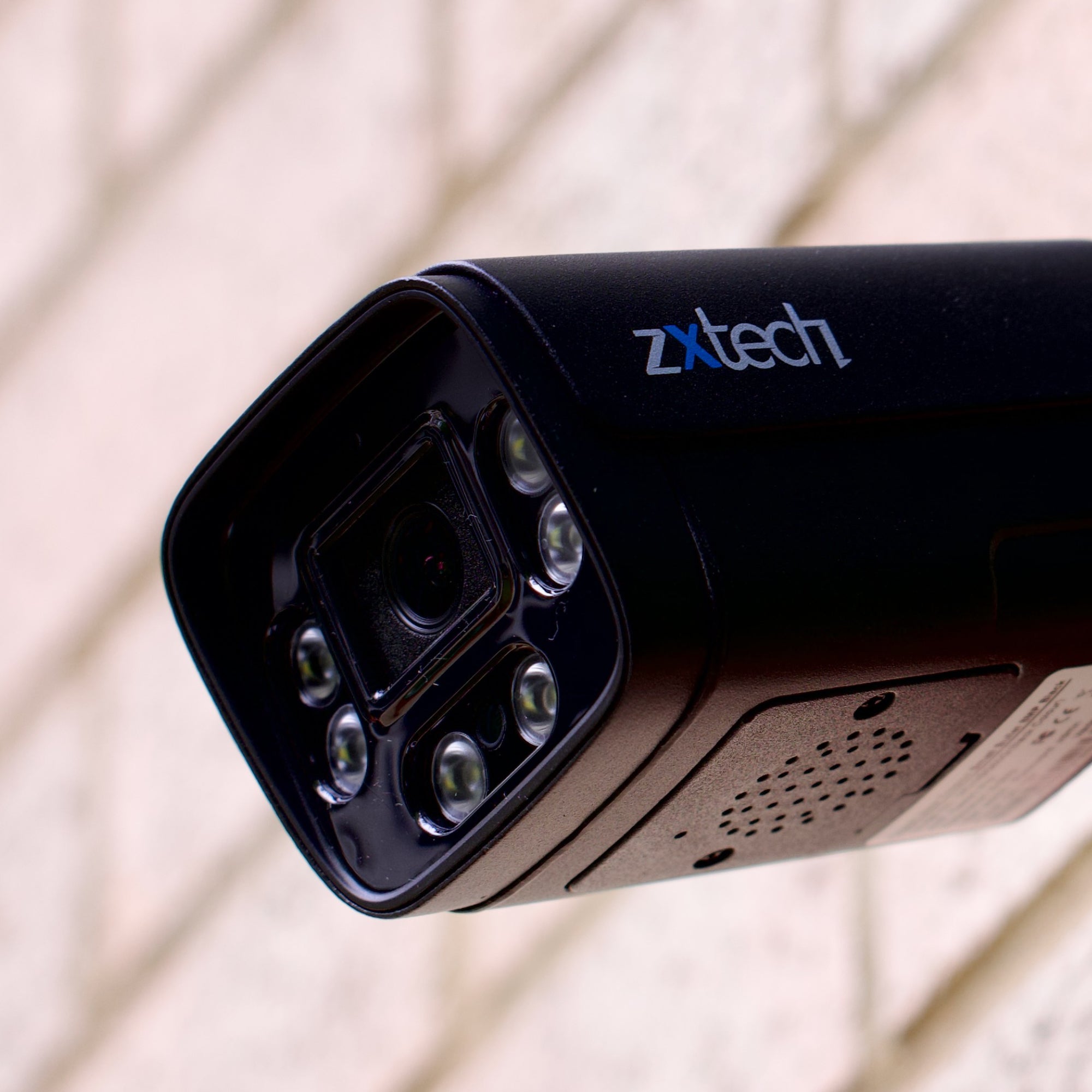

| IR LED | 8 PCS White Colour LEDs + Infrared IR Lights |
| Motion Detection | AI Human Detection |
| Buttons | Reset Button, RJ45 Port, Power Supply Button |
| Network Interface | RJ45 Port |
| Wi-Fi | External Antenna |
| Night Vision | IR Range: 40–60M |
| Type | Two-Way Audio with Noise-Cancellation |
| Hardware | One Microphone and One Speaker |
| Alarm Detection | Human Detection Alarm, App Alarm Notification, Upload Pictures and Videos to FTP Server, Siren Alarm |
| TF Card Slot | Supports up to 128GB |
| Wi-Fi | 802.11b/g/n 2.4 GHz Wi-Fi & 5 GHz Wi-Fi |
| Ethernet | 10/100Mbps |
| Protocols | TCP/IP, UDP/IP, HTTP, DHCP, RTSP, RTMP, MUTP |
| ONVIF Protocol | Supports ONVIF 2.4 |
| Download | iOS in App Store, Android in Google Play |
| App Name | CamHiPro |
| CMS | HiP2P |
| Notification | Push Notification Within 1–2 Seconds |
| Power | 12V DC |
| Waterproof Rating | IP67 |
| Materials | Full Metal Housing |
| Temperature | 0–55°C |
| Humidity | 10–95% RH |
| Weight | 450g |
|
Main Processor |
Dual Cortex A53 |
|
Operating System |
Embedded LINUX |
|
Video Input |
9CH (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF) |
|
Video Output |
1 HD, 1 VGA |
|
Audio Input |
1 Port RCA, supports 9CH IPC audio input |
|
Audio Output |
1 Port RCA (Linear, 1kΩ), HD output |
|
Audio Bit Rate |
64kbps |
|
Audio Compression |
G711U, G711A, AAC |
|
Intercom |
Two-way supported |
|
Sensor Input |
N/A |
|
Alarm Output |
N/A |
|
Motion Detection |
9 Channels, MD Zones: 396 (22 × 18) |
|
Trigger Events |
Recording, Email, FTP, Snapshot, Screen Tips |
|
HD Output 1 |
4K (3840×2160), 2K (2560×1440), 1920×1080, 1280×1024, 1280×720, 1024×768 |
|
HD Output 2 |
N/A |
|
VGA |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1CH, 2CH, 4CH, 6CH, 8CH, 9CH |
|
Digital Zoom |
Yes |
|
OSD |
Camera Title, Time, Recording, Motion Detection, Event Alarm |
|
Video Compression |
H265/H264/H265+/H264+ |
|
Resolution |
12MP (4000×3000), 8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP (2688×1520/2560×1440), 3MP (2048×1536), 1080P (1920×1080), 1280×1024, 960P (1280×960), 720P (1280×720), 960H (960×480), D1 (720×576/720×480) |
|
Record Rate |
PAL: 12MP@6CHx25fps, 4K@9CHx25fps, 5MP@9CHx25fps, 4MP@9CHx25fps, 3MP@9CHx25fps, 1080P@9CHx25fps, 960P@9CHx25fps, 720P@9CHx25fps, D1@9CHx25fps NTSC: 12MP@6CHx30fps, 4K@9CHx30fps, 5MP@9CHx30fps, 4MP@9CHx30fps, 3MP@9CHx30fps, 1080P@9CHx30fps, 960P@9CHx30fps, 720P@9CHx30fps, D1@9CHx30fps |
|
Record Mode |
Manual, Timer, Motion Detection, Smart Event |
|
Local Sync Playback |
1CH 12MP@30fps, 1CH 8MP@30fps, 2CH 5MP@30fps, 4CH 4MP@30fps, 7CH 1080P@30fps, 9CH 720P@30fps, 9CH D1@30fps |
|
Decode Capability |
1080P (1920×1080) @210fps |
|
Remote Sync Playback |
Yes |
|
Search Mode |
All, Timing Video, Motion Detection, Tag Search, Smart Event, Picture, Log |
|
Playback Functions |
Play, Pause, Fast Forward, Rewind, Previous Frame, Next Frame, Electronic Zoom, Clip, Audio |
|
Backup Mode |
USB Device, Network |
|
Network Interface |
1 x RJ45 (10M/100M Adaptive Ethernet Interface) |
|
Incoming Bandwidth |
80Mbps |
|
Outgoing Bandwidth |
80Mbps |
|
Network Functions |
IPv4/IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE |
|
Onvif |
Profile S, Profile T |
|
Web Browser |
Edge, IE8-11, Google Chrome, Firefox, Safari |
|
CMS Software |
Supports Windows 7/8/10/11 and MAC OS |
|
Cloud Support |
Yes |
|
Smartphone Support |
iPhone, Android |
|
POE |
N/A |
|
WiFi |
N/A |
|
Interface Type |
1 SATA Hard Disk Interface (3.5” SATA) |
|
Capacity |
Up to 10TB |
|
eSATA |
N/A |
|
Language UI |
Simplified Chinese, Traditional Chinese, English, Polski, Czech, Russian, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Japanese, Ukrainian, Kazakh |
|
USB Interface |
2 USB 2.0 Interfaces |
|
RS485 |
N/A |
|
Power Consumption |
DC12V/2A ≤ 10W (Without Hard Disk) |
|
Working Environment |
-10℃~50℃, 10%~90% (Humidity) |
|
Product Dimensions |
260×230×43 mm |
|
Net Weight |
0.85kg (without HDD) |
|
Gross Weight |
1.17kg (without HDD) |
Find the Right HDD Size
Discover everyday privacy protections.
Privacy is Our Priority.
Privacy is a fundamental human right. At Domar CCTV, it is also one of our core values. Your devices are important to your safety. We sell our products to protect your privacy and give you control over your information. It's not always easy, but those are the principles we believe in.
Face Detection Data
Our cameras come with smart face detection features. Face detection data exist only on your device and can be deleted at any time. It does not go anywhere else. Face detection features can be turned off at any time.
Video Footage
Your security footage is protected by your password and cannot be accessed without it. Once you have changed the default password of the device, only manufacturer can reset it, after confirmation of purchase and identity.
Audio Data
Audio recording can be turned on and off if the camera is equipped with a microphone. It cannot be accessed without your password.
App Access
One device can link up with a single mobile app account. However, you may share it with another account and cease sharing at any time.
