Product Overview
Zxtech Premio IP PoE CCTV Camera is included in that complete PoE kit. The top-selling camera is now available on 5MP resolution with new Sony Starvis Chip. This camera has superb up to 60 meters night vision with built-in LED IR. The camera has a varifocal 2.8-12mm lens and supports audio in case you want to connect an external microphone. You can extend and save audio recording if an external microphone is connected. The camera is perfect for outdoor space or a long garden. Remote viewing is available for safe and secure premises. Simply download the free app without any extra cost, motion detection is supported and mobile push image notification as well.

System Feature
- Amazing 5 Megapixel resolution (2592*1944)
- Sony Starvis Back-illuminated CMOS Sensor
- Superb 60m night vision with LED IR
- PoE built-in connection
- Audio connection and reset button
- 2.8- 12 mm varifocal lens
- H265+ compression
- Remote access with free mobile app
- Waterproof and vandal-proof for outdoor and indoor purpose
- IR Cut, WDR, BLC, ROI, Defog
- Motion detection and mobile notification alert

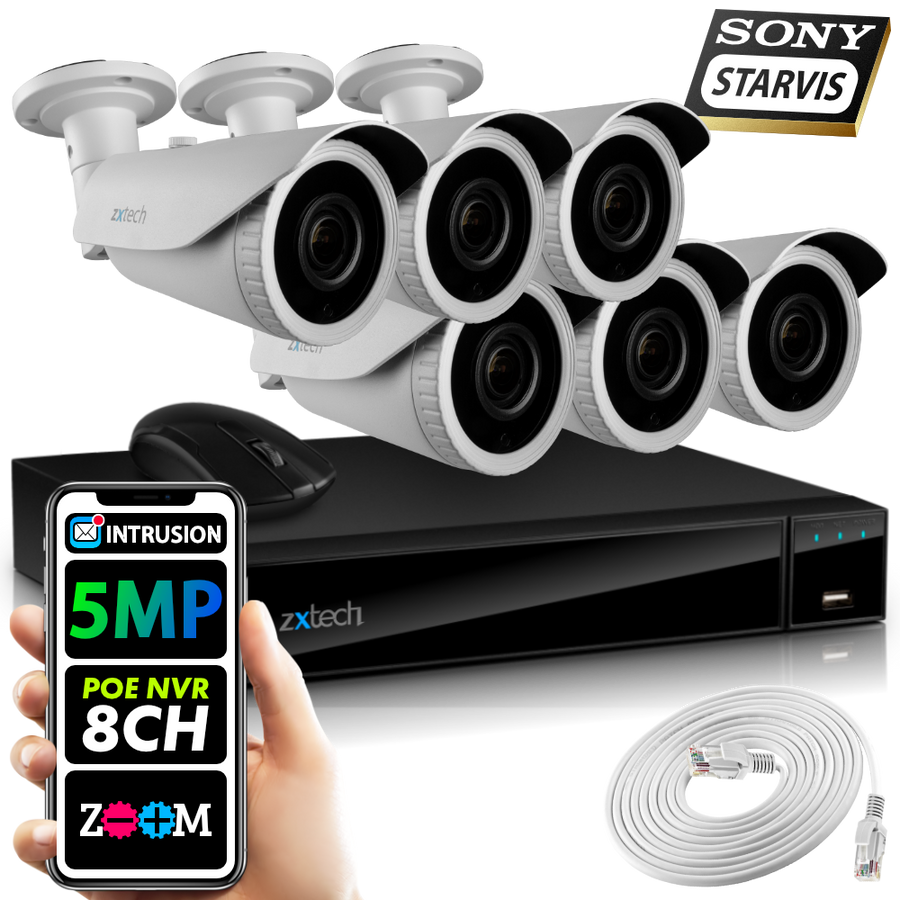

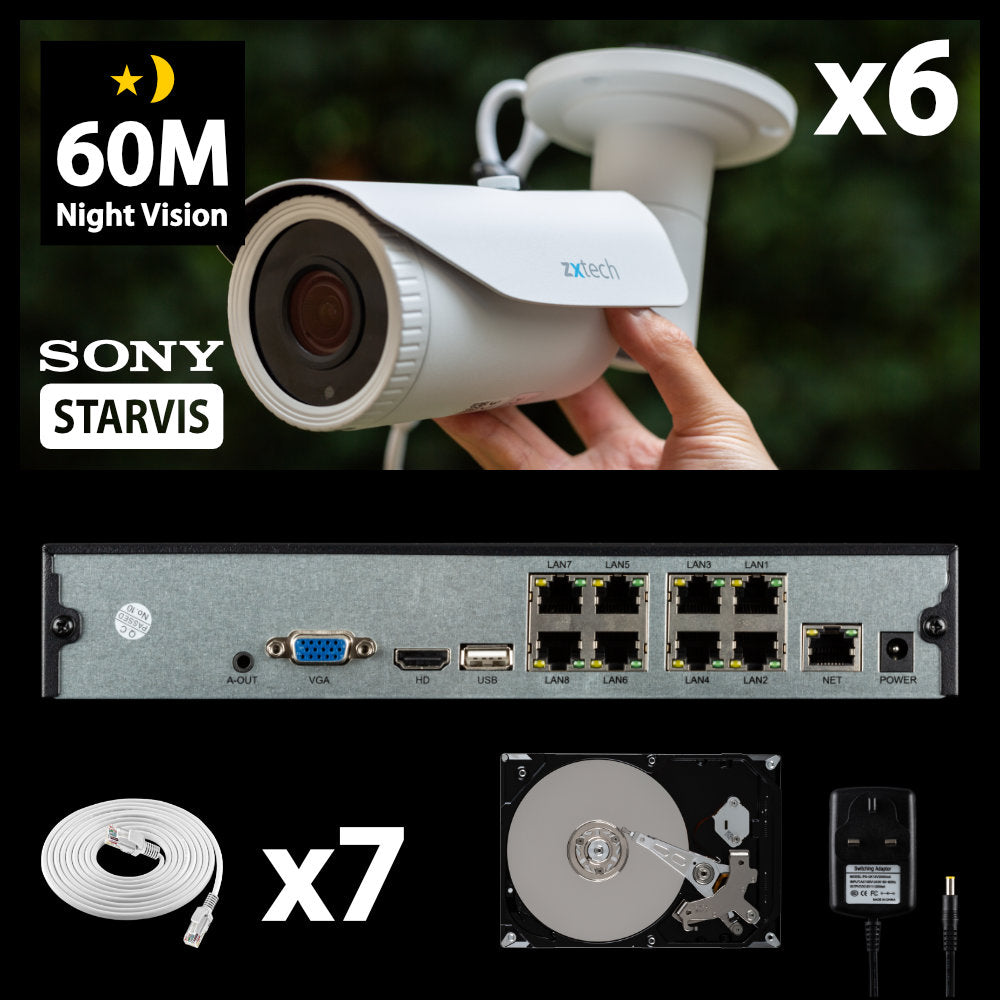

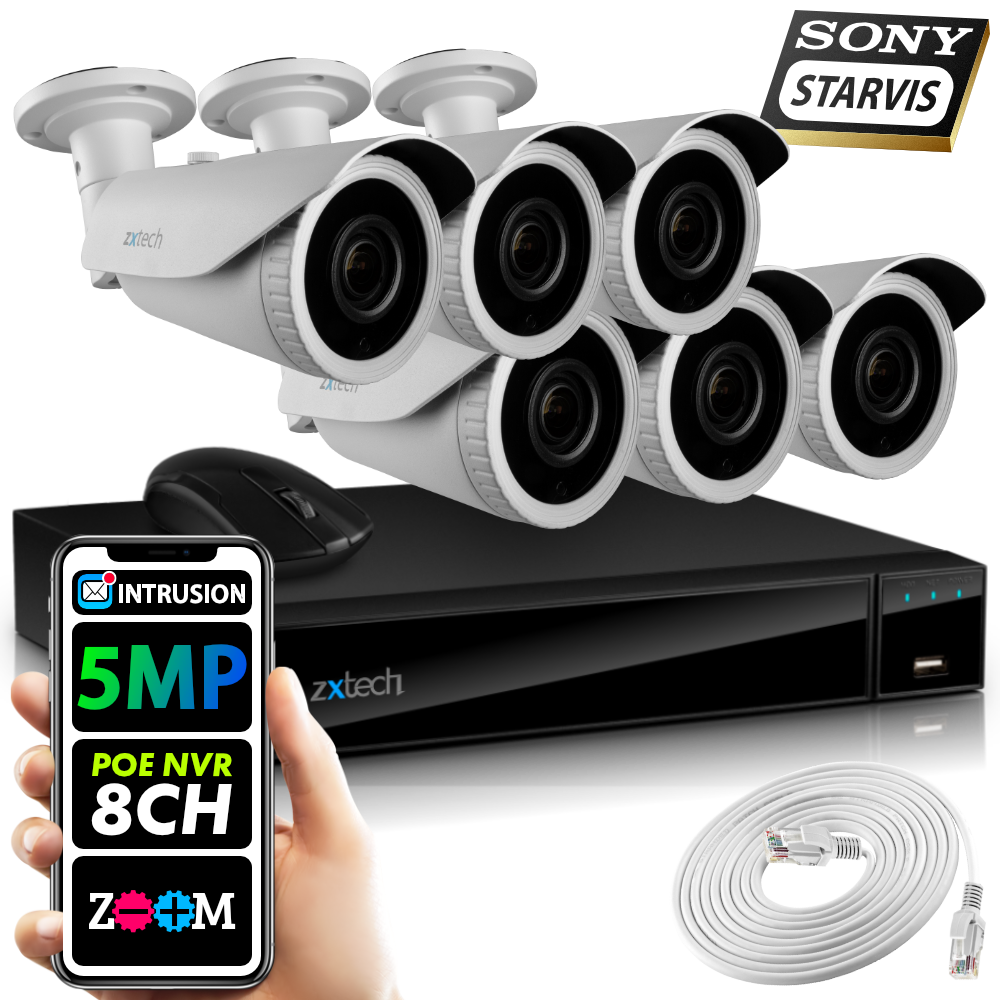

What's in the Box
- 6 x Zxtech Premio CCTV Camera
- 1 x 8CH Onyx NVR
- 3 x 10M cable, 3 x 20M cable and 1 x 2M Cable
- Optional HDD and Monitor

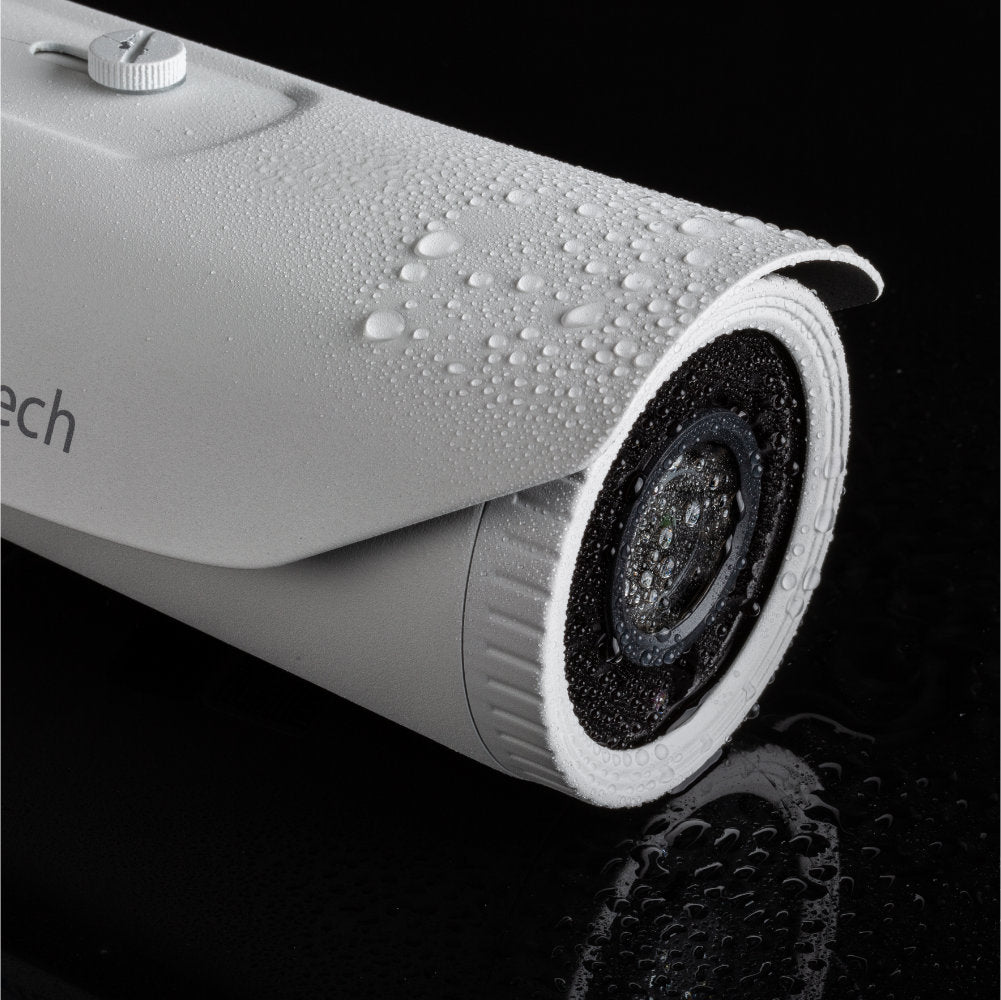

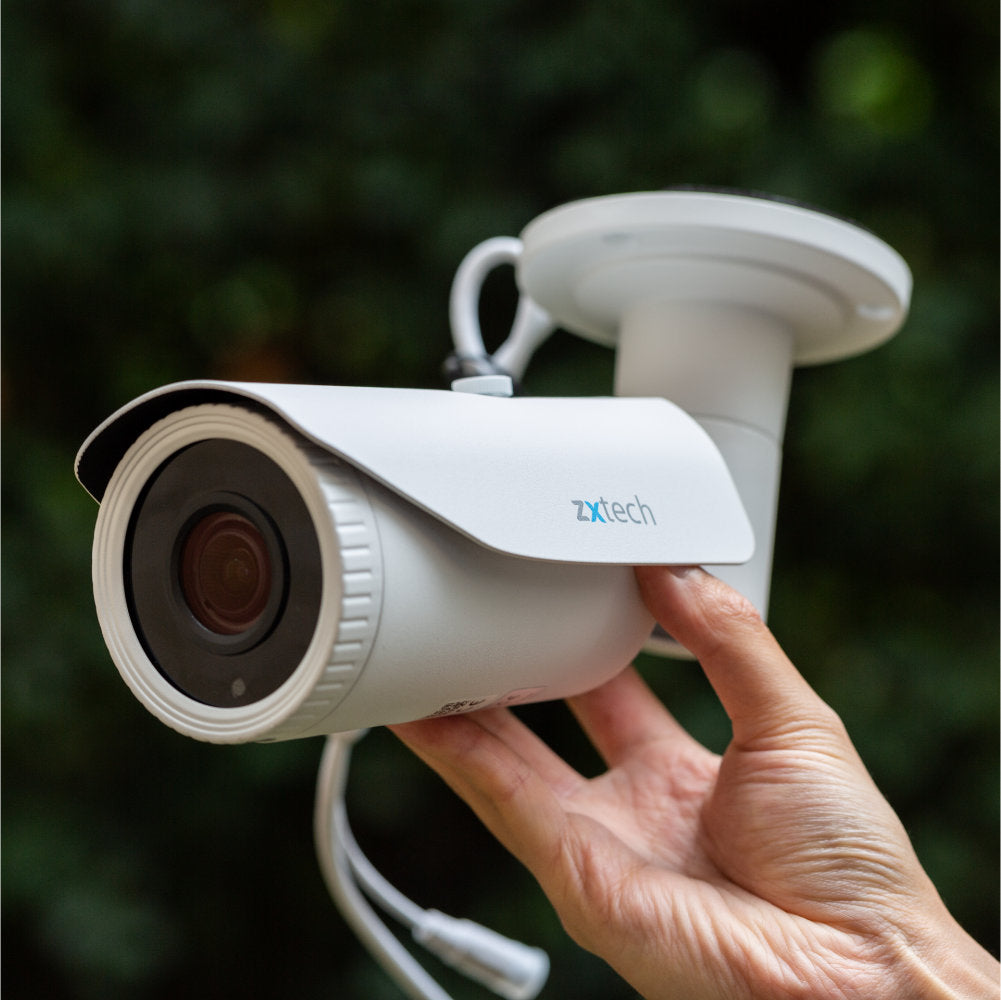

Waterproof metal casing suitable for outdoor
These cameras are built to withstand intense weather conditions. Rated to IP66 Premio cameras will be able to endure strong wind or heavy rain. These cameras have a heavy-duty shell, working perfect in rain or snow ensuring they will work inside and outside. Wise choice for any home or business. This camera is made of high quality material to withstand any weather.

Modern Elegant Design
Zxtech is involved in every part of the product development. From blueprint, 2D conception, 3D rendering and mould creation. We make sure our badge is printed on a product which we are proud to sell and proud to show our friend and family. We want our product not only be beautiful but also functional, flexible and future-proof

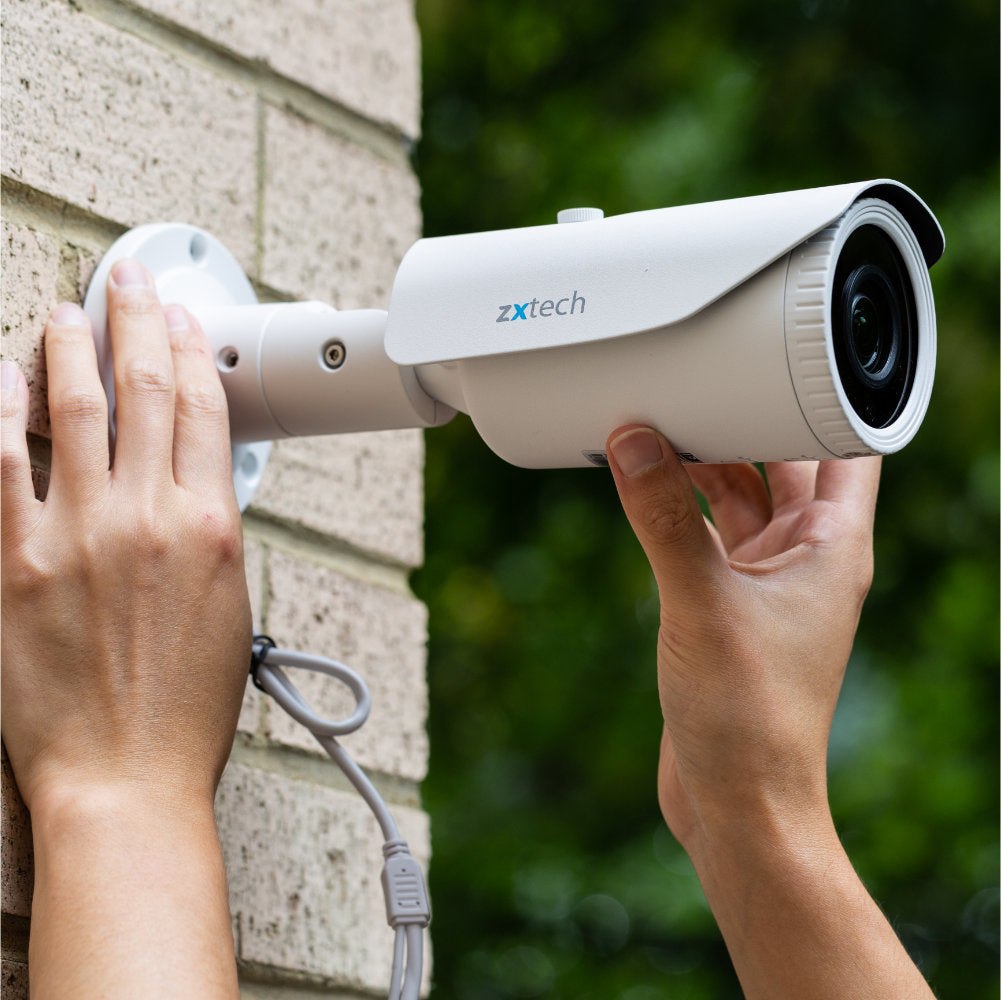

Do It Yourself. Easy setup and installation
Installation has never been so easy and will cost less money. You need to fit the camera on the wall and connect only one Ethernet cable to the back of the recorder. Save the labour work, learn something new and enjoy your 5MP CCTV Security system

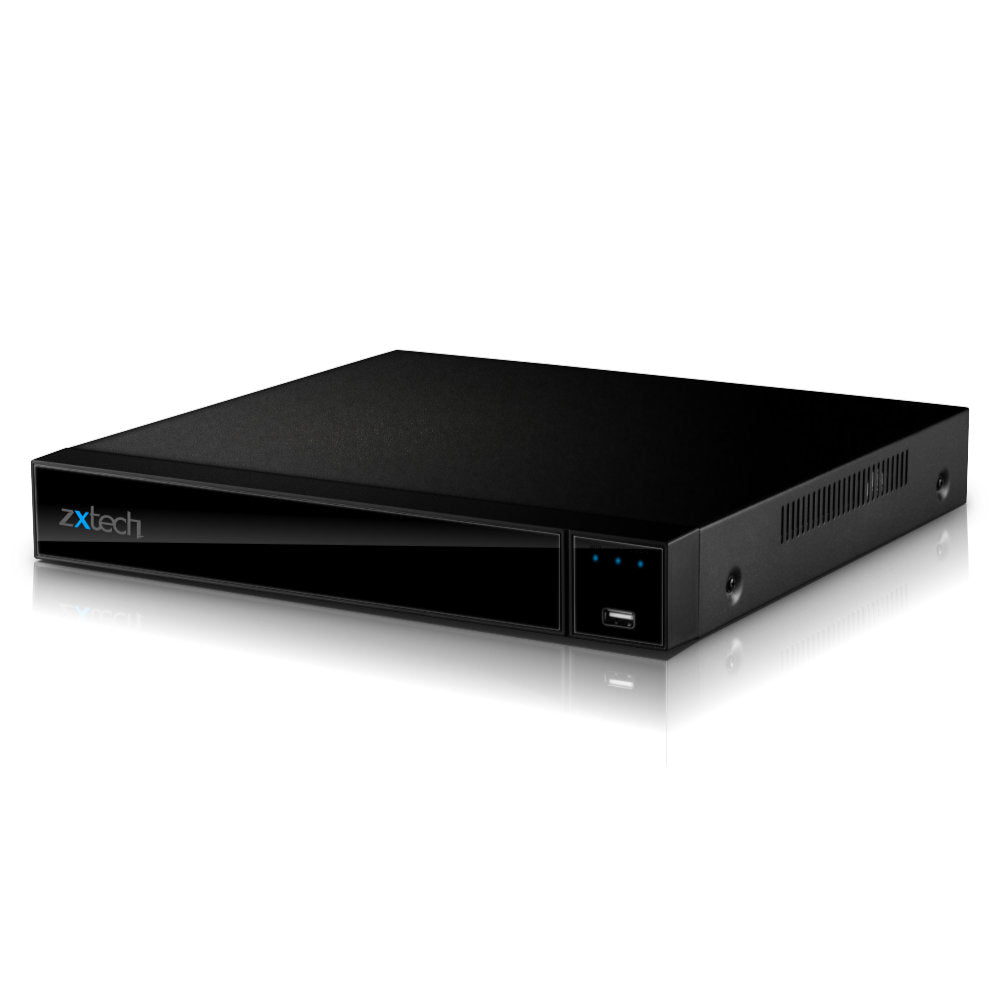

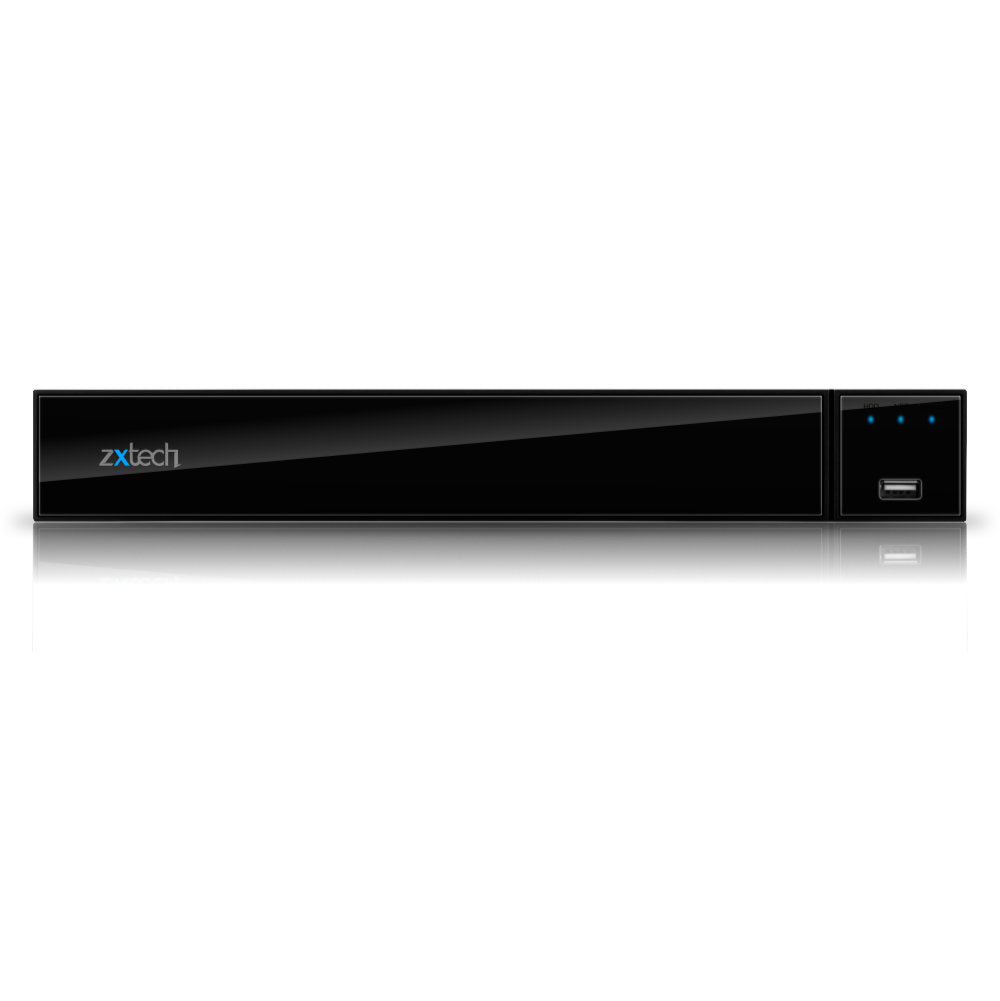

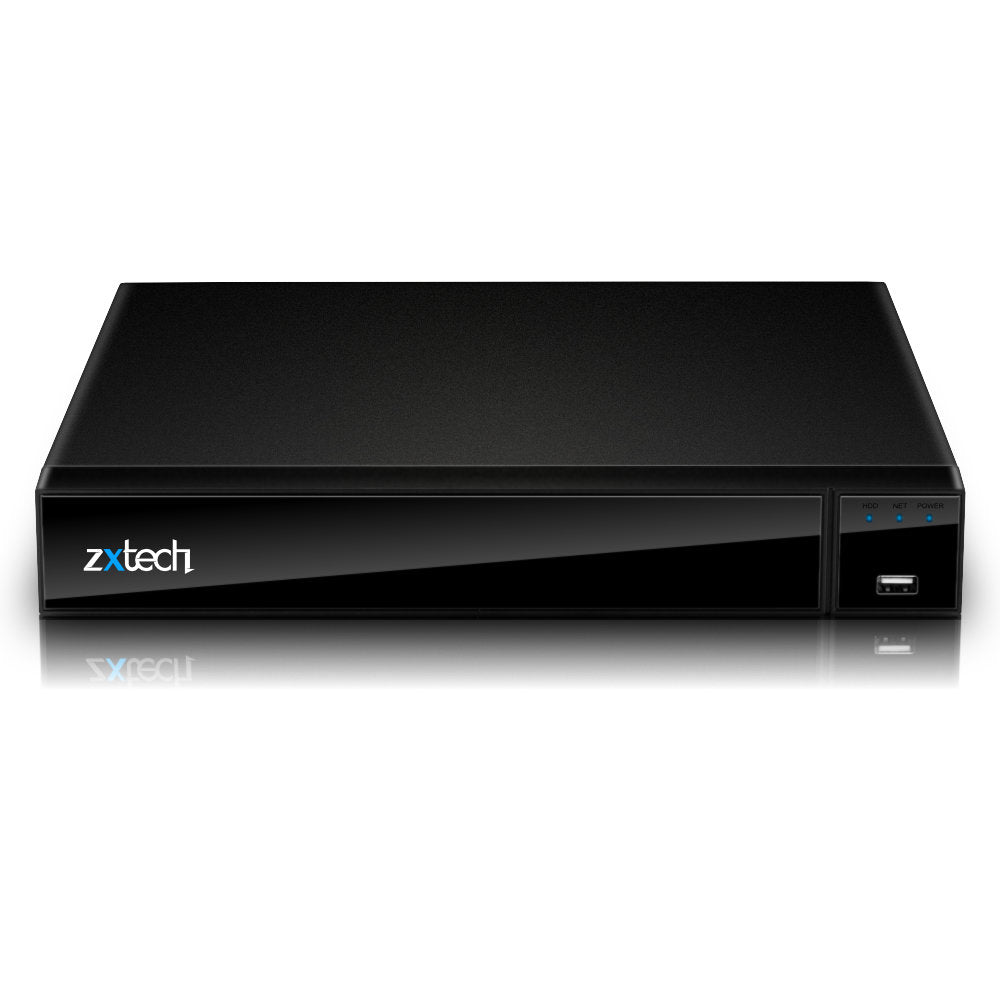

Built-in PoE switch integrated into the recorder
This inbuilt PoE CCTV NVR has a modern, clean design and in the same time is powerful and reliable. New compact and elegant design, capable of extensive recording configuration such as motion detection, masking, scheduling, PTZ management, hard drive management, USB backup. Zxtech recorders has recorded many crucial pieces of evidence that helped many victims in the UK identifying the criminal

5 Megapixel. Beautiful design
5MP resolution is now landed on CCTV. Meet your minimum requirement with our new range, elegant design and long-lasting quality products. Zxtech creates this special 5MP edition kits, suitable for home or business. The recorder has power over Ethernet built-in switch and makes it desirable for many people

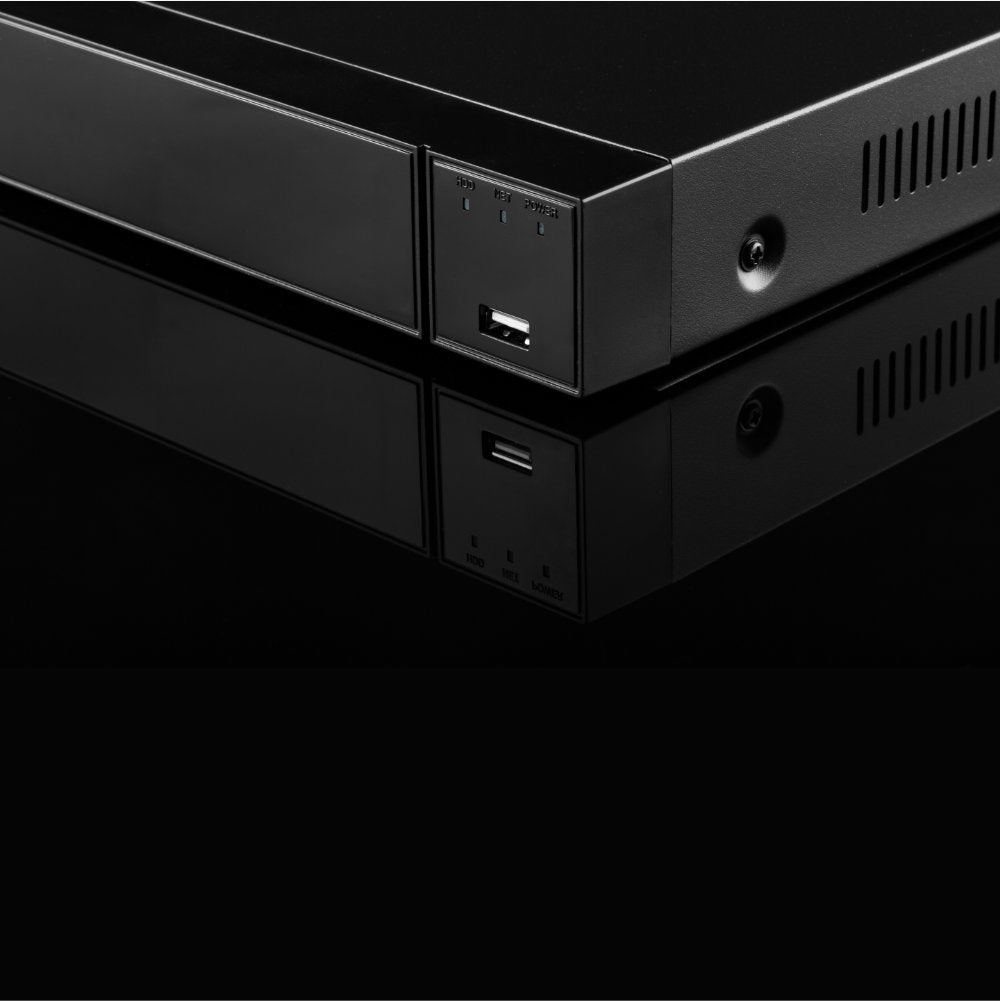

Compact. Long Lasting
Compact design with integrated PoE switch, saving time setting up your cameras because it just needs a single cable to connect. Both data and power travel through the Ethernet cable from your camera to your recorder. No extra power cable and power adaptor is needed. One camera, one cable

New era in CCTV. Purity and Power
5MP CCTV Camera System finally worth the investment. This system has better purity than 1080p or 700TVL cameras. The kit offers real 5MP IP quality because of the integrated 5MP Sony Starvis Chip inside

2.5x Sharper than 1080p Full HD
Zxtech knows that human face and license plate recognition requires high resolution and a very good angle to capture them. With our 5MP PoE IP CCTV Cameras your chance to get what you need is very big

Focal Length
Focal Length measured in millimetres gives you the field of view from narrow to wide-angle. This camera will let you adjust the focal length, angle of view and zoom in and out. Every fixed lens camera has a standard viewing angle. With this one, you can be more flexible. Our Zxtech 5MP PoE IP CCTV Camera can do a tremendously good job and we can assure you in that

SONY STARVIS Chipset
Equipped with Sony 5MP Sensor the camera produces more than 5 million pixels. Extreme performance and 5MP Super HD Quality

Extendable for Audio
Connecting an external microphone to the camera can allow audio recording. Supports audio so you can connect a microphone and record sound

Mobile Scan & Connect Instantly
By a simple step, you can watch footage on all smart devices you have got, such as iPhone, iPad, Android phones, tablets, PC, laptops, computers. Want to remotely watch your system while you are away, Zxtech can do that. Simply download Bitvision mobile app on your smartphone,m scan the QR code from your recorder or camera and you will be connected. Everything you need in 3 easy steps

PoE IP CCTV System
Power over Ethernet a.k.a PoE. One cable is enough, transmit data and power over Ethernet cat5 cable. Hassle free and quick setup

Much less bandwidth, much higher performance
H.265+ High- Efficiency Video Coding. Lower the cost of hard drive storage and transmission

Motion Detection, Alerts, Schedule and Masking as standard
Utilise the extremely flexible scheduling preference. Tell the NVR what time of the day, or which day of the week to record, sleep, alert. No, unnecessary alerting during the time you are there, no unnecessary recording when you do not need it. Alternatively, you can just turn it on 24/7

Put a schedule on, leave space out
Blank out part of the scene that is not important to you. Get a mobile notification when it detects motion in your scene

Advanced Software
Viewing, Replay, Control, Alert and Intelligent Settings. Updated software for more convenience and easy to use

Multilingual firmware
Understanding different languages is very important, we Zxtech invested with a system that can do multilingual support with more than 20 different languages

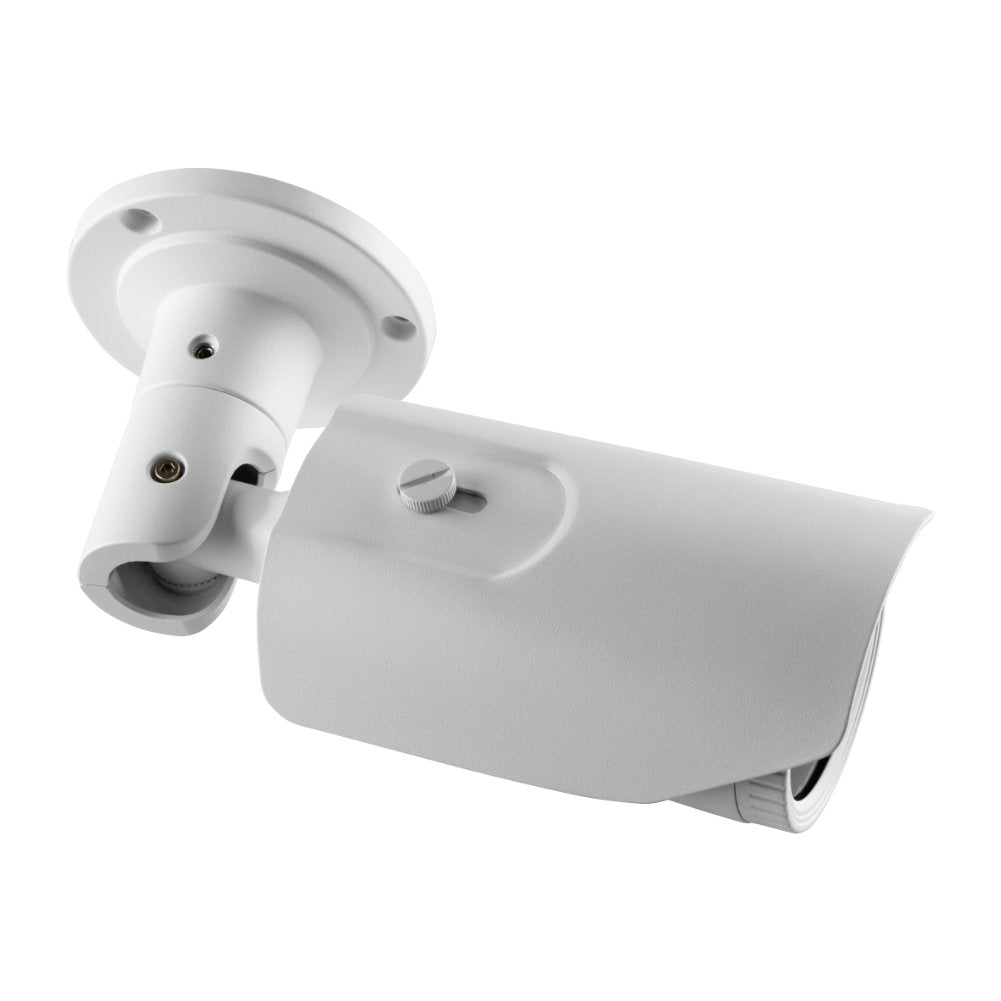

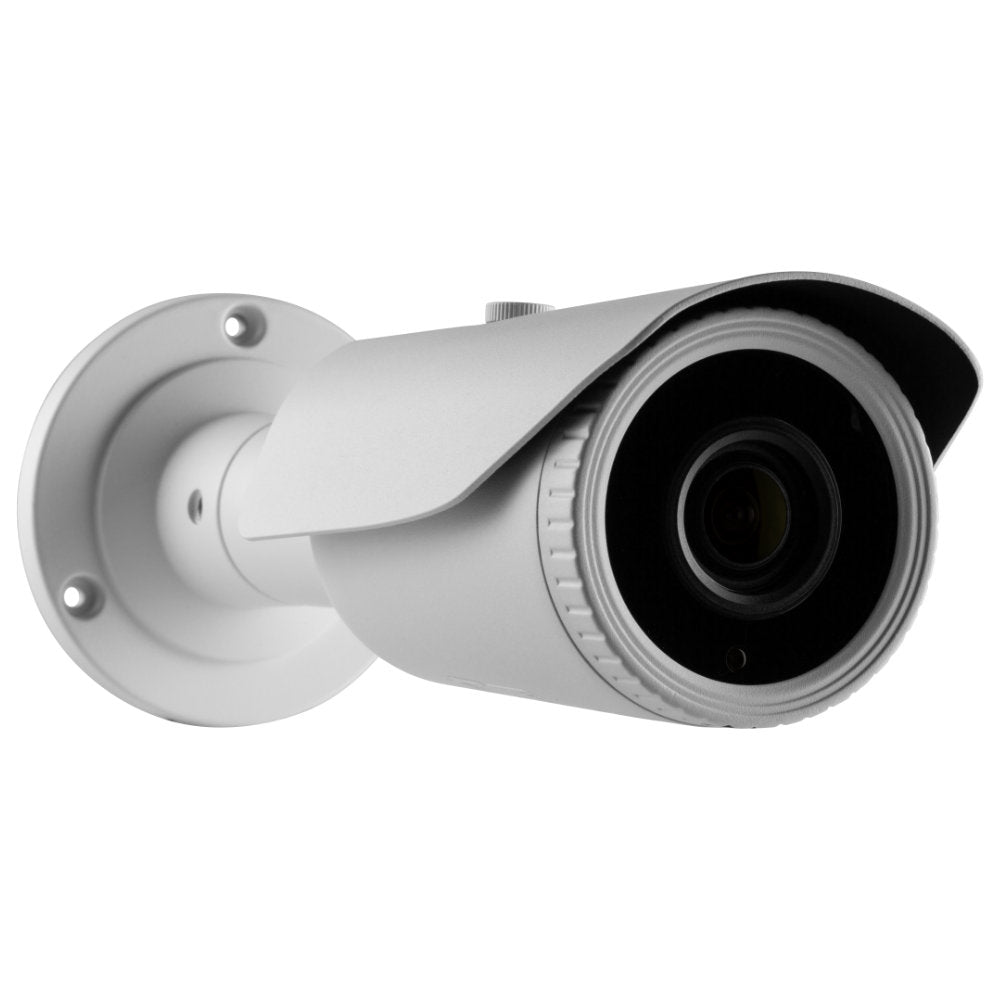

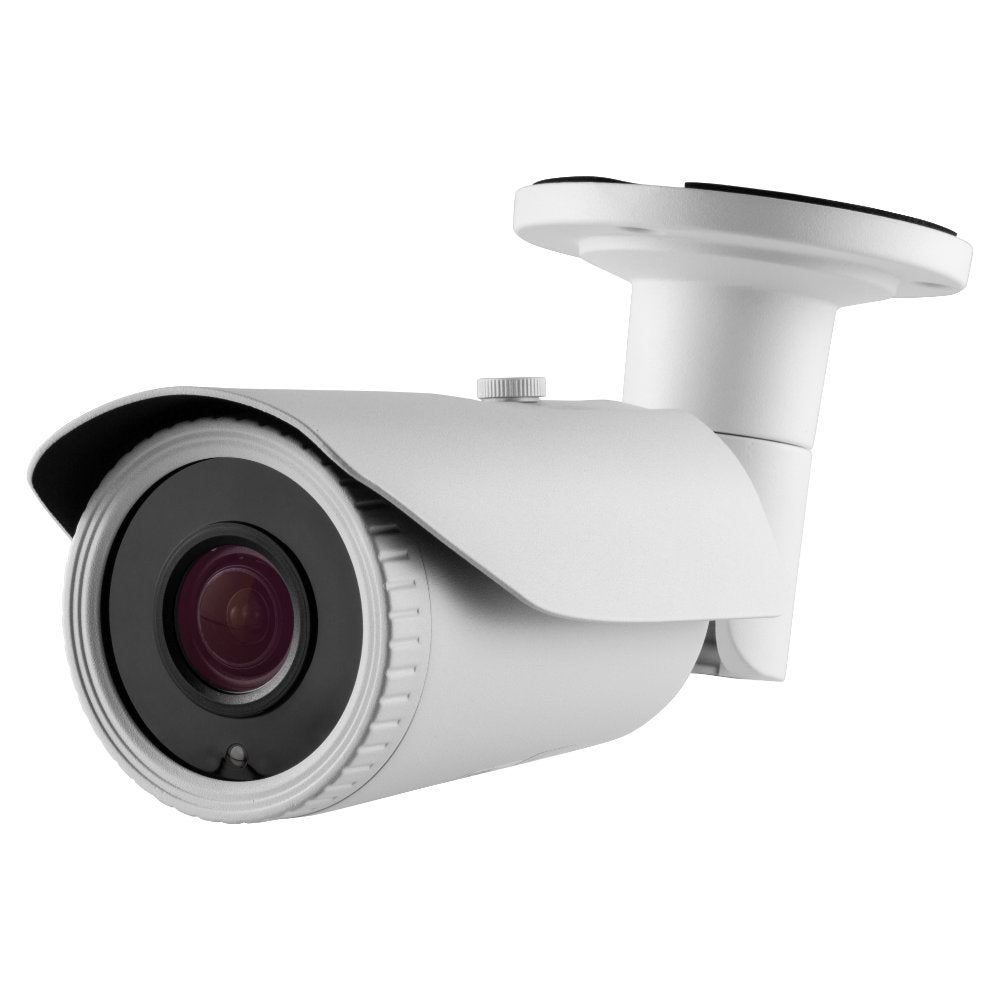

Sony Image Sensor Varifocal PoE
The camera has built-in LED light bulbs gives you up to 200 feet night vision in darkness. You can point it to any direction, up or down, left or right by adjusting the joint. Built-in Sony 5MP Image Sensor gives clear image and quality assurance. Seamless finish protects your camera from ever-changing British weather. Metal casing and solid structure design protect your camera from vandalism. This camera is super flexible. You can point to any direction when you fix it on the wall or ceiling, vertically or horizontally. Enhance your camera with 180 degrees of viewing angle. Coloured image sensor means all of your recordings during day time is in true colour. Unlike some old system that comes only with mono.

Tech Specs
Zxtech Premio PoE IP Camera
- Image Sensor: 1/2.8'' SONY Starvis Back-illuminated CMOS Sensor
- Resolution: 5MP
- Effective Pixels: 2616(H)*1964(V)
- Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
- TV System: PAL/NTSC
- Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec.; NTSC 1/25-1/10000Sec.
- Minimum Illumination: 0.01Lux
- S/N Ratio: >52dB

Lens & Night Vision
- Scanning System: Progressive
- Video Output: Network
- Reset Button: Yes
- Focus Length: 2.8-12 mm
- Focus Control: Manual
- Lens Type: Manual
- Pixels: 4M
- Infrared LED: 42µ x 6pcs
- Infrared Distance: 60m
- IR Status: Auto Control
- IR Power On: Auto Control

Network
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
- ONVIF: Support ONVIF 2.4
- P2P: Yes, support QR Code
- PoE: Yes, support IEEE 802.3af
- Video Delay: 0.3S (Within the Lan)
- Main Stream 1: 2592*1944@20fps; 2560*1440@20fps
- Main Stream 2: 2560*1440@25fps
- Main Stream 3: 1920*1080@30fps; 1280*720@30fps
- Sub Stream 1: 720*480@15fps; 720*480@30fps Tri stream: 352*288@15fps; 352*288@30fps
- IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), MAC Safari (lower than version 12)
- Smart Phone: iPhone, iPad, Android, Android Pad
- Day/Night: Colour/ B&W (IR-CUT)

General/h3>
- Image Config: Saturation/Brightness/Contrast/Sharpness, Mirror, 3DNR, White Balance, FLK (Flicker Control), Video Tampering
- Corridor Pattern: Support
- Defog Mode: Support
ROI: Support - BLC: Support
- WDR: DWDR: 50dB
- Motion Detection: Support
- Privacy Masking: 3 Rectangular Zone
- Recording Mode: NVR/ NAS/ CMS/ Web
- Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands
- Audio: Support
- Housing: IP66
- Anti-cut Bracket: No
- IR Cut Filter: Yes
- Power Source: DC12V, 1100mA
- Dimension: 312(W) x 133(H) x 102(D) mm
- Weight: 1.8kg

Recorder Specs
System
- Main Processor: ARM Cortex A7 Processor
- Operating System: Embedded LINUX
- Video Input: 9CH (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)
- Video Output: 1 VGA, 1 HD
- Audio Output: 1 Port RCA(Linear)
- Audio Compression standard: G711u, G711a, ADPCM_DVI4
- Sensor Input: NO
- Output: NO
- Motion Detection: 9 Channel, MD Zones: 396 (22x18)
- Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display
- HD Output1: Resolution: 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA Resolution:1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Display Split: 9CHxD1/ 8CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP
- Digital Zoom: YES
- OSD Camera: Title, Time, Recording, Motion Detection
- Video Compression: H265/H264/H265+/H264+
- Resolution: 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)
- Record Rate PAL: 5MP@9x25fp, 4MP@9x25fp, 3MP@9x25fp, 1080P@9x25fp, 960P@9x25fp, 720P@9x25fp, D1@9x25fp NTSC: 5MP@9x30fp, 4MP@9x30fp, 3MP@9x30fp, 1080P@9x30fp, 960P@9x30fpl, 720P@9x30fp, D1@9x30fp
- Record Mode: Manual/ Timer/ Motion Detection

Playback & Backup
- Local Sync Playback: 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
- Decode Capability: 4CH 1080P@20fps
- Remote Sync Playback: YES
- Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
- Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom

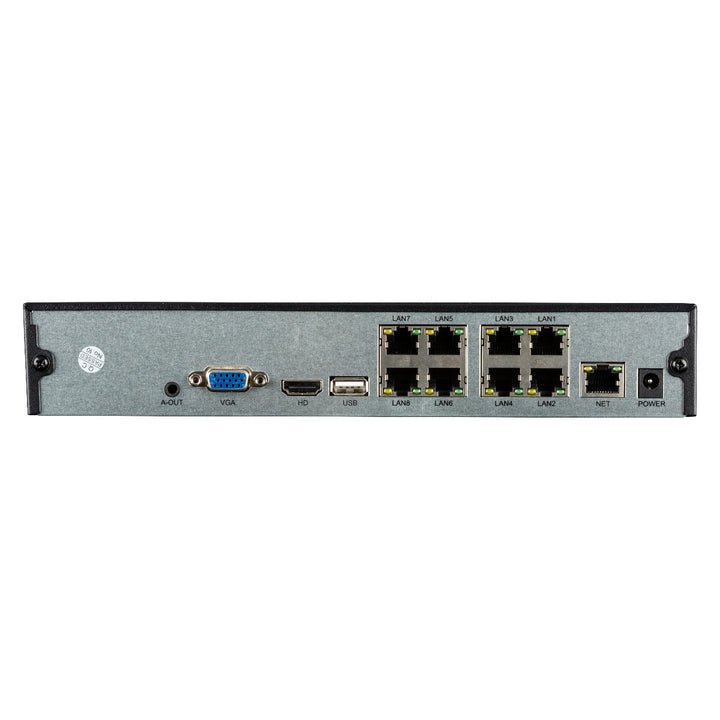

Network
- Interface: 9x RJ45 10M/100M Adaptive Ethernet Interface
- Incoming Bandwidth: 60MB
- POE: 8x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output more than 100W, Support Plug and Play
- Interface Type: 1 SATA Interface
- Capacity: Up to 8TB capacity
- Dimension(WxDxH): 260x215x43(mm)
Zxtech 6 x 5MP Varifocal Audio Sony Chip PoE IP CCTV Cameras 8CH Kit comes with one of the best selling Premio camera. Varifocal lenses from narrow to wide-angle, indoor or outdoor. Extendable audio if you use an external microphone, as a standard comes with proven SONY Starvis Chip.
