Zxtech 4K CCTV System - 8 x IP PoE Cameras Motorised Lens Face Detection Outdoor Sony Starvis | RX8G9Y
- UK next business day delivery
- UK VAT invoices included
- 30 days hassle free returns
- 12 month warranty
- In stock, ready to ship
30X Digital Zoom
5X Optical Auto Zoom
The CCTV system is equipped with 5X auto zoom camera with a varifocal lens from 2.7mm to 13.5mm. The 5X optical zoom and extra digital zoom allows you to clearly see license plates up to 30 meters away.
System Features
Complete 8 camera kit with Ultra HD 4K & Incredible colour night vision option, Remotely control 5x motorised zoom reaching 30M for clear reg plate, Smart human detection, Industrial leading Sony Starvis chip, Integrated 8-Port PoE NVR, Massive 8TB storage option for long lasting recording, Ultra wide 124° angle, Easy & free smartphone access, Metallic & outdoor weatherproof, and many more cutting edge features...

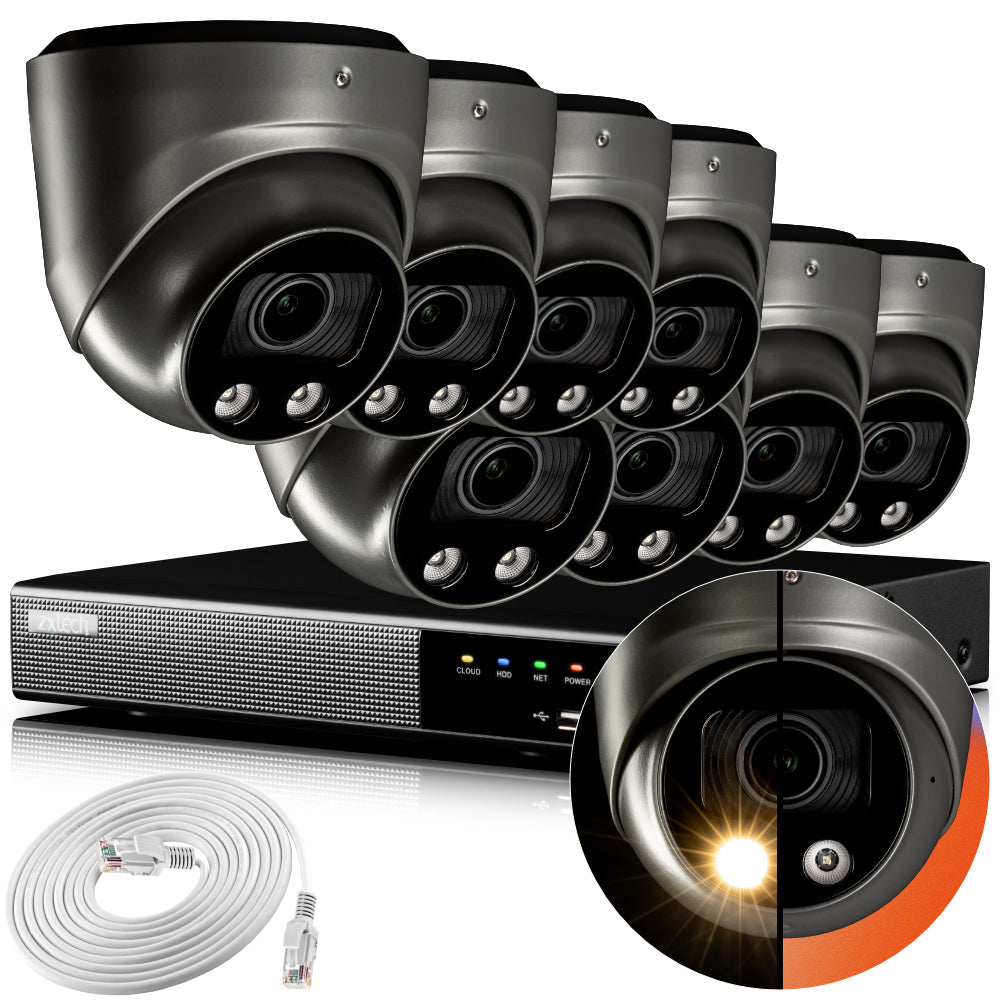

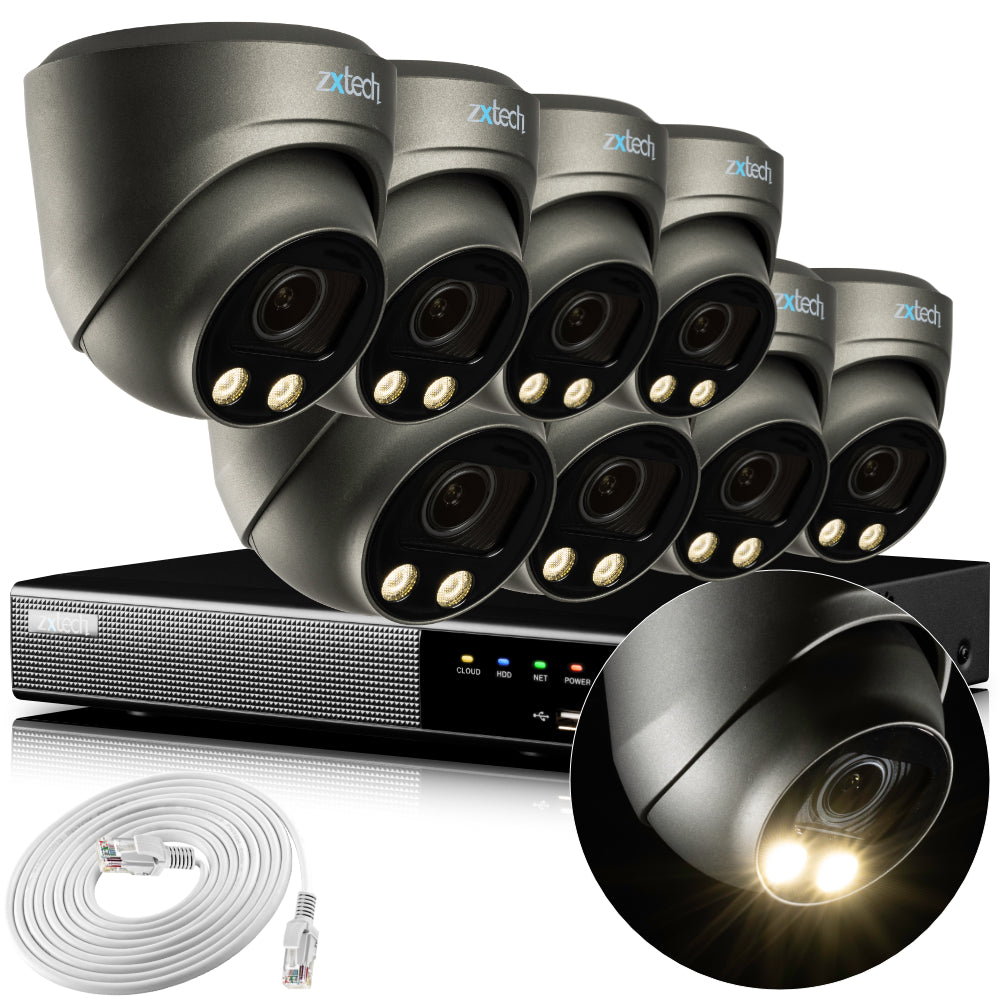

What's in the Box
8x Grey 4K AI PoE Dome Varifocal Cameras*
Alternative option including affordable 5MP, and intense LED colour night vision features compared below.

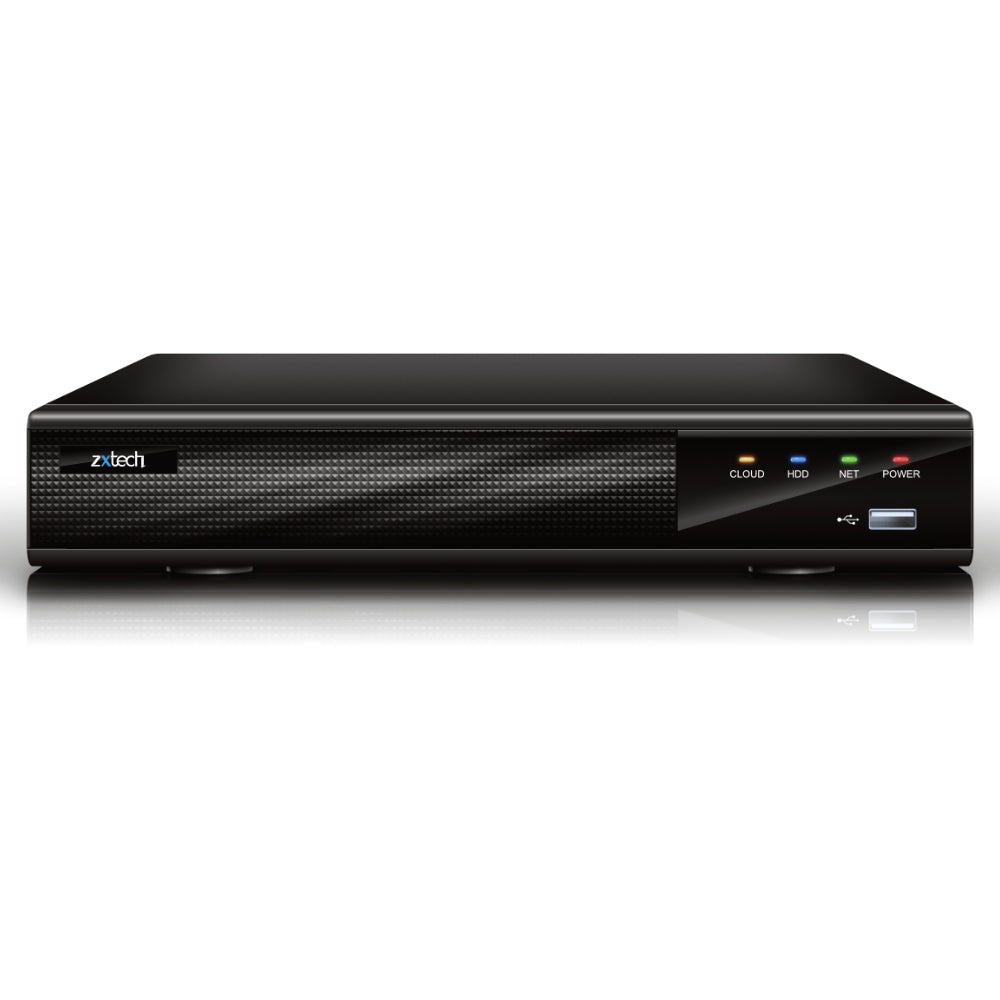

1x 8-Port PoE 4K 16CH NVR Recorder
4x 10M, 4x 20M, 1x 2M Network Cat5e Cable
Up to 8TB Surveillance Grade Hard Drive
Optional Extension Bracket
The system comes with amazing 8 Megapixel (3840*2160) (optional 5 Megapixel) resolution for crisp and clear images
Another level of visualisation with superb night vision up to 30M. If you have some extra lighting, you will be able to achieve colour night vision. Alternatively, buy the "Intense LED" option for the built-in 2 x ultra large and ultra bright light supplements for full colour CCTV footage 24/7.
Ultra Smart AI Face Detection enables Intrusion, Line Crossing, Loiter and People Gather Detection
Embedded Industry Leading Sony Starvis Low Light CMOS sensor is the major factor for ultra clear and sharp video
CCTV NVR with built-in PoE network switch eliminates the need for a separate network device for less cabling and cost efficiency
These dome cameras have built-in 4GB Storage with 512GB Extendable SD Card Slot providing the opportunity to back up your data in case you lose the footage saved on the HDD, the camera has an external Audio cable providing you with an opportunity to attach an external microphone and record sound
2.7-13.5 mm motorised zoom lens, customers can control zoom remotely from the app or PC, the camera will refocus automatically without need climbing up a ladder
H265+ video compression is a cost-efficient saving up to 75% storage space
Featuring remote access with a free mobile app to watch your premises at all time
Cameras are waterproof for outdoor and indoor purpose coming along with strong metallic case
IR Cut, WDR, BLC, ROI, Defog cameras will detect and create an image as would be seen with human eyes, unlike your eyes camera sensor can detect light outside the range of the human eye. HDR Sensor Enables Dynamic Range over Mind-blowing 120 dB
Motion detection and mobile notification alert, this kit will detect any activity and never leaves you in the dark
P2P QR Scan for anyway, anytime Remote CCTV Access
Need more/less cameras?
More Options in Different Colour and Camera Count.
Camera Options Compared
Atlas 5MP
Atlas 4K
Atlas 4K IntenseLED
5 Megapixel (2592 x 1944)
8 Megapixel (3840 x 2160)
8 Megapixel (3840 x 2160)
Ultra Wide 124°-33° 5X Auto Zoom
Ultra Wide 124°-33° 5X Auto Zoom
Ultra Wide 124°-33° 5X Auto Zoom
30M Infrared
30M Infrared
30M IntenseLED Colour
Indoor & Outdoor
Indoor & Outdoor
Preferably Outdoor Due to It's Eye Blinding LED Light
4X
Shaper than 1080p
4K 8 Megapixel Option*
124°
Ultra Wide View
124°-33° 5X Auto Zoom
30M
Night Vision Range
Infrared or IntenseLED
4GB
Onboard Memory
Buit-in Per Camera
512GB
SD Card Slot
Safety Net Per Camera
8TB
Hard Drive Option
1x HDD Bay
Free App
Stream Live, Receive Real-time Alerts, Snap & Share, and Playback Anytime, Any Where, and Control Zoom
Learn About the Whole Range
Watch the Intro Video
This video quickly goes through the entire range, introducing you to all the cameras and features included in the system.
Impressive 5MP & Unparalleled 8MP(4K)
4K delivers 4X the resolution of 1080p, whereas 5MP provides 2.5X the resolution of 1080p. Both represent significant advancements over traditional high definition.
Camera that captures the finest details.
4K CCTV Camera with Sony Starvis Chip, 120dB HDR and Colour Night Vision Option
Sony Starvis 8MP Sensor, renowned for its exceptional low-light sensitivity and performance. ensures crisp 8MP/4K (optionally 5MP) imagery, offering superior HDR capabilities all while maintaining energy efficiency. Ideal for both home and professional security needs.

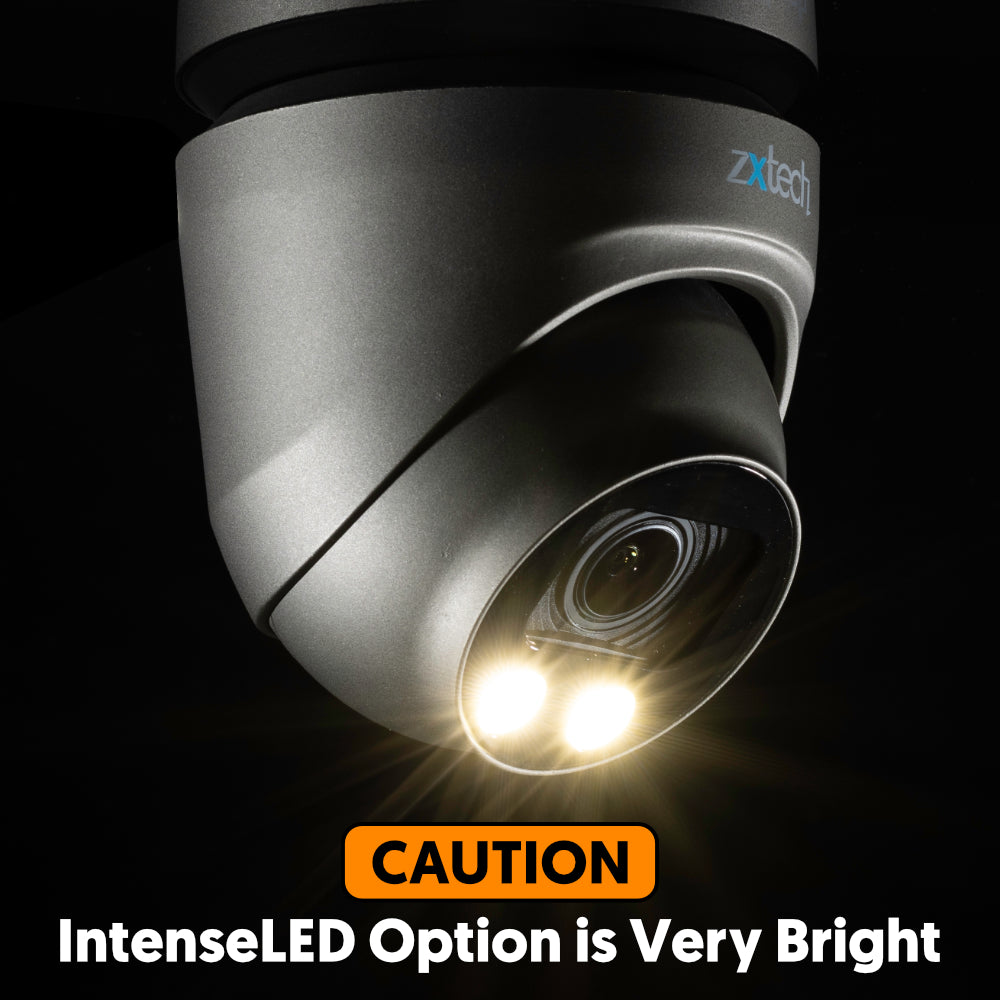

Optional Intense LED Colour Night Vision Technology
Sharp Infrared, Colourful IntenseLED
Zxtech's new IntenseLED technology delivers 24/7 full-colour CCTV footage in 4K Ultra HD, powered by a larger aperture, intense LED lighting, and the premium Sony Starvis Sensor. As an alternative to the already reliable infrared night vision. Both can enhance police investigations and court evidence. While the bright built-in LEDs act as a deterrent, they might be too intense for quiet residential areas. As the name suggests, IntenseLED option may not suitable for indoor use due to its intensity.
Infrared
Intense LED
Be Ready for the Future
4K: A Quantum Leap from 1080p
Elevate your CCTV quality beyond the standard 2MP aka 1080p or HD. Our 5MP Super HD offers 2.5X clearer visuals, optimising car plate recognition. Yet, the true game-changer is upgrading to 4K resolution. Experience ultra-crisp, sharp images, powered by the Sony Starvis 8MP Sensor, boasting over 8 million pixels. Enhanced by a 4000K White LED, this 4K CCTV delivers unparalleled low-light performance at an efficient power consumption. Choose 4K for the pinnacle of home security visuals.
2 Megapixel
4K
Sorcery of Modern CCTV Technology
120dB HDR: Ultimate Contrast
For the best security footage, it's vital to avoid areas that are overly bright or too dark, as key details can go unnoticed. Zxtech's advanced HDR video processing ensures that images captured at different exposures merge seamlessly, offering consistent contrast and highlighting every essential detail in your footage.
No HDR
With HDR
4K CCTV Camera System with 5x Auto Zoom, Ultra Wide Angle, 4GB Onboard Memory, 512GB SD Card Slot, Waterproof, Anti-Vandal, Full Metal, F1.0 Large Aperture
IP67

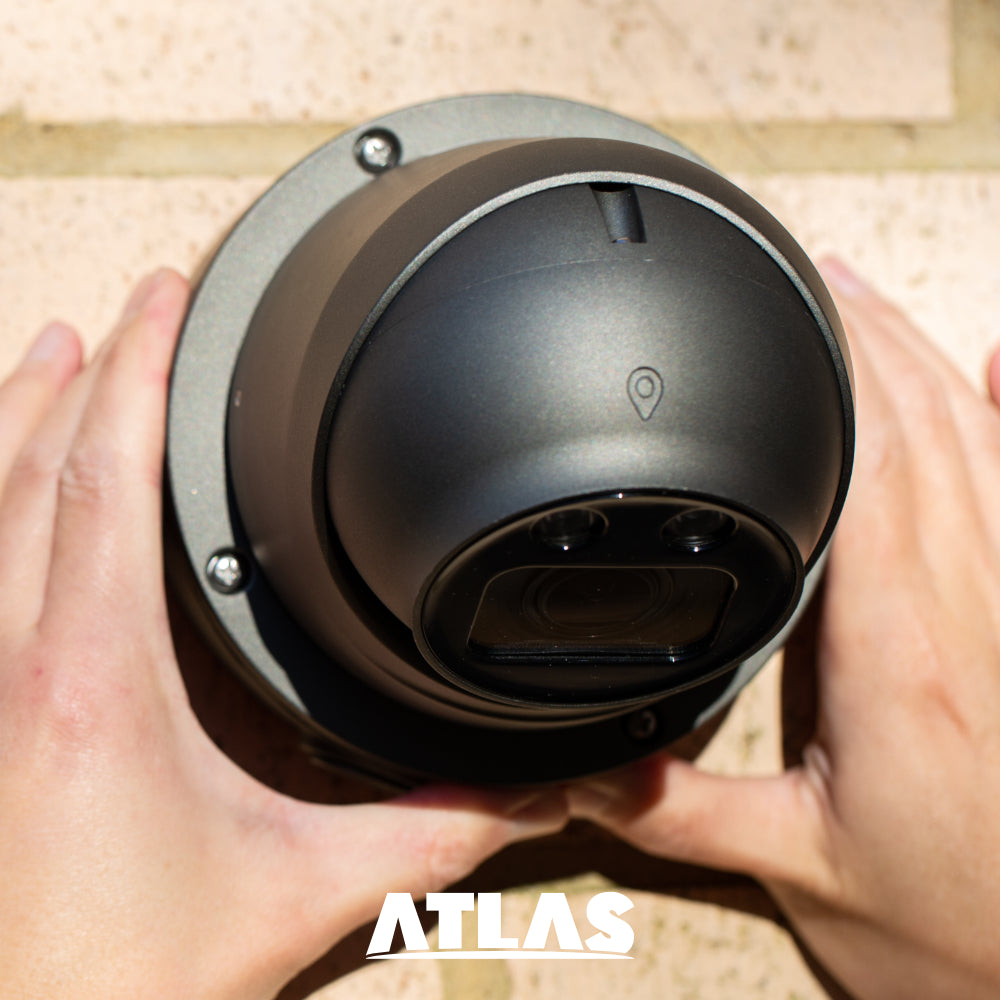

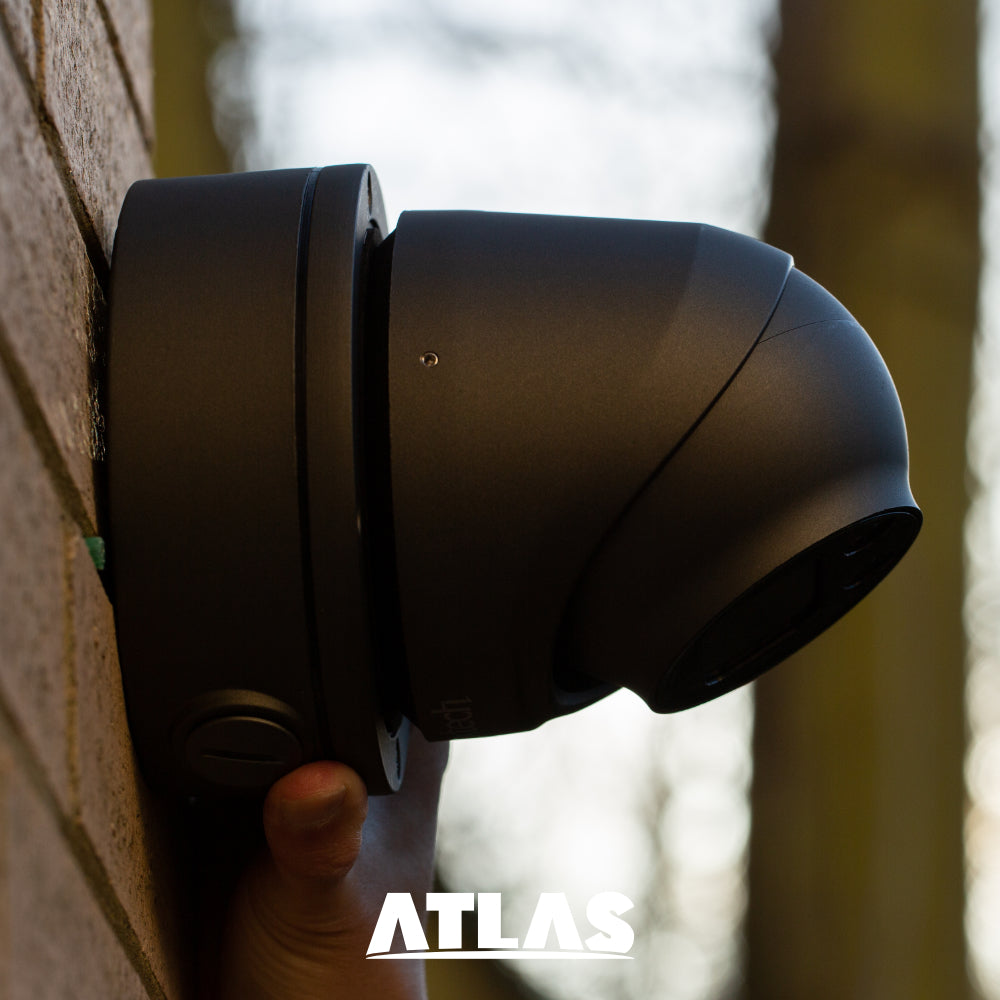

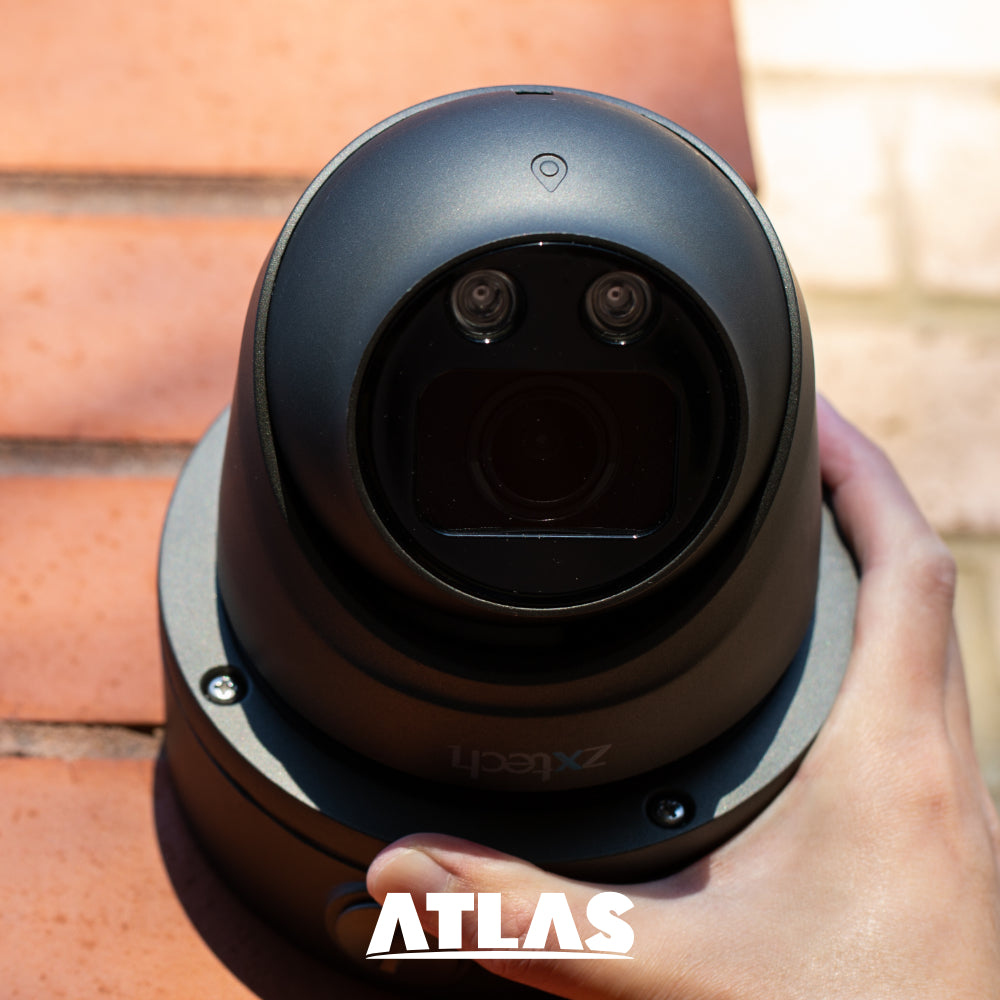

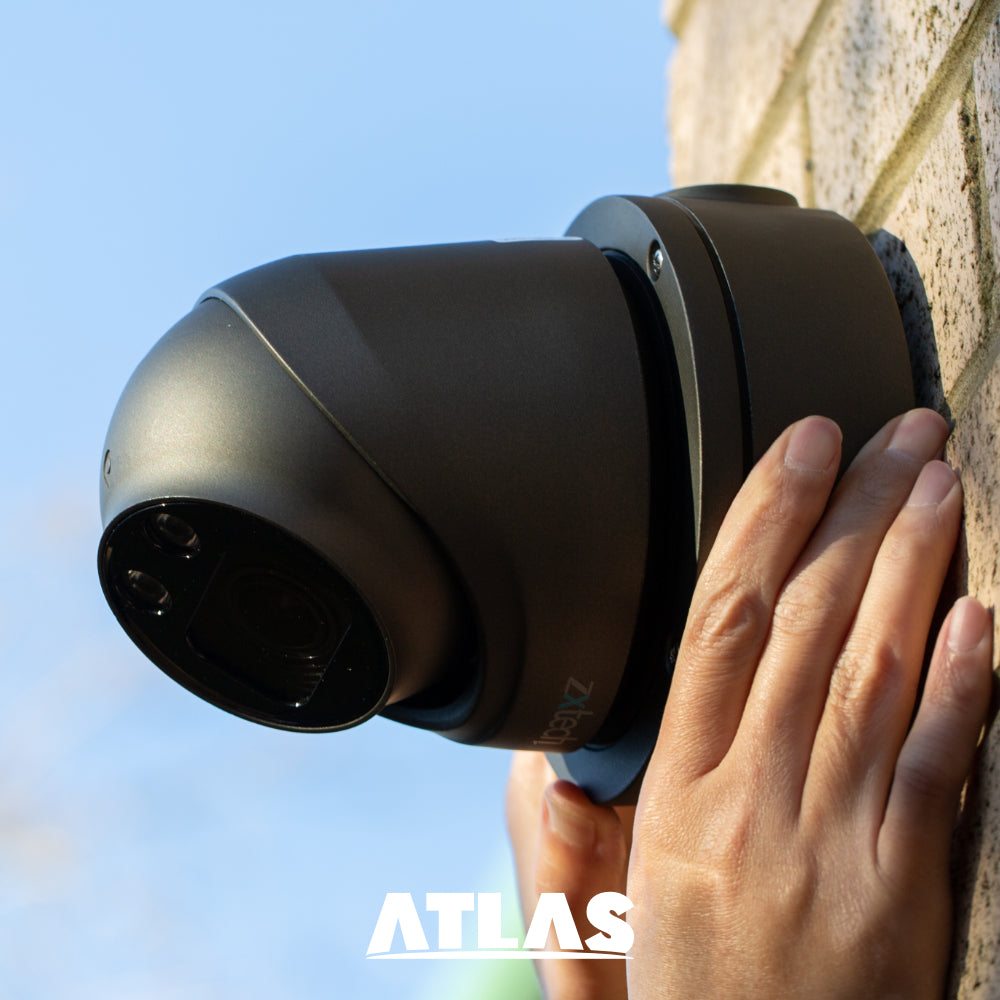

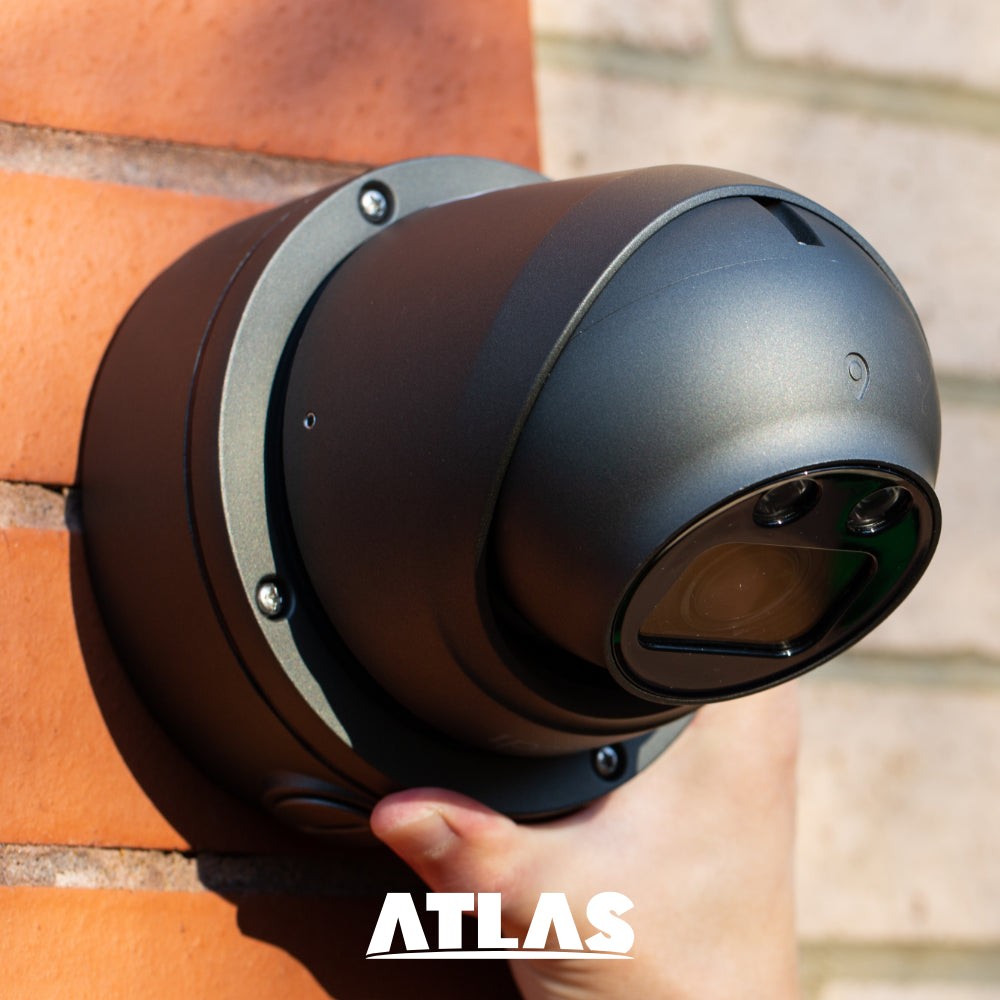

The Atlas Dome-shaped camera, unlike traditional Dome cameras that are typically designed for indoor use only, is now fully equipped for outdoor installation. It comes with a water-sealed metal casing to protect your house under any weather condition.
All Around Metal

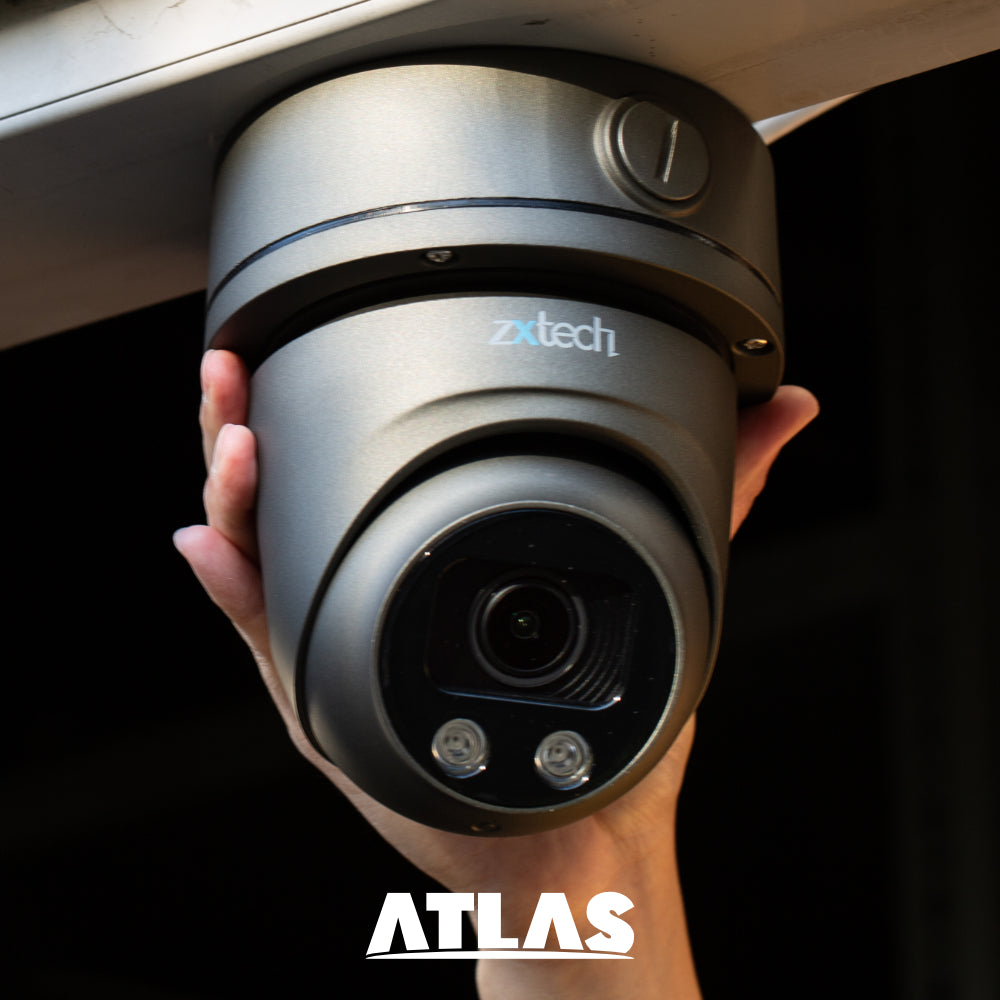

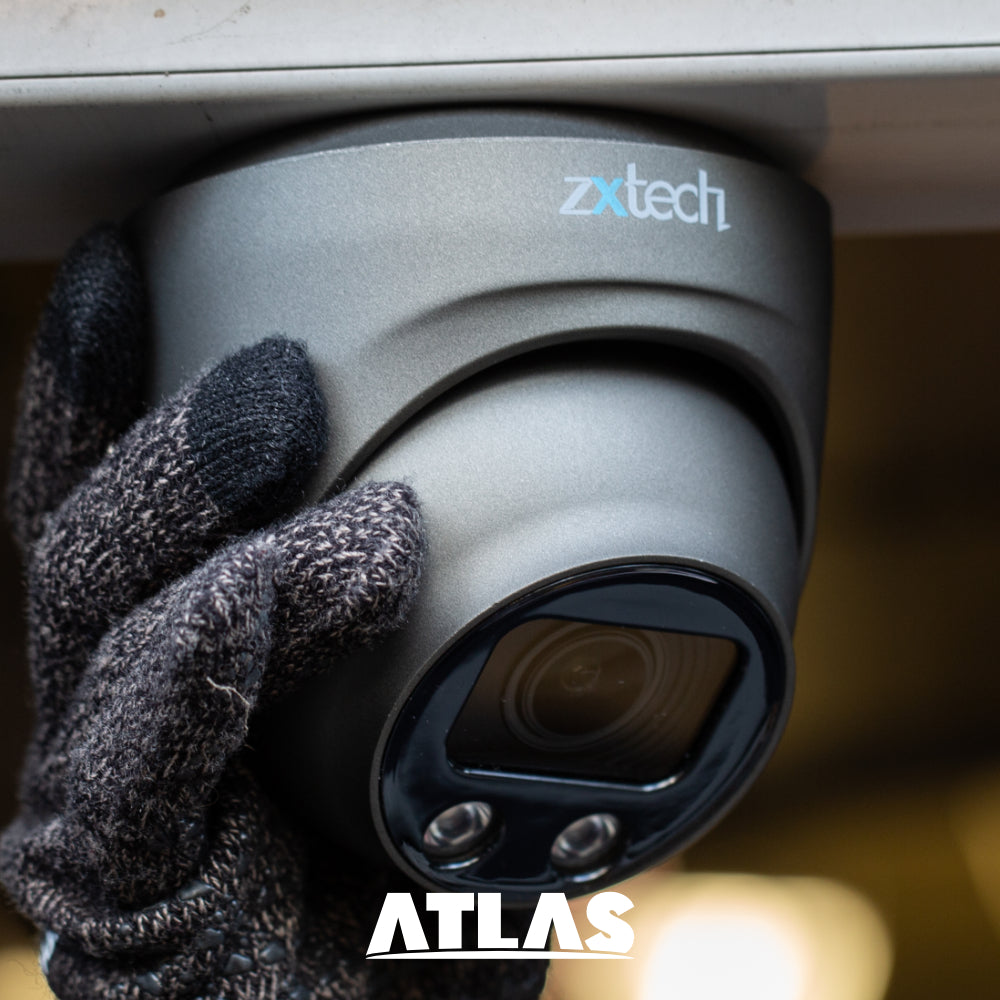

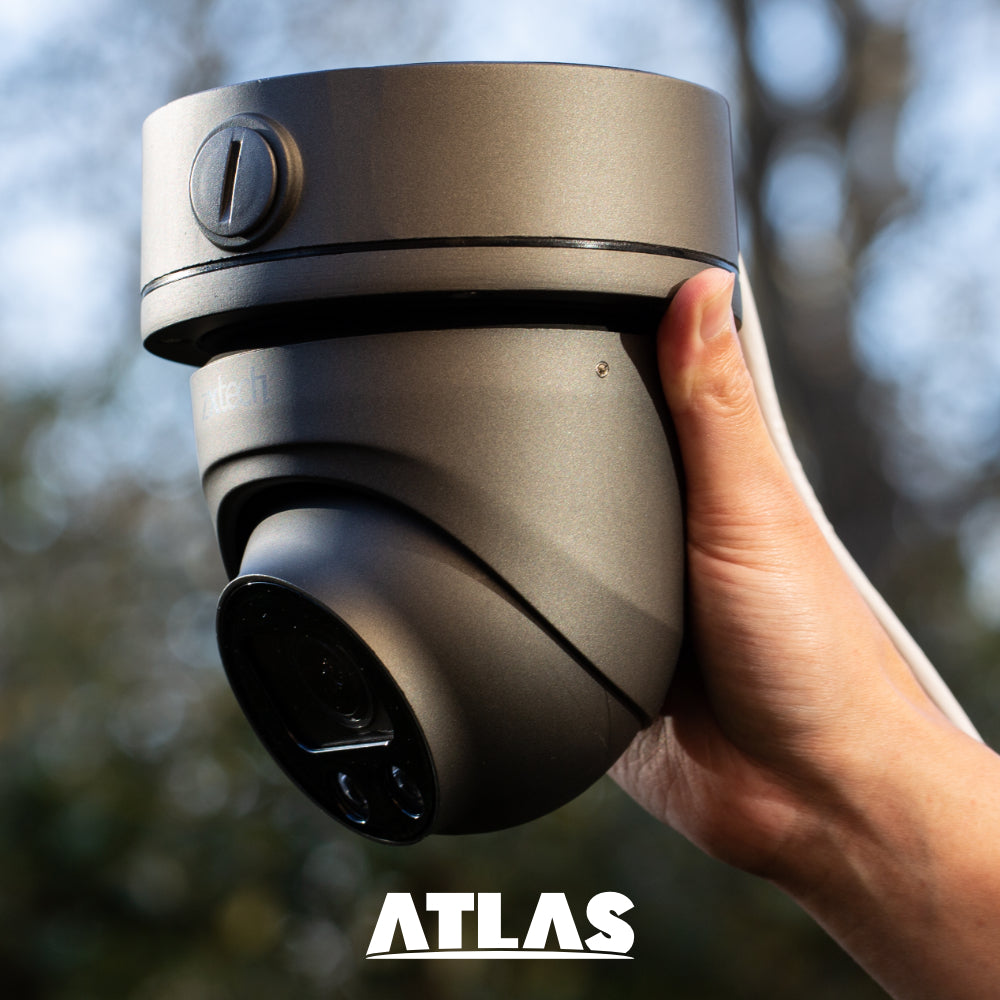

Every PoE camera in the system features a robust metal casing designed to enhance durability against vandalism. The metal body also boosts weather resistance and extends the lifespan of the cameras. The metal casing of each PoE camera in the system is specifically designed to provide exceptional durability against vandalism. This robust construction ensures that the cameras can withstand even the most determined attempts at tampering or damage.
Home, Office, Shop or Car Park
The PoE cameras are designed with British weather in mind. Whether you operate an AirBNB in Inverness, Scotland, manage a car park in Swansea, Wales, or live in a terraced house in London, this complete system can withstand all types of rainy and snowy conditions with its IP67 rating.
Watch Live Stream Now
Ultra Wide Angle
The 2.7-13.5mm lens, combined with the 1/2.8" industry-leading Sony Starvis sensor, captures an ultra-wide 128° angle. With the 4K lens, both detail and coverage are exceptional.

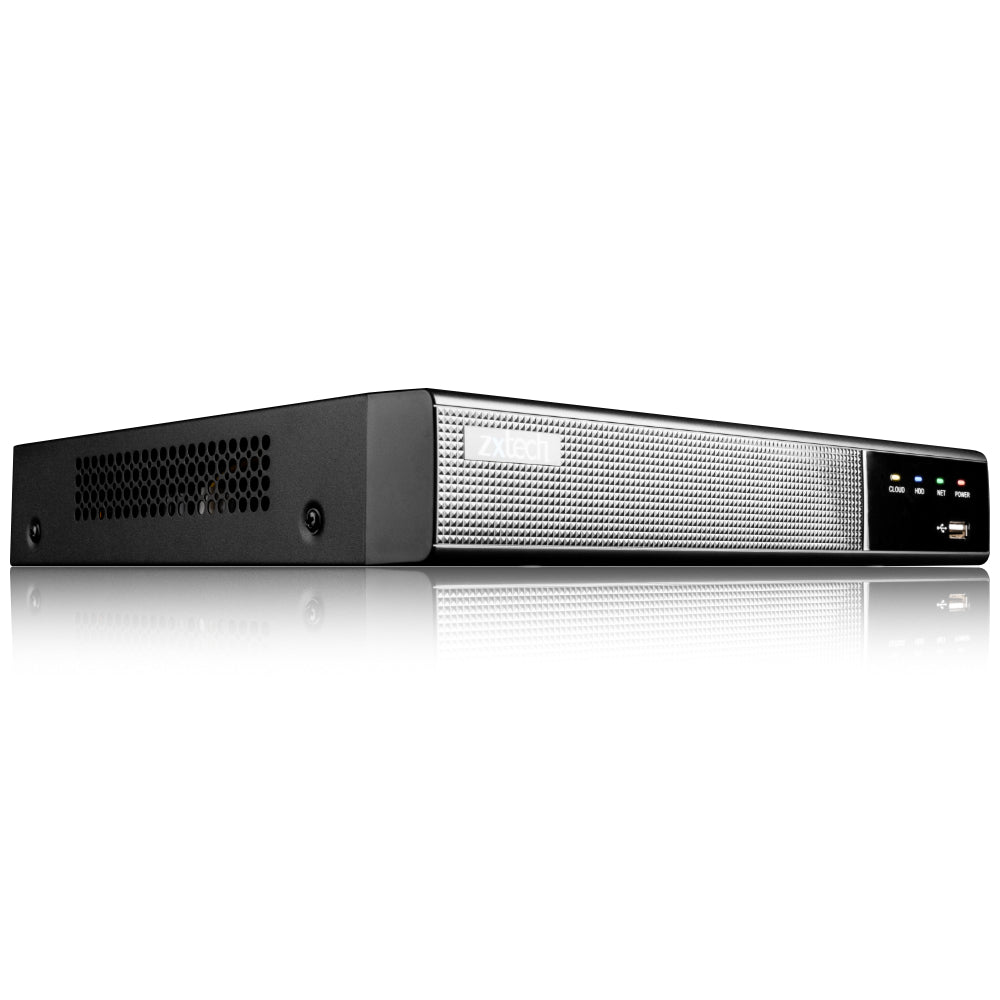

8 Channel PoE NVR: Install Your Camera with Just One Cable
Say goodbye to messy cables and complicated installations. Our Power over Ethernet system allows you to transmit both video and power through a single network cable. By eliminating the need for separate power adaptors and splitters, you can enjoy a hassle-free installation process that is both time-saving and cost-effective.
See All PoE Cameras
Camera Onboard Memory
4GB Built-in & 512GB Optional SD Card
Every PoE camera boasts a 4GB built-in memory and an SD Card slot supporting up to 512GB. This provides reliable backup storage for snapshots and ensures uninterrupted security. Activate in-camera recording to securely back up your footage offline using an SD card.
See All SD Card Cameras
Size Matters
Prepare for installation by planning ahead. Use the given dimensions and specs to determine the right site. A thorough prep ensures a flawless fit and peak performance. Remember: measure twice, install once.
Less Drilling, Max Protection
Optional Bracket for Neat Installation
This system offers the option to add an extra bracket, eliminating the need to drill large holes through the wall to hide cables. The weatherproof bracket or spacer ensures protection for your connections, enhancing the longevity of the system.
CCTV Kits enhanced by AI Technology
4K CCTV System with Ultra Smart Motion Detection and Notification
Alert with Regional Intrusion and Line Crossing.
4K CCTV System with Smart Humanoid Detection
Introducing Zxtech's advanced CCTV kits, equipped with cutting-edge AI face detection capabilities. Beyond the standard features like Motion Detection, Mobile Alerts, Masking, and Scheduling, our cameras redefine security with their power AI functions. Ensure unparalleled safety by receiving alerts or activating recordings when someone enters or crosses a predefined zone. With Zxtech, experience next-generation CCTV that proactively aids in crime prevention. Elevate your security with the future of surveillance technology.

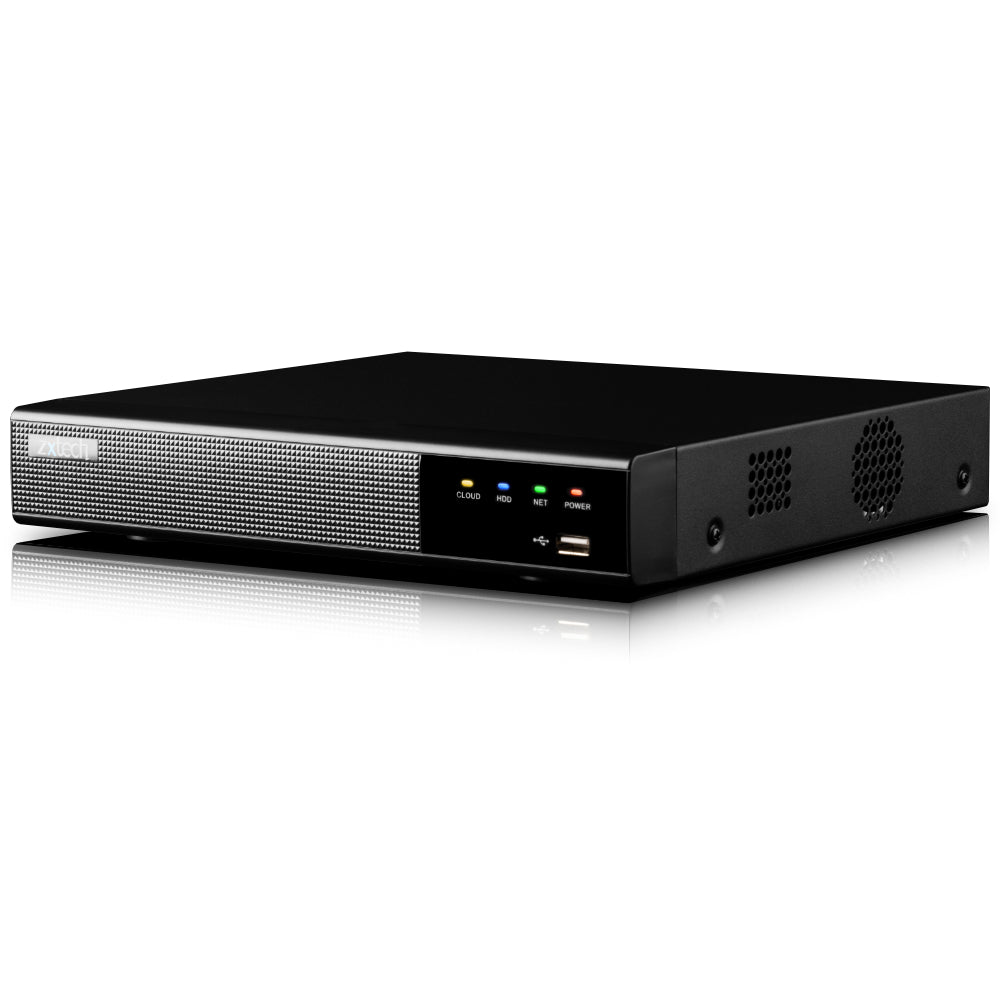

The Best System Comes with The Best 4K CCTV Recorder
With Loop Recording
8TB Storage Option for "Marathon" Recording
The advanced PoE CCTV system provides an impressive storage capacity which comes with 1x HDD bay with total storage 8TB. Combined with H265+ compression technology, your recordings will use far less storage space, allowing the hard drive to accommodate up to 4 times more footage compared to the older H264 format. Additionally, the automatic loop recording ensures the oldest clips are overwritten, so you always retain the most critical evidence.
Explore HDD
Maximize Performance, Minimize Bandwidth
H.265+: Revolution in Video Coding
Welcome to the era of H.265+ High-Efficiency Video Coding. Experience a significant reduction in hard drive storage and transmission costs. With this groundbreaking system, video storage space is slashed by 40 to 50%, presenting undeniable cost savings for both homeowners and businesses. With H.265+, your recording duration expands to up to 4 times longer than h.264 on an identical hard drive. Elevate your efficiency without compromising quality.
Complete PoE System Enhanced by the Latest Technology
H265+, Free App, Scan and Ready, No Monthly Fee
Zxtech introduces its state-of-the-art firmware for 4K NVR CCTV systems. Boasting a user-friendly interface enriched with advanced features like Face Recognition, Intrusion Detection, and more, this next-gen firmware ensures a superior user experience. With its smart AI system and real-time HDD monitoring, it guarantees both safety and reliability. Dive into a seamless experience with Zxtech's latest 4K NVR software recorders.
Mac, PC, Smart Phone, TV
Access on Any Device, Any Time
PC, Mac
Download the latest version of the iVMS software for your PC or Mac. This allows you to remotely monitor and review footage from your CCTV system, ensuring you stay connected wherever you are, anytime you need.
2 Screen TV Setup

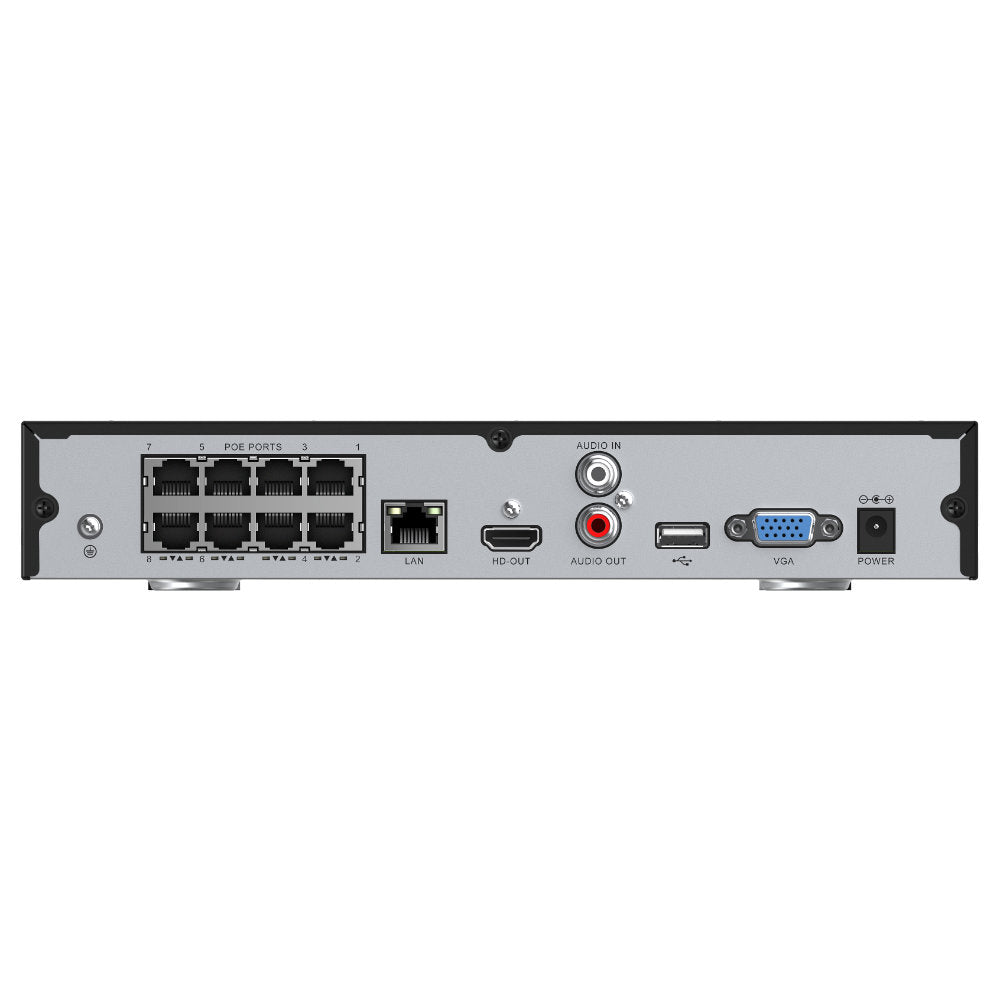

The NVR included with the system boasts both HDMI and VGA ports on the back, enabling simultaneous connection to two external monitors or TVs. For instance, with a sufficiently long cable, you can have one display in the kitchen and another in the living room.
Smart Phone
In today's world, smartphones are indispensable, and so should your CCTV system be. Download the latest BitVision app to monitor, view, playback, and share your CCTV footage anytime, anywhere.
Technical Details
Camera Spec
| Image Sensor | 1/2.8"" SONY Starvis Back-illuminated CMOS sensor |
| Resolution | 5MP (optional 8MP) |
| Effective Pixels | 2616 (H) x 1964 (V) (optional 3864(H)*2192(V)) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| Minimun Illumination | 0.01Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Support |
| Focus Length | 2.7-13.5mm |
| Focus Control | Auto |
| Lens Type | Auto |
| Pixels | 8MP (optional 5MP) |
| Infrared LED | 42µ x 2PCS |
| Intense LED option | 4545U × 2 Warm light LED up to 60M |
| Infrared Distance | 30M |
| IR Status | Auto Control |
| IR Power On | Auto Control |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4(Profile S/T) |
| P2P | YES, Support QR Code |
| PoE | Internal, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2592*1944@30fp (optional 2048*1536@30fps) |
| Intelligent Analysis | Intrusion Detetion, Line Cross Detetion, Loiter Detetion, People Gather Detecion |
| Recognition | Face Detection and Recognition Number of faces per frame: 32 Capture rate: >99.5% Repeat capture rate: <15% False capture rate: <0.5% Number of supported faces: 30,000 Minimum detection of face pixels: 25*25 Maximum detection of face pixels: 300*300 |
| Day/Night | Color/ B&W (Select Intense LED for 24/7 Colour) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering |
| Defog Mode, ROI, BLC | Support |
| WDR | HDR:120dB |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Audio | Support |
| Alarm | 1 Channel Input/Output |
| SD Card Slot | External, Support Max 512GB,With 4G Storage |
| Audio | Extendable Audio Input/Output |
| Housing | IP67 |
| Dimension | 115 x 113(H) mm |
4-PoE NVR Spec
| Model | MN403PN |
| System | |
| Main Processor | ARM Cortex A7 Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
| Output | 1 VGA, 1 HD |
| Audio | |
| Input | 1 Port RCA, support 9CH IPC audio input |
| Output | 1 Port RCA(Linear, 1kΩ), HD output |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
| Intercom | support (two-way) |
| Alarm | |
| Sensor Input | 4CH |
| Output | 1CH |
| Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
| Display | |
| HD Output1 | 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768 |
| HD Output2 | N/A |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 9CH/8CH/6CH/4CH/1CH |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Recording | |
| Video Compression | H265/H264/H265+/H264+ |
| Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) |
| Record Rate | PAL :4K@8CHx25fps,5MP@9CH×25fp,4MP@9CHx25fp,3MP@9CH×25fp,1080P@9CH×25fp, 960P@9CH×25fp,720P@9CH×25fp, D1@9CH×25fp NTSC: 4K@8CHx30fps,5MP@9CH×30fp,4MP@9CH×30fp,3MP@9CH×30fp,1080P@9CH×30fp, 960P@9CH×30fp, 720P@9CH×30fp, D1@9CH×30fp |
| Record Mode | Manual\Timer\Motion Detection\ Alarm\Smart Event |
| Playback & Backup | |
| Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps,6CH 960P@30fps, 8CH 720P@30fps,9CH D1@30fps |
| Decode Capability | 4CH 1080P(1920x1080)@30fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Timing Video, Motion Detection, Alarm,Tag search,Smart Event,Pictrue,Log |
| Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1xRJ45 10M/100MAdaptive Ethernet Interface |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 80Mbps |
| Network Functions | IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE |
| Onvif | Profile S, Profile G, Profile T |
| Web Browser | Edge,IE8-11, Google Chrome , Firefox ,Safari |
| CMS Software | Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS |
| Cloud Support | Yes |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | 4 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 50W, Support Plug and Play, Support network cable extended mode Max. 200M |
| WIFI | N/A |
| Storage | |
| Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
| Capacity | Up to 8TB capacity |
| eSATA | N/A |
| General | |
| Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese，Ukrainian, Polski,Dutch, Greek, Czech, Arabic |
| USB Interface | 2 USB 2.0 Interfaces |
| RS485 | N/A |
| Power consumption | DC48V∕1360mA ≤10W (Without Hard Disk and POE) |
| Working Environment | -10℃～50℃, 10%～90%(humidity) |
| Dimension(W×D×H) | 260*230*43(mm) |
| Weight | 2kg(without HDD) |
8-PoE NVR Spec
| Model | MN903PN |
| System | |
| Main Processor | ARM Cortex A7 Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 16CH(3840 × 2160, 2592 × 1944, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, etc) |
| Output | 1 VGA, 1 HD |
| Audio | |
| Input | 1 Port RCA, support 16CH IPC audio input |
| Output | 1 Port RCA (Linear, 1kΩ), HD output |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
| Intercom | support (two-way) |
| Alarm | |
| Sensor Input | 4CH |
| Output | 1CH |
| Motion Detection | 16Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
| Display | |
| HD Output1 | 4K(3840 × 2160), 2K(2560 × 1440), 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| HD Output2 | N/A |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 16CH, 13CH, 10CH, 9CH, 8CH, 6CH, 4CH, 1CH |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Recording | |
| Video Compression | H265/H264/H265+/H264+ |
| Resolution | 4K(3840 × 2160), 5MP(2592 × 1944), 4MP(2688 × 1520 / 2560 × 1440),3MP(2048 × 1536),1080P(1920 × 1080),960P(1280 × 960),720P(1280 × 720), D1 (720 × 576/720 × 480) |
| Record Rate | PAL: 4K@10CH
× 25fps,5MP@16CH
× 25fp, 4MP@16CH
× 25fp, 3MP@16CH
× 25fp, 1080P@16CH
× 25fp, 960P@16CH
× 25fp, 720P@16CH
× 25fp, D1@16CH
× 25fp NTSC: 4K@10CH × 30fps, 5MP@16CH × 30fp, 4MP@16CH × 30fp,3MP@16CH × 30fp, 1080P@16CH × 30fp, 960P@16CH × 30fp, 720P@16CH × 30fp, D1@16CH × 30fp |
| Record Mode | Manual, Timer, Motion Detection, Alarm, Smart Event |
| Playback & Backup | |
| Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps, 2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps |
| Decode Capability | 4CH 1080P(1920 × 1080)@30fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Timing Video, Motion Detection, Alarm,Tag search, Smart Event, Pictrue, Log |
| Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
| Backup Mode | USB Device, Network |
| Network | |
| Interface | 1xRJ45 10M/100/1000M Adaptive Ethernet Interface |
| Incoming Bandwidth | 120Mbps |
| Outgoing Bandwidth | 120Mbps |
| Network Functions | IPv6,TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPOE |
| Onvif | Profile S, Profile G, Profile T |
| Web Browser | Edge,IE8-11, Google Chrome, Firefox, Safari |
| CMS Software | Support Windows 7, Windows 8, Windows 10, Windows 11, MAC OS |
| Cloud Support | Yes |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | 8 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 96W, Support Plug and Play, Support network cable extended mode Max. 200M |
| WIFI | N/A |
| Storage | |
| Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
| Capacity | Up to 8TB capacity |
| eSATA | N/A |
| General | |
| Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Japanese, Ukrainian, Polski, Dutch, Greek, Czech, Arabic |
| USB Interface | 2 USB 2.0 Interfaces |
| RS485 | N/A |
| Power consumption | DC48V∕2500mA ≤ 10W(Without Hard Disk and POE) |
| Working Environment | -10℃～50℃, 10%～90%(humidity) |
| Dimension(W×D×H) | 260 × 230 × 43(mm) |
| Weight | 2kg(without HDD) |
16-PoE NVR Spec
| Model | MN6P3C2H |
| System | |
| Main Processor | Quad Cortex A53 |
| Operating System | Embedded LINUX |
| Video | |
| Input |
32CH(4000*3000, 3840*2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
| Output | 1*HD,1*VGA |
| Audio | |
| Input | 1 Port RCA, support 32CH IPC audio input |
| Output | 1 Port RCA(Linear, 1kΩ), HD output |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711U, G711A, AAC |
| Intercom | support (two-way) |
| Alarm | |
| Sensor Input | 4CH |
| Output | 1CH |
| Motion Detection | 32Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
| Display | |
| HD Output1 | 4K(3840*2160), 2K(2560*1440), 1920*1080, 1280*1024, 1280*720, 1024*768 |
| HD Output2 | N/A |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 36CH, 25CH, 17CH, 16CH, 13CH, 10CH, 9CH ,8CH, 6CH, 4CH, 1CH |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Recording | |
| Video Compression | H265/H264/H265+/H264+ |
| Resolution | 12MP(4000*3000), 8MP(3840×2160), 5MP(2592×1944), 4MP(2688×1520/2560×1440), 3MP(2048×1536), 1080P(1920×1080), 960P(1280x960), 720P(1280×720), D1 (720×576/720×480) |
| Record Rate | PAL: 12MP@32CHx25fps, 8MP@32CHx25fps, 5MP@32CH×25fp, 4MP@32CHx25fp, 3MP@32CH×25fp,1080P@32CH×25fp, 960P@32CH×25fp, 720P@32CH×25fp, D1@32CH×25fp NTSC: 12MP@32CHx30fps, 8MP@32CHx30fps, 5MP@32×30fp, 4MP@32CH×30fp, 3MP@32CH×30fp, 1080P@32CH×30fp, 960P@32CH×30fp, 720P@32CH×30fp, D1@32CH×30fp |
| Record Mode | Manual, Timer, Motion Detection, Alarm, Smart Event |
| Playback & Backup | |
| Local Sync Playback | 3CH 12MP@30fps, 4CH 8MP@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps, 16CH D1@30fps |
| Decode Capability | 1080P(1920x1080)@480fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Timing Video, Motion Detection, Alarm, Tag search, Smart Event, Pictrue, Log |
| Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1xRJ45 10M/100/1000M Adaptive Ethernet Interface |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 256Mbps |
| Network Functions | IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE |
| Onvif | Profile S, Profile G, Profile T |
| Web Browser | Edge, IE8-11, Google Chrome, Firefox, Safari |
| CMS Software | Support Windows 7, Windows 8, Windows 10, Windows 11, MAC OS |
| Cloud Support | Yes |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | 16 x Independent 100Mbps POE Network Interfaces (Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 200W, Support Plug and Play, Support network cable extended mode Max. 200M |
| WIFI | N/A |
| Storage | |
| Interface Type | 2 SATA Hard Disk Interface (3.5" SATA) |
| Capacity | Up to 10 TB capacity for each HDD |
| eSATA | N/A |
| General | |
| Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese, Ukrainian, Polski, Dutch, Greek, Czech, Arabic |
| USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| RS485 | N/A |
| Power consumption | 100-240VAC, 50/60Hz ≤15W (Without Hard Disk and POE) |
| Working Environment | -10℃～50℃, 10%～90% (humidity) |
| Dimension(W×D×H) | 380 x 316 x 51mm |
| Weight | 3.48≤ kg (without HDD) |
| Image Sensor | 1/2.8"" SONY Starvis Back-illuminated CMOS sensor |
| Resolution | 5MP (optional 8MP) |
| Effective Pixels | 2616 (H) x 1964 (V) (optional 3864(H)*2192(V)) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| Minimun Illumination | 0.01Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Support |
| Focus Length | 2.7-13.5mm |
| Focus Control | Auto |
| Lens Type | Auto |
| Pixels | 8MP (optional 5MP) |
| Infrared LED | 42µ x 2PCS |
| Intense LED option | 4545U × 2 Warm light LED up to 60M |
| Infrared Distance | 30M |
| IR Status | Auto Control |
| IR Power On | Auto Control |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4(Profile S/T) |
| P2P | YES, Support QR Code |
| PoE | Internal, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2592*1944@30fp (optional 2048*1536@30fps) |
| Intelligent Analysis | Intrusion Detetion, Line Cross Detetion, Loiter Detetion, People Gather Detecion |
| Recognition | Face Detection and Recognition Number of faces per frame: 32 Capture rate: >99.5% Repeat capture rate: <15% False capture rate: <0.5% Number of supported faces: 30,000 Minimum detection of face pixels: 25*25 Maximum detection of face pixels: 300*300 |
| Day/Night | Color/ B&W (Select Intense LED for 24/7 Colour) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering |
| Defog Mode, ROI, BLC | Support |
| WDR | HDR:120dB |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Audio | Support |
| Alarm | 1 Channel Input/Output |
| SD Card Slot | External, Support Max 512GB,With 4G Storage |
| Audio | Extendable Audio Input/Output |
| Housing | IP67 |
| Dimension | 115 x 113(H) mm |
| Model | MN403PN |
| System | |
| Main Processor | ARM Cortex A7 Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
| Output | 1 VGA, 1 HD |
| Audio | |
| Input | 1 Port RCA, support 9CH IPC audio input |
| Output | 1 Port RCA(Linear, 1kΩ), HD output |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
| Intercom | support (two-way) |
| Alarm | |
| Sensor Input | 4CH |
| Output | 1CH |
| Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
| Display | |
| HD Output1 | 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768 |
| HD Output2 | N/A |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 9CH/8CH/6CH/4CH/1CH |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Recording | |
| Video Compression | H265/H264/H265+/H264+ |
| Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) |
| Record Rate | PAL :4K@8CHx25fps,5MP@9CH×25fp,4MP@9CHx25fp,3MP@9CH×25fp,1080P@9CH×25fp, 960P@9CH×25fp,720P@9CH×25fp, D1@9CH×25fp NTSC: 4K@8CHx30fps,5MP@9CH×30fp,4MP@9CH×30fp,3MP@9CH×30fp,1080P@9CH×30fp, 960P@9CH×30fp, 720P@9CH×30fp, D1@9CH×30fp |
| Record Mode | Manual\Timer\Motion Detection\ Alarm\Smart Event |
| Playback & Backup | |
| Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps,6CH 960P@30fps, 8CH 720P@30fps,9CH D1@30fps |
| Decode Capability | 4CH 1080P(1920x1080)@30fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Timing Video, Motion Detection, Alarm,Tag search,Smart Event,Pictrue,Log |
| Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1xRJ45 10M/100MAdaptive Ethernet Interface |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 80Mbps |
| Network Functions | IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE |
| Onvif | Profile S, Profile G, Profile T |
| Web Browser | Edge,IE8-11, Google Chrome , Firefox ,Safari |
| CMS Software | Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS |
| Cloud Support | Yes |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | 4 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 50W, Support Plug and Play, Support network cable extended mode Max. 200M |
| WIFI | N/A |
| Storage | |
| Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
| Capacity | Up to 8TB capacity |
| eSATA | N/A |
| General | |
| Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese，Ukrainian, Polski,Dutch, Greek, Czech, Arabic |
| USB Interface | 2 USB 2.0 Interfaces |
| RS485 | N/A |
| Power consumption | DC48V∕1360mA ≤10W (Without Hard Disk and POE) |
| Working Environment | -10℃～50℃, 10%～90%(humidity) |
| Dimension(W×D×H) | 260*230*43(mm) |
| Weight | 2kg(without HDD) |
| Model | MN903PN |
| System | |
| Main Processor | ARM Cortex A7 Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 16CH(3840 × 2160, 2592 × 1944, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, etc) |
| Output | 1 VGA, 1 HD |
| Audio | |
| Input | 1 Port RCA, support 16CH IPC audio input |
| Output | 1 Port RCA (Linear, 1kΩ), HD output |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
| Intercom | support (two-way) |
| Alarm | |
| Sensor Input | 4CH |
| Output | 1CH |
| Motion Detection | 16Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
| Display | |
| HD Output1 | 4K(3840 × 2160), 2K(2560 × 1440), 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| HD Output2 | N/A |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 16CH, 13CH, 10CH, 9CH, 8CH, 6CH, 4CH, 1CH |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Recording | |
| Video Compression | H265/H264/H265+/H264+ |
| Resolution | 4K(3840 × 2160), 5MP(2592 × 1944), 4MP(2688 × 1520 / 2560 × 1440),3MP(2048 × 1536),1080P(1920 × 1080),960P(1280 × 960),720P(1280 × 720), D1 (720 × 576/720 × 480) |
| Record Rate | PAL: 4K@10CH
× 25fps,5MP@16CH
× 25fp, 4MP@16CH
× 25fp, 3MP@16CH
× 25fp, 1080P@16CH
× 25fp, 960P@16CH
× 25fp, 720P@16CH
× 25fp, D1@16CH
× 25fp NTSC: 4K@10CH × 30fps, 5MP@16CH × 30fp, 4MP@16CH × 30fp,3MP@16CH × 30fp, 1080P@16CH × 30fp, 960P@16CH × 30fp, 720P@16CH × 30fp, D1@16CH × 30fp |
| Record Mode | Manual, Timer, Motion Detection, Alarm, Smart Event |
| Playback & Backup | |
| Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps, 2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps |
| Decode Capability | 4CH 1080P(1920 × 1080)@30fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Timing Video, Motion Detection, Alarm,Tag search, Smart Event, Pictrue, Log |
| Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
| Backup Mode | USB Device, Network |
| Network | |
| Interface | 1xRJ45 10M/100/1000M Adaptive Ethernet Interface |
| Incoming Bandwidth | 120Mbps |
| Outgoing Bandwidth | 120Mbps |
| Network Functions | IPv6,TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPOE |
| Onvif | Profile S, Profile G, Profile T |
| Web Browser | Edge,IE8-11, Google Chrome, Firefox, Safari |
| CMS Software | Support Windows 7, Windows 8, Windows 10, Windows 11, MAC OS |
| Cloud Support | Yes |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | 8 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 96W, Support Plug and Play, Support network cable extended mode Max. 200M |
| WIFI | N/A |
| Storage | |
| Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
| Capacity | Up to 8TB capacity |
| eSATA | N/A |
| General | |
| Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Japanese, Ukrainian, Polski, Dutch, Greek, Czech, Arabic |
| USB Interface | 2 USB 2.0 Interfaces |
| RS485 | N/A |
| Power consumption | DC48V∕2500mA ≤ 10W(Without Hard Disk and POE) |
| Working Environment | -10℃～50℃, 10%～90%(humidity) |
| Dimension(W×D×H) | 260 × 230 × 43(mm) |
| Weight | 2kg(without HDD) |
| Model | MN6P3C2H |
| System | |
| Main Processor | Quad Cortex A53 |
| Operating System | Embedded LINUX |
| Video | |
| Input |
32CH(4000*3000, 3840*2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
| Output | 1*HD,1*VGA |
| Audio | |
| Input | 1 Port RCA, support 32CH IPC audio input |
| Output | 1 Port RCA(Linear, 1kΩ), HD output |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711U, G711A, AAC |
| Intercom | support (two-way) |
| Alarm | |
| Sensor Input | 4CH |
| Output | 1CH |
| Motion Detection | 32Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
| Display | |
| HD Output1 | 4K(3840*2160), 2K(2560*1440), 1920*1080, 1280*1024, 1280*720, 1024*768 |
| HD Output2 | N/A |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 36CH, 25CH, 17CH, 16CH, 13CH, 10CH, 9CH ,8CH, 6CH, 4CH, 1CH |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Recording | |
| Video Compression | H265/H264/H265+/H264+ |
| Resolution | 12MP(4000*3000), 8MP(3840×2160), 5MP(2592×1944), 4MP(2688×1520/2560×1440), 3MP(2048×1536), 1080P(1920×1080), 960P(1280x960), 720P(1280×720), D1 (720×576/720×480) |
| Record Rate | PAL: 12MP@32CHx25fps, 8MP@32CHx25fps, 5MP@32CH×25fp, 4MP@32CHx25fp, 3MP@32CH×25fp,1080P@32CH×25fp, 960P@32CH×25fp, 720P@32CH×25fp, D1@32CH×25fp NTSC: 12MP@32CHx30fps, 8MP@32CHx30fps, 5MP@32×30fp, 4MP@32CH×30fp, 3MP@32CH×30fp, 1080P@32CH×30fp, 960P@32CH×30fp, 720P@32CH×30fp, D1@32CH×30fp |
| Record Mode | Manual, Timer, Motion Detection, Alarm, Smart Event |
| Playback & Backup | |
| Local Sync Playback | 3CH 12MP@30fps, 4CH 8MP@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps, 16CH D1@30fps |
| Decode Capability | 1080P(1920x1080)@480fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Timing Video, Motion Detection, Alarm, Tag search, Smart Event, Pictrue, Log |
| Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1xRJ45 10M/100/1000M Adaptive Ethernet Interface |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 256Mbps |
| Network Functions | IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE |
| Onvif | Profile S, Profile G, Profile T |
| Web Browser | Edge, IE8-11, Google Chrome, Firefox, Safari |
| CMS Software | Support Windows 7, Windows 8, Windows 10, Windows 11, MAC OS |
| Cloud Support | Yes |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | 16 x Independent 100Mbps POE Network Interfaces (Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 200W, Support Plug and Play, Support network cable extended mode Max. 200M |
| WIFI | N/A |
| Storage | |
| Interface Type | 2 SATA Hard Disk Interface (3.5" SATA) |
| Capacity | Up to 10 TB capacity for each HDD |
| eSATA | N/A |
| General | |
| Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese, Ukrainian, Polski, Dutch, Greek, Czech, Arabic |
| USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| RS485 | N/A |
| Power consumption | 100-240VAC, 50/60Hz ≤15W (Without Hard Disk and POE) |
| Working Environment | -10℃～50℃, 10%～90% (humidity) |
| Dimension(W×D×H) | 380 x 316 x 51mm |
| Weight | 3.48≤ kg (without HDD) |
Discover everyday privacy protections.
Privacy is Our Priority.
Privacy is a fundamental human right. At Domar CCTV, it is also one of our core values. Your devices are important to your safety. We sell our products to protect your privacy and give you control over your information. It's not always easy, but those are the principles we believe in.
Face Detection Data
Our cameras come with smart face detection features. Face detection data exist only on your device and can be deleted at any time. It does not go anywhere else. Face detection features can be turned off at any time.
Video Footage
Your security footage is protected by your password and cannot be accessed without it. Once you have changed the default password of the device, only manufacturer can reset it, after confirmation of purchase and identity.
Audio Data
Audio recording can be turned on and off if the camera is equipped with a microphone. It cannot be accessed without your password.
App Access
One device can link up with a single mobile app account. However, you may share it with another account and cease sharing at any time.
