ADAPTER TO POWER SUPPLY VIA TWISTED-PAIR CABLE

SKU: MK8NPSN
ADAPTER TO POWER SUPPLY VIA TWISTED-PAIR CABLE
ADAPTER TO POWER SUPPLY VIA TWISTED-PAIR CABLE

ADAPTER TO POWER SUPPLY VIA TWISTED-PAIR CABLE

SKU: MK8NPSN
Regular price £20.32
/
  • UK next business day delivery
  • UK VAT invoices included
  • 30 days hassle free returns
  • Secure payments
  • Low stock - 6 items left
  • Inventory on the way
Tax included. Shipping calculated at checkout.

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Passive Power over Ethernet (PoE) adapter allows to power
LAN devices through typical 4-pair twisted-pair cable (eg UTP).
This solution enables Access Point powering, which is placed in
the hermetic box just by the antenna (to lower the loss in the RF
cable), via twisted-pair cable from a power source located inside
a building.
The devices without the possibility of powering through the
Ethernet.

Product Overview

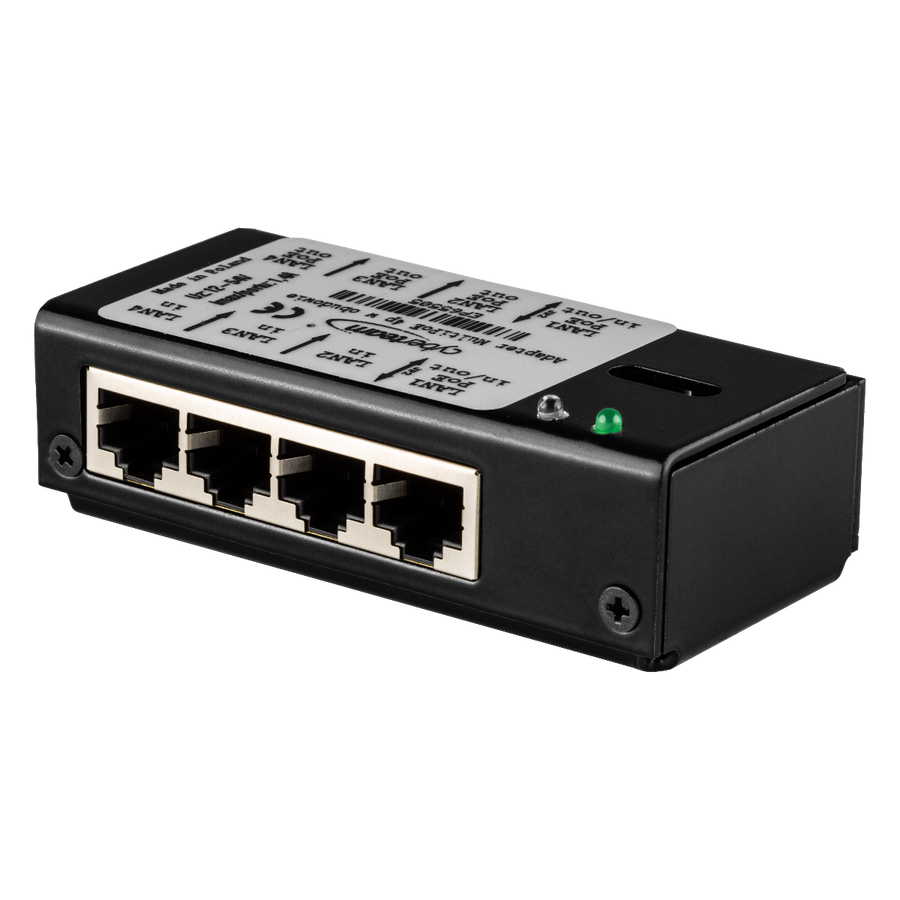

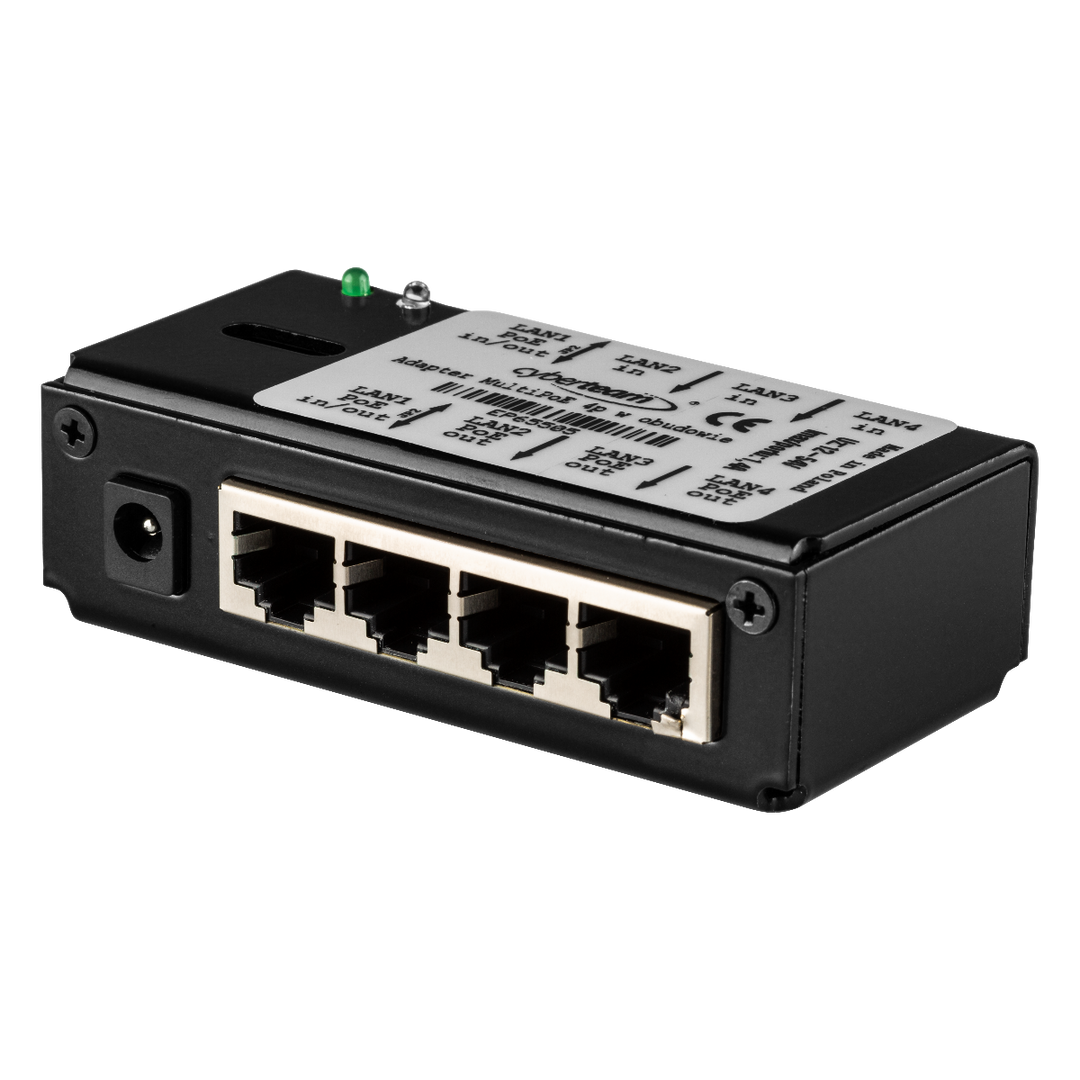

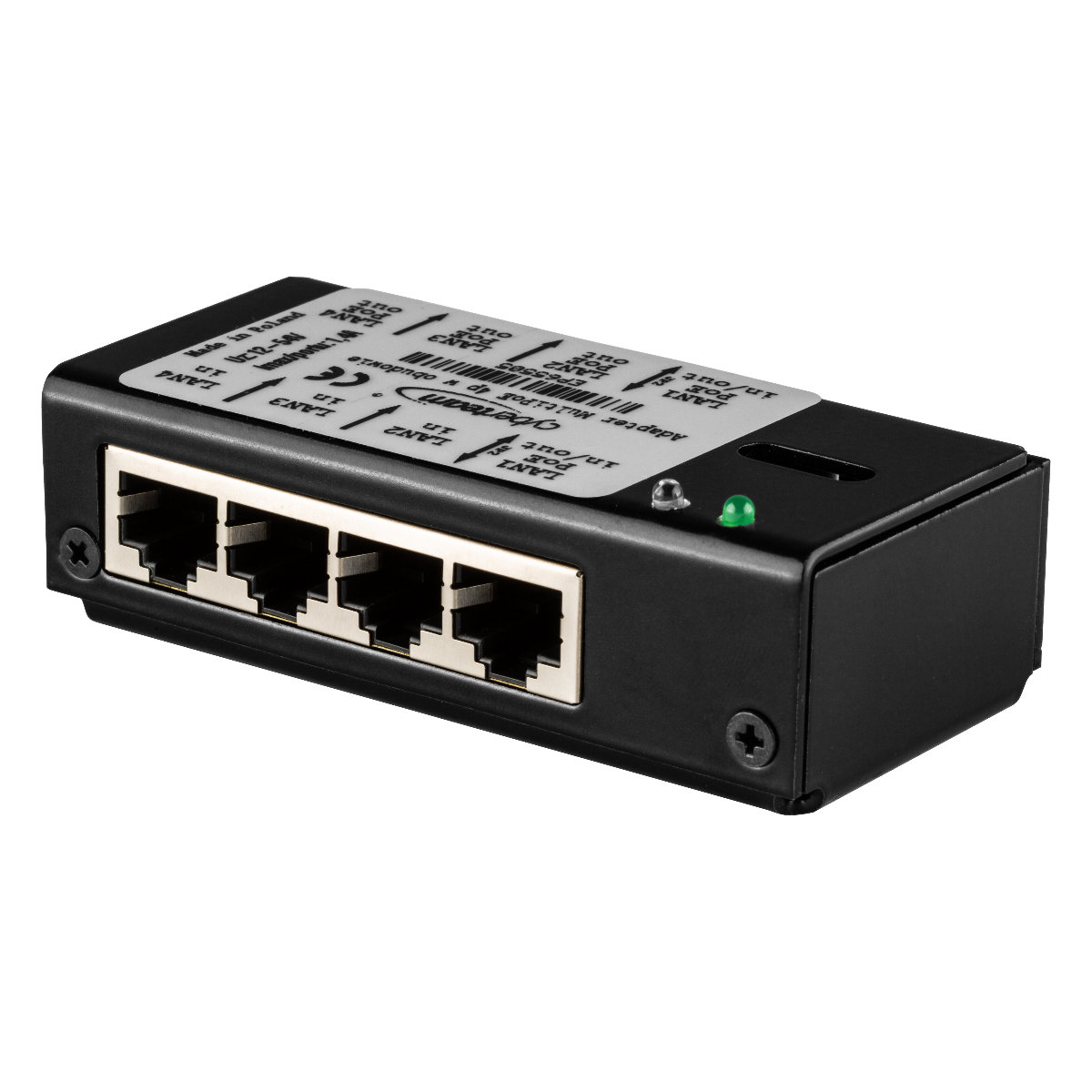

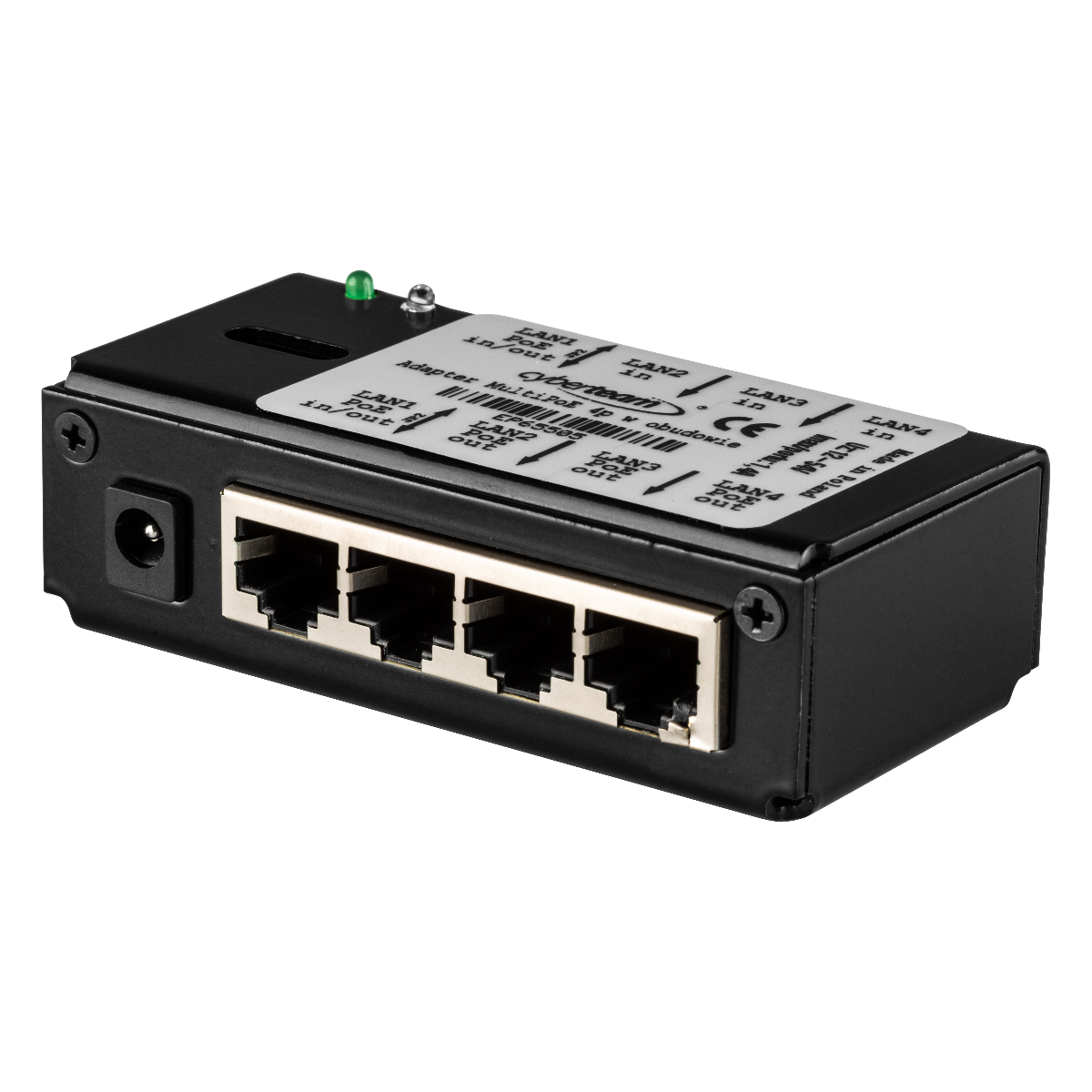

The POE-UNI/4 adapter is a device, which enables an easy way to power up to 4 devices using twisted-pair cable.
The device is perfect to work with buffered power adapters, is equipped with DC power socket and PoE socket (power source selection by jumpers configuration).

What's in the box

  • ADAPTER TO POWER SUPPLY VIA TWISTED-PAIR CABLE POE-UNI/4
  • 1 Year Warranty

Tech Specs

  • Output power: max. 24 W
  • Number of inputs: 1 pcs RJ-45
  • Input voltage: max. 48 V DC
  • Output voltage: max. 48 V DC
  • LED indicators: plug the power source to thr PoE adapter
  • Main features:
    Pin numbers for RJ-45 connector - 1/2, 3/6 Wires to data transmission; 4/5, 7/8 Wires to power voltage transmission
  • Housing: Plastic
  • Operation temp. / Relative humidity: -40 °C ... 70 °C / 10 % ... 80 %M
  • Weight: 0.02 kg
  • Dimensions: 59 x 28 x 21 mm

Orders are shipped through the DPD next business day delivery service, or an alternative service you specified during your purchase. Orders placed after 3 pm will be shipped the following business day.
