The Polymer Fused 12V DC Power Supply Distributor is ideal for connecting 5.5/2.1mm 12V power adaptor with pre-made RG59 CCTV cable, also devices can be connected in parallel on the same terminal. Professional solution for distributing power to cameras this distributor is an unquestionable advantage of employing the splitter in monitoring CCTV systems, powered from a central point is additional protection against intentional attempts to break down the system. Without such individual protection of every power line, the intruder could stop powering the whole system just by short-circuiting the supply of a single camera. The product comes with a 12 months warranty and 14 days money-back guarantee.

Highlights

• Ideal for connecting 5.5/2.1mm 12V power adaptor with premade CCTV cable
• Devices can be connected in parallel on the same terminal
• Professional solution for distributing power to cameras
• An unquestionable advantage of employing the splitter in monitoring systems powered from a central point is additional protection against intentional attempts to break down the system.
• Without such individual protection of every power line, the intruder could stop powering of the whole system just by short circuiting the supplying of a single camera.

What's in the Box

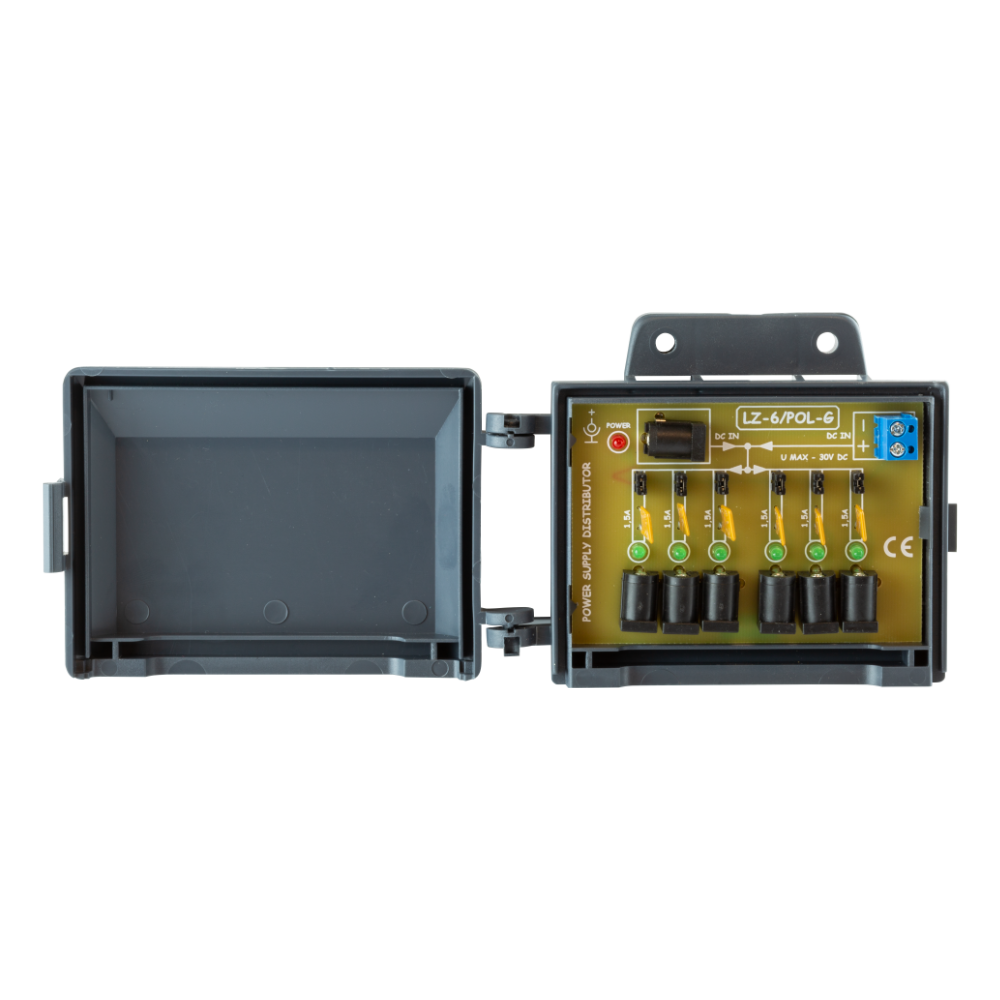

• CCTV Power Splitter Distributor as on the picture

Tech Specs

• Number of power inputs: 2
• Number of power outputs: 6
• Max. total current: 4A
• Working temperature / relative humidity: -50 - +55C / <95%
• Dimensions / weight: 116x90x36mm / 86g
• Type of fuses: polymer
• Power input socket type: 2.1/5.5mm socket / terminals
• Power output socket type: 2.1/5.5mm sockets
• Operation temp. / Relative humidity: from -50deg C to +55deg C / < 95%
• Max. voltage: 0 - 24V (usually 12V) DC
• Dimensions (W x H x D) / Weight: 120 x 91 x 37 mm / 90 g
