- 5 MP Super HD
- 2592×1944
- Realtime 30 fps
- 140dB HDR

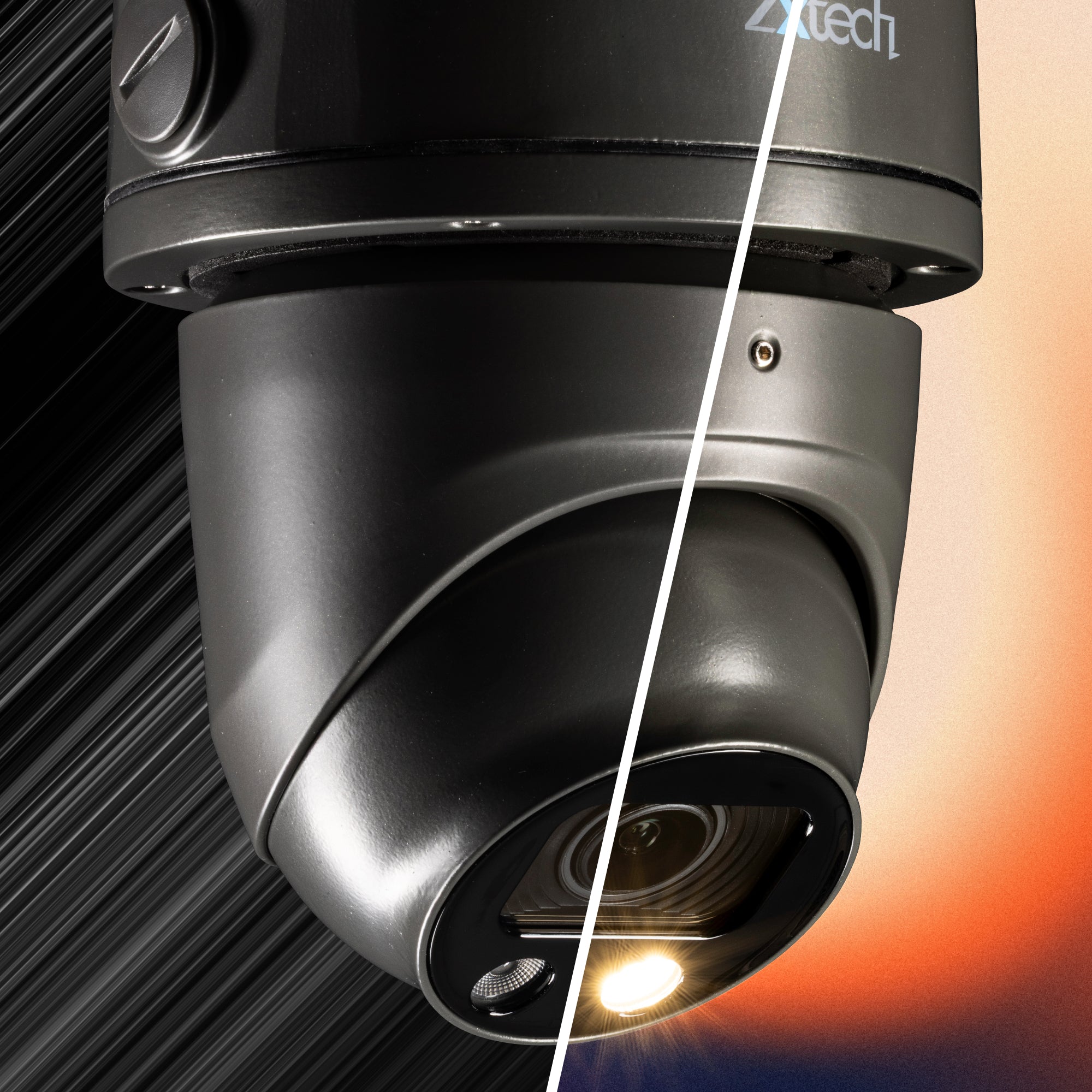

Zxtech 5MP Atlas 5× Auto Zoom PoE IP CCTV Camera with Audio | Pro Fusion Light
Next Business Day UK Delivery30-day returns, 12-month warranty. VAT invoice included
The Zxtech 5MP Atlas delivers breathtaking Ultra HD clarity, powered by an 5MP Sony Starvis sensor and Rockchip processor for professional-grade imaging day or night. Featuring Zxtech’s Fusion Light® AI, it starts in stealth no-glow infrared and, when enabled, intelligently switches to intense white LED for vivid full-colour night vision on motion. Its motorised 2.7–13.5mm lens offers 5× optical zoom and instant auto-focus, letting you adjust your view remotely via the app or PC with no need for ladders. With AI motion detection, face and vehicle recognition, audio recording, rugged IP67 anti-vandal housing, and support for up to 512GB storage, Atlas packs advanced security technology into a sleek dome design.
- Super HD 5MP with Sony Starvis sensor

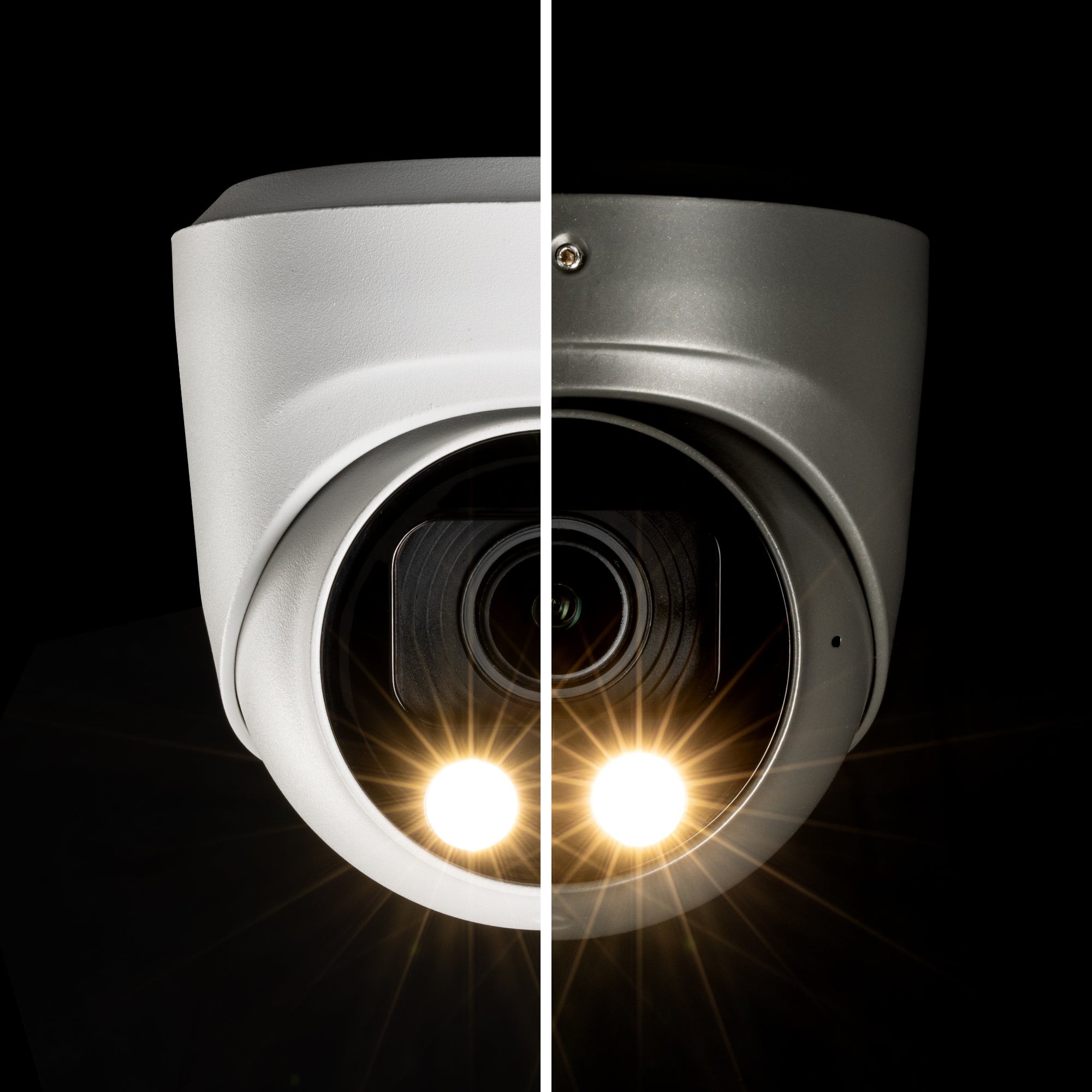

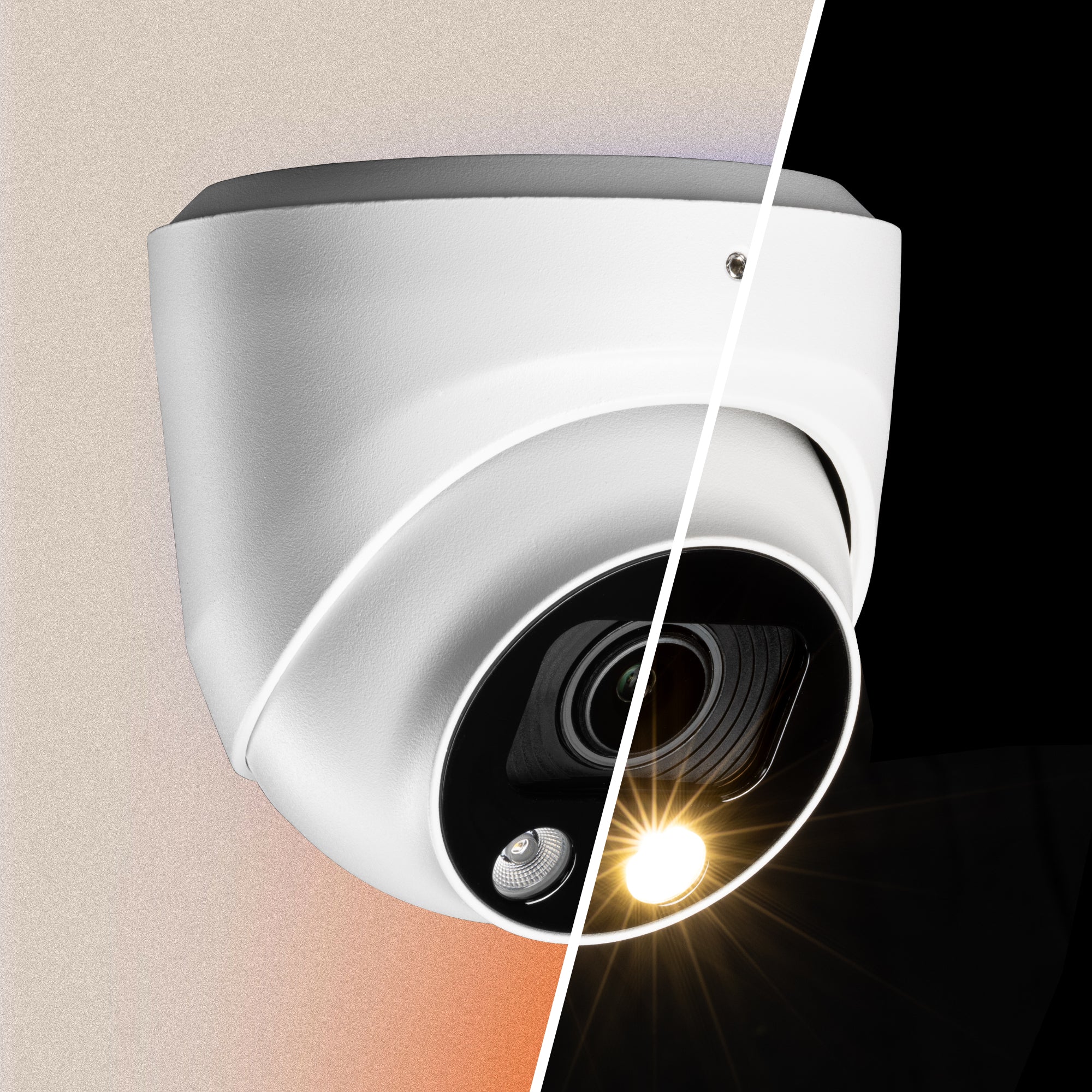

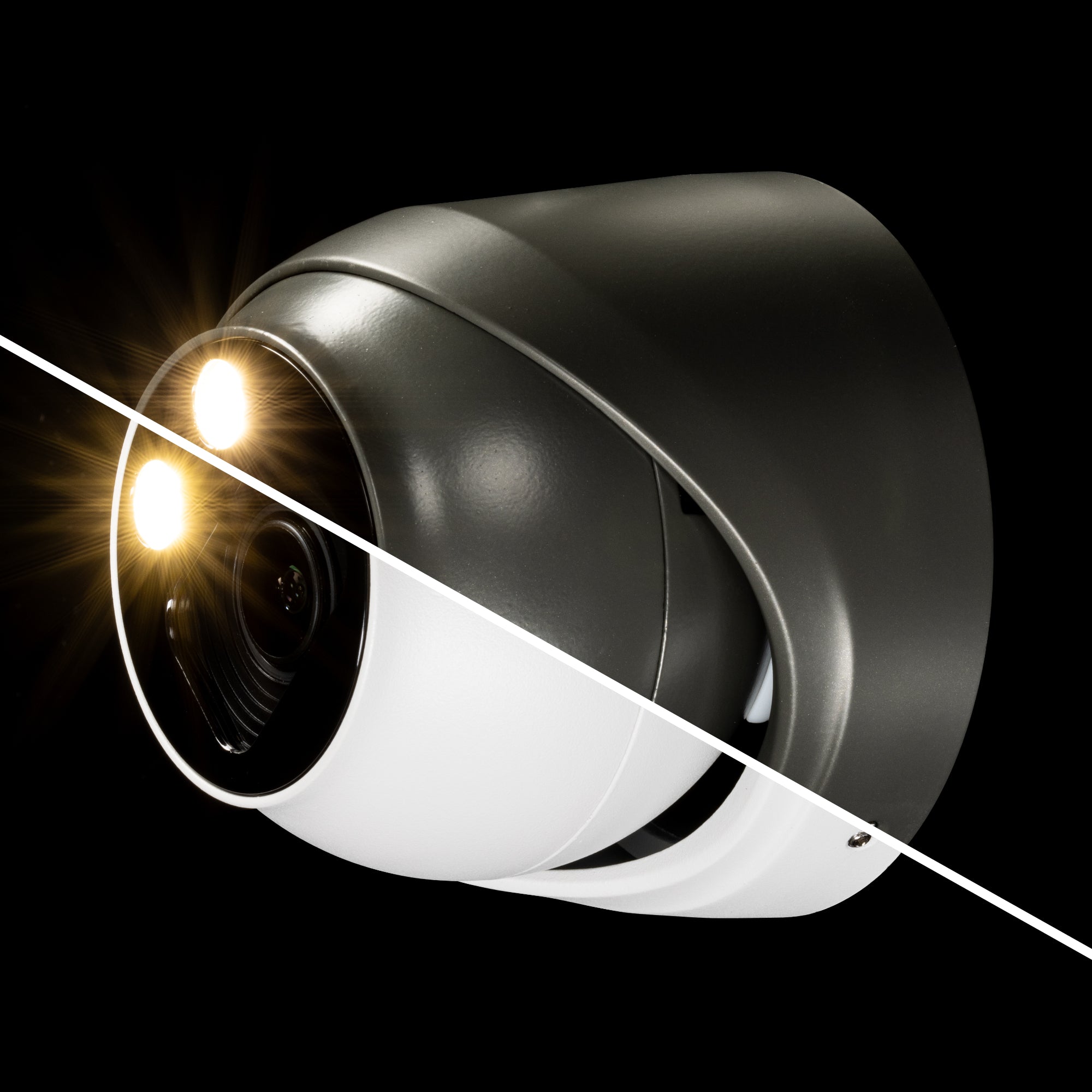

- Fusion Light® AI: Auto-switch between stealth IR and bright LED
- 5× motorised optical zoom (2.7–13.5mm) with auto-focus
- 30m night vision in colour or infrared
- Built-in microphone for audio recording
- AI motion detection with face and vehicle recognition
- Built-in 4GB storage and support for up to 512GB SD card
- Free mobile app with instant alerts, live view & playback
- IP67 waterproof, anti-vandal full-metal housing
- PoE for power and data over a single cable
- 140dB HDR and advanced image enhancement
Product Features

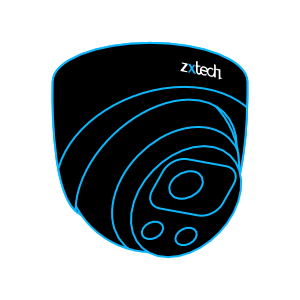

What's in the Box
Free App
Stream Live, Receive Real-time Alerts, Snap & Share, and Playback Anytime, Any Where
30X Digital Zoom
5X Optical Auto Zoom
The CCTV system is equipped with 5X auto zoom camera with a varifocal lens from 2.7mm to 13.5mm. The 5X optical zoom and extra digital zoom allows you to clearly see license plates up to 30 meters away

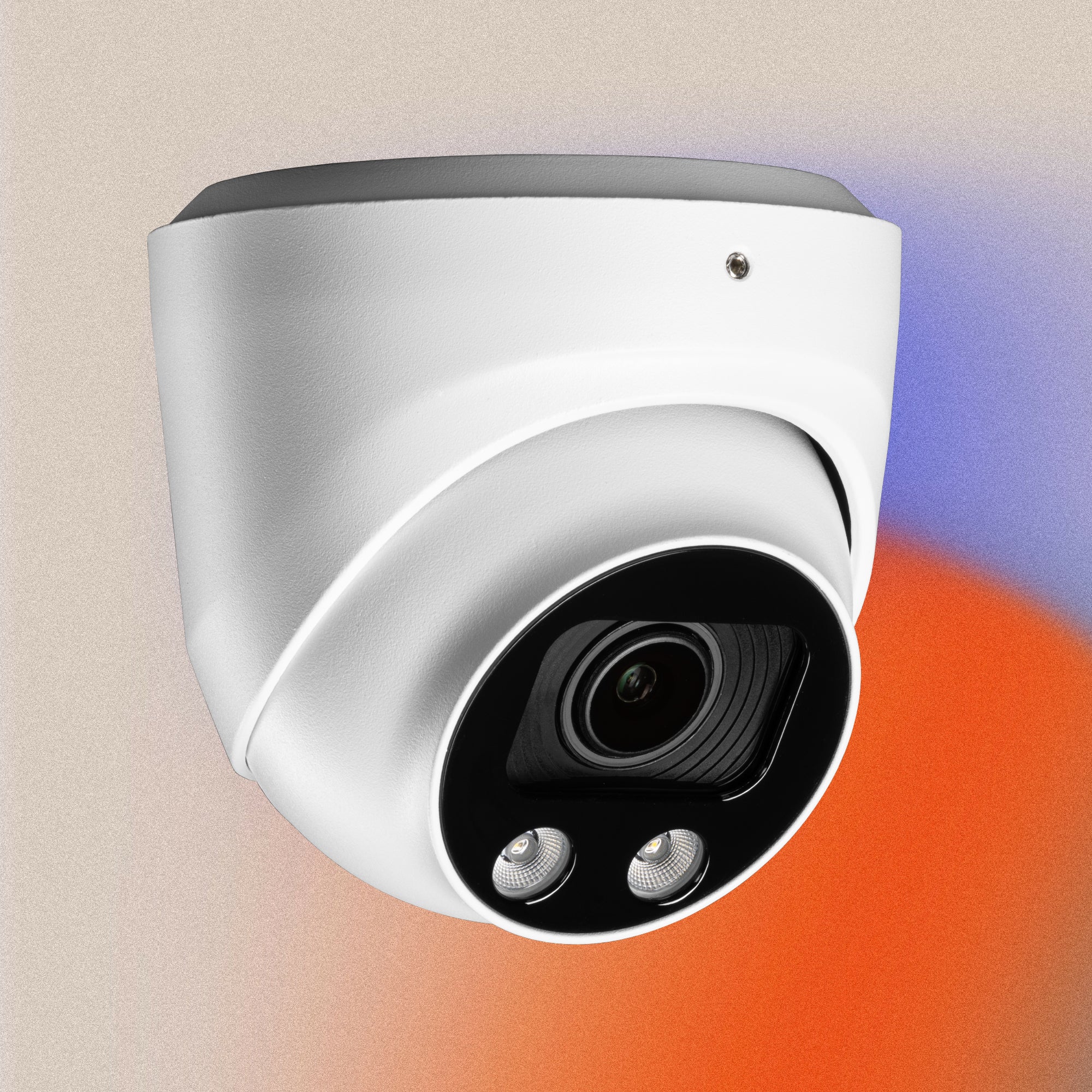

Smart, Stylish, and Built to Last
Designed for Maximum Performance

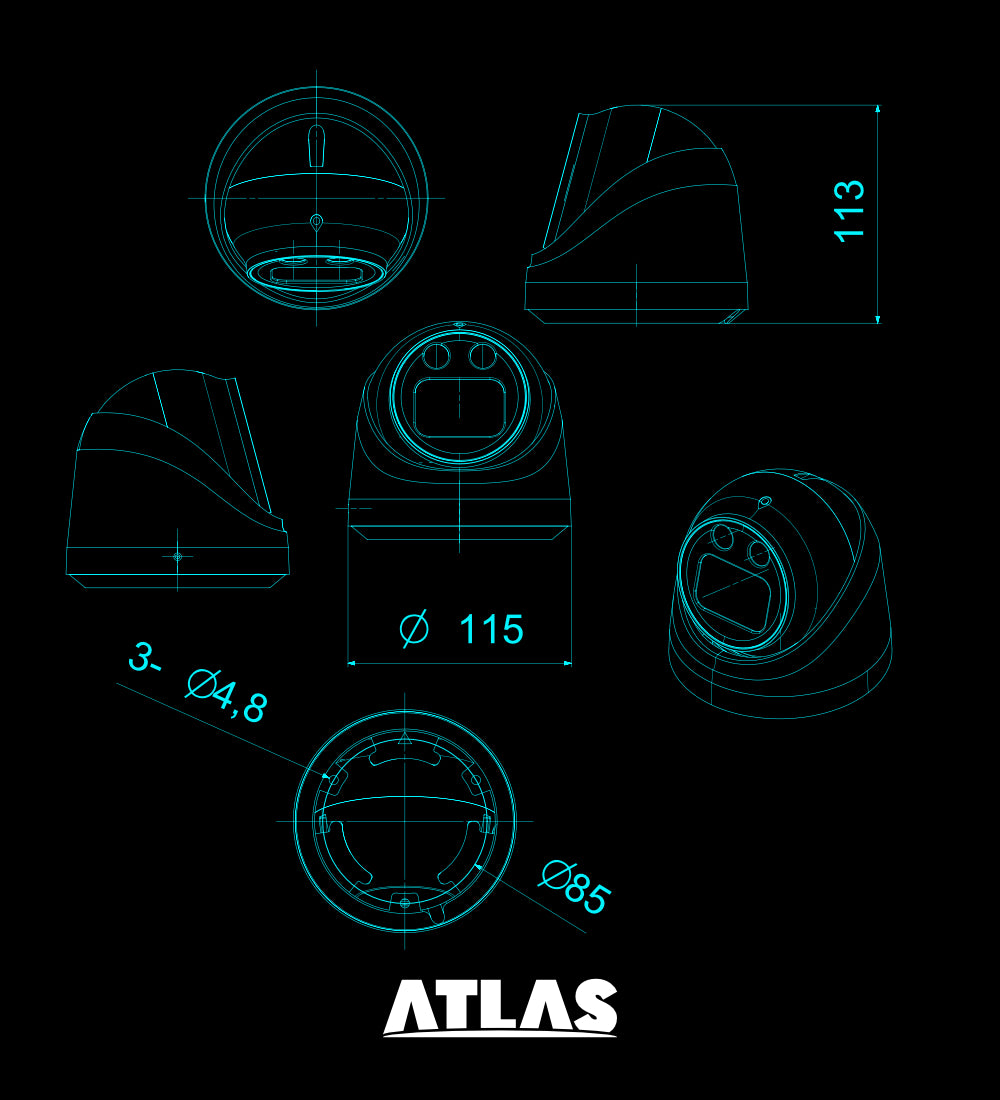

Measuring 115 mm in diameter and 113 mm in height, Atlas is Zxtech’s ultimate dome camera. Compact yet powerful, it features a built-in motorised optical zoom that you can adjust remotely for the perfect view.
Modern, Familiar Styling

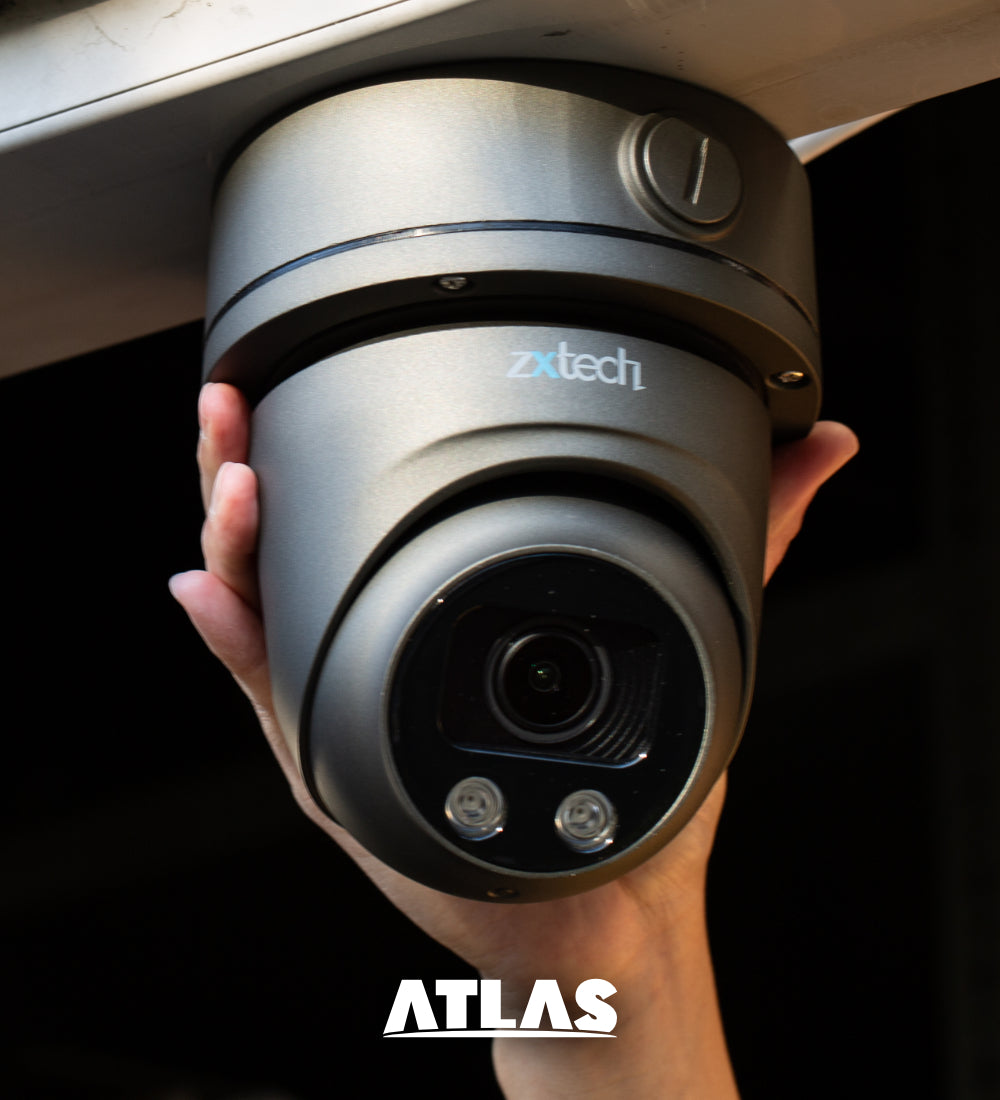

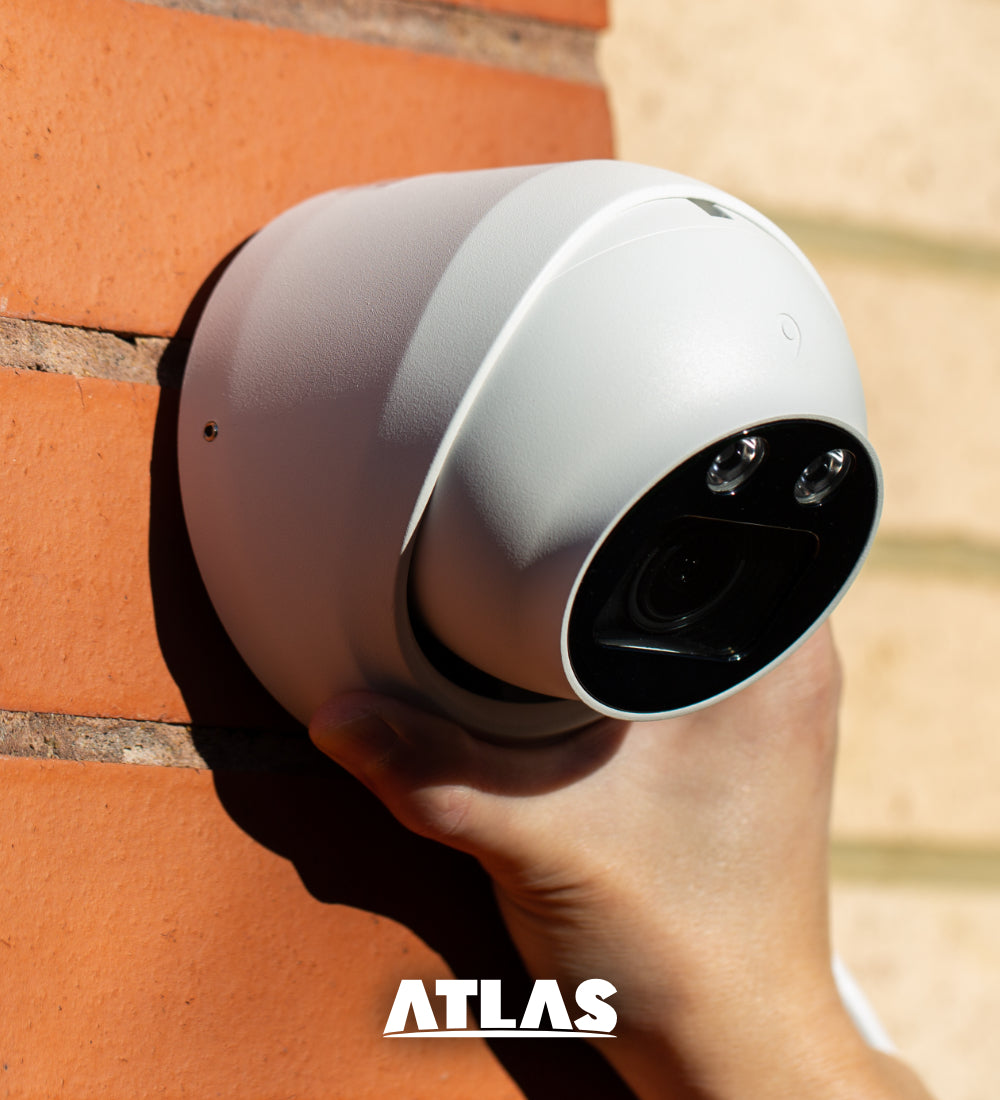

Engineered from the ground up to deliver advanced features, the IP67 all-metal housing stands up to the toughest British weather. Install indoors or outdoors, on ceilings or walls, and easily adjust the lens angle before securing.

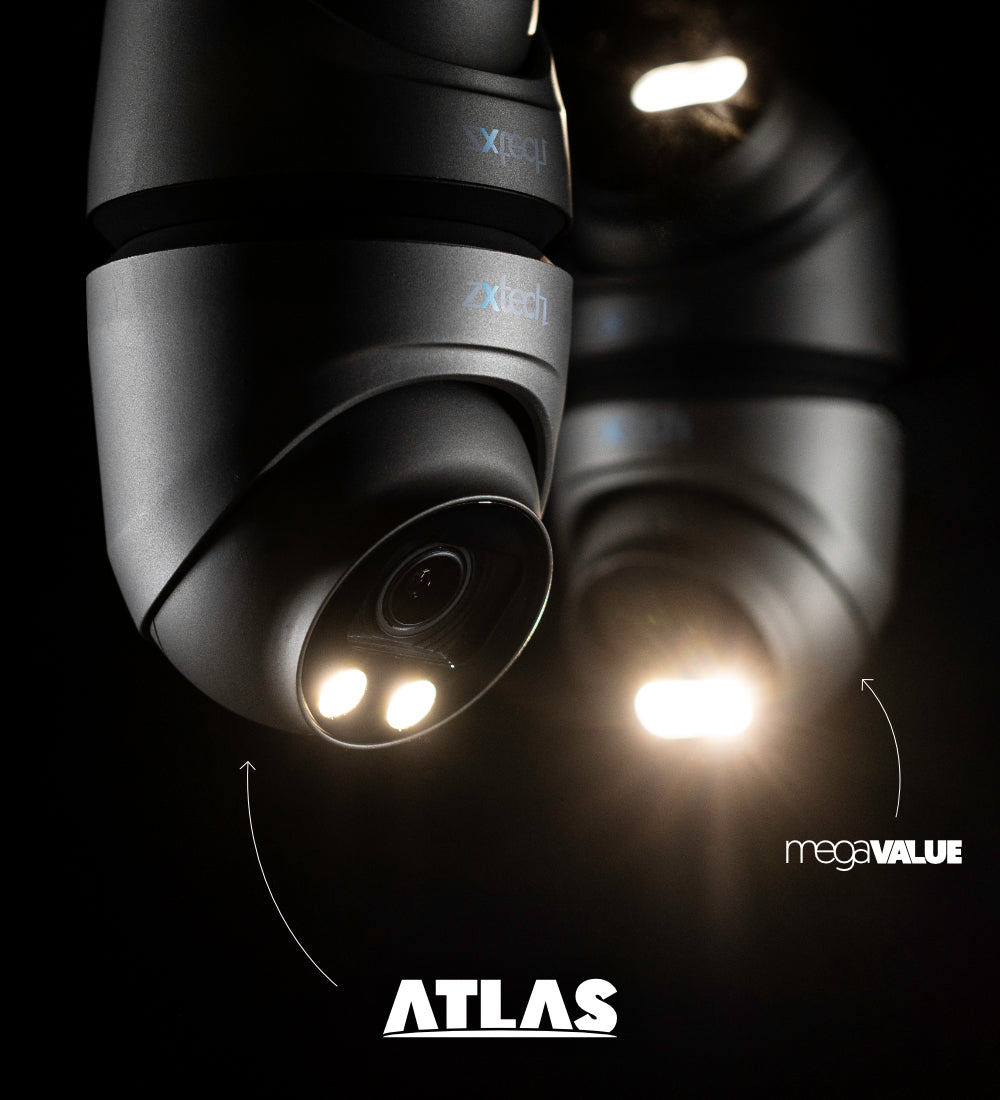

Atlas vs MegaValue
Both part of our Fantastech-4 range, Atlas is the larger dome, noticeably bigger than MegaValue. The main advantage? Atlas includes a 5× auto-zoom lens, while the rest of the hardware is identical.

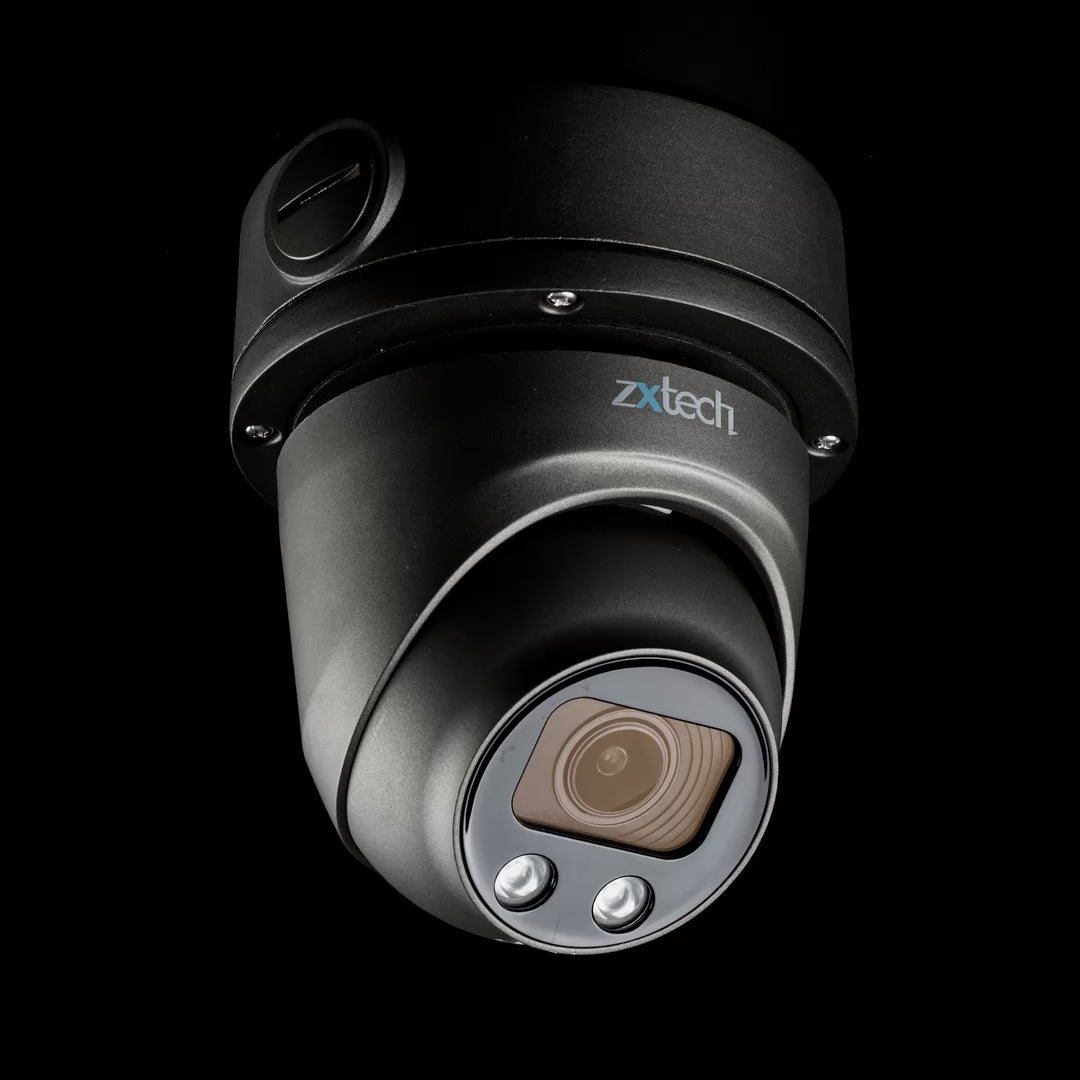

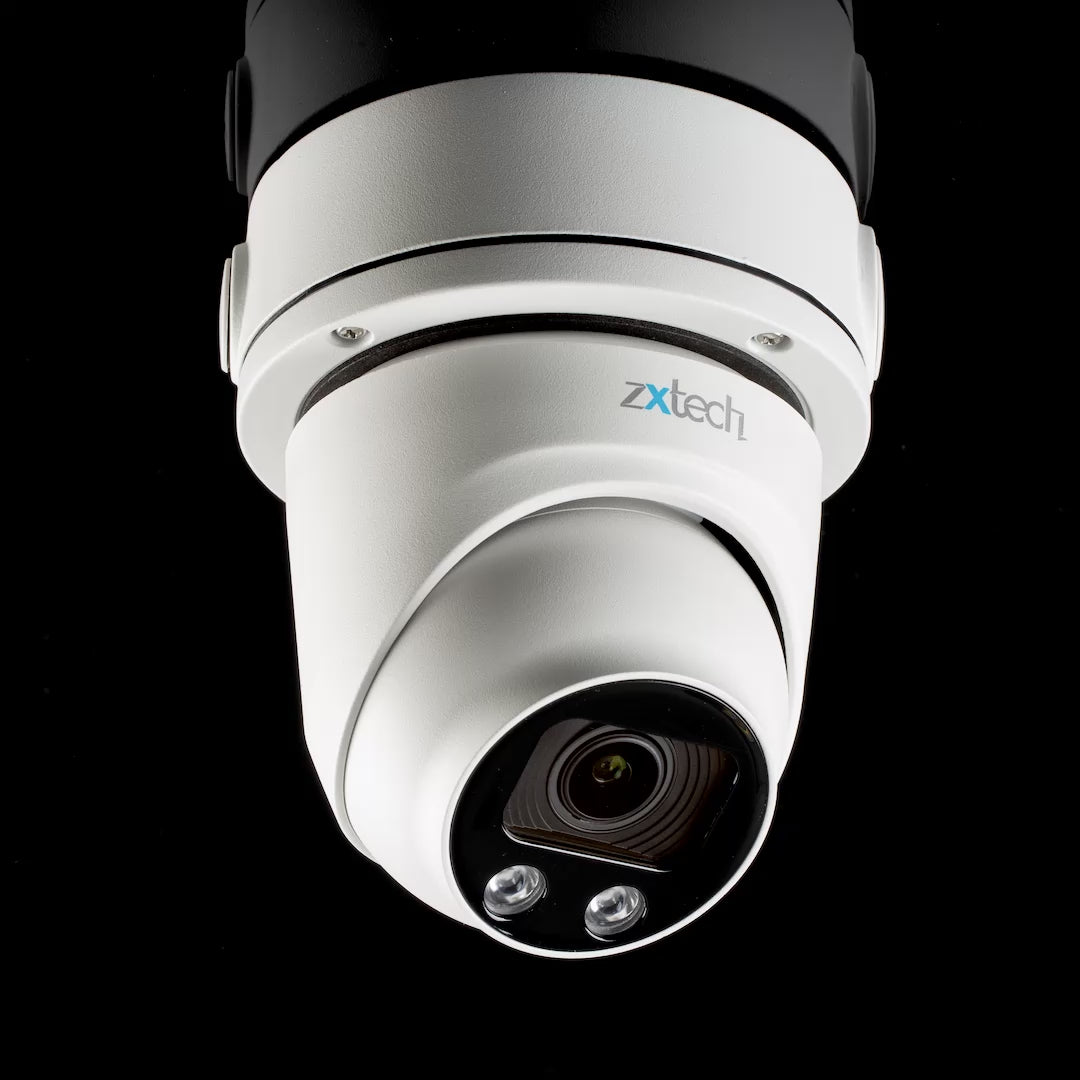

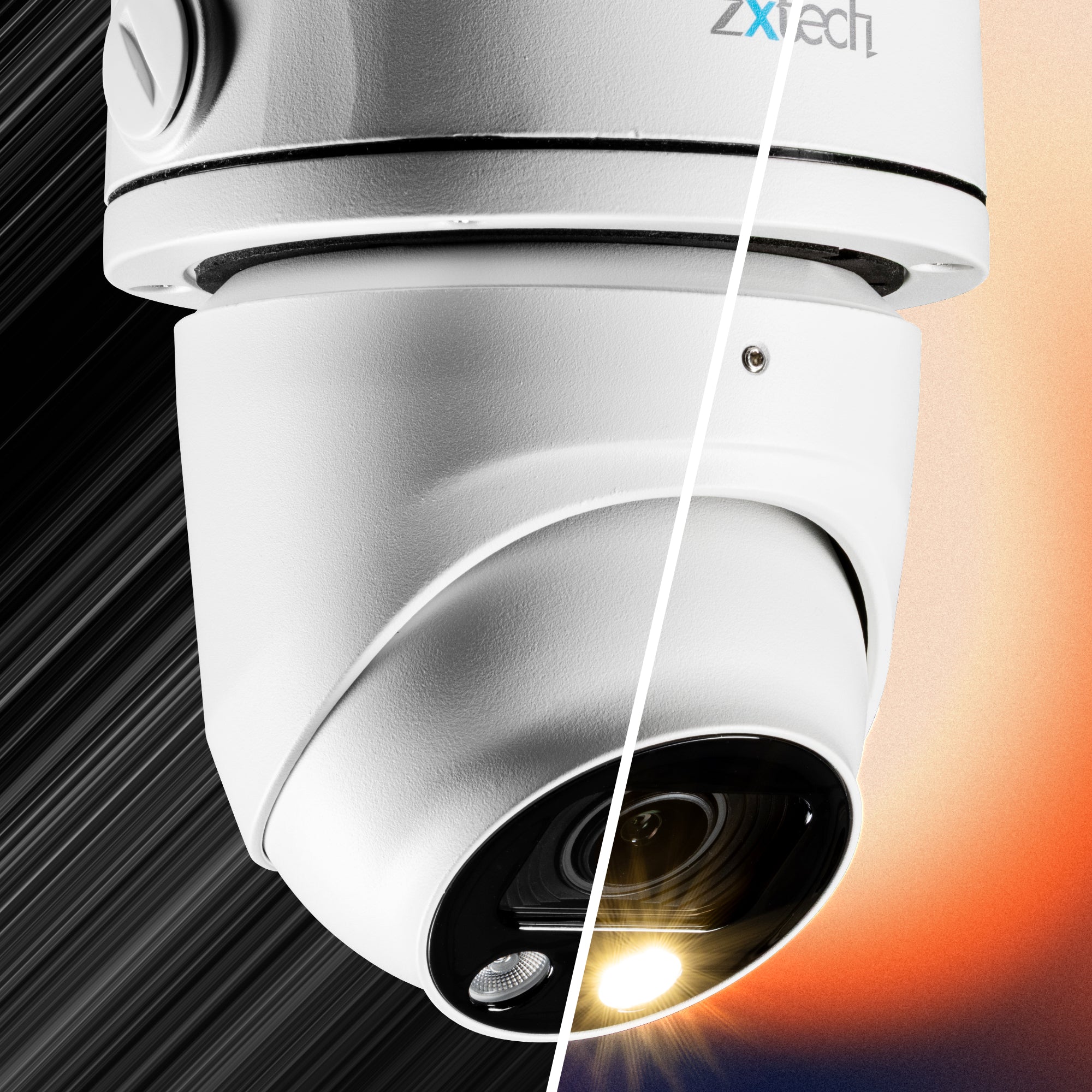

Sleek Installation with Optional Bracket
Add the optional spacer bracket for a clean, cable-free finish. It hides wiring inside the base, provides side trunking holes, and its 54 mm height can lift the camera for a better viewing position.
5MP Pro Fusion Light Range
MegaValue
BabyBullet
Altas
Premio
- 5 MP Super HD
- 2592×1944
- Realtime 30 fps
- 140dB HDR
- 5 MP Super HD
- 2592×1944
- Realtime 30 fps
- 140dB HDR
- 5 MP Super HD
- 2592×1944
- Realtime 30 fps
- 140dB HDR
- AI: colour LED on motion
- No-glow IR when idle
- AI: colour LED on motion
- No-glow IR when idle
- AI: colour LED on motion
- No-glow IR when idle
- AI: colour LED on motion
- No-glow IR when idle
- Dual 38 µm 4000 K LED & IR modules
- 25–30 m range
- Dual 38 µm 4000 K LED & IR modules
- 25–30 m range
- Dual 38 µm 4000 K LED & IR modules
- 25–30 m range
- Quad 38 µm 4000 K LED & IR modules
- 40-60 m range
- 2.8 mm, 124° FOV
- 2.8 mm, 124° FOV
- Motorised 5X zoom
- 2.7-12.8 mm lens
- 124~33° FOV
- Motorised 5X zoom
- 2.7-12.8 mm lens
- 124~33° FOV
- Built-in microphone
- Built-in microphone
- Built-in microphone
- Built-in microphone
- SD card slot up to 512GB
- Up to 1TB with Premium SD Cards
- SD card slot up to 512GB
- Up to 1TB with Premium SD Cards
- SD card slot up to 512GB
- Up to 1TB with Premium SD Cards
- SD card slot up to 512GB
- Up to 1TB with Premium SD Cards
- Built-in 4GB Memory for Snapshots
- Built-in 4GB Memory for Snapshots
- Built-in 4GB Memory for Snapshots
- Built-in 4GB Memory for Snapshots
- IP67 waterproof
- Full body metallic build
- IP67 waterproof
- Full body metallic build
- IP67 waterproof
- Full body metallic build
- IP67 waterproof
- Full body metallic build
- Adjustable sunshield
Explore Atlas Complete System
Tech Specification
Camera
Image Sensor1/2.8" Sony Starvis Back-illuminated CMOS
Resolution8MP
Effective Pixels3864 × 2192
CompressionH.264 / H.264+ / H.265 / H.265+ / MJPEG
Audio CompressionG.711A/U, AAC, MP2L2
TV SystemPAL / NTSC
Electronic ShutterAuto 1/3–1/100,000 sec
Minimum IlluminationColour: 0.005 Lux (F1.6, AGC ON), 0 Lux with white light; B/W: 0 Lux with IR
S/N Ratio≥60dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonOptional
Lens
Focal Length / FOV2.7–13.5mm Motor Zoom, H: 103°–29°, V: 54°–16°, D: 124°–33°
Lens TypeAuto
Focus ControlAuto
ApertureF1.6–F3.3
Pixels8MP
Night Vision
Illumination2 × 38µ 4000K warm LEDs, 2 × 38µ IR LEDs
Night Vision RangeIR: 40m, Warm Light: 30m
IR StatusAuto Control
IR ModesSmart, Manual, Timed
Network
EthernetRJ-45 (10/100Base-T)
WirelessN/A
ProtocolsTCP/IP, IPv4/6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, SNMP, QoS, 802.1x
ONVIF19.12 (Profile S/T)
P2PYes
PoEIEEE 802.3af (Internal)
Video Delay0.3s (LAN)
Supported BrowsersEdge, Chrome, Firefox, Safari (Mac)
Mobile AccessiOS, Android
Streaming
Main Stream3840×2160@30fps, 3072×2048@30fps, 2592×1536@30fps, 2560×1440@30fps, 1920×1080@30fps, 1280×720@30fps
Sub Stream1280×720@30fps, 720×480@30fps, 352×288@30fps
Tri Stream1280×720@30fps, 720×480@30fps, 352×288@30fps
AI Functions
Intelligent AnalysisIntrusion, Line Crossing, Loitering, People Gathering, Motion (Human), Enter/Leave Area (Human/Vehicle), Face Detection
Camera Features
Day/Night ModeColour / B&W (IR-Cut)
Image SettingsSaturation, Brightness, Contrast, Sharpness, Mirror, 3D NR, White Balance, Anti-Flicker, Tampering Alarm, HLC, Distortion
Full ColourYes
Corridor ModeYes
DefogYes
ROIYes
BLCYes
WDR140dB
Motion DetectionYes (Human Only)
Privacy Masking3 Zones
Recording ModeNVR / CMS / Web
LanguagesCN (Simplified/Traditional), EN, KO, PL, FR, JP, ES, PT, IT, HE, UK, AR, VI, TH, HU
Interface
AudioBuilt-in Mic
SD CardExternal Slot (Max 256GB), Built-in 4GB
General
HousingMetal, IP67
IR Cut FilterYes
Operating Temp-20°C ~ +60°C, RH ≤95%
Storage Temp-20°C ~ +60°C, RH ≤95%
PowerDC12V ±10%, 700mA
DimensionsØ115 × 113mm (H)
Weight800g
