The power distribution box makes it simple to supply multiple CCTV cameras or other security devices with separate auto-reset, PTC-fused* power. It provided 9 PTC fused outputs and individual status LEDs, as well as surge protection.

Product Overview

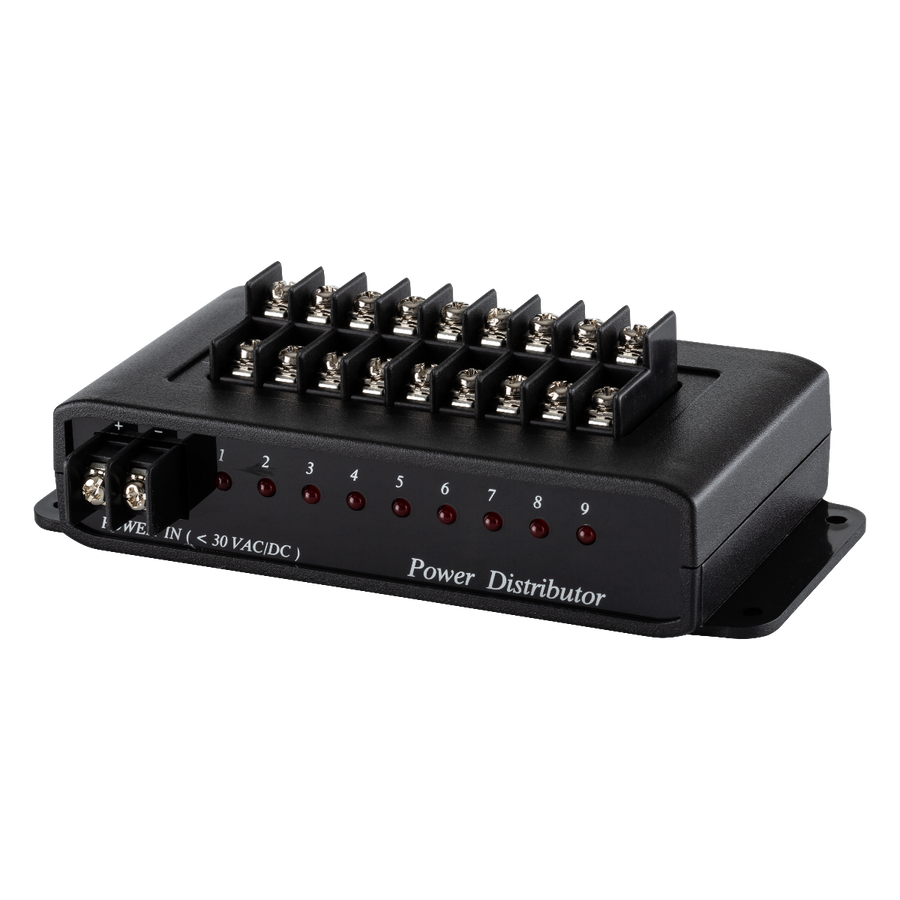

The PD009 power distribution box makes it simple to supply multiple CCTV cameras or other security devices with separate auto-reset, PTC-fused* power. It provided 9 PTC fused outputs and individual status LEDs, as well as surge protection.

Highlights

• Individually protected PTC*-type output fuse rated 1.1Amps@250VAC
• Individual status LED indicators
• Surge protected outputs
• Supports up to 1-30VAC/VDC
• Dimension: 138x84x28mm
  *Positive Temperature Coefficient – auto-reset current limiting

What's in the Box

• 1 x Power Distributor Box
