Zxtech 5MP/4K Wireless PTZ CCTV System - 6 x WiFi Security Camera 5X/10X/20X Auto Zoom Colour Night Vision Outdoor 2-Way-Audio 9CH Sony Starvis
- UK next business day delivery
- UK VAT invoices included
- 30 days hassle free returns
- 12 month warranty
- In stock, ready to ship
System Features
This all-in-one 6x PTZ camera* security kit delivers exceptional features for ultimate protection. Choose between 5MP resolution with 5X or 10X zoom or the stunning 4K/8MP with 20X zoom. Enjoy all-day colour night vision with auto-switching infrared and Intense-LED floodlights, and control pan, tilt, and zoom via the free mobile app, including auto-patrol options. The Sony Starvis sensor ensures unbeatable image quality, even in low light. Features include two-way audio, up to 8TB HDD storage, and an 8dB wireless antenna for strong connectivity. Extra alarms include a sound alarm and a blue/red siren alarm with the 20X option, offering unmatched security versatility.
This is not battery-powered camera.

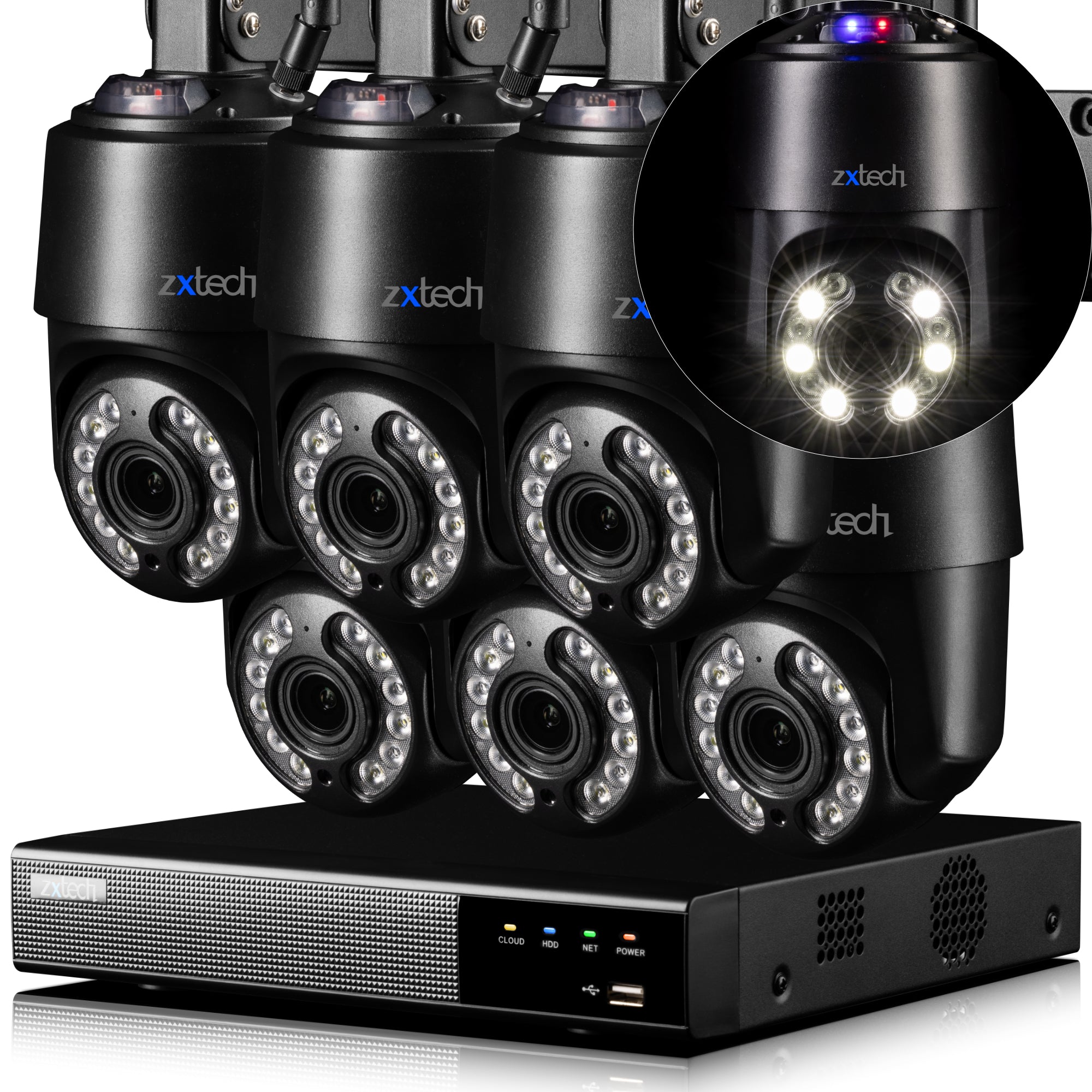

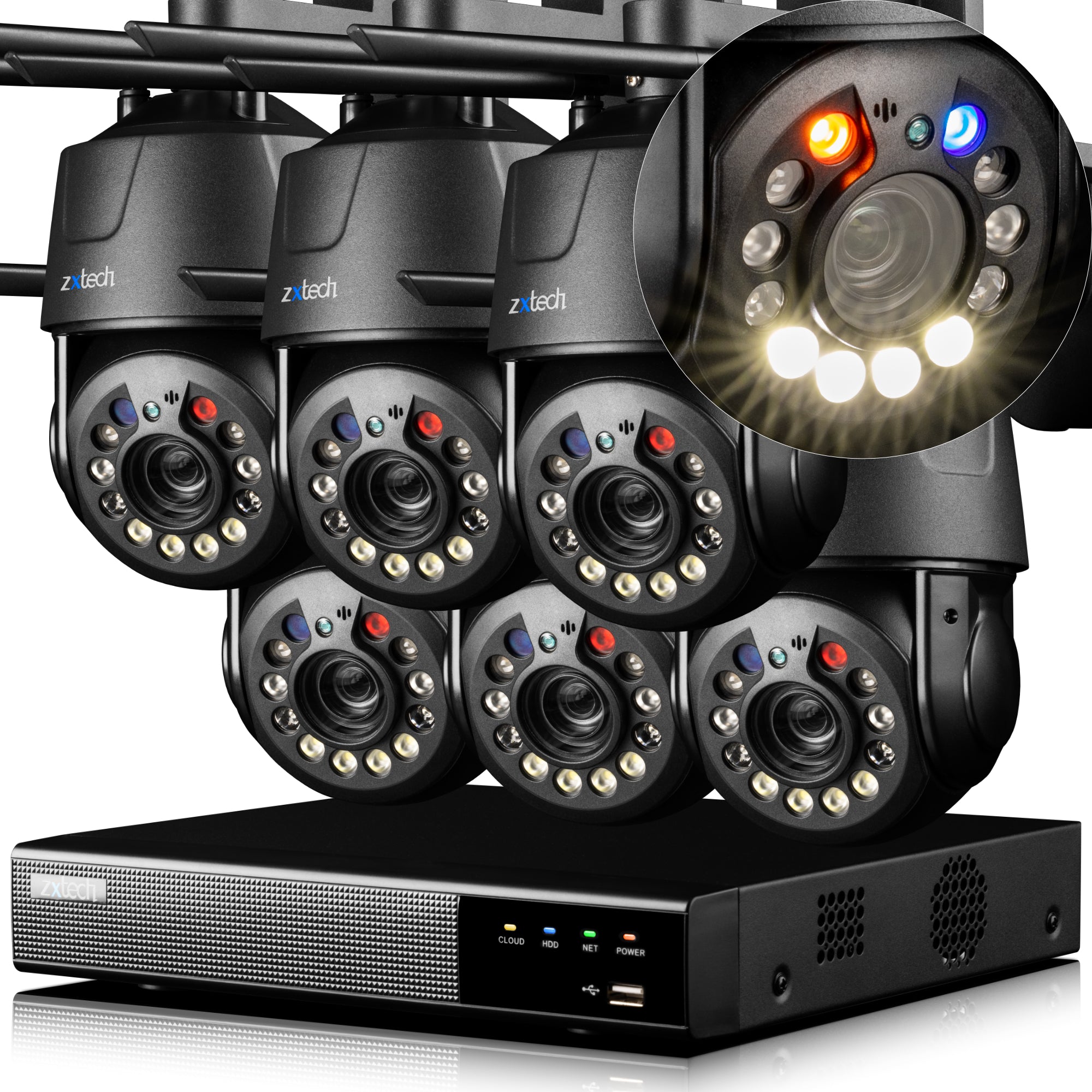

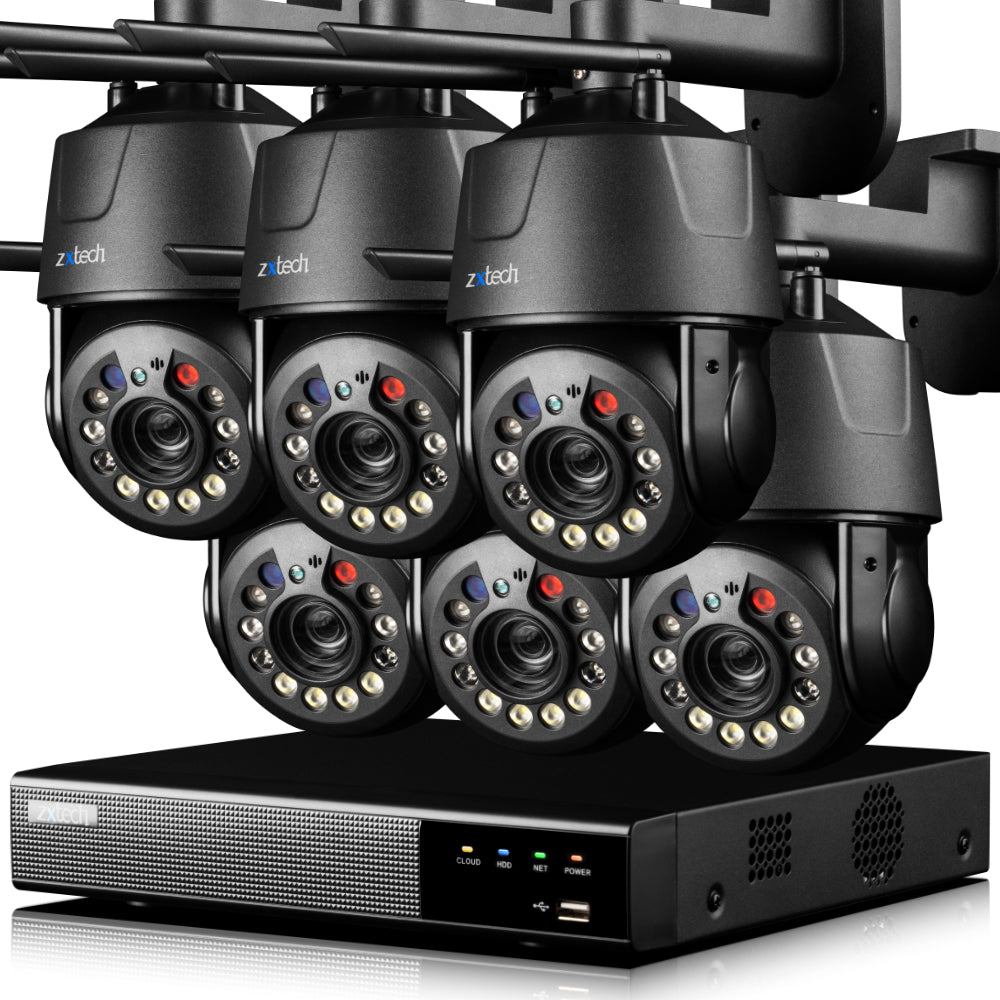

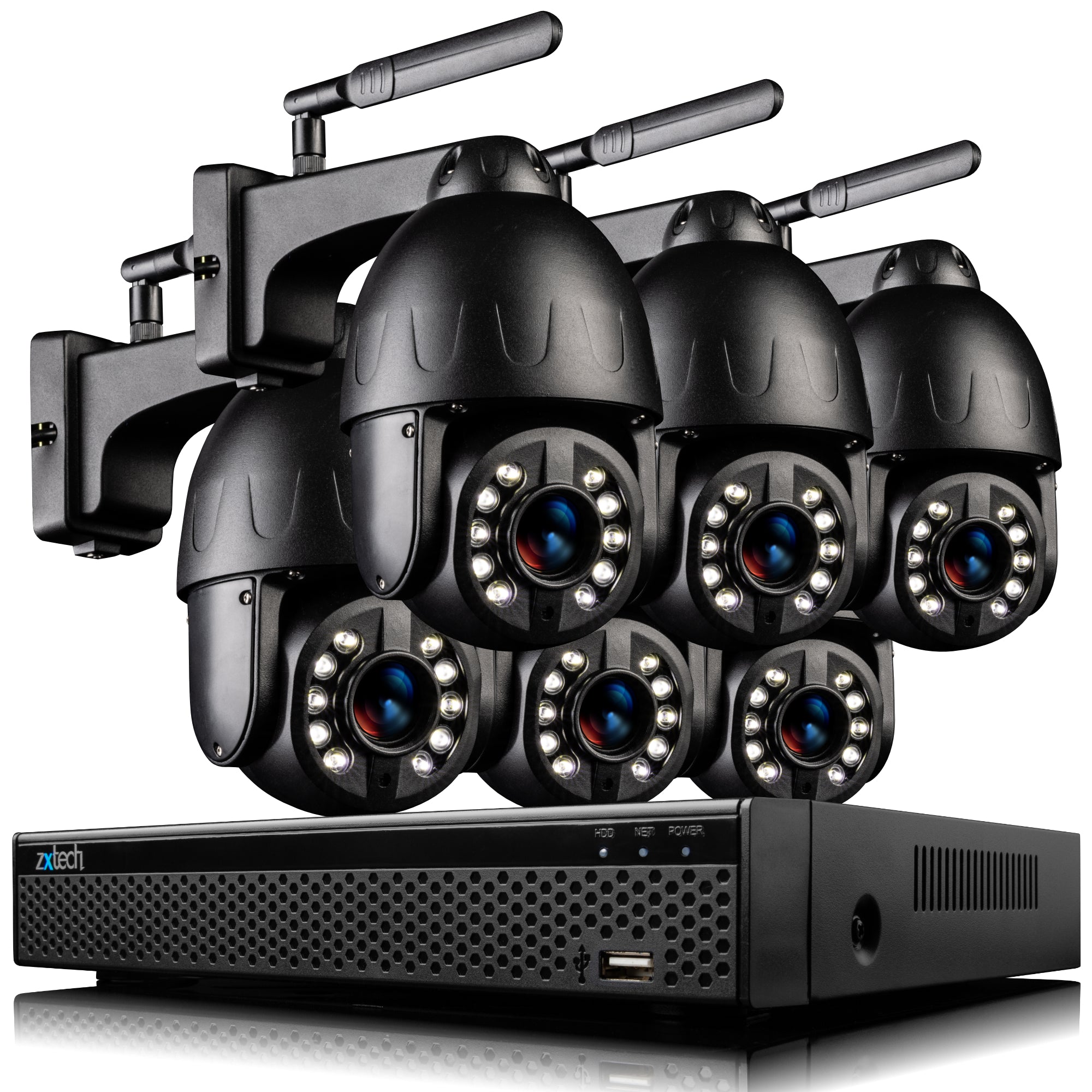

What’s in the Box

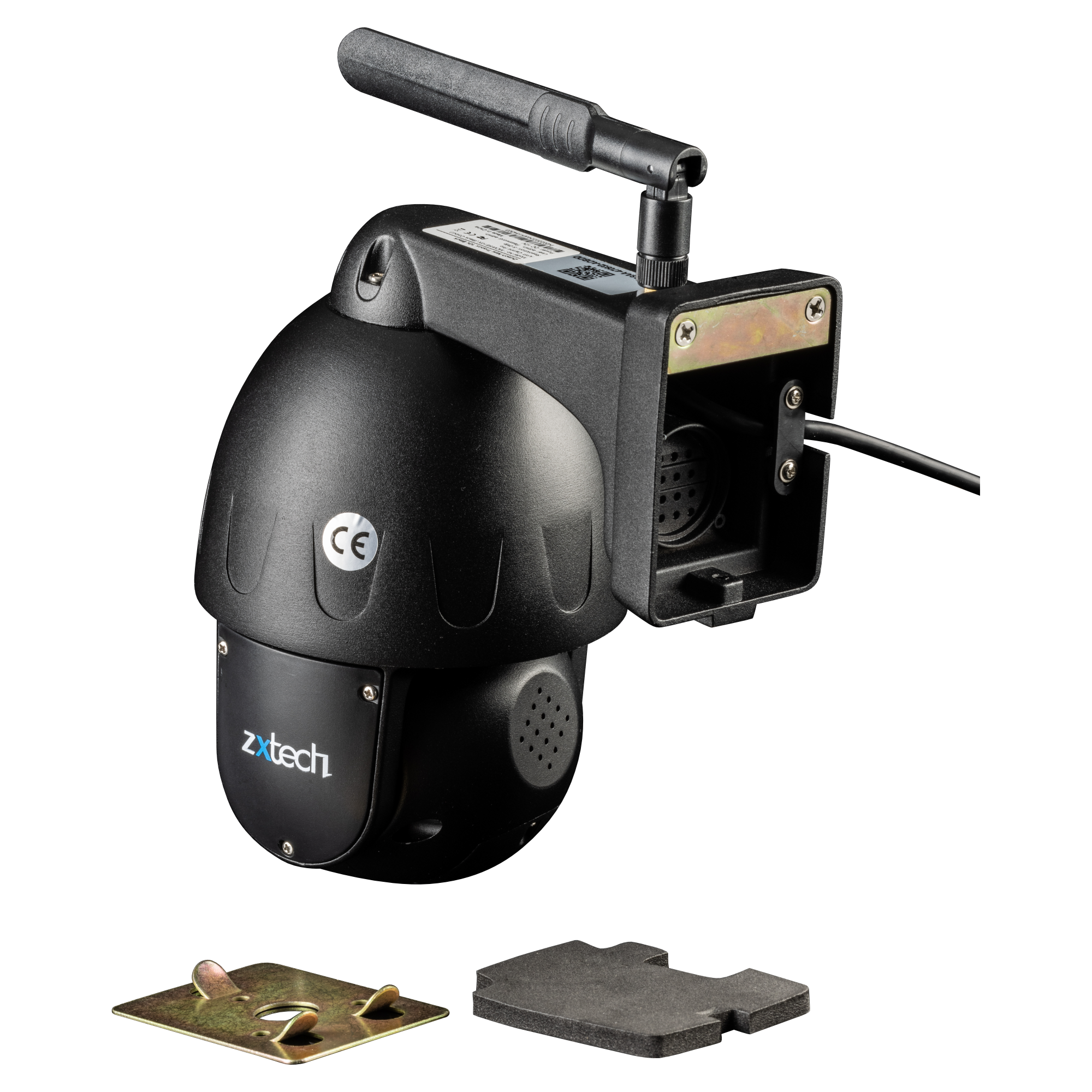

6 x PTZ Wifi Cameras*
1 x 9-Channel Zxtech 4K Home NVR
Optional HDD
Power Supply Unit
Each camera includes a 3-metre lead and must remain plugged into a wall socket, as this system is not battery-powered.
Capture stunning 5MP clarity with 5X and 10X zoom options, or elevate to 4K/8MP UHD with the 20X zoom option, all powered by Zxtech’s advanced sensor and processor.
Built-in 8dB antenna ensures good WiFi connectivity for British homes. No video cables needed, but cameras must stay plugged into a power supply.
Durable IP67 waterproof and anti-vandal design for all indoor and outdoor use.
Black and WhiteTwo-way audio with a built-in mic and speaker, seamlessly integrated with iOS and Android apps.
Pan, tilt, and zoom remotely via the app with automatic patrol for full-angle surveillance.
Choose from 5X, 10X, or 20X optical zoom for wide-angle to long-range views, all adjustable remotely via the app for ultimate control.
Intelligent alerts trigger a loud alarm, deterring intruders effectively. Can be switched off.

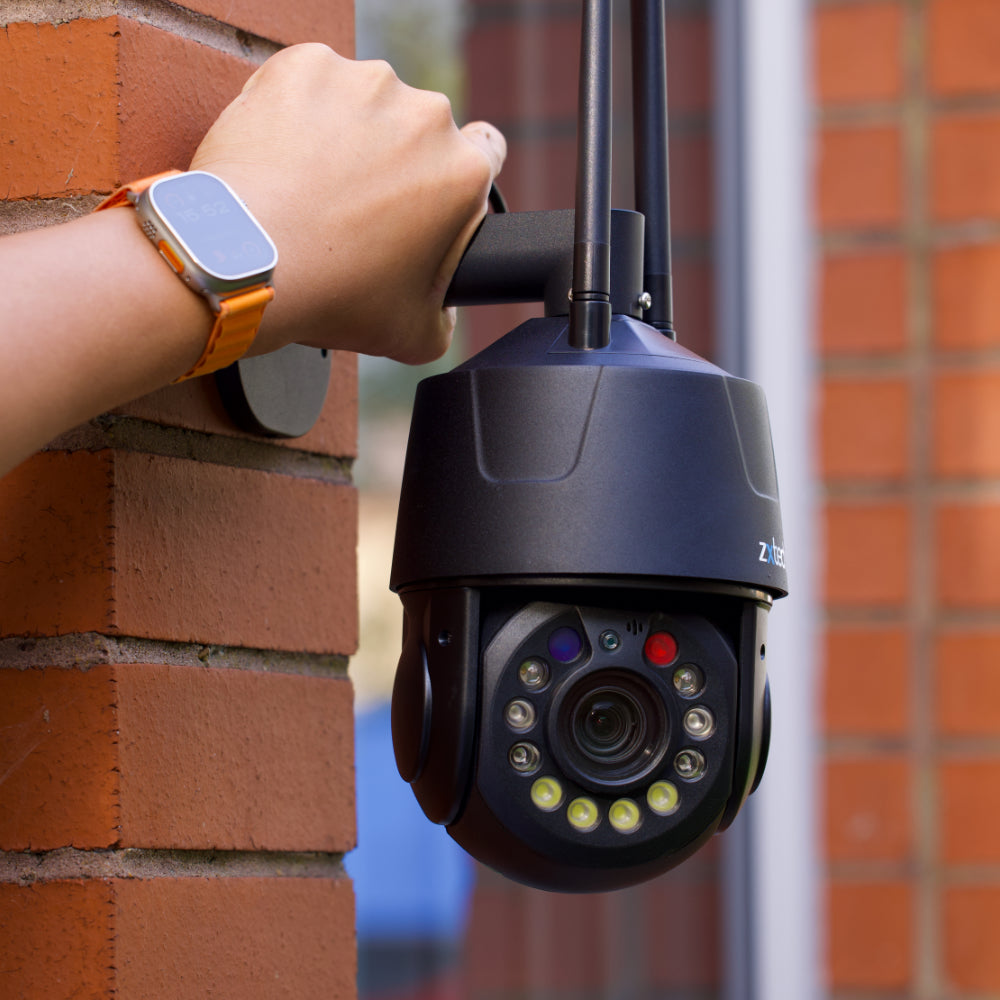

The 20X Zoom option adds a blue and red siren light for strong intruder deterrence, easily disabled if needed.
Powered by Sony Starvis, enjoy clear night vision with infrared and motion-triggered LED floodlights for full-colour security.
AI-powered detection focuses on humans, minimizing false alerts from animals or objects.
Supports up to 8TB HDD with auto-overwrite for seamless, continuous recording.
Each camera has an SD card slot supporting up to 128GB (SD card not included).
Stay connected with free iOS/Android apps for live viewing, playback, and snapshots, with quick access via P2P QR scan.
Free App
Stream Live, Receive Real-time Alerts, Snap & Share, Control PTZ, and Playback Anytime, Any Where.
Using the free app, stream live in 4K, receive real-time alerts, snap, share, and playback from anywhere. Select channels and times for instant playback, and view multiple cameras simultaneously. For the best view, simply rotate your phone to widescreen. You can also remotely control pan, tilt and zoom.
World Class Sony Sensor
Wireless PTZ System Vision Features
Experience unparalleled clarity with Zxtech's 4K/8MP 5MP Sony Starvis Sensor, renowned for exceptional low-light sensitivity and Super HD quality. A beacon in the world of home and professional security, it promises superior HDR, energy efficiency, and extended longevity. Every Zxtech IP Camera embraces this diamond standard, delivering world-class footage and unmatched night vision. Unlike others, Zxtech transparently and exclusively collaborates with Sony, guaranteeing premium reliability.
Watch Live Stream in London
4X
Shaper than 1080P
4K/8MP 20X Option
2.5X
Shaper than 1080P
5MP 5X/10X Option
200 ft
Night Vision Range
500 ft with 20X Option

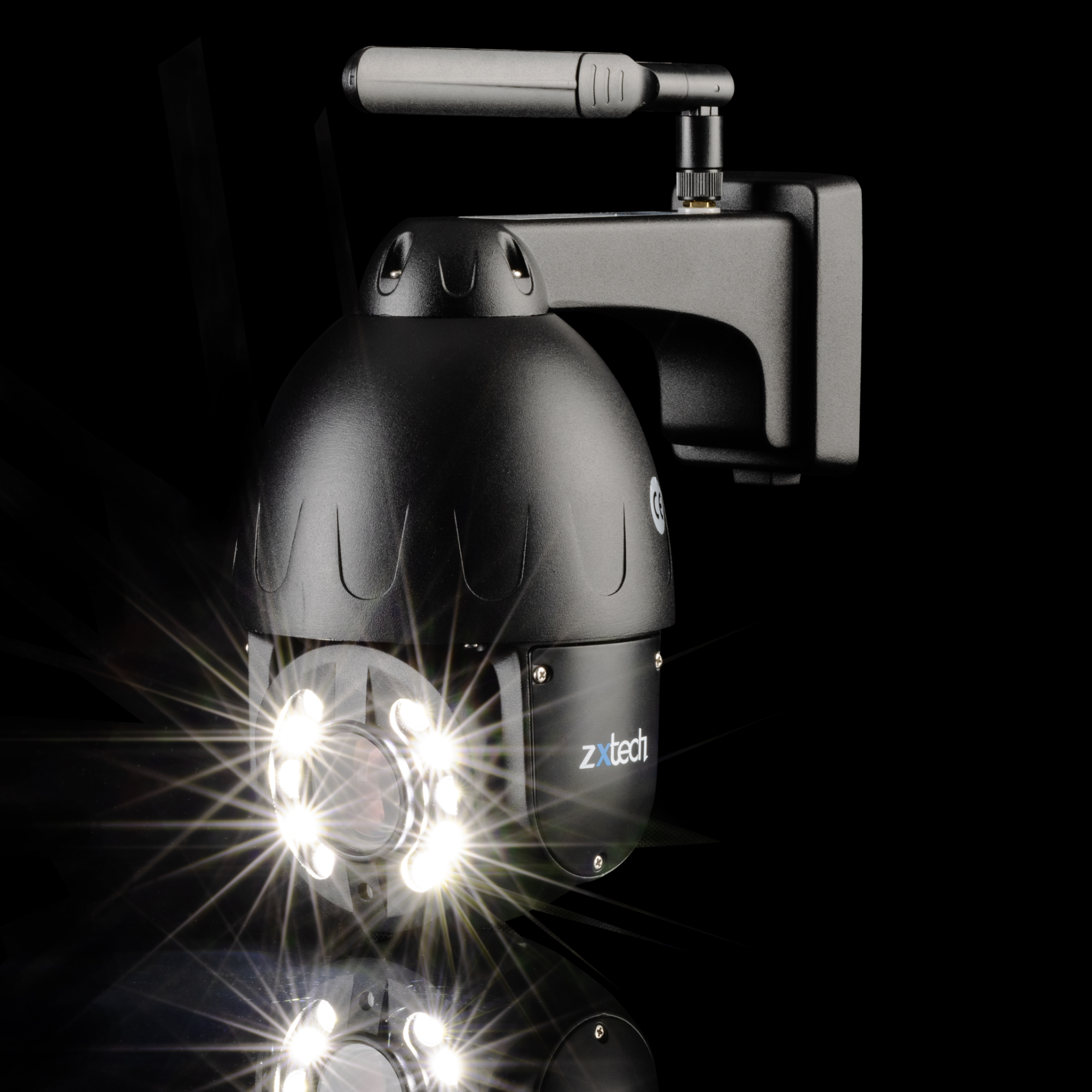

Fusion 2 in 1
Infrared v.s. IntenseLED Colour Night Vision
Experience advanced night vision with Zxtech’s WiFi PTZ CCTV kits, featuring fusion infrared-LED technology. Infrared provides discreet black-and-white footage, while LED bulbs deliver vibrant full-colour night vision. The camera intelligently switches modes, using infrared during quiet hours and activating bright LEDs upon detecting movement for detailed colour captures. Enjoy up to 60M night vision with 5X/10X PTZ and up to 150M with 20X PTZ, depending on conditions.
Infrared
Intense LED
Be Ready for the Future
2MP vs 5MP vs 4K/8MP
The 5MP Super HD camera delivers 2.5X sharper clarity than 2MP, ideal for tasks like reading car plates and modern surveillance needs. For unmatched detail, the 8MP 4K Ultra HD offers 4X the resolution of 1080p, perfect for professional-grade monitoring.
2 Megapixel
5 Megapixel
Sorcery of Modern CCTV Technology.
120dB HDR
Ensure no detail goes unnoticed with Zxtech’s advanced HDR video processing. By balancing overly bright and dark areas, HDR seamlessly merges images captured at different exposures, delivering perfectly contrasted footage with every essential detail highlighted for the best in security clarity.
No HDR
With HDR
CCTV Kits with the Best Wireless Cameras
Wireless PTZ Camera Features
Tropox Range Compare
Tropox PTZ Ultra
Tropox PTZ
Tropox
5-90mm Varifocal Lens
2.7-13.5mm Varifocal Lens
5-50mm Varifocal Lens
2.8mm Fix Lens
Infrared & Intense LED Auto Switch
Blue & Red Alarm Lights
Infrared & Intense LED Auto Switch
Infrared & Intense LED Auto Switch
Black and White / Colour
Black and White / Colour
Black and White / Colour
Optical 20X Motorised Zoom
Optical 5X Motorised Zoom
Optical 10X Motorised Zoom
Digital Zoom
8dB Extremely Focused Coverage
8dB Extremely Focused Coverage
3dB Wider Coverage

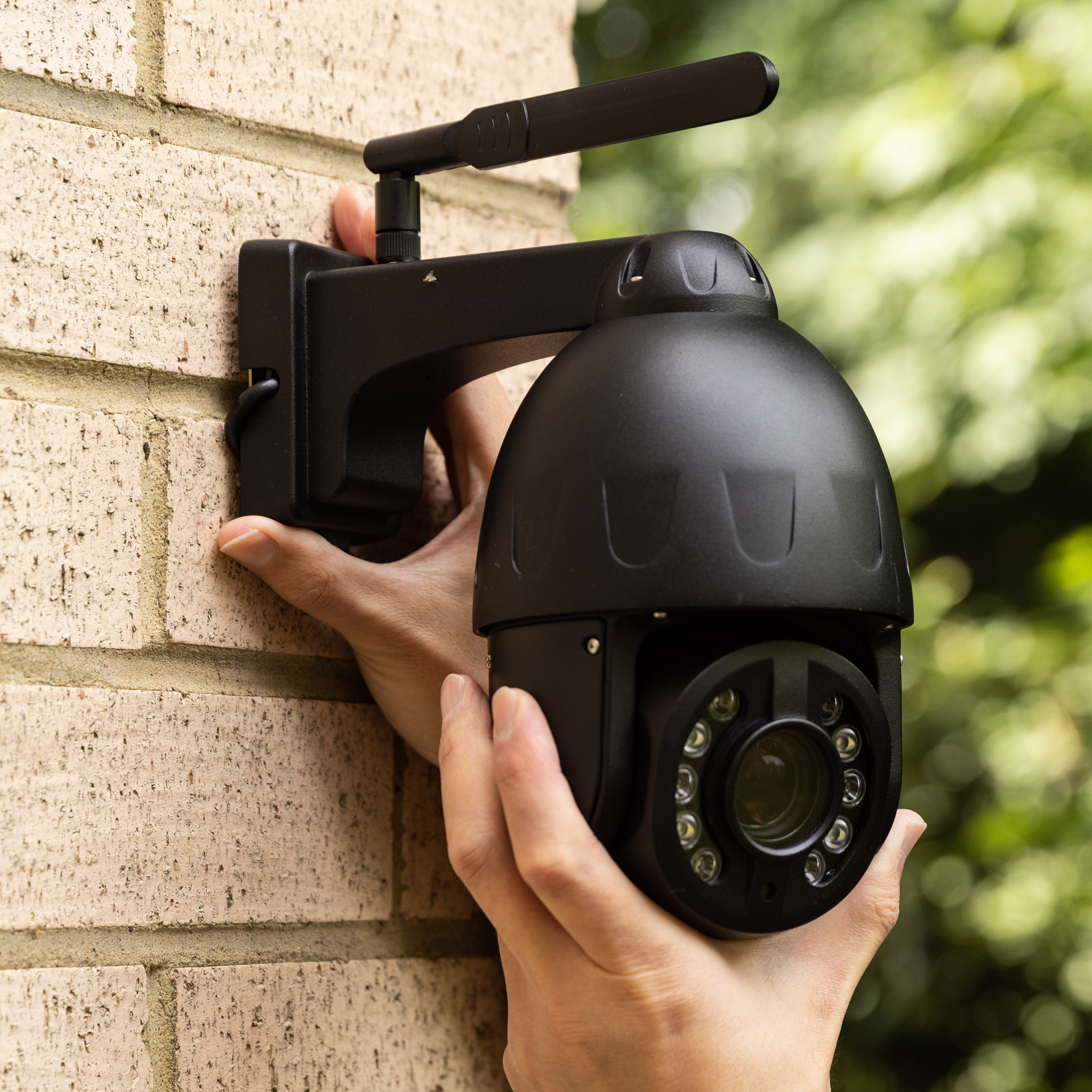

Crafted for any situation and all weather, our wireless CCTV cameras are housed in robust metal casings to deter vandalism and ensure longevity. Designed specifically for the unpredictability of British weather, from Inverness to London, these cameras boast an IP67 rating, ensuring resilience against both rain and snow. Whether mounted on a wall or ceiling, indoors or out, Zxtech's compact yet durable design guarantees protection and versatility for any property.
Metal Casing
Discover Zxtech's premium range of IP cameras, each encased in solid, vandal-resistant metal. Far superior to common plastic alternatives, our cameras ensure lasting durability and an extended lifespan. Perfectly designed for both indoor and outdoor settings, they stand strong against potential vandalism, safeguarding your security footage reliably.
IP67
Experience top-tier security with the Zxtech PTZ Wireless Security Camera, tailor-made for Britain's diverse weather. Boasting an IP67 rating, it stands resilient from Inverness rains to Swansea snowfalls. Ideal for AirBNBs, car parks, or terraced homes, its robust nature ensures longevity, even in exposed locations. For maximum endurance, consider sheltered mounting under areas like porches. Choose Zxtech for reliable, all-weather surveillance.
PTZ
Pan, Tilt and 5X or 10X Auto Zoom, with Extra Digital Zoom
Introducing Zxtech's PTZ CCTV system, offering premium features without the premium price tag. Choose between 5X zoom for clear views up to 35 metres, or 10X zoom to see up to 100 metres in optimal light. Easily control pan, tilt, and zoom functions via our free mobile app from anywhere globally. Set up patrol routines with our step-by-step guide and control your PTZ through the app or our desktop software. Experience world-class surveillance at an affordable cost.
Built-in Mic and Speaker
Discover Zxtech's latest PTZ Wireless Security Camera range, designed for intuitive user experience. These cameras boast integrated microphones and speakers, eliminating the need for complex cabling or external audio devices. With the CamHiPro App, available on both Apple and Google App Stores, engage in real-time two-way communication, be it greeting a visitor or interacting with a pet. Experience enhanced security coupled with seamless audio interactivity.
Note: Avoid Connecting to Mesh

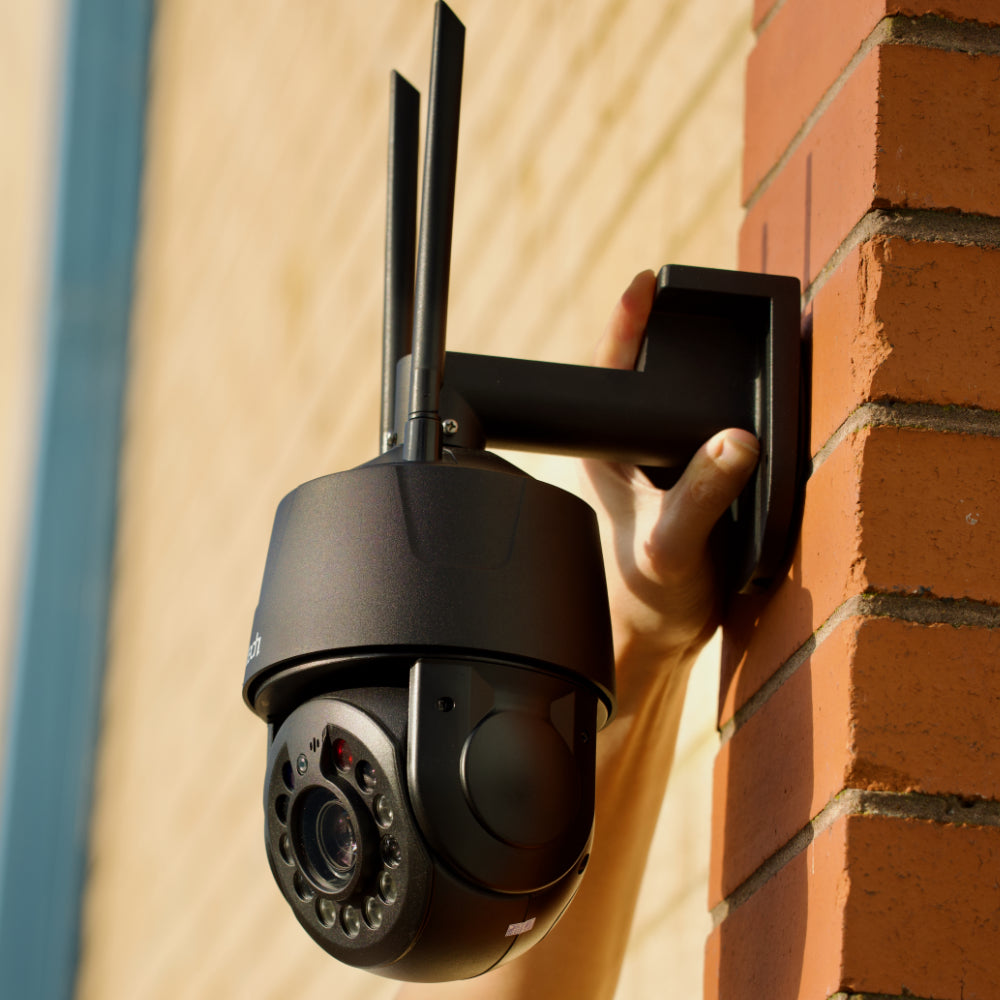

Ultra Strong Wireless Signal
Our latest PTZ camera system delivers unparalleled wireless connectivity up to 300 metres in open spaces, thanks to its powerful 8dB antenna – an alternative to the broad range 3dB antennas. This ensures a more focused and directional signal, ideal for large sites. However, the range can vary with walls or doors. We advise against using mesh routers as they may disrupt continuous footage. Experience fewer dropouts and superior signal strength with our state-of-the-art CCTV system.
128GB SD Card Slot
Equip your CCTV cameras with built-in SD card slots for added peace of mind. Insert up to 128GB of storage to continuously capture footage. Utilising loop-recording, the system automatically overwrites the oldest recordings when full. While these slots offer emergency backup, an external recorder is recommended as the primary storage solution to ensure uninterrupted surveillance. Ensure safety even when the primary recorder faces issues.

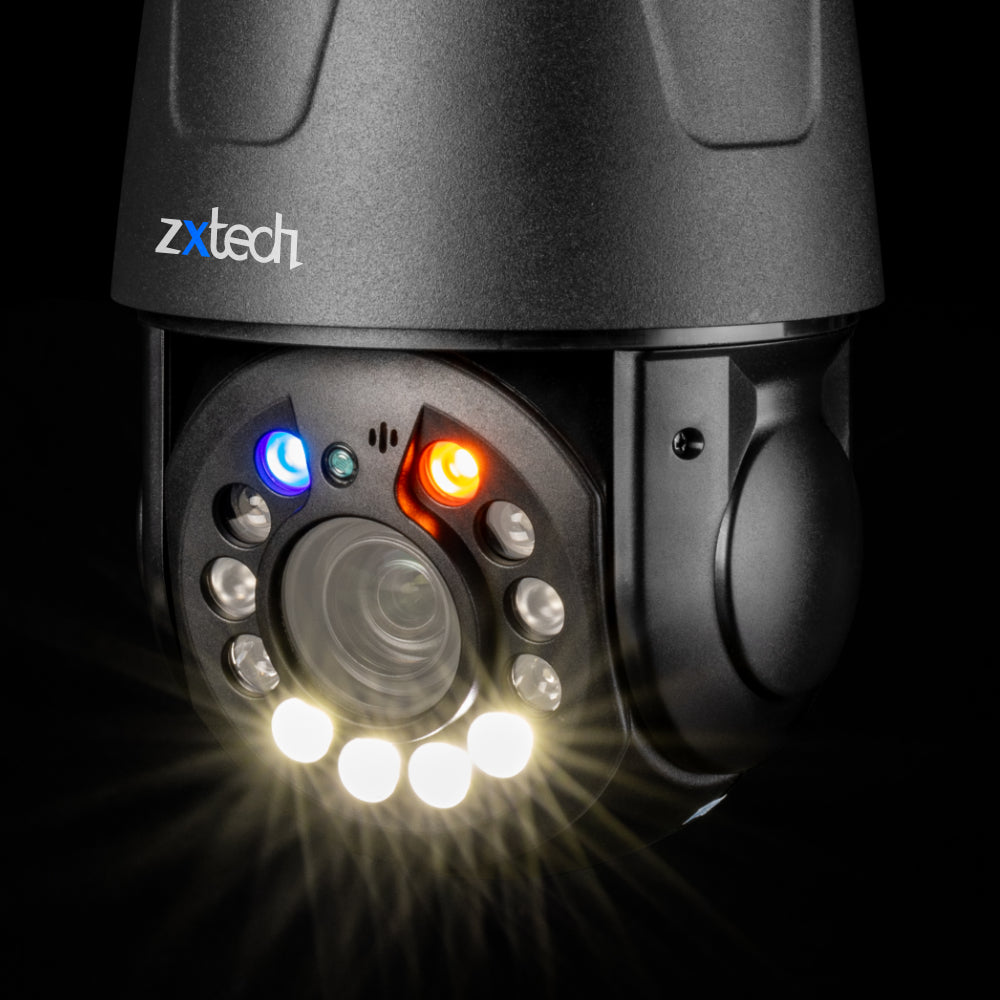

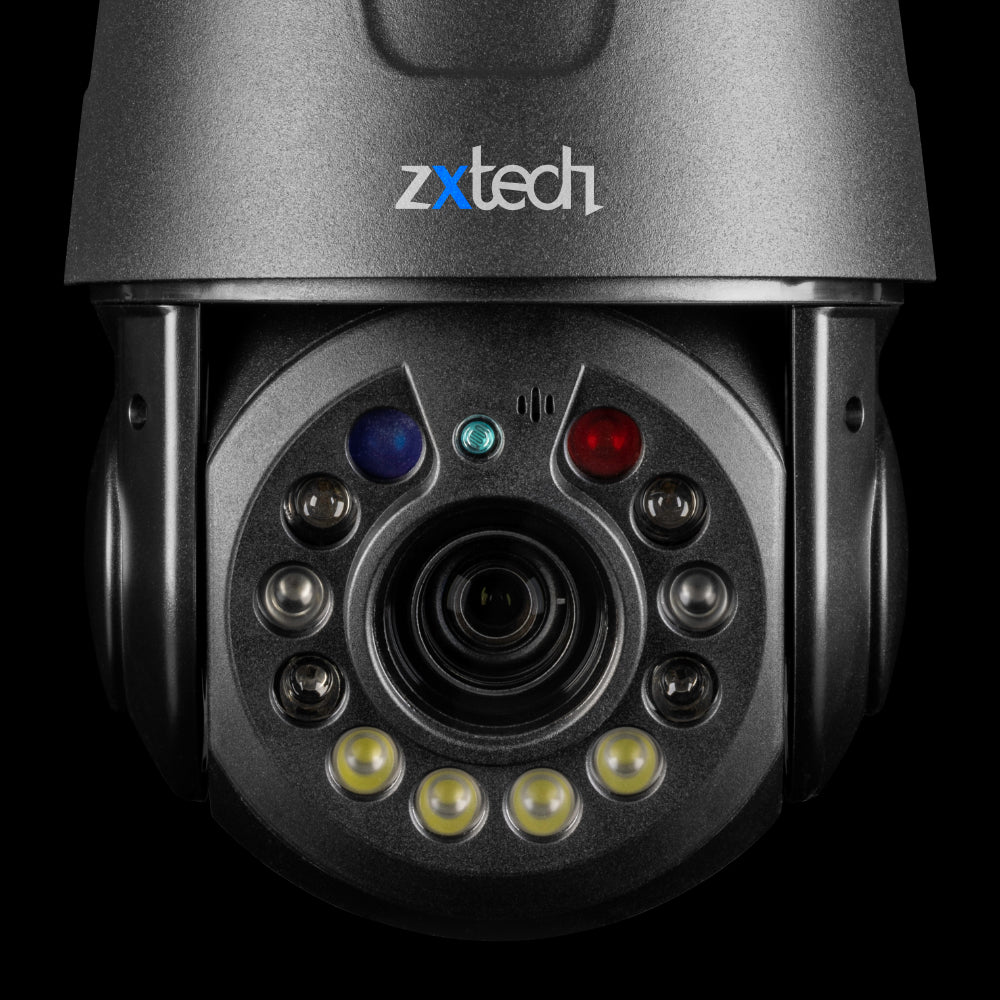

Blue & Red Light
Optional Siren Alert
Enhance your security with the 20X zoom option, featuring a blue and red blinking siren light that serves as a powerful deterrent to potential intruders. This feature can be easily disabled if it becomes disruptive, allowing you to tailor the system to your preferences.
CCTV Kits enhanced by AI Technology
Wireless PTZ System Motion Detection Features
Loaded with AI Features
Discover the advanced capabilities of Zxtech Tropox's built-in AI software. Featuring precise face and humanoid detection, it promptly highlights intruders with an optional yellow frame. Configure alarms with five distinct alert options directly from the camera and app. Move beyond traditional motion detection and embrace accurate human shape identification. Set up is swift with our free app, ensuring real-time alerts for utmost security.

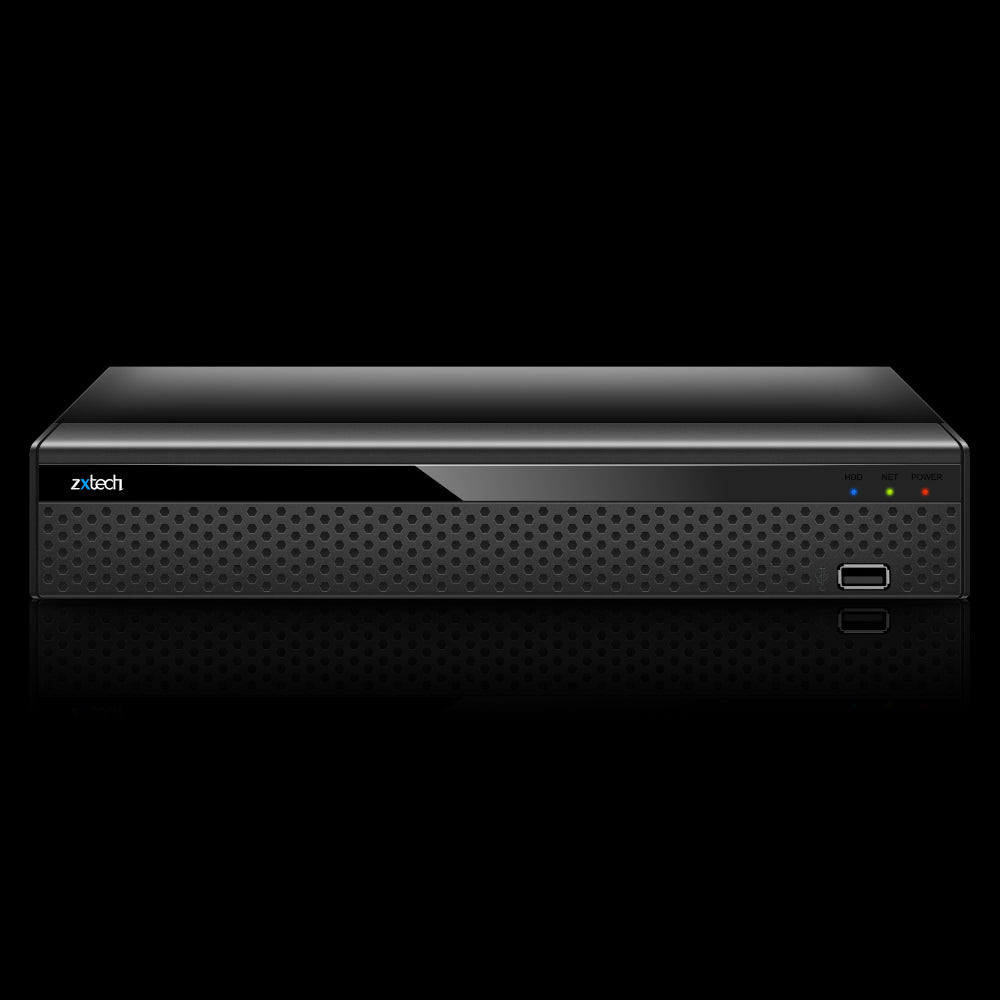

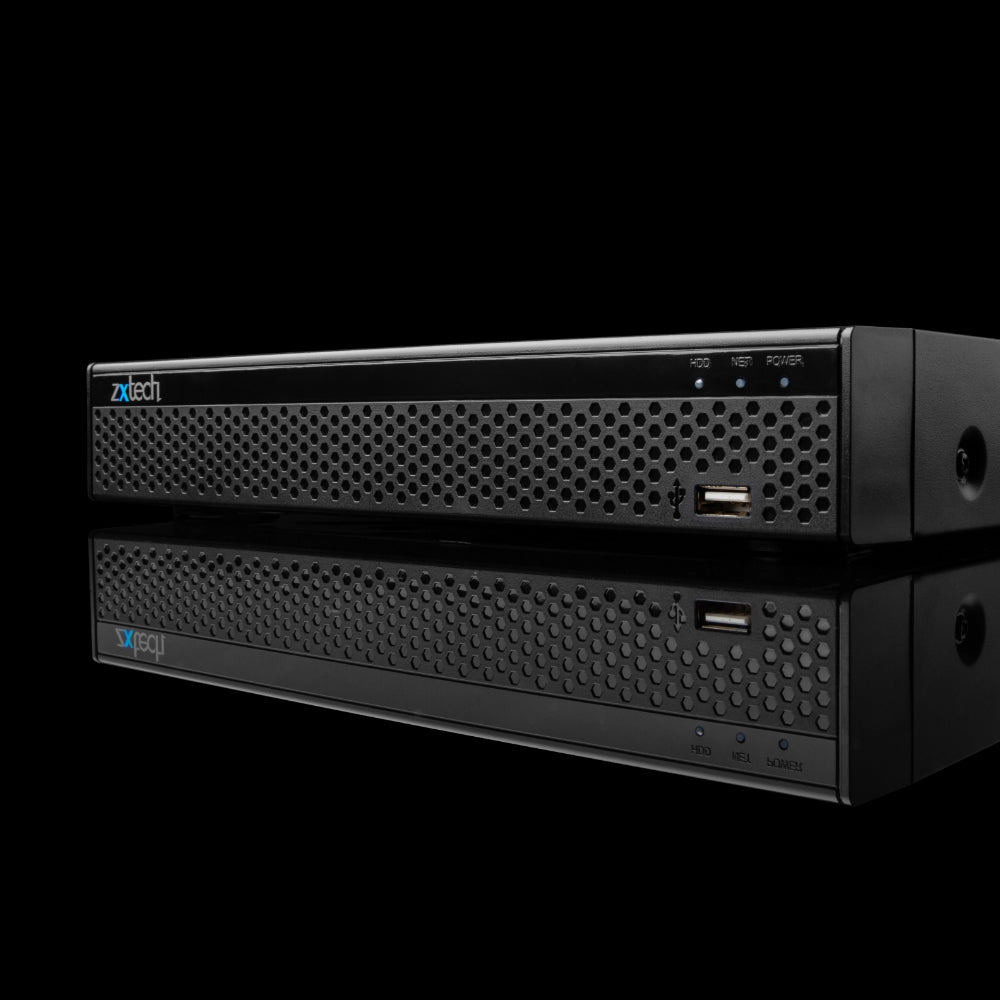

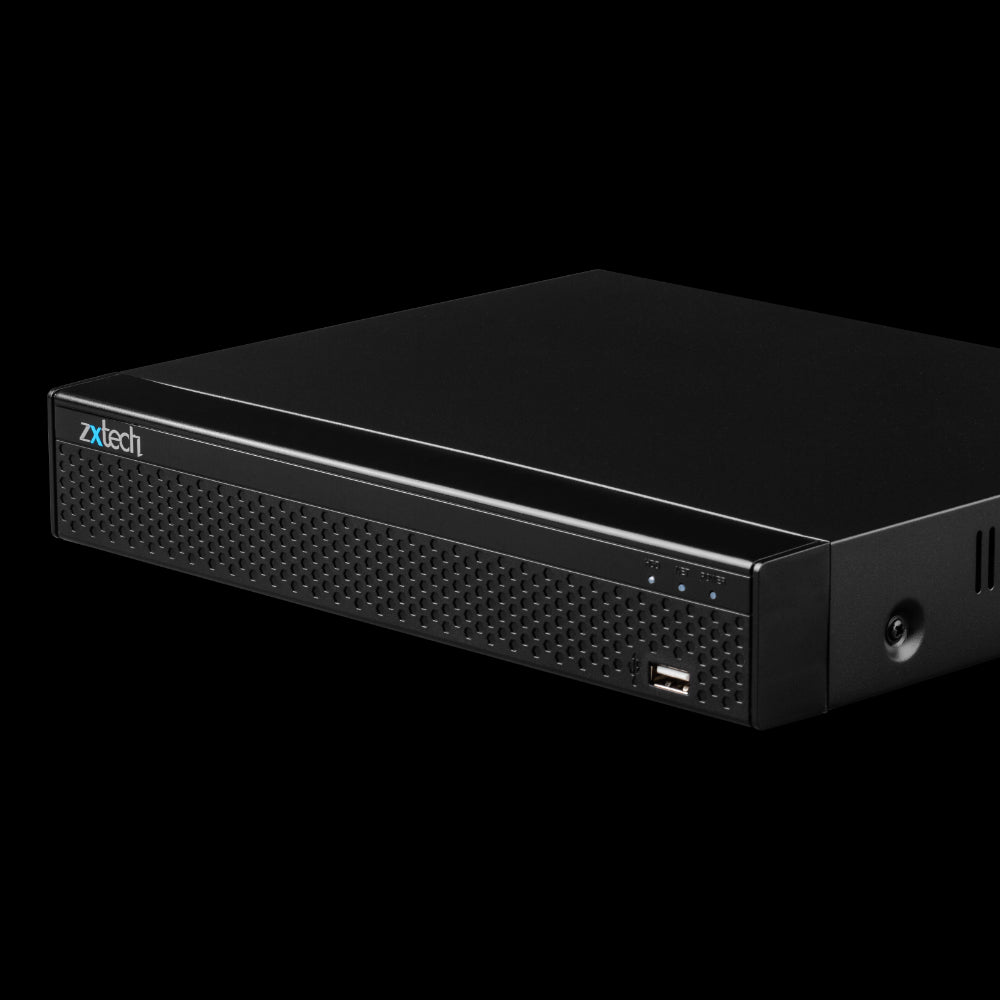

Wireless CCTV System backed by the Best Zxtech NVR
Wireless PTZ System NVR Features
Experience next-level surveillance with our state-of-the-art NVR unit. This compact and modern recorder supports motion detection alerts and has built-in audio and USB ports. Utilising H.265+ technology, save storage with efficient footage compression, and enjoy the convenience of connecting up to 9 IP cameras, including future 4K expansions. Easily access your cameras on-the-go via mobile. With 5MP video quality, up to 8TB HDD capacity, and continuous loop recording, never miss a moment and always stay in the know. Upgrade your security with our seamless solution.

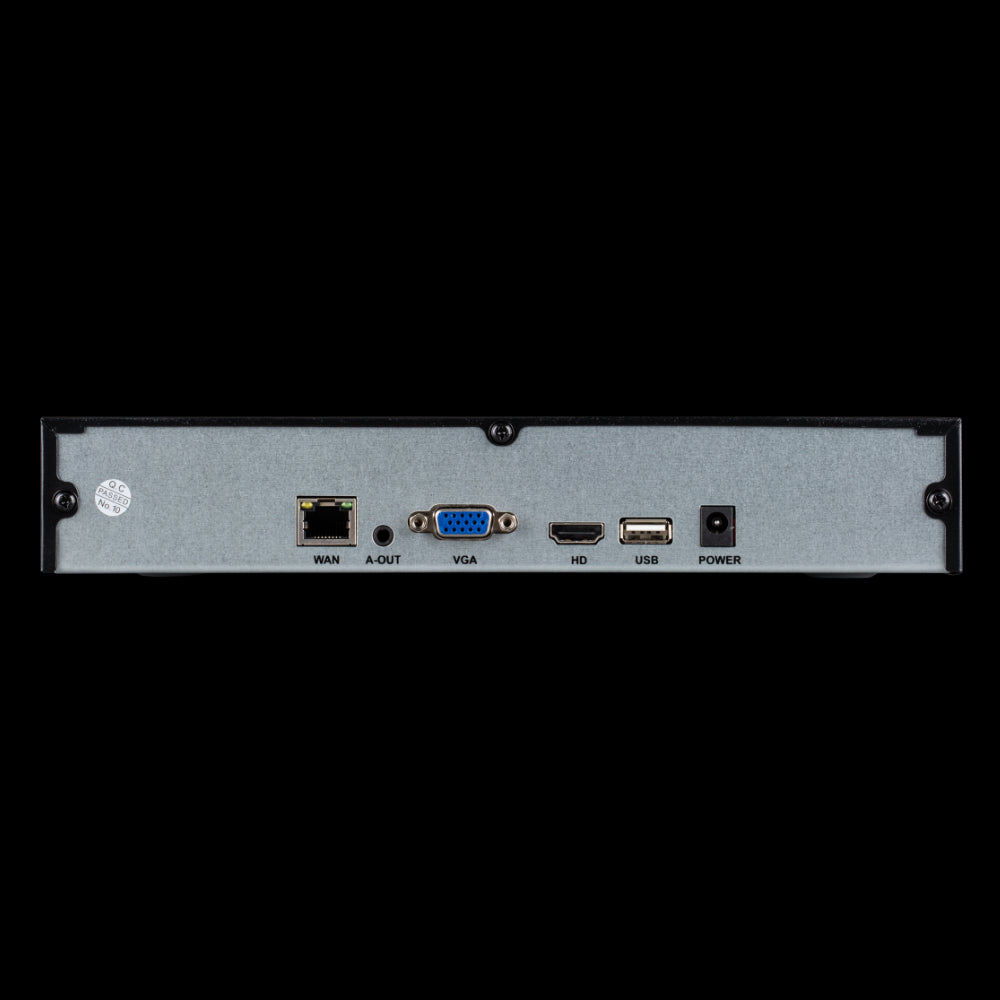

Network Connection
Connect your home router or switch to get online.
HDMI + VGA
You can connect up to 2 displays or monitors at the same time.
2x USB
The NVR has a USB port on the front and another on the back, allowing for easy connection of a mouse or memory stick to seamless extract CCTV footage from the hard drive.
Audio Out & Audio In
Connect external speakers to playback sound if the camera supports audio recording. Also you can connect external microphone to the recorder.
With Loop Recording
Maximized HDD for "Marathon" Recording.
The comprehensive wireless CCTV system offers the option of an impressive 8TB of hard drive storage. Coupled with the H265+ compression technology, your recordings will consume significantly less space. This means your 8TB hard drive can store up to 4 times more footage than the older H264 format. Thanks to the automatic loop recording feature, your footage will automatically roll over, overwriting the oldest clips. You'll never lose any crucial evidence.
Complete Wireless System Enhanced by the Latest Technology
Wireless PTZ System Features
Discover Zxtech's revitalised CCTV NVR System - sleek design meets intuitive UI for an unparalleled user experience. Dive into a fresh live view, playback, and configuration space. Compatible with most ONVIF 2.4+ IP cameras, enjoy Super HD clarity and manage with ease both locally and remotely. Harness the power of motion detection, save space, and stay informed with real-time mobile alerts via the free Bitvision app. Storage options extend up to a whopping 8TB. Elevate your surveillance game.
Mac, PC, Smart Phone, TV
Access on Any Device, Any Time
PC, Mac
Download the latest version of the iVMS software for your PC or Mac. This allows you to remotely monitor and review footage from your CCTV system, ensuring you stay connected wherever you are, anytime you need.
2 Screen TV Setup
Experience seamless surveillance with our 5MP CCTV NVR, featuring inbuilt HDMI and VGA ports. Connect and view on two monitors simultaneously, perfect for multi-room monitoring. Whether in your living room or home office, achieve easy and hassle-free dual-screen surveillance. Simply use VGA for one and HDMI for the other, and you're set.
Smart Phone
In today's world, smartphones are indispensable, and so should your CCTV system be. Download the latest BitVision app to monitor, view, playback, and share your CCTV footage anytime, anywhere.
Technical Specification
Compare Line Up
Tropox 5X/10X PTZ Spec
|
Sensor |
1/2.8” SONY335 + Hisilicon |
|
Frame Rate |
5MP, 2560×1920 @ 20fps |
|
Image Adjustment |
Brightness, Contrast, Saturation, Sharpness |
|
Compression |
H.265/H.264 |
|
White Balance, BLC |
Automatic |
|
Lens |
2.7–13.5mm 5X Zoom or 5-50mm 10X Zoom Auto-Focus Lens Options |
|
IR LED |
10 PCS Smart Dual Light Source (IR & White LEDs) |
|
Buttons |
Reset Button, Power Supply Button |
|
Ethernet |
RJ45 Ethernet |
|
Night Vision |
IR Range: 40M |
|
Rotation Angle |
Horizontal: 0°–355°, Vertical: 0°–120° |
|
Horizontal Speed |
1°–40°/s |
|
Vertical Speed |
1°–20°/s |
|
Type |
Two-Way Audio |
|
Hardware |
Microphone & Speaker |
|
Alarm Detection |
Human Detection Alarm, App Alarm Notification, Upload Pictures/Videos to FTP, Siren Alarm |
|
TF Card |
Max Support 128GB |
|
NVR |
Supported |
|
WiFi |
802.11b/g/n 2.4 GHz Wi-Fi & 5 GHz Wi-Fi |
|
ONVIF Protocol |
ONVIF 2.4 |
|
Download |
iOS (App Store), Android (Google Play) |
|
App Name |
CamHiPro |
|
CMS |
HiP2P |
|
Notification |
Push Notification Within 1–2 Seconds |
|
Power |
12V DC |
|
Waterproof Rating |
IP66 Metal Housing |
|
Materials |
Full Metal Housing |
|
Package Size |
225×205×120mm (L×W×H) |
|
Gross Weight |
1.2kg |
|
Temperature |
-20°C~55°C |
|
Humidity |
10–85% RH |
Tropox 20X PTZ Spec
|
Sensor |
1/3” Sony IMX415 + Sigmastar SSC338 |
|
Frame Rate |
8.0MP, 1–20fps |
|
Image Adjustment |
Brightness, Contrast, Saturation, Sharpness |
|
White Balance, BLC |
Automatic |
|
Lens |
5–90mm, Auto Focus |
|
Lights |
IR Lights + Blue & Red Alarm Lights |
|
Motion Detection |
Human Shape AI Tracking |
|
Buttons |
Reset Button, Power Supply Button |
|
Ethernet |
RJ45 Ethernet |
|
Night Vision |
IR Range: 150M |
|
Rotation Angle |
Horizontal: 0°–355°, Vertical: 0°–120° |
|
Horizontal Speed |
1°–40°/s |
|
Vertical Speed |
1°–20°/s |
|
Housing |
IP66 Waterproof Metal Housing |
|
Type |
Two-Way Audio |
|
Hardware |
Microphone & Speaker |
|
Alarm Detection |
Blue & Red Alarm Lights, Siren Alarm, Message and Email Notifications, FTP Uploads |
|
TF Card |
Supports up to 128GB |
|
WiFi |
IEEE 802.11 b/g/n |
|
ONVIF Protocol |
ONVIF 2.4 |
|
Download |
iOS (App Store), Android (Google Play) |
|
App Name |
CamHiPro |
|
CMS |
HiP2P |
|
Notification |
Push Notification Within 1–2 Seconds |
|
Power |
12V DC |
|
Waterproof Rate |
IP66 |
|
Materials |
Full Metal Housing |
|
Temperature |
-20°C~55°C |
|
Humidity |
10–85% RH |
NVR Spec
|
Main Processor |
Dual Cortex A53 |
|
Operating System |
Embedded LINUX |
|
Video Input |
9CH (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF) |
|
Video Output |
1 HD, 1 VGA |
|
Audio Input |
1 Port RCA, supports 9CH IPC audio input |
|
Audio Output |
1 Port RCA (Linear, 1kΩ), HD output |
|
Audio Bit Rate |
64kbps |
|
Audio Compression |
G711U, G711A, AAC |
|
Intercom |
Two-way supported |
|
Sensor Input |
N/A |
|
Alarm Output |
N/A |
|
Motion Detection |
9 Channels, MD Zones: 396 (22 × 18) |
|
Trigger Events |
Recording, Email, FTP, Snapshot, Screen Tips |
|
HD Output 1 |
4K (3840×2160), 2K (2560×1440), 1920×1080, 1280×1024, 1280×720, 1024×768 |
|
HD Output 2 |
N/A |
|
VGA |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1CH, 2CH, 4CH, 6CH, 8CH, 9CH |
|
Digital Zoom |
Yes |
|
OSD |
Camera Title, Time, Recording, Motion Detection, Event Alarm |
|
Video Compression |
H265/H264/H265+/H264+ |
|
Resolution |
12MP (4000×3000), 8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP (2688×1520/2560×1440), 3MP (2048×1536), 1080P (1920×1080), 1280×1024, 960P (1280×960), 720P (1280×720), 960H (960×480), D1 (720×576/720×480) |
|
Record Rate |
PAL: 12MP@6CHx25fps, 4K@9CHx25fps, 5MP@9CHx25fps, 4MP@9CHx25fps, 3MP@9CHx25fps, 1080P@9CHx25fps, 960P@9CHx25fps, 720P@9CHx25fps, D1@9CHx25fps NTSC: 12MP@6CHx30fps, 4K@9CHx30fps, 5MP@9CHx30fps, 4MP@9CHx30fps, 3MP@9CHx30fps, 1080P@9CHx30fps, 960P@9CHx30fps, 720P@9CHx30fps, D1@9CHx30fps |
|
Record Mode |
Manual, Timer, Motion Detection, Smart Event |
|
Local Sync Playback |
1CH 12MP@30fps, 1CH 8MP@30fps, 2CH 5MP@30fps, 4CH 4MP@30fps, 7CH 1080P@30fps, 9CH 720P@30fps, 9CH D1@30fps |
|
Decode Capability |
1080P (1920×1080) @210fps |
|
Remote Sync Playback |
Yes |
|
Search Mode |
All, Timing Video, Motion Detection, Tag Search, Smart Event, Picture, Log |
|
Playback Functions |
Play, Pause, Fast Forward, Rewind, Previous Frame, Next Frame, Electronic Zoom, Clip, Audio |
|
Backup Mode |
USB Device, Network |
|
Network Interface |
1 x RJ45 (10M/100M Adaptive Ethernet Interface) |
|
Incoming Bandwidth |
80Mbps |
|
Outgoing Bandwidth |
80Mbps |
|
Network Functions |
IPv4/IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE |
|
Onvif |
Profile S, Profile T |
|
Web Browser |
Edge, IE8-11, Google Chrome, Firefox, Safari |
|
CMS Software |
Supports Windows 7/8/10/11 and MAC OS |
|
Cloud Support |
Yes |
|
Smartphone Support |
iPhone, Android |
|
POE |
N/A |
|
WiFi |
N/A |
|
Interface Type |
1 SATA Hard Disk Interface (3.5” SATA) |
|
Capacity |
Up to 10TB |
|
eSATA |
N/A |
|
Language UI |
Simplified Chinese, Traditional Chinese, English, Polski, Czech, Russian, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Japanese, Ukrainian, Kazakh |
|
USB Interface |
2 USB 2.0 Interfaces |
|
RS485 |
N/A |
|
Power Consumption |
DC12V/2A ≤ 10W (Without Hard Disk) |
|
Working Environment |
-10℃~50℃, 10%~90% (Humidity) |
|
Product Dimensions |
260×230×43 mm |
|
Net Weight |
0.85kg (without HDD) |
|
Gross Weight |
1.17kg (without HDD) |
|
Sensor |
1/2.8” SONY335 + Hisilicon |
|
Frame Rate |
5MP, 2560×1920 @ 20fps |
|
Image Adjustment |
Brightness, Contrast, Saturation, Sharpness |
|
Compression |
H.265/H.264 |
|
White Balance, BLC |
Automatic |
|
Lens |
2.7–13.5mm 5X Zoom or 5-50mm 10X Zoom Auto-Focus Lens Options |
|
IR LED |
10 PCS Smart Dual Light Source (IR & White LEDs) |
|
Buttons |
Reset Button, Power Supply Button |
|
Ethernet |
RJ45 Ethernet |
|
Night Vision |
IR Range: 40M |
|
Rotation Angle |
Horizontal: 0°–355°, Vertical: 0°–120° |
|
Horizontal Speed |
1°–40°/s |
|
Vertical Speed |
1°–20°/s |
|
Type |
Two-Way Audio |
|
Hardware |
Microphone & Speaker |
|
Alarm Detection |
Human Detection Alarm, App Alarm Notification, Upload Pictures/Videos to FTP, Siren Alarm |
|
TF Card |
Max Support 128GB |
|
NVR |
Supported |
|
WiFi |
802.11b/g/n 2.4 GHz Wi-Fi & 5 GHz Wi-Fi |
|
ONVIF Protocol |
ONVIF 2.4 |
|
Download |
iOS (App Store), Android (Google Play) |
|
App Name |
CamHiPro |
|
CMS |
HiP2P |
|
Notification |
Push Notification Within 1–2 Seconds |
|
Power |
12V DC |
|
Waterproof Rating |
IP66 Metal Housing |
|
Materials |
Full Metal Housing |
|
Package Size |
225×205×120mm (L×W×H) |
|
Gross Weight |
1.2kg |
|
Temperature |
-20°C~55°C |
|
Humidity |
10–85% RH |
|
Sensor |
1/3” Sony IMX415 + Sigmastar SSC338 |
|
Frame Rate |
8.0MP, 1–20fps |
|
Image Adjustment |
Brightness, Contrast, Saturation, Sharpness |
|
White Balance, BLC |
Automatic |
|
Lens |
5–90mm, Auto Focus |
|
Lights |
IR Lights + Blue & Red Alarm Lights |
|
Motion Detection |
Human Shape AI Tracking |
|
Buttons |
Reset Button, Power Supply Button |
|
Ethernet |
RJ45 Ethernet |
|
Night Vision |
IR Range: 150M |
|
Rotation Angle |
Horizontal: 0°–355°, Vertical: 0°–120° |
|
Horizontal Speed |
1°–40°/s |
|
Vertical Speed |
1°–20°/s |
|
Housing |
IP66 Waterproof Metal Housing |
|
Type |
Two-Way Audio |
|
Hardware |
Microphone & Speaker |
|
Alarm Detection |
Blue & Red Alarm Lights, Siren Alarm, Message and Email Notifications, FTP Uploads |
|
TF Card |
Supports up to 128GB |
|
WiFi |
IEEE 802.11 b/g/n |
|
ONVIF Protocol |
ONVIF 2.4 |
|
Download |
iOS (App Store), Android (Google Play) |
|
App Name |
CamHiPro |
|
CMS |
HiP2P |
|
Notification |
Push Notification Within 1–2 Seconds |
|
Power |
12V DC |
|
Waterproof Rate |
IP66 |
|
Materials |
Full Metal Housing |
|
Temperature |
-20°C~55°C |
|
Humidity |
10–85% RH |
|
Main Processor |
Dual Cortex A53 |
|
Operating System |
Embedded LINUX |
|
Video Input |
9CH (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF) |
|
Video Output |
1 HD, 1 VGA |
|
Audio Input |
1 Port RCA, supports 9CH IPC audio input |
|
Audio Output |
1 Port RCA (Linear, 1kΩ), HD output |
|
Audio Bit Rate |
64kbps |
|
Audio Compression |
G711U, G711A, AAC |
|
Intercom |
Two-way supported |
|
Sensor Input |
N/A |
|
Alarm Output |
N/A |
|
Motion Detection |
9 Channels, MD Zones: 396 (22 × 18) |
|
Trigger Events |
Recording, Email, FTP, Snapshot, Screen Tips |
|
HD Output 1 |
4K (3840×2160), 2K (2560×1440), 1920×1080, 1280×1024, 1280×720, 1024×768 |
|
HD Output 2 |
N/A |
|
VGA |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1CH, 2CH, 4CH, 6CH, 8CH, 9CH |
|
Digital Zoom |
Yes |
|
OSD |
Camera Title, Time, Recording, Motion Detection, Event Alarm |
|
Video Compression |
H265/H264/H265+/H264+ |
|
Resolution |
12MP (4000×3000), 8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP (2688×1520/2560×1440), 3MP (2048×1536), 1080P (1920×1080), 1280×1024, 960P (1280×960), 720P (1280×720), 960H (960×480), D1 (720×576/720×480) |
|
Record Rate |
PAL: 12MP@6CHx25fps, 4K@9CHx25fps, 5MP@9CHx25fps, 4MP@9CHx25fps, 3MP@9CHx25fps, 1080P@9CHx25fps, 960P@9CHx25fps, 720P@9CHx25fps, D1@9CHx25fps NTSC: 12MP@6CHx30fps, 4K@9CHx30fps, 5MP@9CHx30fps, 4MP@9CHx30fps, 3MP@9CHx30fps, 1080P@9CHx30fps, 960P@9CHx30fps, 720P@9CHx30fps, D1@9CHx30fps |
|
Record Mode |
Manual, Timer, Motion Detection, Smart Event |
|
Local Sync Playback |
1CH 12MP@30fps, 1CH 8MP@30fps, 2CH 5MP@30fps, 4CH 4MP@30fps, 7CH 1080P@30fps, 9CH 720P@30fps, 9CH D1@30fps |
|
Decode Capability |
1080P (1920×1080) @210fps |
|
Remote Sync Playback |
Yes |
|
Search Mode |
All, Timing Video, Motion Detection, Tag Search, Smart Event, Picture, Log |
|
Playback Functions |
Play, Pause, Fast Forward, Rewind, Previous Frame, Next Frame, Electronic Zoom, Clip, Audio |
|
Backup Mode |
USB Device, Network |
|
Network Interface |
1 x RJ45 (10M/100M Adaptive Ethernet Interface) |
|
Incoming Bandwidth |
80Mbps |
|
Outgoing Bandwidth |
80Mbps |
|
Network Functions |
IPv4/IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE |
|
Onvif |
Profile S, Profile T |
|
Web Browser |
Edge, IE8-11, Google Chrome, Firefox, Safari |
|
CMS Software |
Supports Windows 7/8/10/11 and MAC OS |
|
Cloud Support |
Yes |
|
Smartphone Support |
iPhone, Android |
|
POE |
N/A |
|
WiFi |
N/A |
|
Interface Type |
1 SATA Hard Disk Interface (3.5” SATA) |
|
Capacity |
Up to 10TB |
|
eSATA |
N/A |
|
Language UI |
Simplified Chinese, Traditional Chinese, English, Polski, Czech, Russian, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Japanese, Ukrainian, Kazakh |
|
USB Interface |
2 USB 2.0 Interfaces |
|
RS485 |
N/A |
|
Power Consumption |
DC12V/2A ≤ 10W (Without Hard Disk) |
|
Working Environment |
-10℃~50℃, 10%~90% (Humidity) |
|
Product Dimensions |
260×230×43 mm |
|
Net Weight |
0.85kg (without HDD) |
|
Gross Weight |
1.17kg (without HDD) |
Find the Right HDD Size
Discover everyday privacy protections.
Privacy is Our Priority.
Privacy is a fundamental human right. At Domar CCTV, it is also one of our core values. Your devices are important to your safety. We sell our products to protect your privacy and give you control over your information. It's not always easy, but those are the principles we believe in.
Face Detection Data
Our cameras come with smart face detection features. Face detection data exist only on your device and can be deleted at any time. It does not go anywhere else. Face detection features can be turned off at any time.
Video Footage
Your security footage is protected by your password and cannot be accessed without it. Once you have changed the default password of the device, only manufacturer can reset it, after confirmation of purchase and identity.
Audio Data
Audio recording can be turned on and off if the camera is equipped with a microphone. It cannot be accessed without your password.
App Access
One device can link up with a single mobile app account. However, you may share it with another account and cease sharing at any time.
